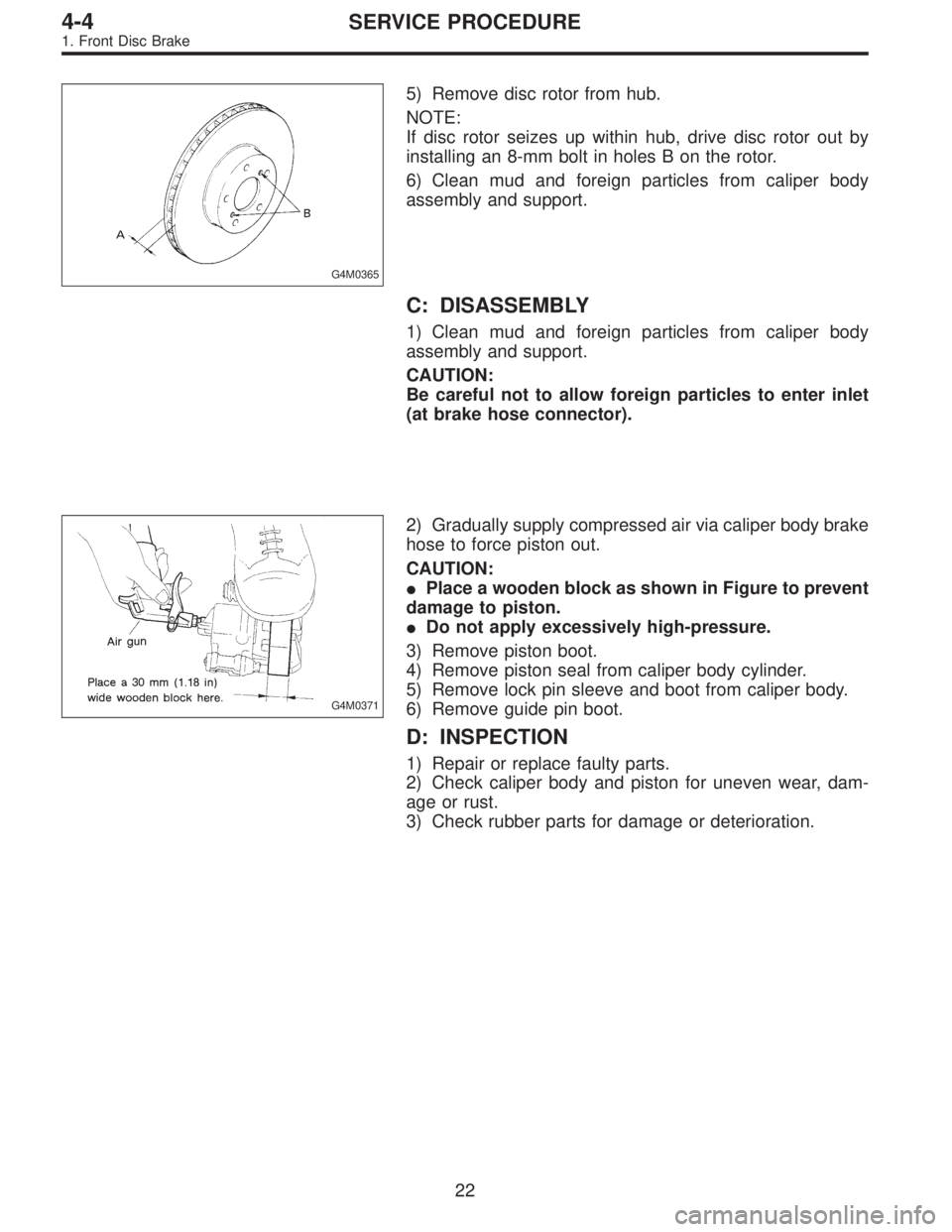

SUBARU LEGACY 1995 Service Repair Manual G4M0365 5) Remove disc rotor from hub. NOTE: If disc rotor seizes up within hub, drive disc rotor out by installing an 8-mm bolt in holes B on the rotor. 6) Clean mud and foreign particles from calipe

Page 738 of 2248

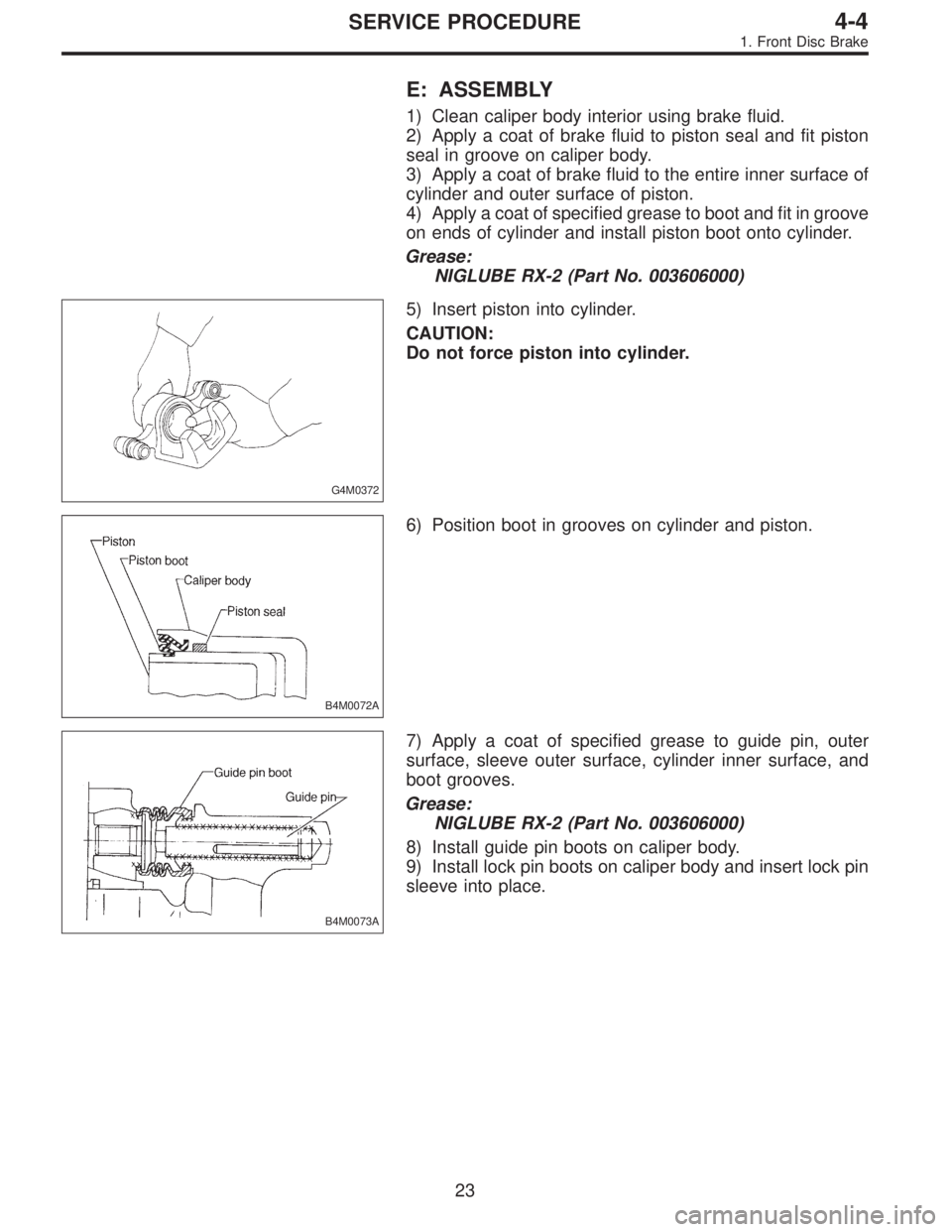

SUBARU LEGACY 1995 Service Repair Manual E: ASSEMBLY 1) Clean caliper body interior using brake fluid. 2) Apply a coat of brake fluid to piston seal and fit piston seal in groove on caliper body. 3) Apply a coat of brake fluid to the entire

Page 739 of 2248

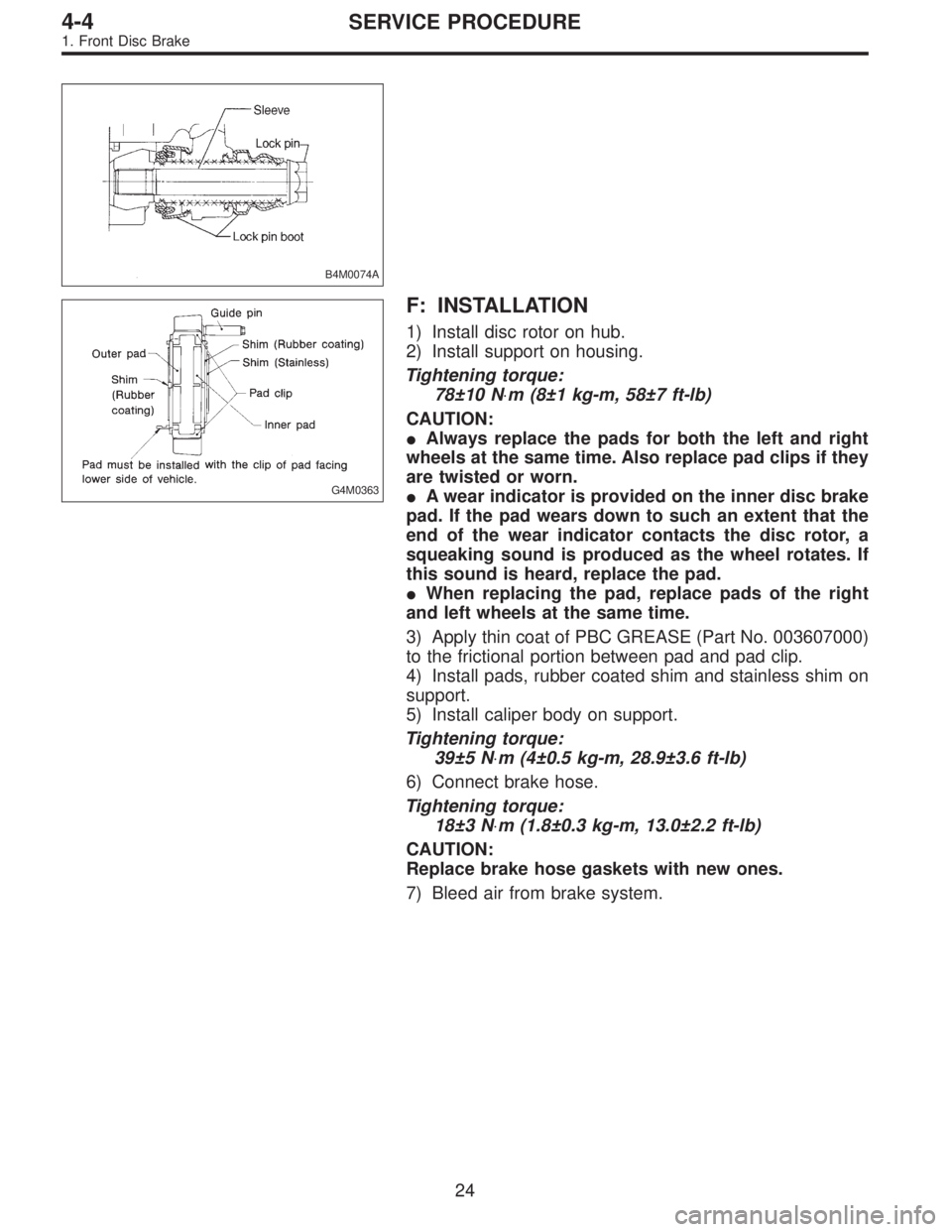

SUBARU LEGACY 1995 Service Repair Manual B4M0074A G4M0363 F: INSTALLATION 1) Install disc rotor on hub. 2) Install support on housing. Tightening torque: 78±10 N⋅m (8±1 kg-m, 58±7 ft-lb) CAUTION: Always replace the pads for both the le

Page 740 of 2248

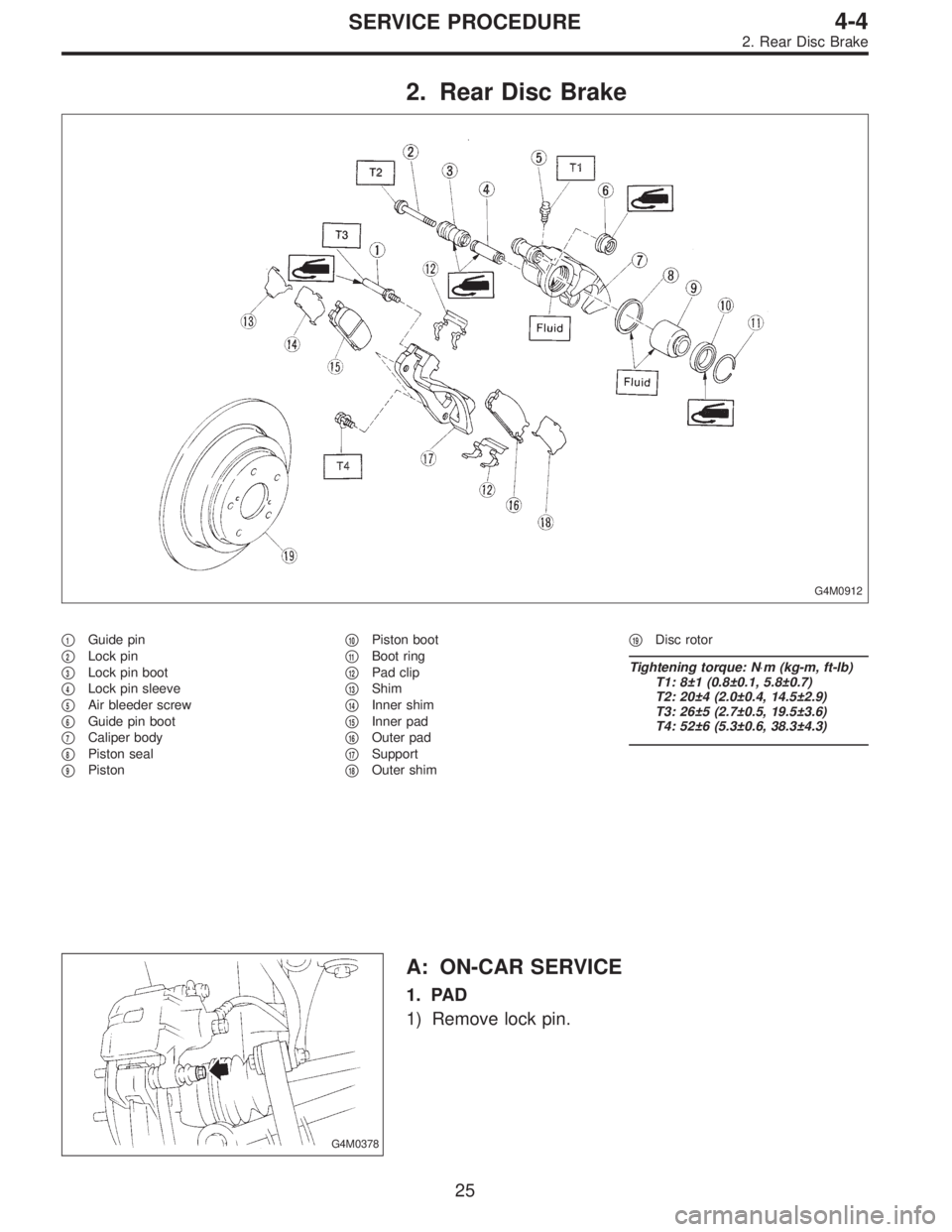

SUBARU LEGACY 1995 Service Repair Manual 2. Rear Disc Brake G4M0912 1Guide pin  2Lock pin  3Lock pin boot  4Lock pin sleeve  5Air bleeder screw  6Guide pin boot  7Caliper body  8Piston seal  9Piston 10Piston boot  11Boot ring  12

Page 741 of 2248

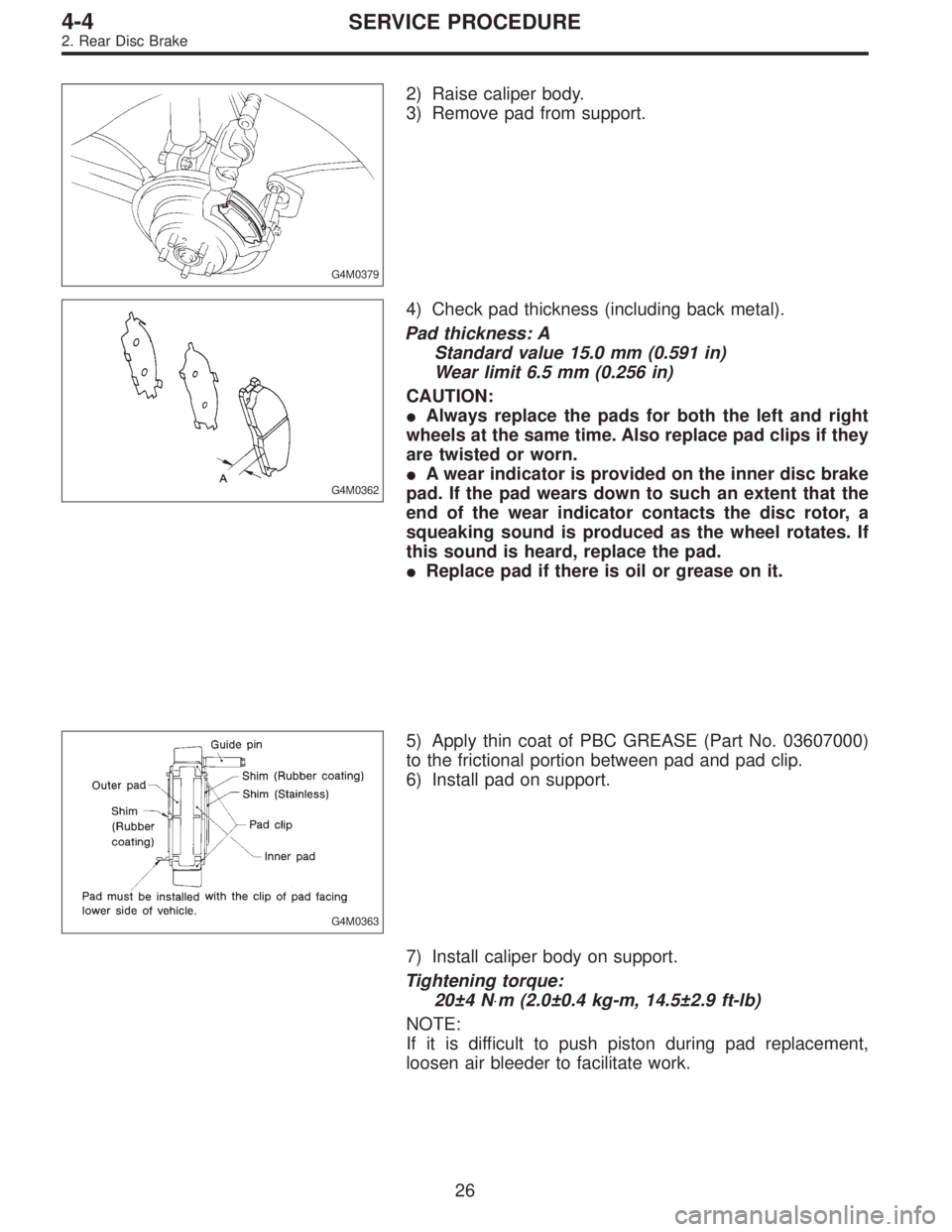

SUBARU LEGACY 1995 Service Repair Manual G4M0379 2) Raise caliper body. 3) Remove pad from support. G4M0362 4) Check pad thickness (including back metal). Pad thickness: A Standard value 15.0 mm (0.591 in) Wear limit 6.5 mm (0.256 in) CAUTIO

Page 742 of 2248

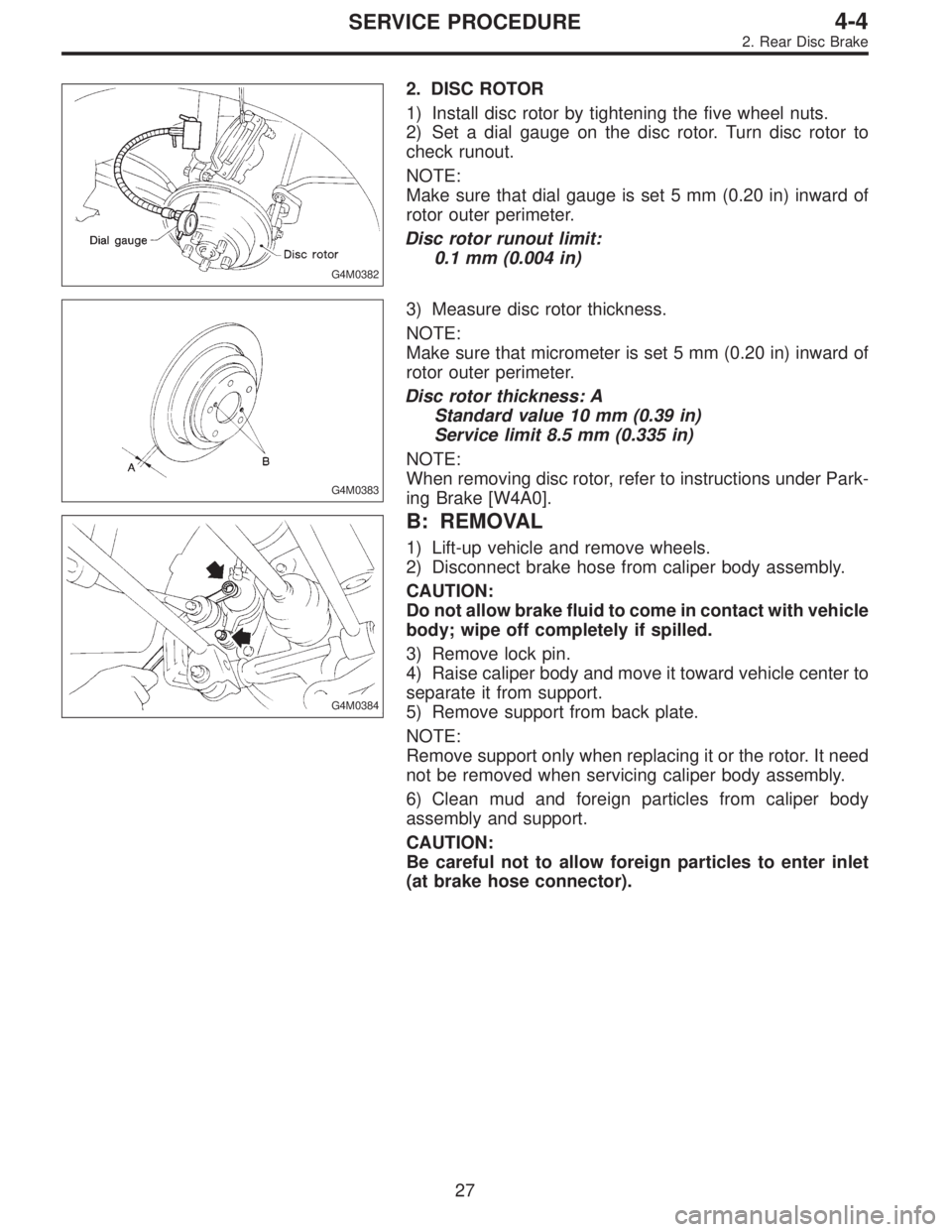

SUBARU LEGACY 1995 Service Repair Manual G4M0382 2. DISC ROTOR 1) Install disc rotor by tightening the five wheel nuts. 2) Set a dial gauge on the disc rotor. Turn disc rotor to check runout. NOTE: Make sure that dial gauge is set 5 mm (0.20

Page 743 of 2248

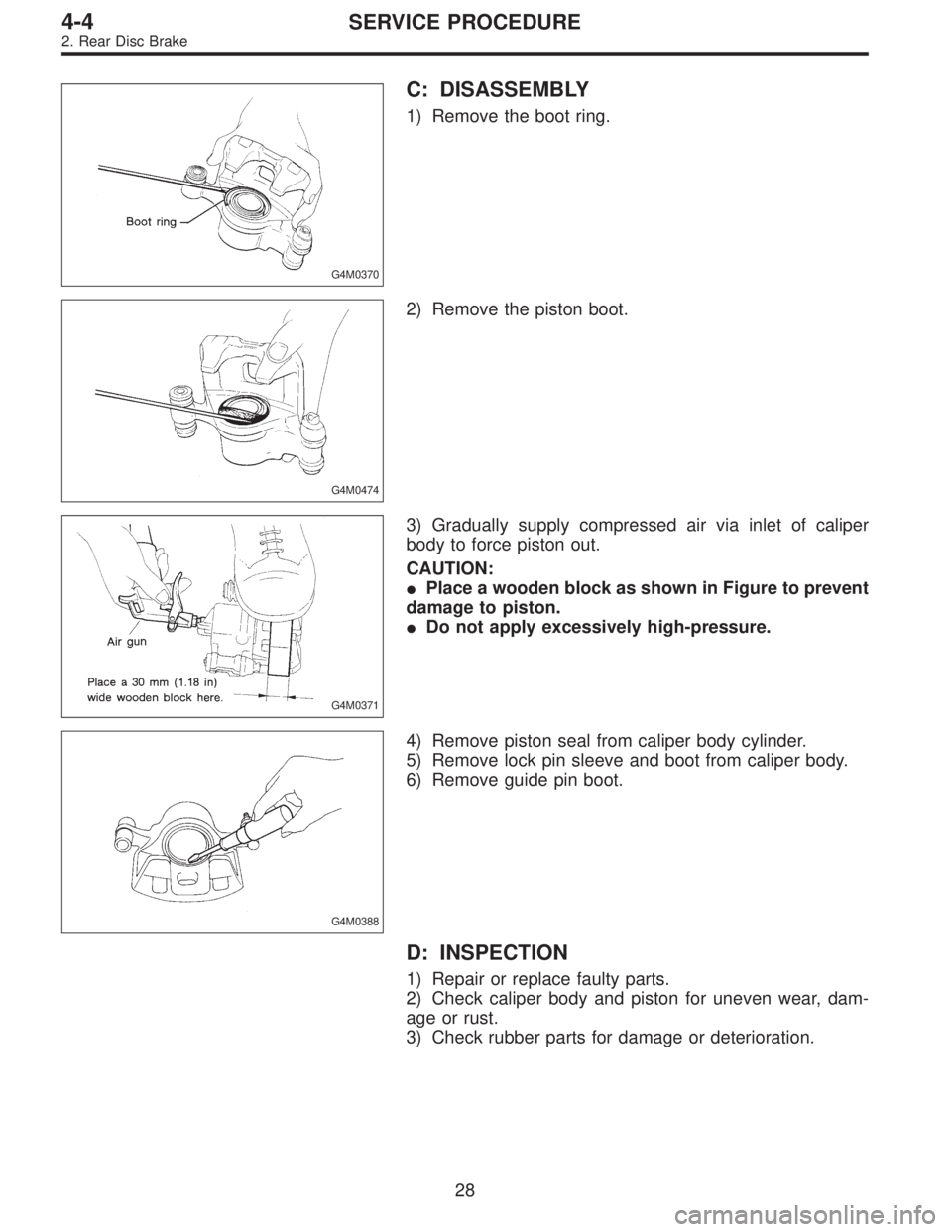

SUBARU LEGACY 1995 Service Repair Manual G4M0370 C: DISASSEMBLY 1) Remove the boot ring. G4M0474 2) Remove the piston boot. G4M0371 3) Gradually supply compressed air via inlet of caliper body to force piston out. CAUTION: Place a wooden bl

Page 744 of 2248

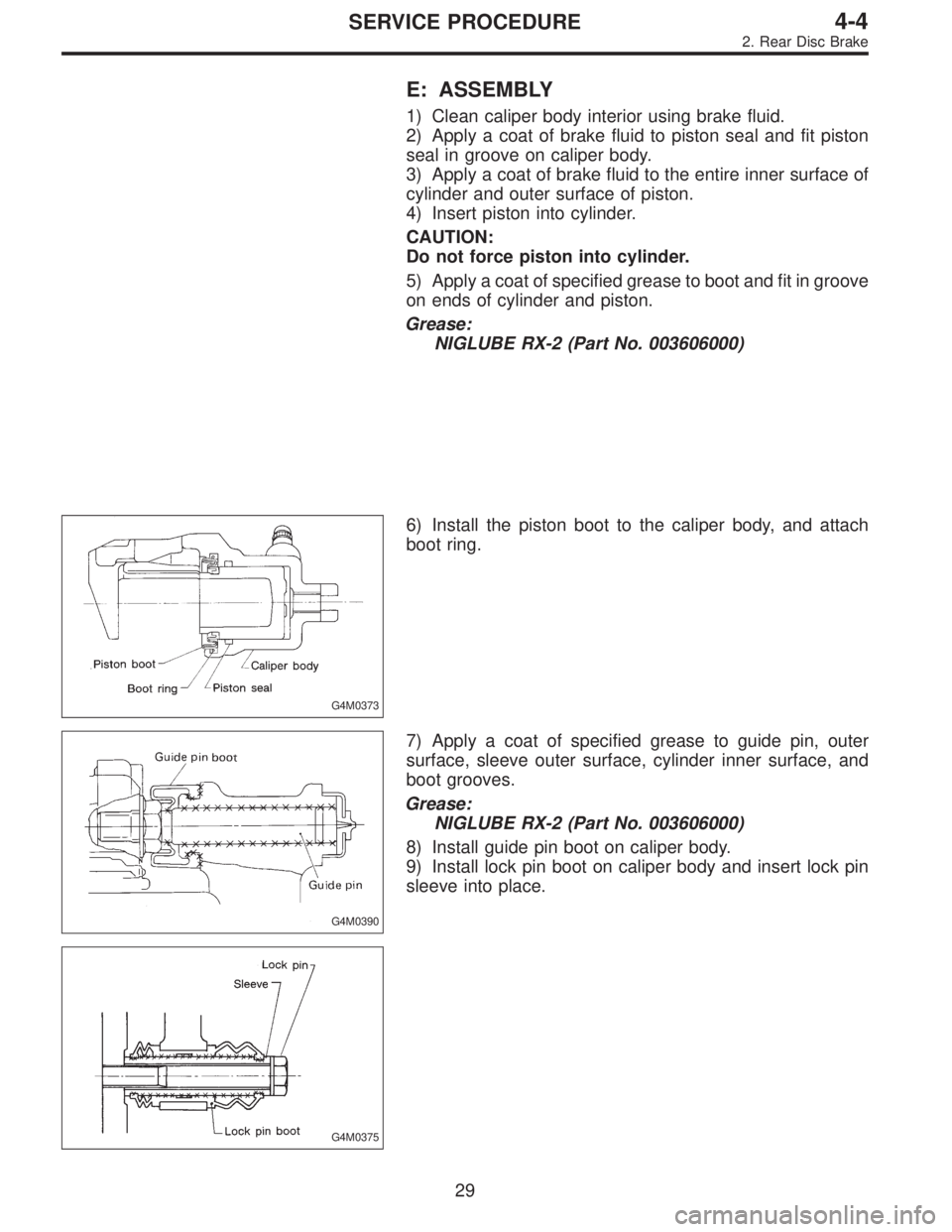

SUBARU LEGACY 1995 Service Repair Manual E: ASSEMBLY 1) Clean caliper body interior using brake fluid. 2) Apply a coat of brake fluid to piston seal and fit piston seal in groove on caliper body. 3) Apply a coat of brake fluid to the entire
