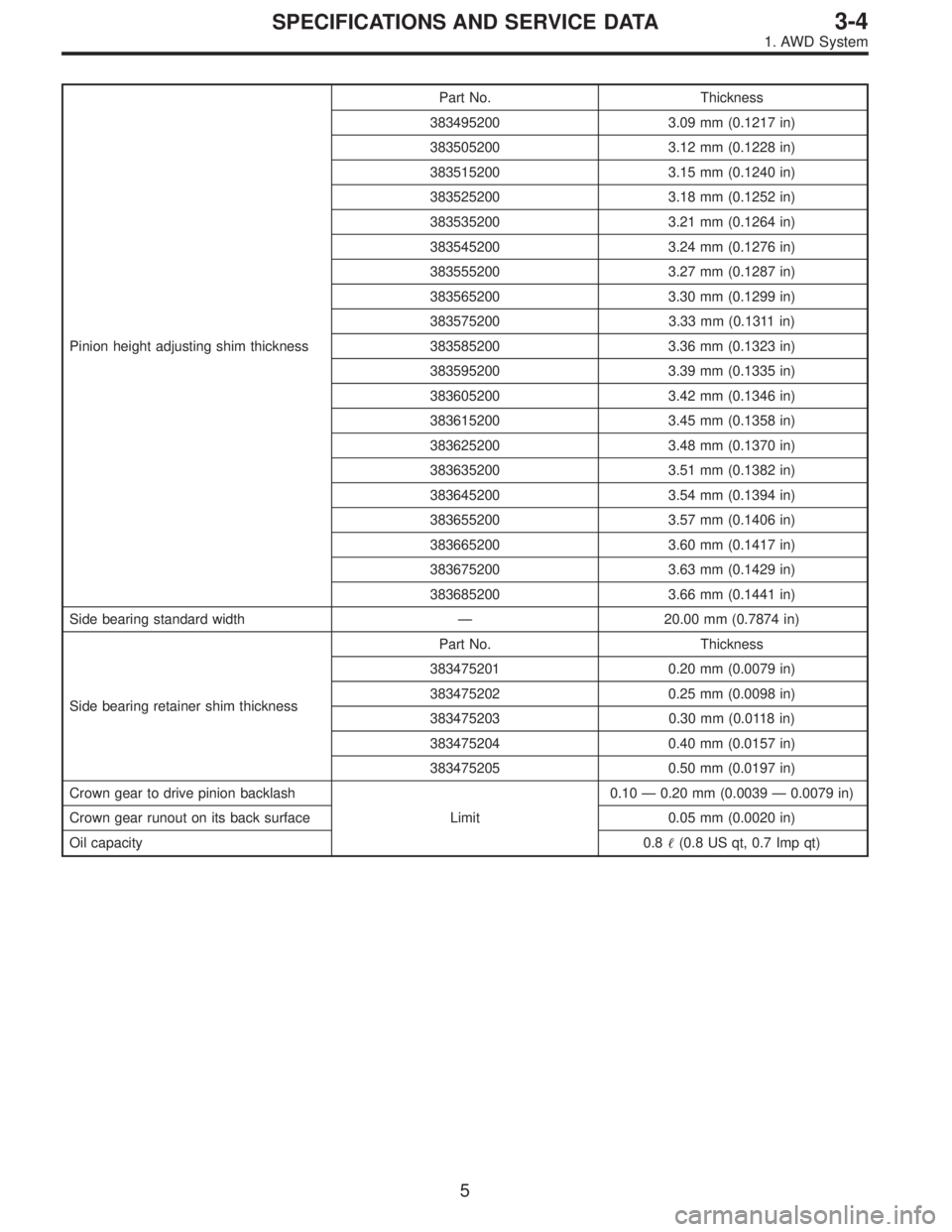

Page 481 of 2248

Pinion height adjusting shim thicknessPart No. Thickness
383495200 3.09 mm (0.1217 in)
383505200 3.12 mm (0.1228 in)
383515200 3.15 mm (0.1240 in)
383525200 3.18 mm (0.1252 in)
383535200 3.21 mm (0.1264 in)
383545200 3.24 mm (0.1276 in)
383555200 3.27 mm (0.1287 in)
383565200 3.30 mm (0.1299 in)
383575200 3.33 mm (0.1311 in)
383585200 3.36 mm (0.1323 in)
383595200 3.39 mm (0.1335 in)
383605200 3.42 mm (0.1346 in)
383615200 3.45 mm (0.1358 in)
383625200 3.48 mm (0.1370 in)
383635200 3.51 mm (0.1382 in)
383645200 3.54 mm (0.1394 in)
383655200 3.57 mm (0.1406 in)
383665200 3.60 mm (0.1417 in)
383675200 3.63 mm (0.1429 in)
383685200 3.66 mm (0.1441 in)
Side bearing standard width—20.00 mm (0.7874 in)
Side bearing retainer shim thicknessPart No. Thickness
383475201 0.20 mm (0.0079 in)
383475202 0.25 mm (0.0098 in)
383475203 0.30 mm (0.0118 in)
383475204 0.40 mm (0.0157 in)
383475205 0.50 mm (0.0197 in)
Crown gear to drive pinion backlash
Limit0.10—0.20 mm (0.0039—0.0079 in)
Crown gear runout on its back surface 0.05 mm (0.0020 in)
Oil capacity0.8(0.8 US qt, 0.7 Imp qt)
5
3-4SPECIFICATIONS AND SERVICE DATA
1. AWD System

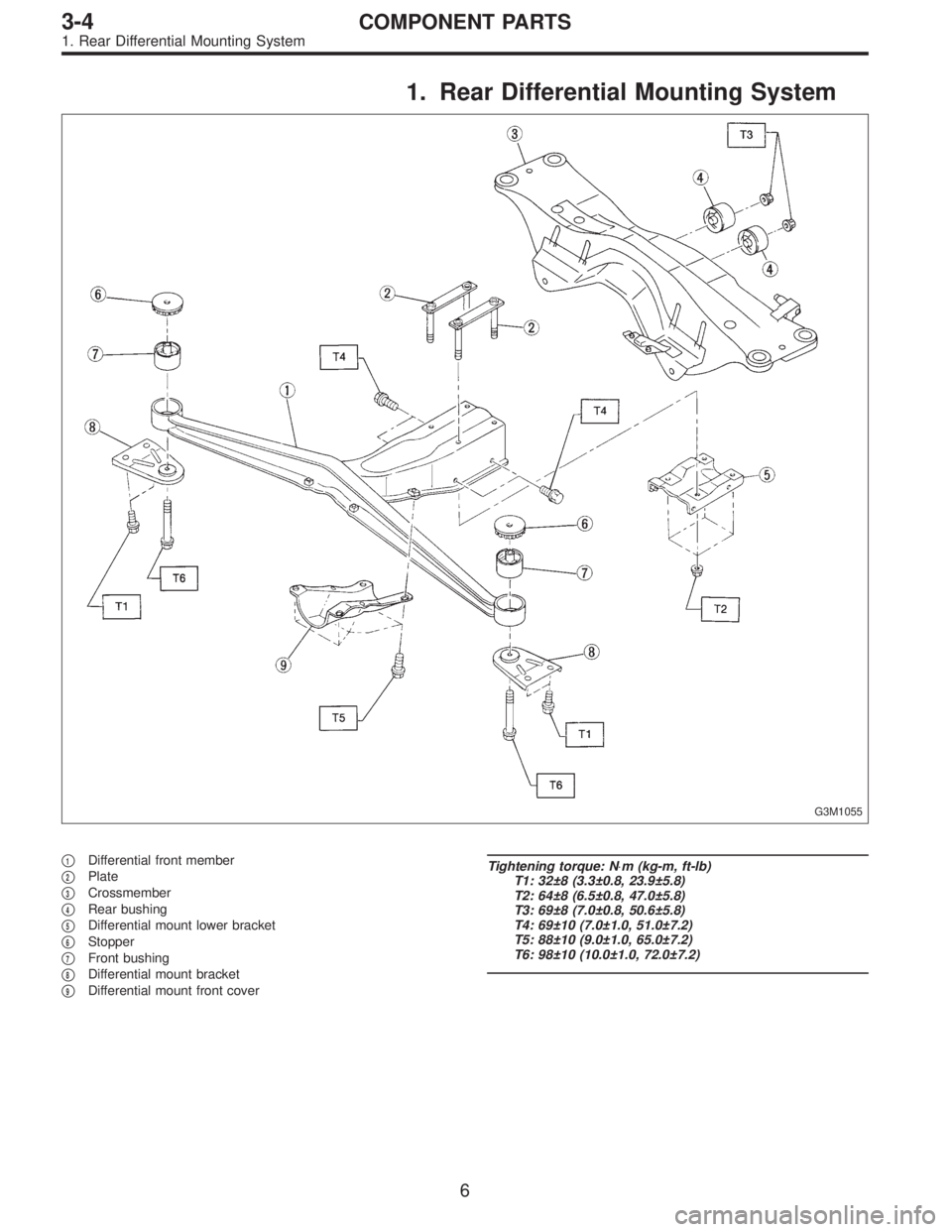

Page 482 of 2248
1. Rear Differential Mounting System
G3M1055
1Differential front member
2Plate
3Crossmember
4Rear bushing
5Differential mount lower bracket
6Stopper
7Front bushing
8Differential mount bracket
9Differential mount front cover
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 32±8 (3.3±0.8, 23.9±5.8)
T2: 64±8 (6.5±0.8, 47.0±5.8)
T3: 69±8 (7.0±0.8, 50.6±5.8)
T4: 69±10 (7.0±1.0, 51.0±7.2)
T5: 88±10 (9.0±1.0, 65.0±7.2)
T6: 98±10 (10.0±1.0, 72.0±7.2)
6
3-4COMPONENT PARTS
1. Rear Differential Mounting System

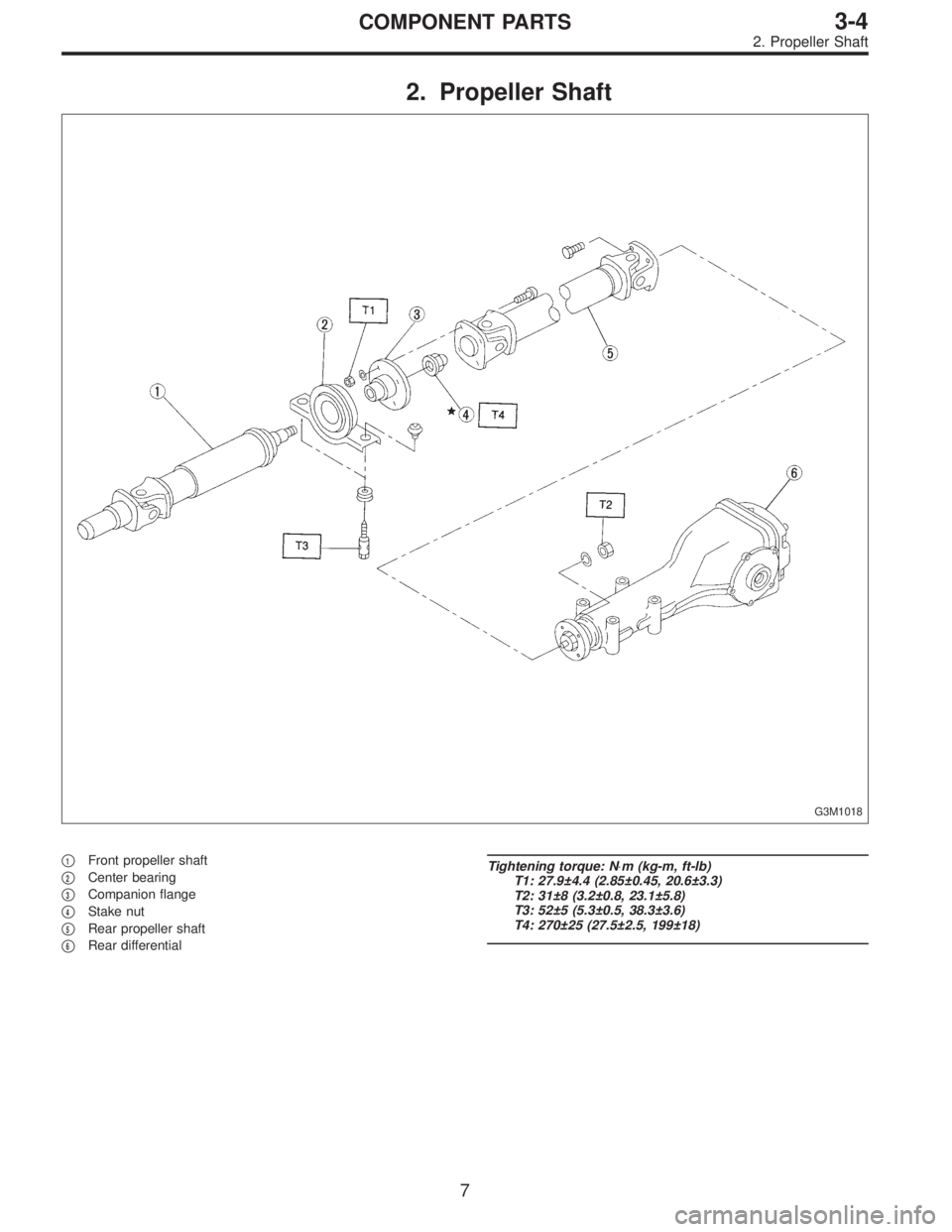

Page 483 of 2248
2. Propeller Shaft
G3M1018
1Front propeller shaft
2Center bearing
3Companion flange
4Stake nut
5Rear propeller shaft
6Rear differential
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 27.9±4.4 (2.85±0.45, 20.6±3.3)
T2: 31±8 (3.2±0.8, 23.1±5.8)
T3: 52±5 (5.3±0.5, 38.3±3.6)
T4: 270±25 (27.5±2.5, 199±18)
7
3-4COMPONENT PARTS
2. Propeller Shaft

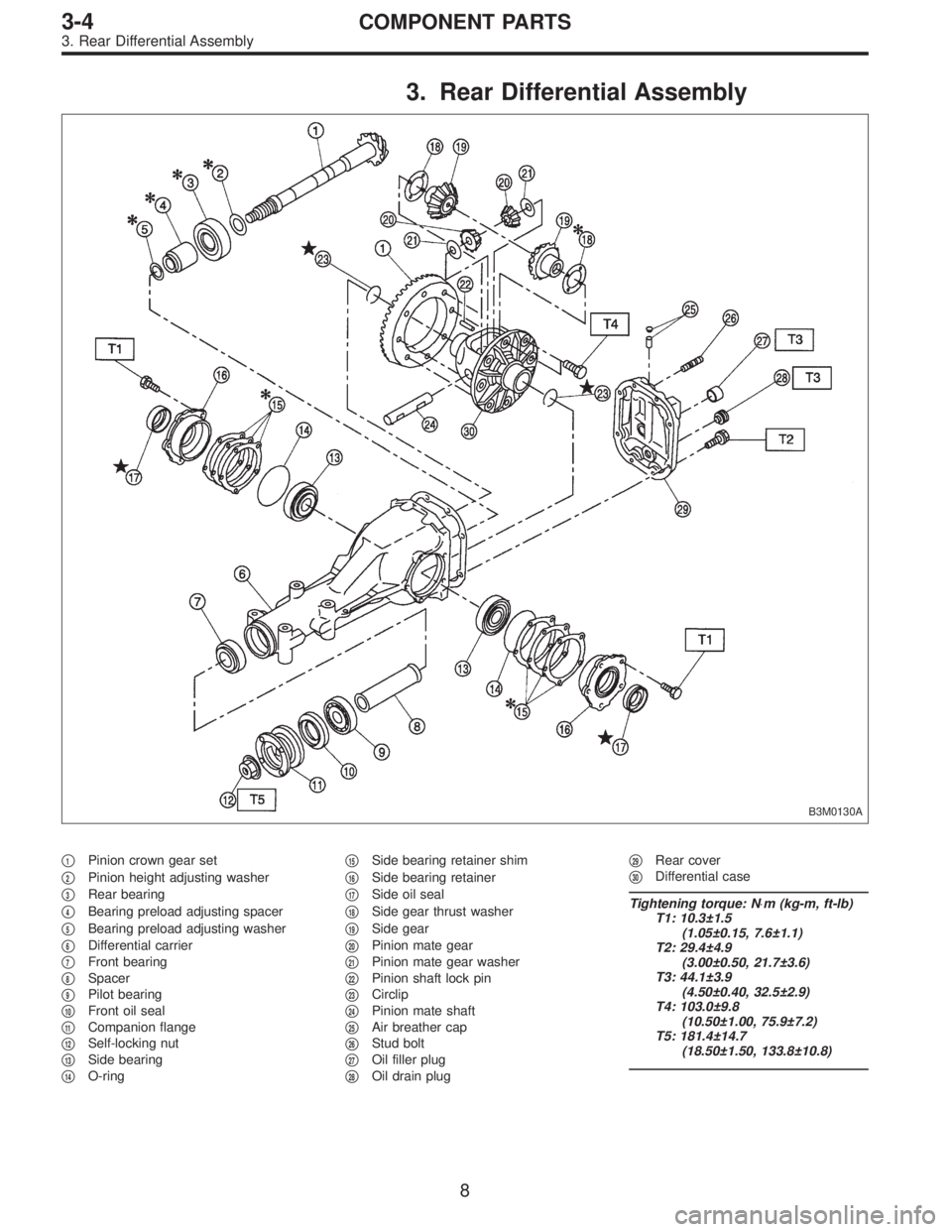

Page 484 of 2248
3. Rear Differential Assembly
B3M0130A
1Pinion crown gear set
2Pinion height adjusting washer
3Rear bearing
4Bearing preload adjusting spacer
5Bearing preload adjusting washer
6Differential carrier
7Front bearing
8Spacer
9Pilot bearing
10Front oil seal
11Companion flange
12Self-locking nut
13Side bearing
14O-ring
15Side bearing retainer shim
16Side bearing retainer
17Side oil seal
18Side gear thrust washer
19Side gear
20Pinion mate gear
21Pinion mate gear washer
22Pinion shaft lock pin
23Circlip
24Pinion mate shaft
25Air breather cap
26Stud bolt
27Oil filler plug
28Oil drain plug
29Rear cover
30Differential case
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 10.3±1.5
(1.05±0.15, 7.6±1.1)
T2: 29.4±4.9
(3.00±0.50, 21.7±3.6)
T3: 44.1±3.9
(4.50±0.40, 32.5±2.9)
T4: 103.0±9.8
(10.50±1.00, 75.9±7.2)
T5: 181.4±14.7
(18.50±1.50, 133.8±10.8)
8
3-4COMPONENT PARTS
3. Rear Differential Assembly

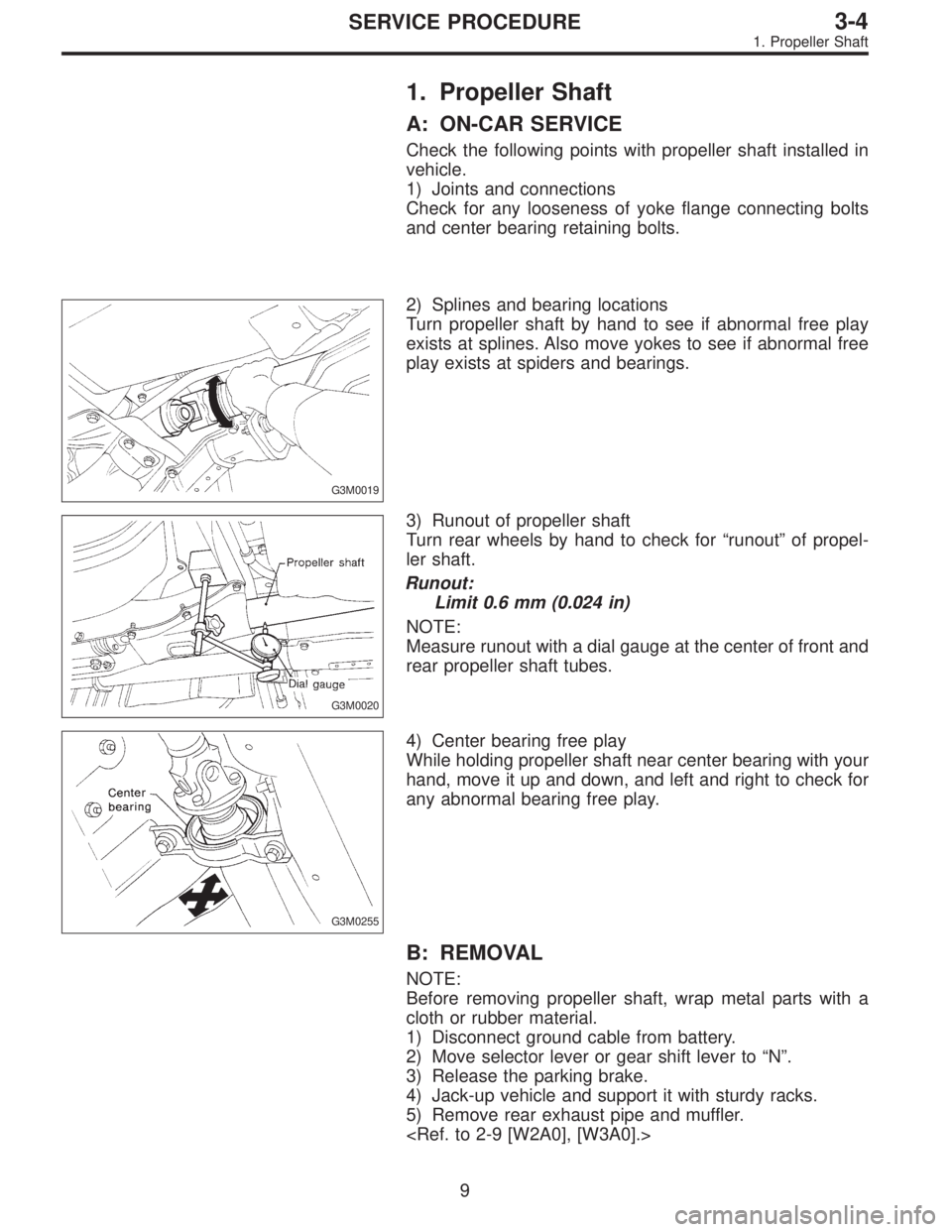

Page 485 of 2248

1. Propeller Shaft
A: ON-CAR SERVICE
Check the following points with propeller shaft installed in
vehicle.
1) Joints and connections
Check for any looseness of yoke flange connecting bolts
and center bearing retaining bolts.
G3M0019
2) Splines and bearing locations
Turn propeller shaft by hand to see if abnormal free play
exists at splines. Also move yokes to see if abnormal free
play exists at spiders and bearings.
G3M0020
3) Runout of propeller shaft
Turn rear wheels by hand to check for“runout”of propel-
ler shaft.
Runout:
Limit 0.6 mm (0.024 in)
NOTE:
Measure runout with a dial gauge at the center of front and
rear propeller shaft tubes.
G3M0255
4) Center bearing free play
While holding propeller shaft near center bearing with your
hand, move it up and down, and left and right to check for
any abnormal bearing free play.
B: REMOVAL
NOTE:
Before removing propeller shaft, wrap metal parts with a
cloth or rubber material.
1) Disconnect ground cable from battery.
2) Move selector lever or gear shift lever to“N”.
3) Release the parking brake.
4) Jack-up vehicle and support it with sturdy racks.
5) Remove rear exhaust pipe and muffler.
9
3-4SERVICE PROCEDURE
1. Propeller Shaft
Page 486 of 2248
G3M0021
6) Remove front exhaust cover.
G3M0022
7) Remove differential mount front cover.
G3M0782
8) Remove the four bolts which hold propeller shaft to rear
differential.
NOTE:
Put matching mark on affected parts before removal.
Remove all but one bolt.
G3M0024
9) Remove the two bolts which hold center bearing to
vehicle body.
G3M0025
10) Remove propeller shaft from transmission.
CAUTION:
Be sure not to damage oil seals and the frictional sur-
face of sleeve yoke.
NOTE:
Be sure to use an empty oil can to catch oil flowing out
when removing propeller shaft.
Be sure to plug the opening in transmission after
removal of propeller shaft.
10
3-4SERVICE PROCEDURE
1. Propeller Shaft

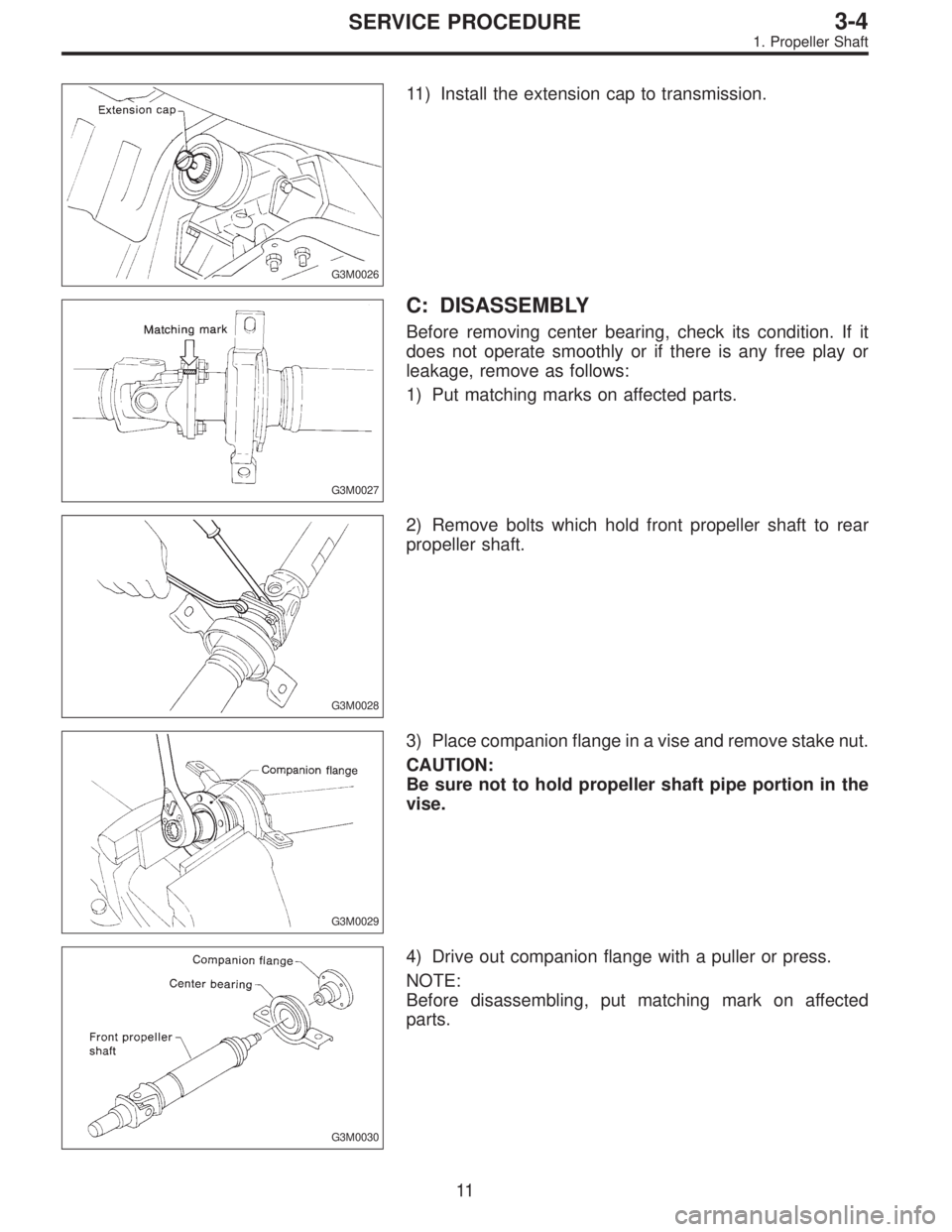

Page 487 of 2248
G3M0026
11) Install the extension cap to transmission.
G3M0027
C: DISASSEMBLY
Before removing center bearing, check its condition. If it
does not operate smoothly or if there is any free play or
leakage, remove as follows:
1) Put matching marks on affected parts.
G3M0028
2) Remove bolts which hold front propeller shaft to rear
propeller shaft.
G3M0029
3) Place companion flange in a vise and remove stake nut.
CAUTION:
Be sure not to hold propeller shaft pipe portion in the
vise.
G3M0030
4) Drive out companion flange with a puller or press.
NOTE:
Before disassembling, put matching mark on affected
parts.
11
3-4SERVICE PROCEDURE
1. Propeller Shaft

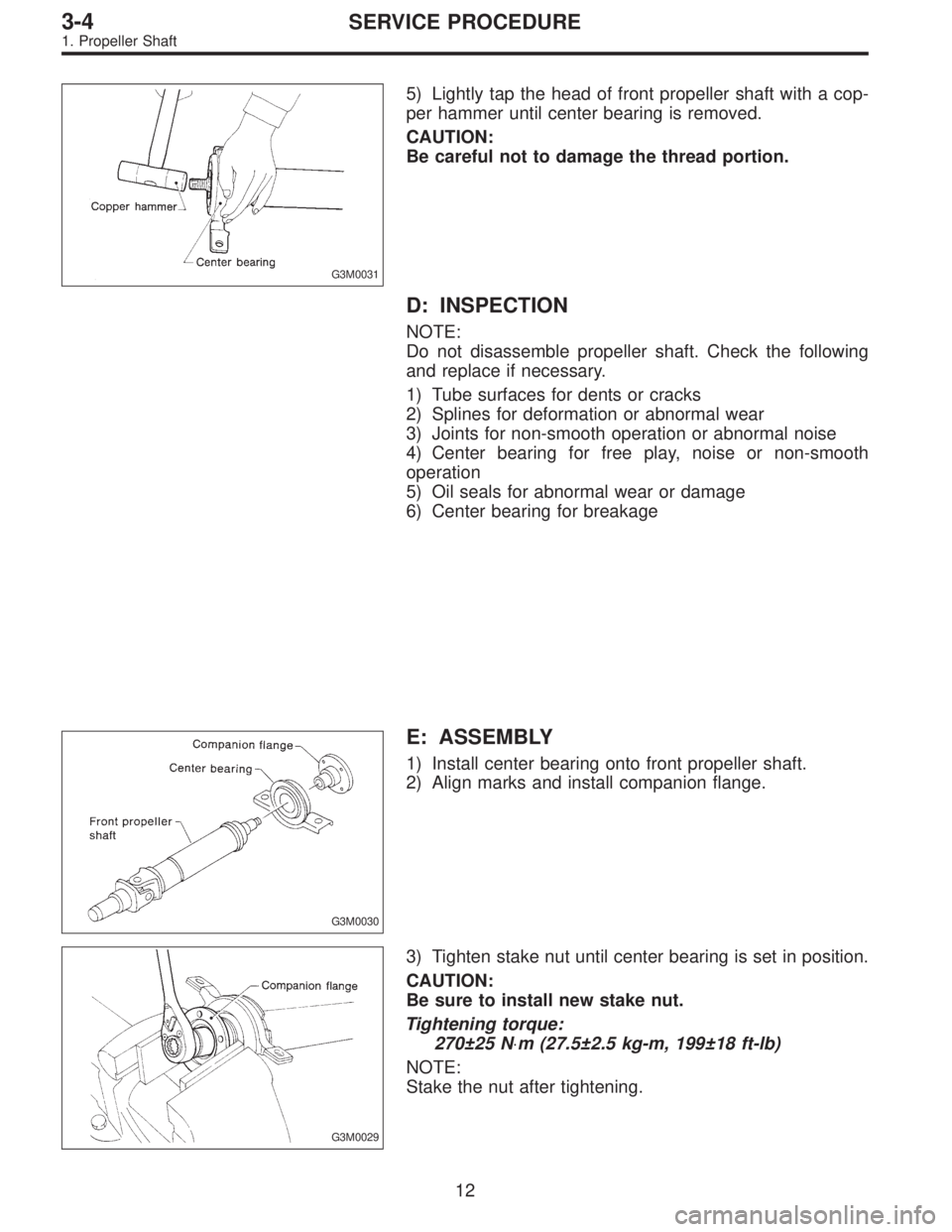

Page 488 of 2248
G3M0031
5) Lightly tap the head of front propeller shaft with a cop-
per hammer until center bearing is removed.
CAUTION:
Be careful not to damage the thread portion.
D: INSPECTION
NOTE:
Do not disassemble propeller shaft. Check the following
and replace if necessary.
1) Tube surfaces for dents or cracks
2) Splines for deformation or abnormal wear
3) Joints for non-smooth operation or abnormal noise
4) Center bearing for free play, noise or non-smooth
operation
5) Oil seals for abnormal wear or damage
6) Center bearing for breakage
G3M0030
E: ASSEMBLY
1) Install center bearing onto front propeller shaft.
2) Align marks and install companion flange.
G3M0029
3) Tighten stake nut until center bearing is set in position.
CAUTION:
Be sure to install new stake nut.
Tightening torque:
270±25 N⋅m (27.5±2.5 kg-m, 199±18 ft-lb)
NOTE:
Stake the nut after tightening.
12
3-4SERVICE PROCEDURE
1. Propeller Shaft
