SUBARU LEGACY 1995 Service Repair Manual 6. BULKHEAD WIRING HARNESS (IN COMPARTMENT) (LHD MODEL) B6M0544 123 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

Page 2210 of 2248

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name i1 22 Black C-2 B36 Bulkhead wiring harness i2 22 * C-1 B37 i3 22 Brown C-1 B38 i4 20 Blue C-2 B39 i5 15 Gray C-1 F/B i6 10 * C-1 Remote control re

Page 2211 of 2248

SUBARU LEGACY 1995 Service Repair Manual 7. BULKHEAD WIRING HARNESS (IN COMPARTMENT) (RHD MODEL) 125 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

Page 2212 of 2248

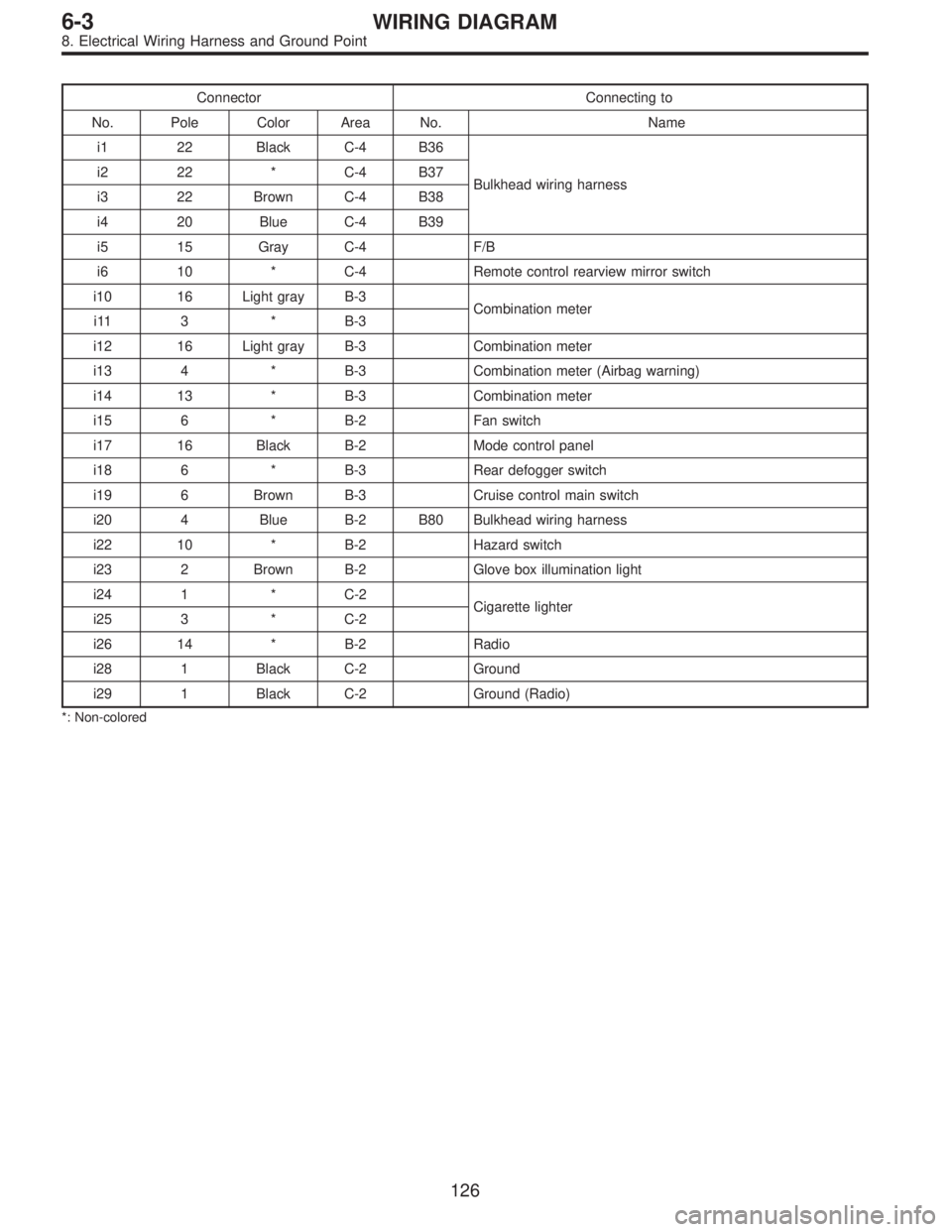

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name i1 22 Black C-4 B36 Bulkhead wiring harness i2 22 * C-4 B37 i3 22 Brown C-4 B38 i4 20 Blue C-4 B39 i5 15 Gray C-4 F/B i6 10 * C-4 Remote control re

Page 2213 of 2248

SUBARU LEGACY 1995 Service Repair Manual 8. INSTRUMENT PANEL WIRING HARNESS AND GROUND POINT (LHD MODEL) B6M0262A 127 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

Page 2214 of 2248

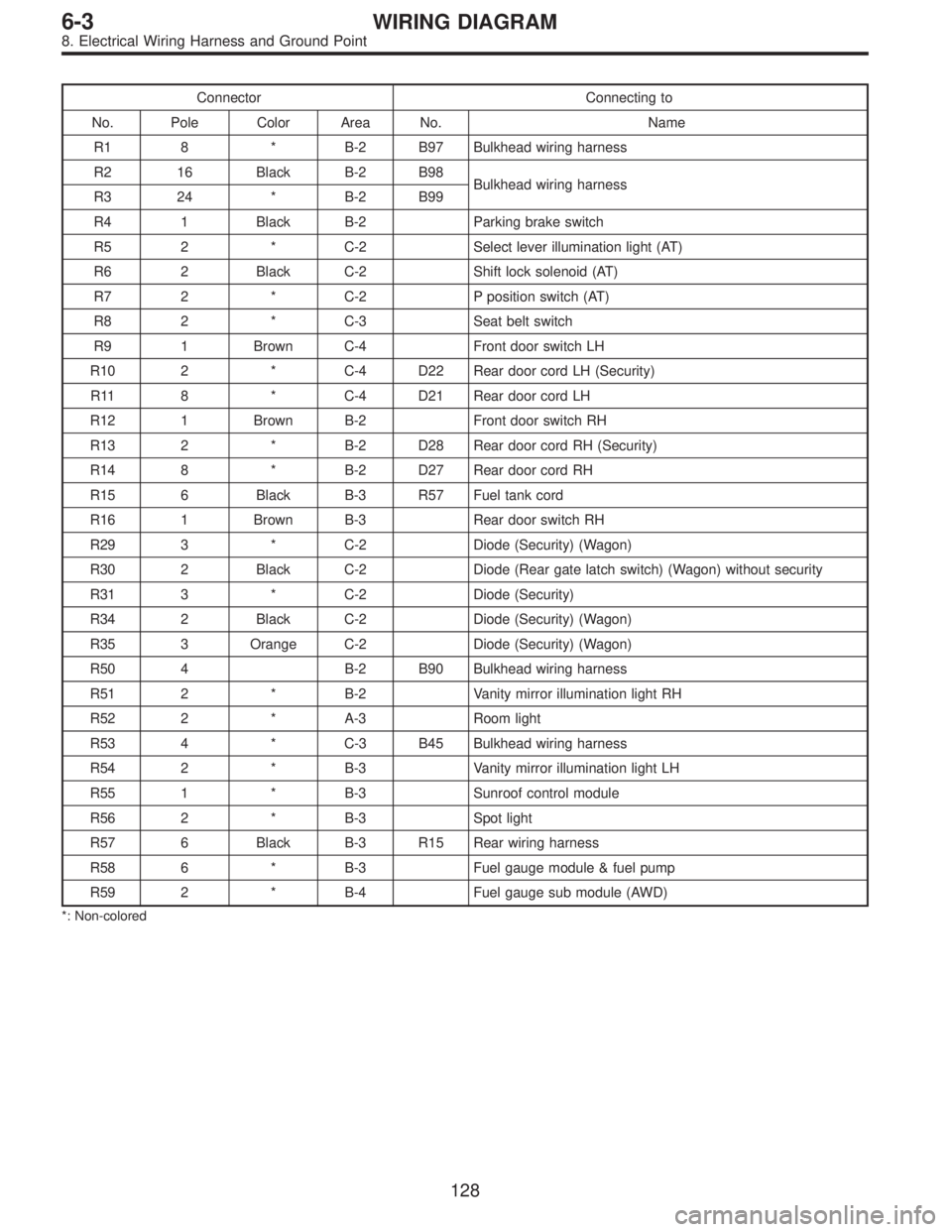

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name R1 8 * B-2 B97 Bulkhead wiring harness R2 16 Black B-2 B98 Bulkhead wiring harness R3 24 * B-2 B99 R4 1 Black B-2 Parking brake switch R5 2 * C-2 S

Page 2215 of 2248

SUBARU LEGACY 1995 Service Repair Manual 9. INSTRUMENT PANEL WIRING HARNESS AND GROUND POINT (RHD MODEL) 129 6-3WIRING DIAGRAM 8. Electrical Wiring Harness and Ground Point

Page 2216 of 2248

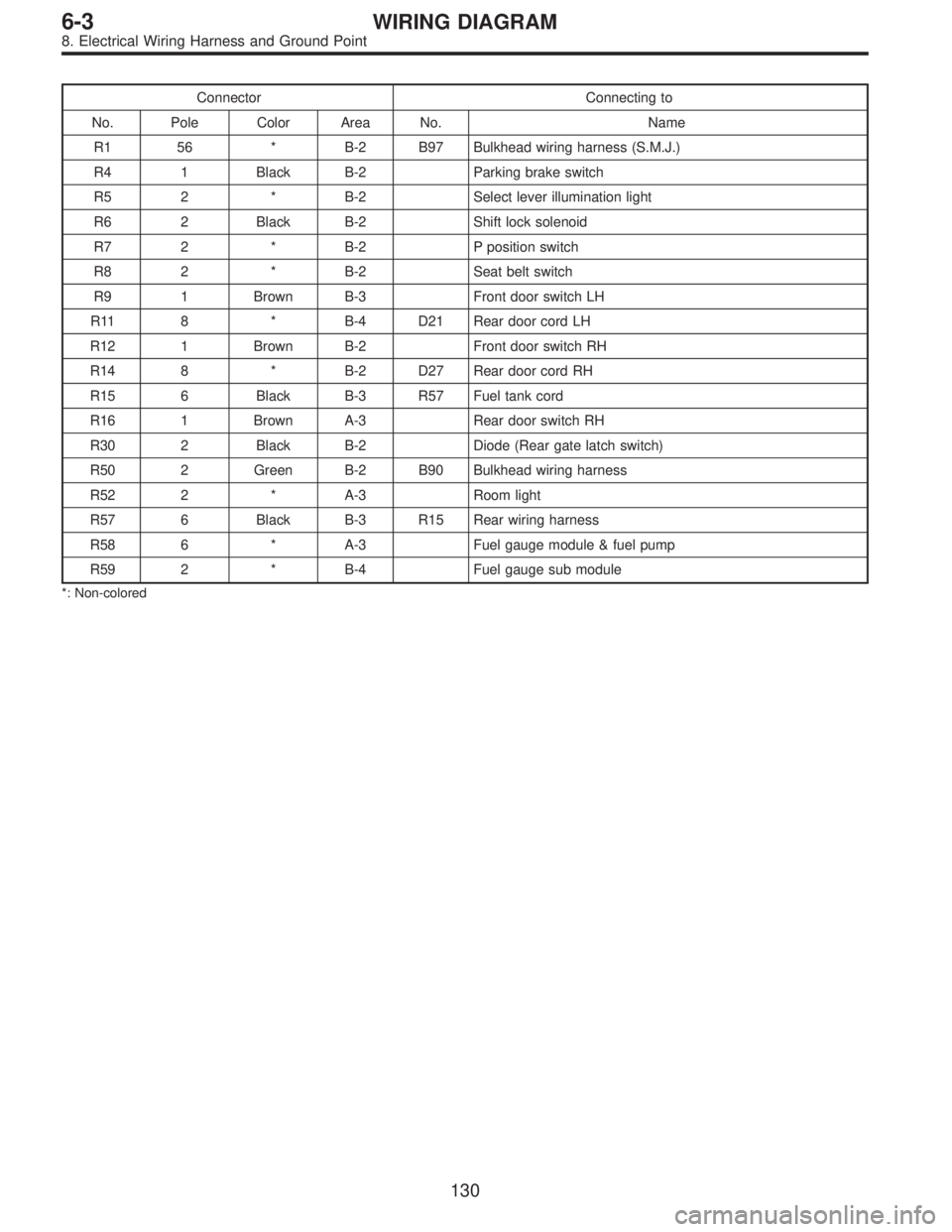

SUBARU LEGACY 1995 Service Repair Manual Connector Connecting to No. Pole Color Area No. Name R1 56 * B-2 B97 Bulkhead wiring harness (S.M.J.) R4 1 Black B-2 Parking brake switch R5 2 * B-2 Select lever illumination light R6 2 Black B-2 Shif
