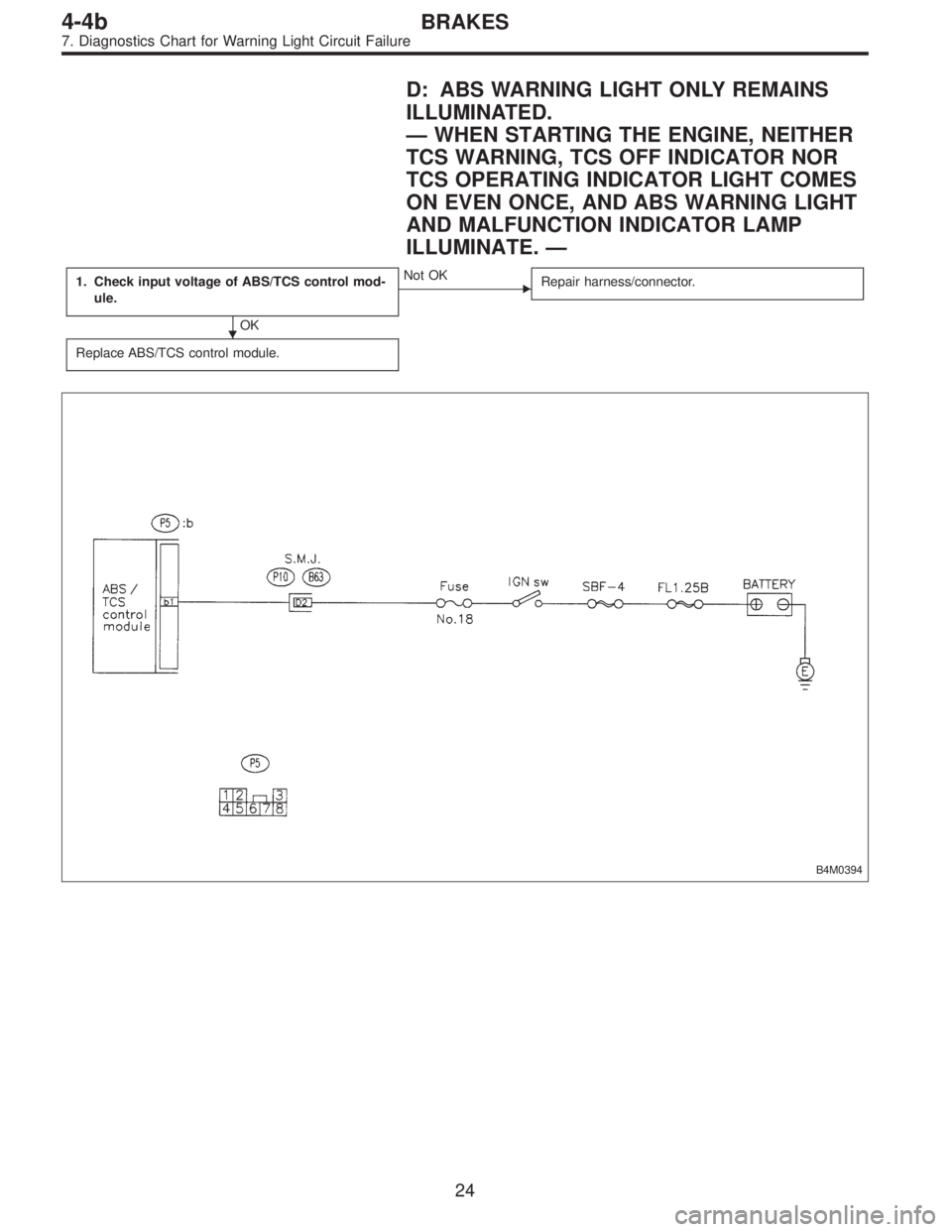

D: ABS WARNING LIGHT ONLY REMAINS
ILLUMINATED.
—WHEN STARTING THE ENGINE, NEITHER
TCS WARNING, TCS OFF INDICATOR NOR
TCS OPERATING INDICATOR LIGHT COMES
ON EVEN ONCE, AND ABS WARNING LIGHT
AND MALFUNCTION INDICATOR LAMP
ILLUMINATE.—
1. Check input voltage of ABS/TCS control mod-
ule.
OK
Not OK
Repair harness/connector.
Replace ABS/TCS control module.
B4M0394
24
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 1706 of 2248
B4M0395A

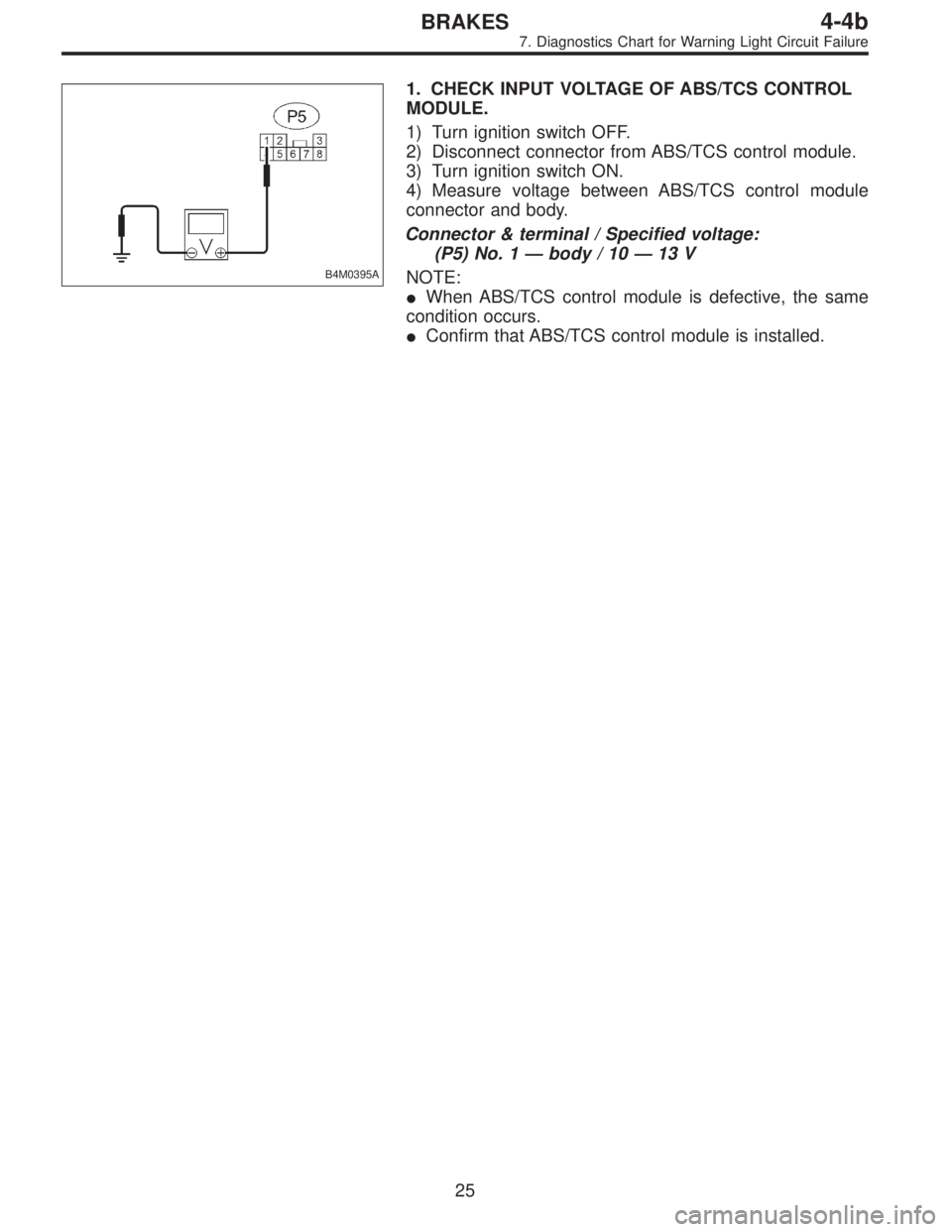

1. CHECK INPUT VOLTAGE OF ABS/TCS CONTROL
MODULE.
1) Turn ignition switch OFF.
2) Disconnect connector from ABS/TCS control module.
3) Turn ignition switch ON.
4) Measure voltage between ABS/TCS control module
connector and body.
Connector & terminal / Specified voltage:
(P5) No. 1—body / 10—13 V
NOTE:
When ABS/TCS control module is defective, the same
condition occurs.
Confirm that ABS/TCS control module is installed.
25
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 1707 of 2248

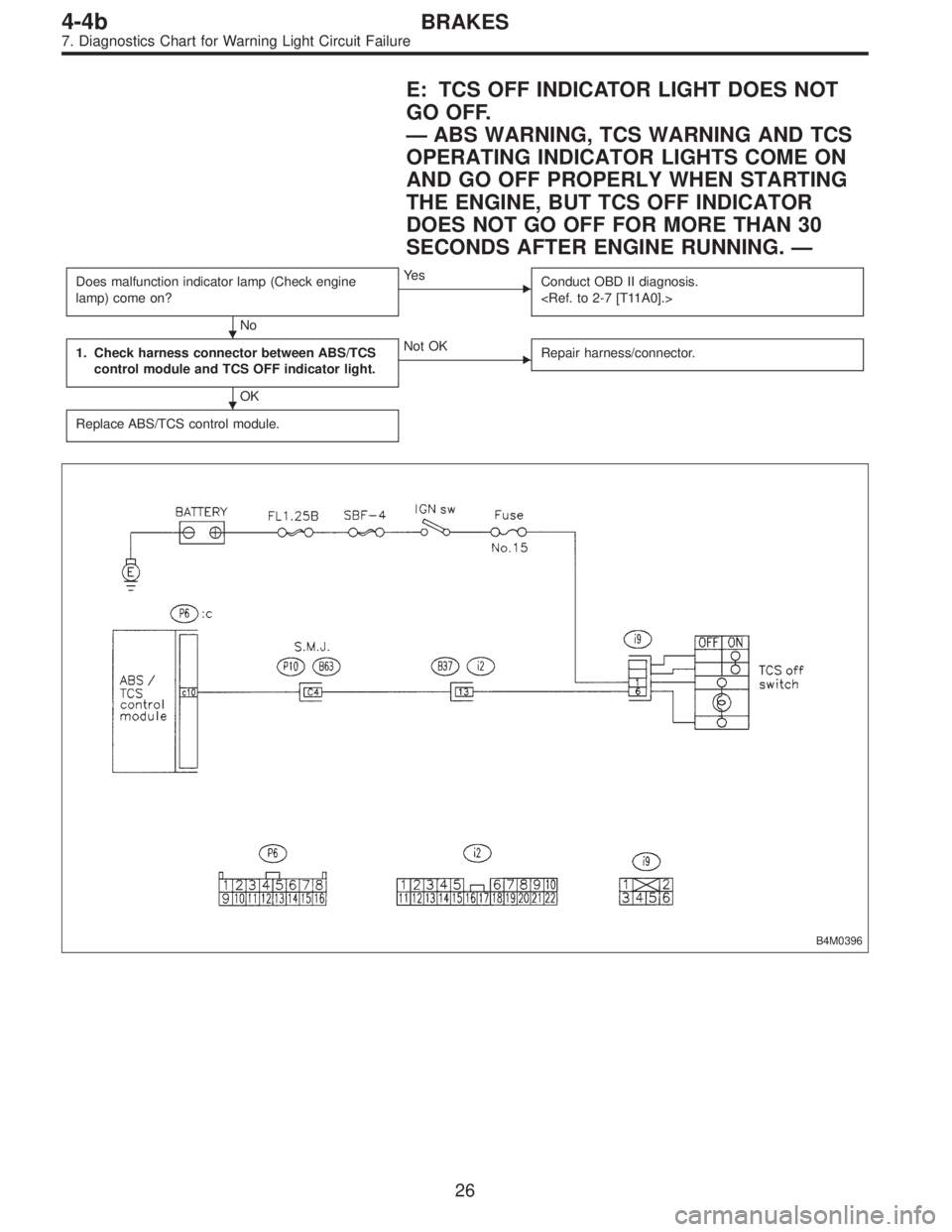

E: TCS OFF INDICATOR LIGHT DOES NOT
GO OFF.
—ABS WARNING, TCS WARNING AND TCS
OPERATING INDICATOR LIGHTS COME ON
AND GO OFF PROPERLY WHEN STARTING
THE ENGINE, BUT TCS OFF INDICATOR
DOES NOT GO OFF FOR MORE THAN 30
SECONDS AFTER ENGINE RUNNING.—
Does malfunction indicator lamp (Check engine
lamp) come on?
No
Ye s
Conduct OBD II diagnosis.
1. Check harness connector between ABS/TCS
control module and TCS OFF indicator light.
OK
Not OK
Repair harness/connector.
Replace ABS/TCS control module.
B4M0396
26
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 1708 of 2248

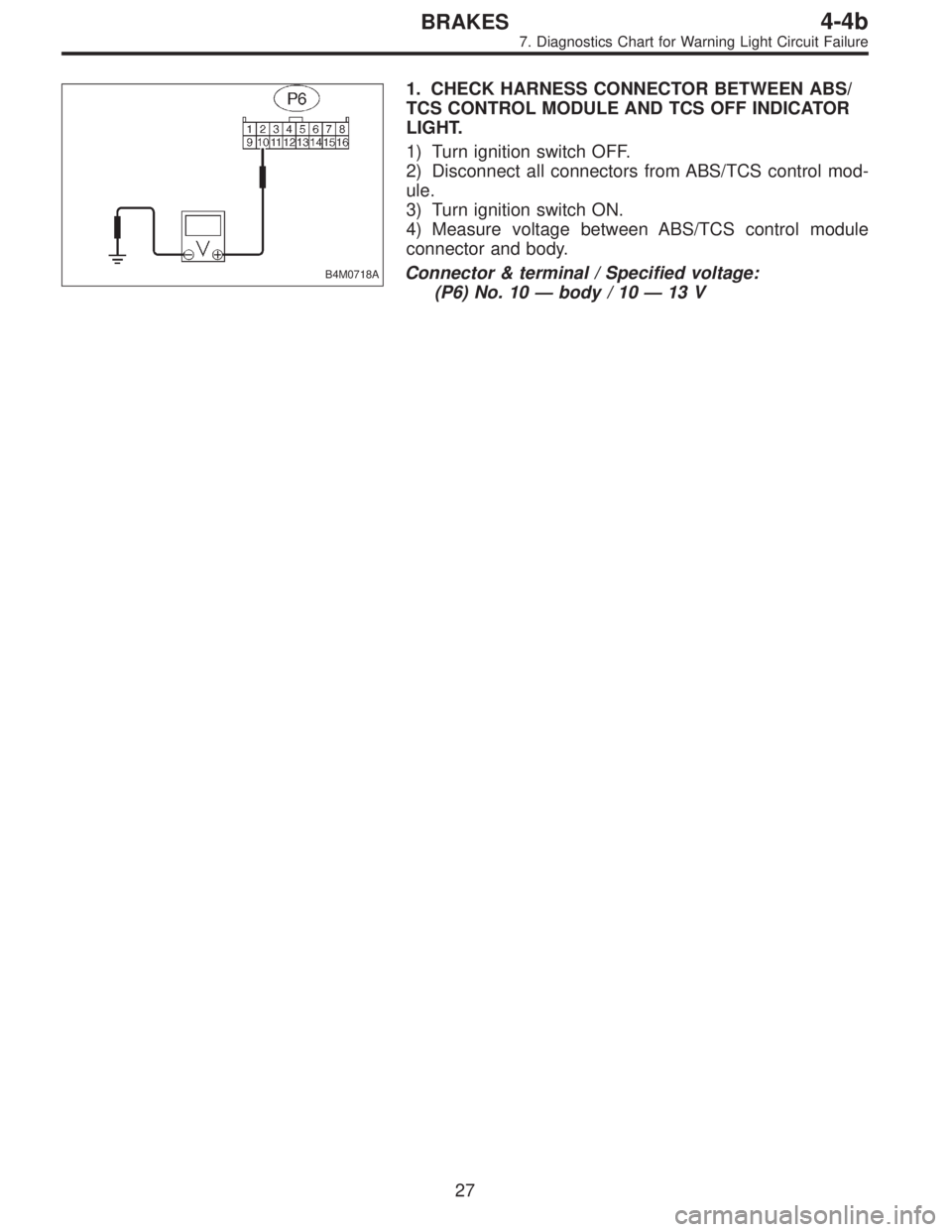

B4M0718A
1. CHECK HARNESS CONNECTOR BETWEEN ABS/
TCS CONTROL MODULE AND TCS OFF INDICATOR
LIGHT.
1) Turn ignition switch OFF.
2) Disconnect all connectors from ABS/TCS control mod-
ule.
3) Turn ignition switch ON.
4) Measure voltage between ABS/TCS control module
connector and body.
Connector & terminal / Specified voltage:
(P6) No. 10—body / 10—13 V
27
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 1709 of 2248

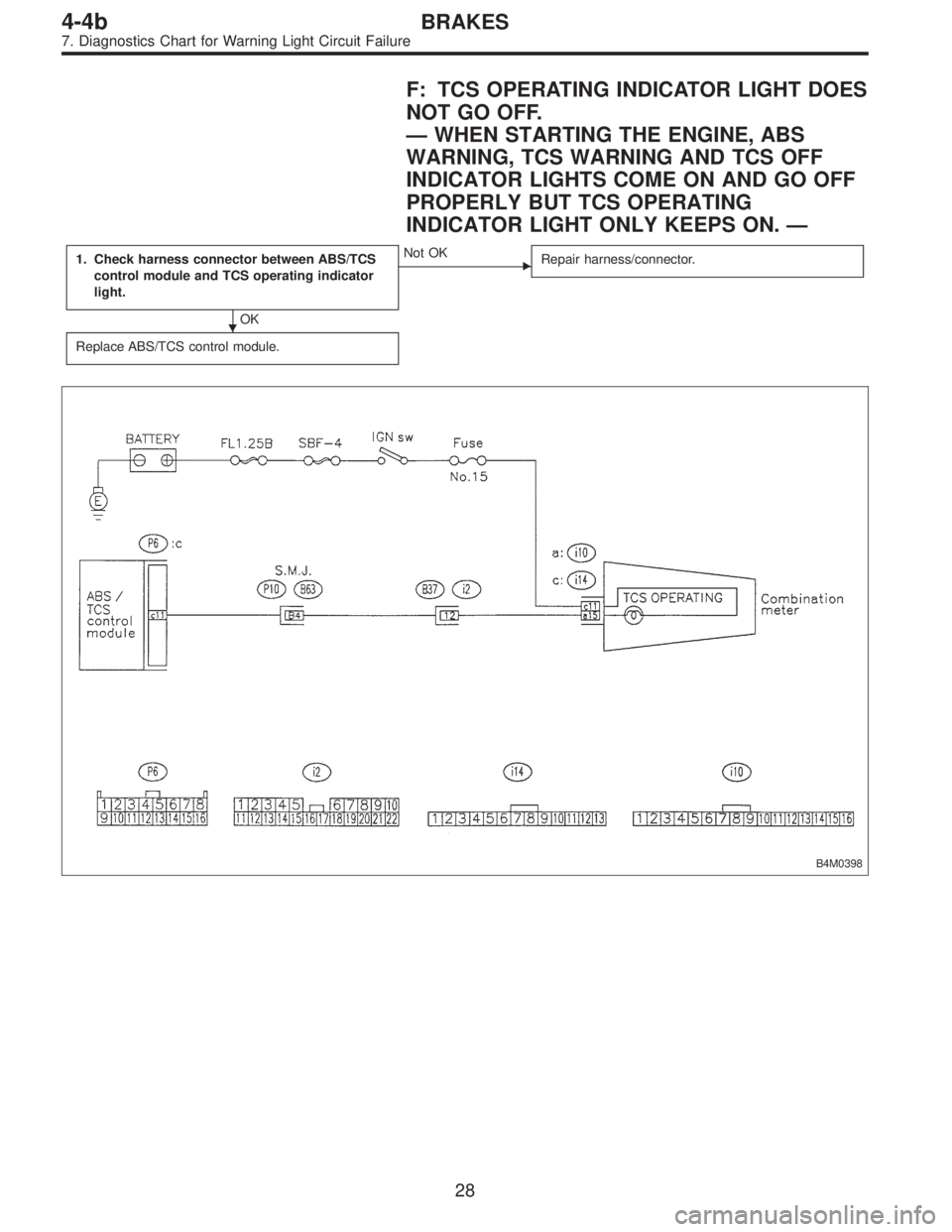

F: TCS OPERATING INDICATOR LIGHT DOES
NOT GO OFF.
—WHEN STARTING THE ENGINE, ABS
WARNING, TCS WARNING AND TCS OFF
INDICATOR LIGHTS COME ON AND GO OFF
PROPERLY BUT TCS OPERATING
INDICATOR LIGHT ONLY KEEPS ON.—
1. Check harness connector between ABS/TCS
control module and TCS operating indicator
light.
OK
Not OK
Repair harness/connector.
Replace ABS/TCS control module.
B4M0398
28
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 1710 of 2248

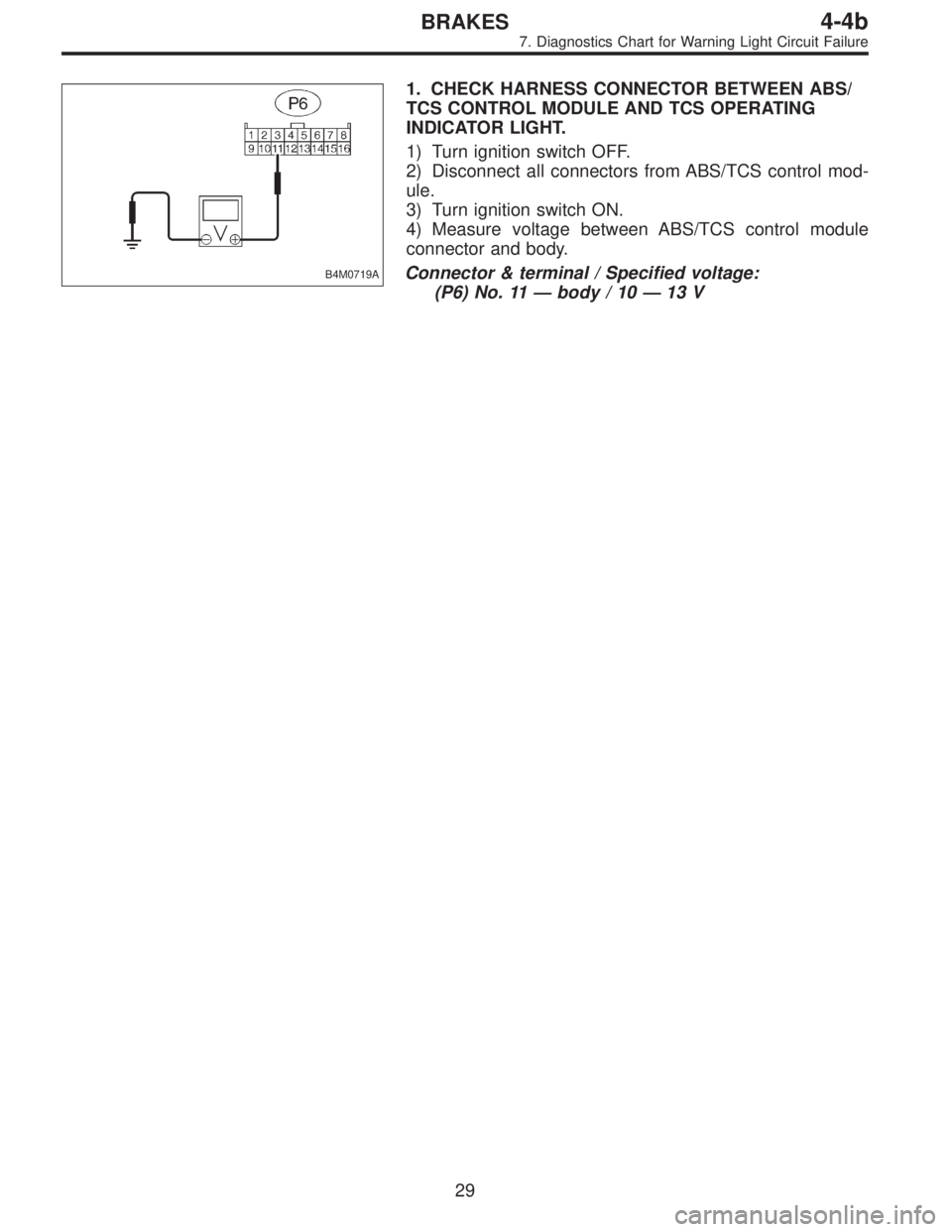

B4M0719A
1. CHECK HARNESS CONNECTOR BETWEEN ABS/
TCS CONTROL MODULE AND TCS OPERATING
INDICATOR LIGHT.
1) Turn ignition switch OFF.
2) Disconnect all connectors from ABS/TCS control mod-
ule.
3) Turn ignition switch ON.
4) Measure voltage between ABS/TCS control module
connector and body.
Connector & terminal / Specified voltage:
(P6) No. 11—body / 10—13 V
29
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 1711 of 2248

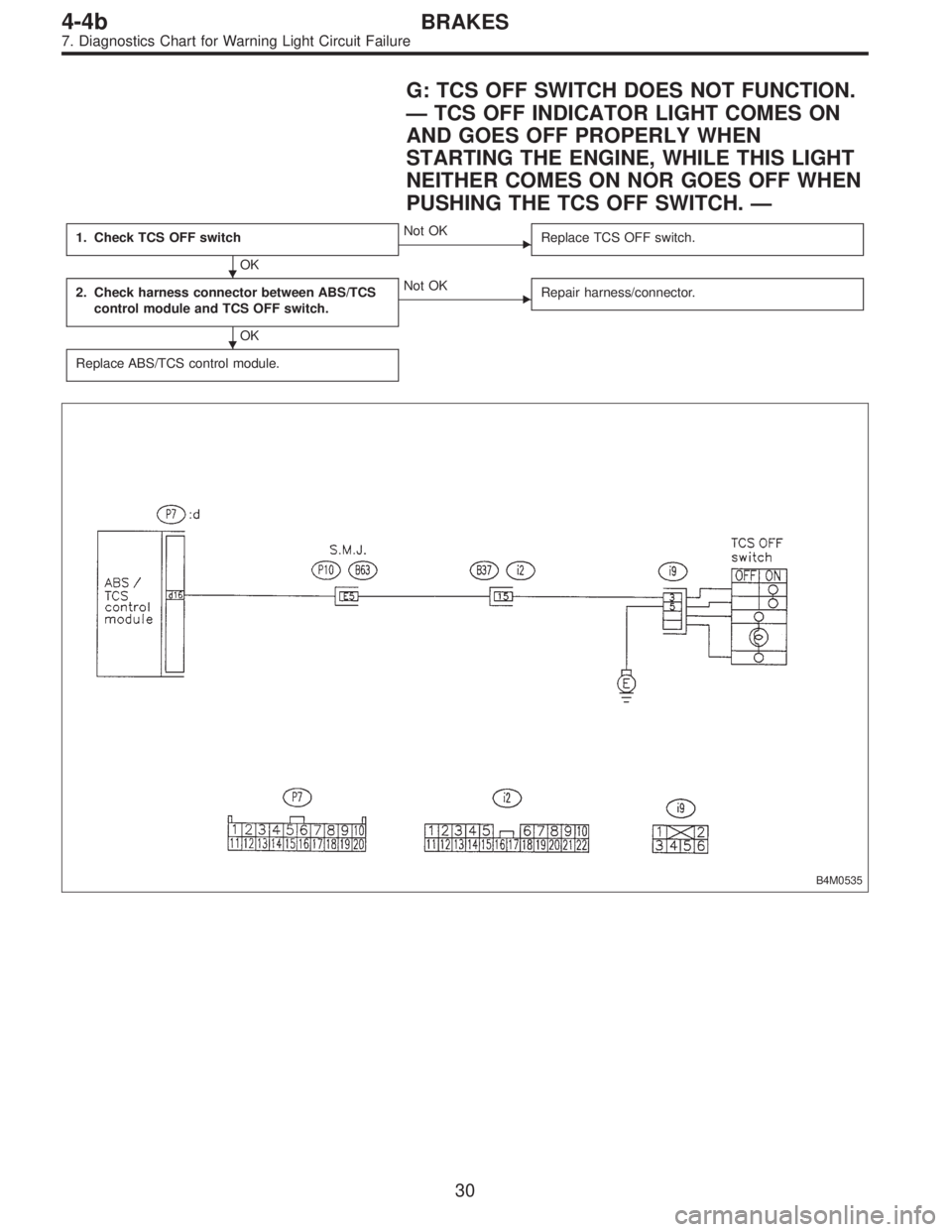

G: TCS OFF SWITCH DOES NOT FUNCTION.
—TCS OFF INDICATOR LIGHT COMES ON
AND GOES OFF PROPERLY WHEN
STARTING THE ENGINE, WHILE THIS LIGHT
NEITHER COMES ON NOR GOES OFF WHEN
PUSHING THE TCS OFF SWITCH.—
1. Check TCS OFF switch
OK
Not OK
Replace TCS OFF switch.
2. Check harness connector between ABS/TCS
control module and TCS OFF switch.
OK
Not OK
Repair harness/connector.
Replace ABS/TCS control module.
B4M0535
30
4-4bBRAKES
7. Diagnostics Chart for Warning Light Circuit Failure
Page 1712 of 2248
B4M0720A

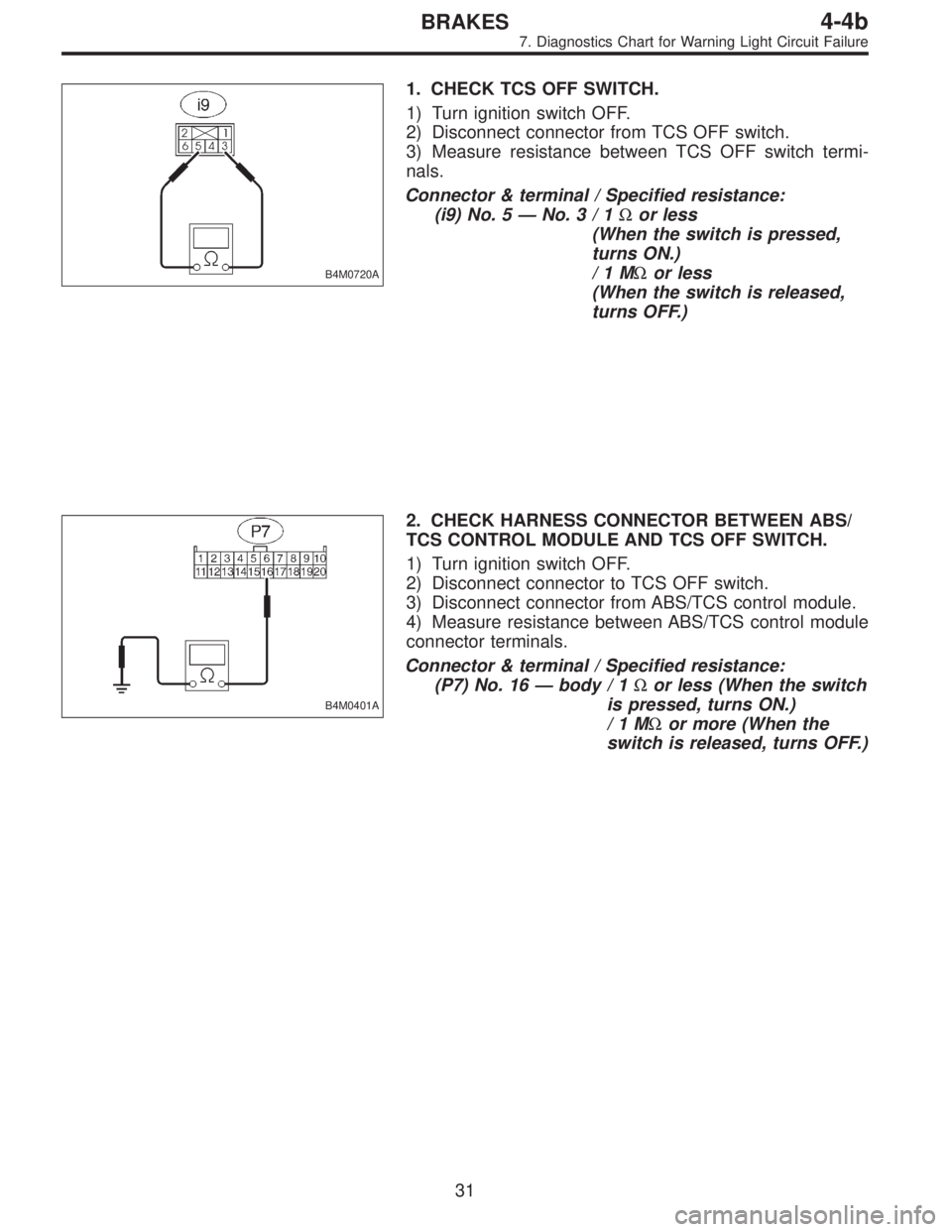

1. CHECK TCS OFF SWITCH.
1) Turn ignition switch OFF.
2) Disconnect connector from TCS OFF switch.
3) Measure resistance between TCS OFF switch termi-
nals.
Connector & terminal / Specified resistance:
(i9) No. 5—No.3/1Ωor less
(When the switch is pressed,
turns ON.)
/1MΩor less
(When the switch is released,
turns OFF.)
B4M0401A
2. CHECK HARNESS CONNECTOR BETWEEN ABS/
TCS CONTROL MODULE AND TCS OFF SWITCH.
1) Turn ignition switch OFF.
2) Disconnect connector to TCS OFF switch.
3) Disconnect connector from ABS/TCS control module.
4) Measure resistance between ABS/TCS control module
connector terminals.
Connector & terminal / Specified resistance:
(P7) No. 16—body / 1Ωor less (When the switch
is pressed, turns ON.)
/1MΩor more (When the
switch is released, turns OFF.)
31
4-4bBRAKES
