Page 617 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Steering System A: SPECIFICATIONS Whole systemMinimum turning radius m (ft) 5.3 (17.4) Steering angle (Inside-Outside) 37.6°—32.6° Steering wheel diameter mm (in) 385 (15.16) Overall gear ratio

Page 618 of 2248

SUBARU LEGACY 1995 Service Repair Manual B: SERVICE DATA Steering wheel Free play mm (in) 17 (0.67) Turning angleInner tire & wheel 37.6° Outer tire & wheel 32.6° Steering shaftClearance between steering wheel and col- umn cover mm (in)3.0

Page 619 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Steering Wheel and Column (Tilt) 1. WITH AIRBAG MODEL B4M0551A 1Bushing  2Column shaft  3Steering roll connector  4Column cover  5Steering wheel  6Airbag module Tightening torque: N⋅m (kg-m

Page 620 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. Power Steering System 1. LHD MODEL B4M0552A Tightening torque: N⋅m (kg-m, ft-lb) T1: 5.4±1.5 (0.55±0.15, 4.0±1.1) T2: 7.4±2.0 (0.75±0.20, 5.4±1.4) T3: 8±2 (0.8±0.2, 5.8±1.4) T4: 13±3 (1

Page 621 of 2248

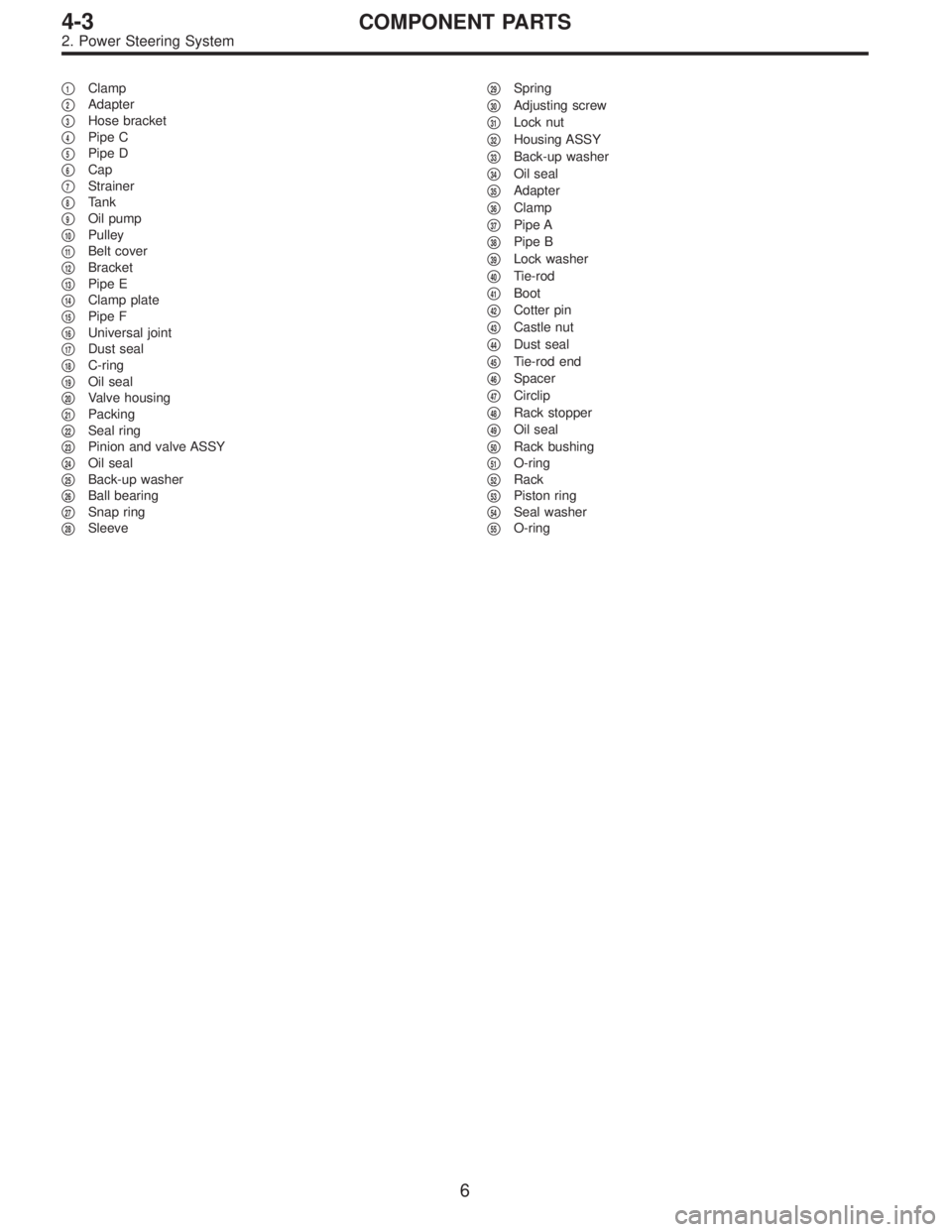

SUBARU LEGACY 1995 Service Repair Manual 1Clamp  2Adapter  3Hose bracket  4Pipe C  5Pipe D  6Cap  7Strainer  8Tank  9Oil pump  10Pulley  11Belt cover  12Bracket  13Pipe E  14Clamp plate  15Pipe F  16Universal joint  17Dust s

Page 622 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. RHD MODEL B4M0665A Tightening torque: N⋅m (kg-m, ft-lb) T1: 7.4±2.0 (0.75±0.2, 5.4±1.4) T2: 8±2 (0.8±0.2, 5.8±1.4) T3: 13±3 (1.3±0.3, 9.4±2.2) T4: 15±5 (1.5±0.5, 10.8±3.6) T5: 15.7±2

Page 623 of 2248

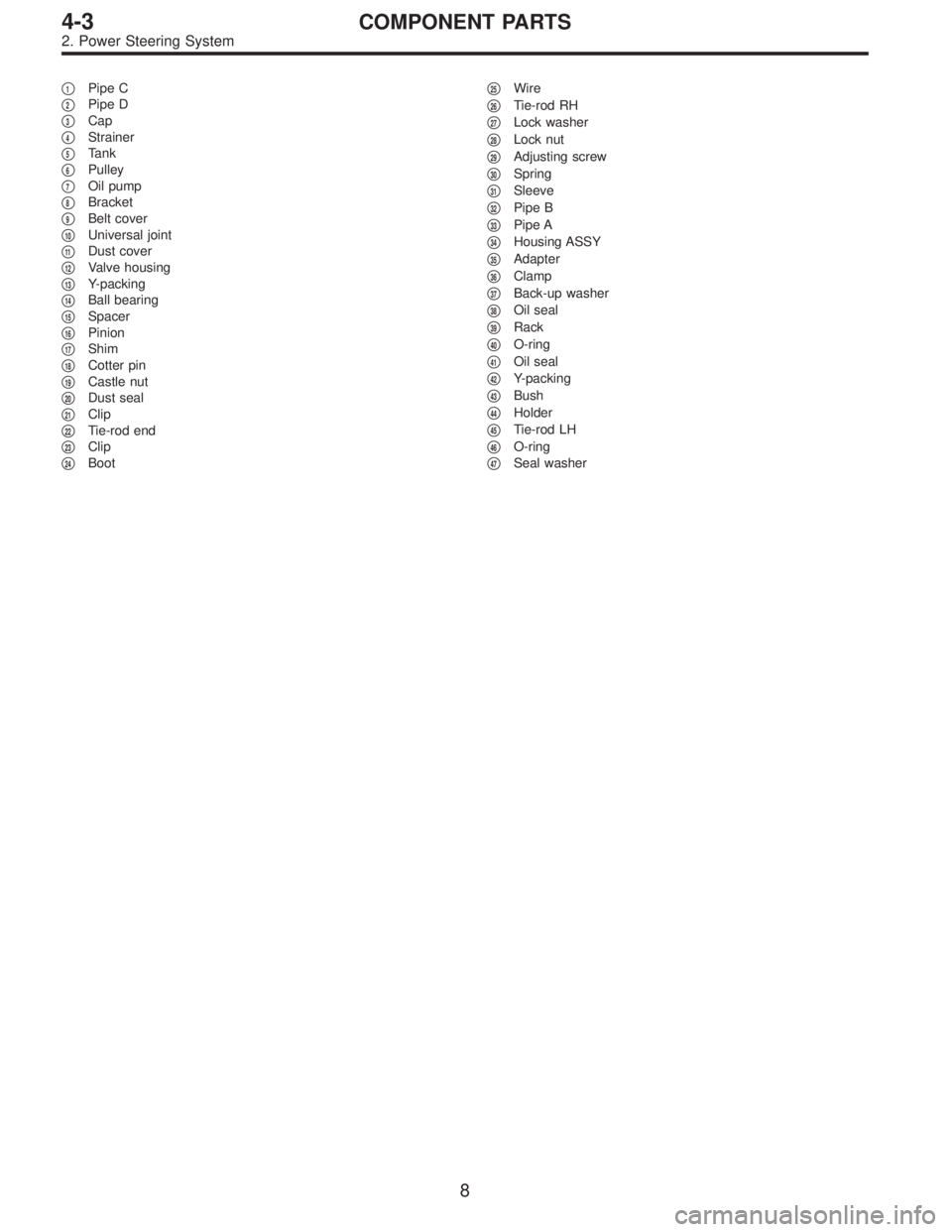

SUBARU LEGACY 1995 Service Repair Manual 1Pipe C  2Pipe D  3Cap  4Strainer  5Tank  6Pulley  7Oil pump  8Bracket  9Belt cover  10Universal joint  11Dust cover  12Valve housing  13Y-packing  14Ball bearing  15Spacer  16Pinion

Page 624 of 2248

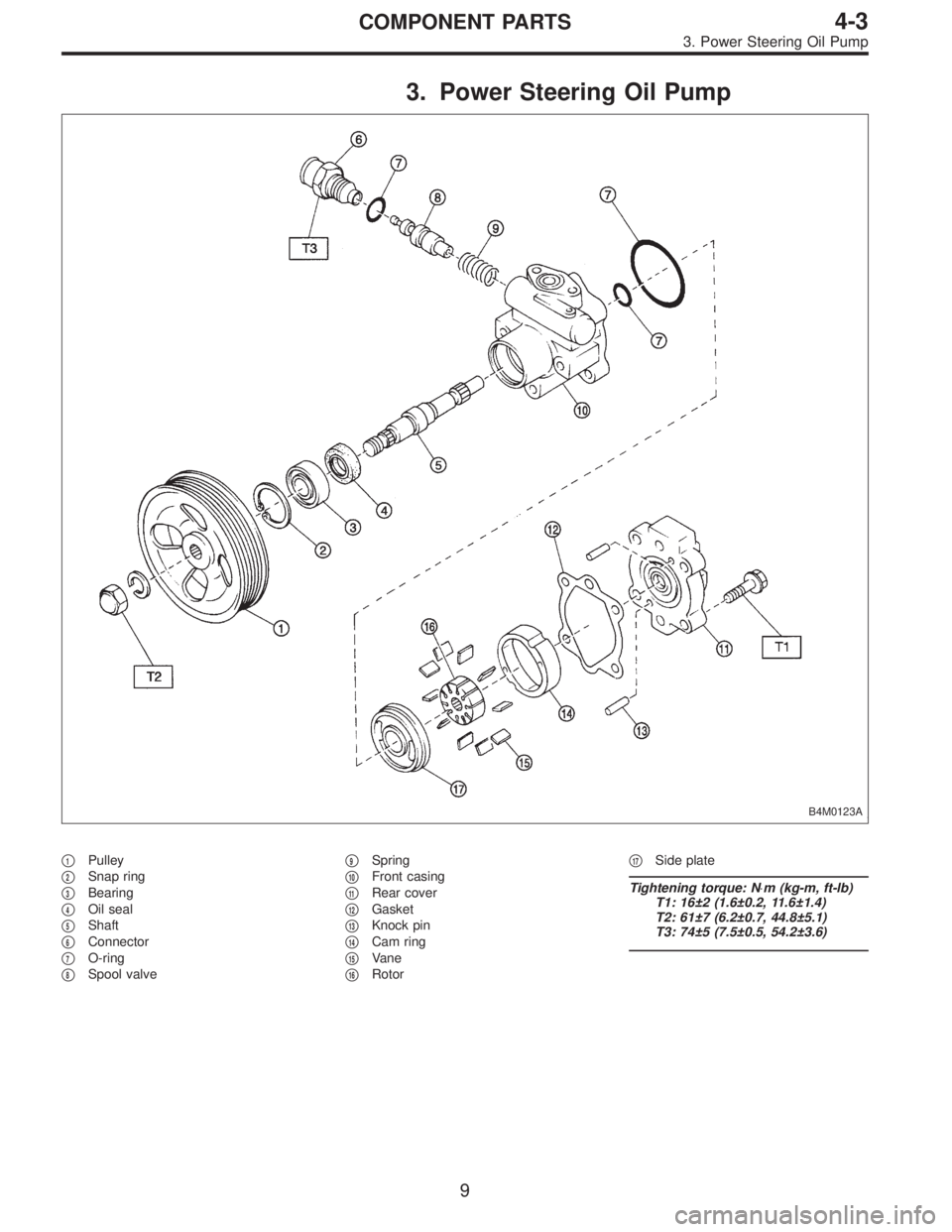

SUBARU LEGACY 1995 Service Repair Manual 3. Power Steering Oil Pump B4M0123A 1Pulley  2Snap ring  3Bearing  4Oil seal  5Shaft  6Connector  7O-ring  8Spool valve 9Spring  10Front casing  11Rear cover  12Gasket  13Knock pin  14Ca
