Page 1593 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM012 and EM023 disconnected, measure the resistance between EM012/022 and EM023/004. 1 Is the resistance < 0.5 OHM? Yes GO to E14 No Inspect harness / connecto rs EM012, and EM023 for co

Page 1594 of 2490

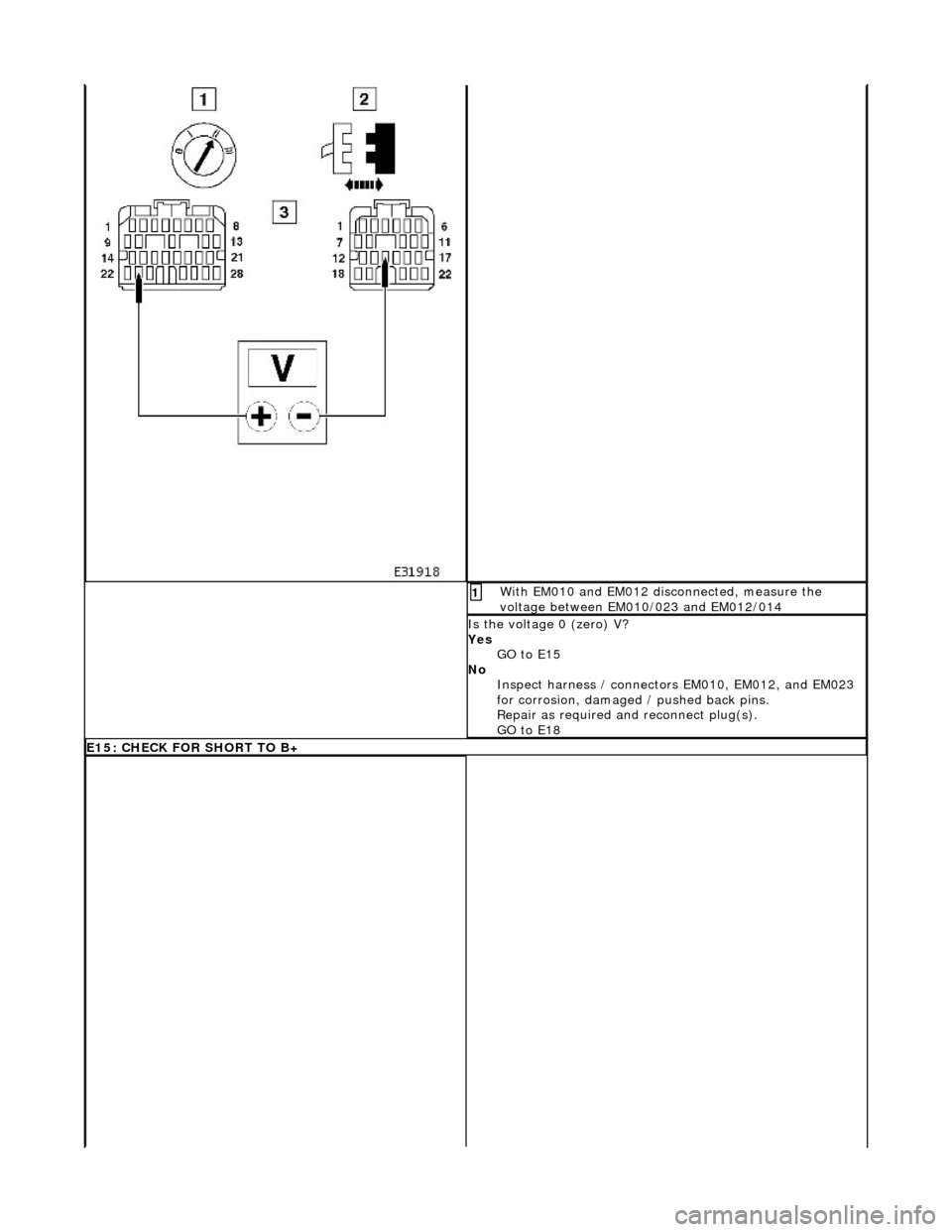

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM012 disconnected, measure the voltage between EM010/023 and EM012/014 1 Is the voltage 0 (zero) V? Yes GO to E15 No Inspect harness / connecto rs EM010, EM012, and EM023 for c

Page 1595 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM012 disconnected, measure the voltage between EM010/023 and EM012/022. 1 Is the voltage 0 (zero) V? Yes GO to E16 No Inspect harness / connecto rs EM010, EM012 and EM023 for c

Page 1596 of 2490

JAGUAR X308 1998 2.G Workshop Manual Ignition switch to position 0 1 Remove EMS fuse F14. 2 Disconnect EM010 and EM015. 3 Using a link lead, bridge EM010/016 and EM010/022. 4 Measure the voltage between EM010/023 and EM015/001. 5

Page 1597 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test F: P0153 With EM010 and EM015 disconnected, measure the voltage between EM010/023 and EM015/001. 1 Is the voltage B+? Yes Remove link lead and reconnect all connectors. GO to E18

Page 1598 of 2490

JAGUAR X308 1998 2.G Workshop Manual Connect the scan tool 1 Have the DTC(s) and freeze frame data been recorded? Yes GO to F2 F2: CHECK FOR LOW EXHAUST TEMPERATURE Check the engine and exhaust system for normal running temperatu

Page 1599 of 2490

JAGUAR X308 1998 2.G Workshop Manual Run the engine for a period to warm the sensor and then maintain a steady speed of approximately 2500 rpm. 1 Measure the voltage between EM023/003 and EM023/004. 2 Is the voltage between 600mV a

Page 1600 of 2490

JAGUAR X308 1998 2.G Workshop Manual Yes GO to F7 No Renew O2 sensor. Reconnect plug(s) GO to F8 F7: CHECK FOR O2 SENSOR FAILURE With the conditions held as in F6, run the engine at 1500 rpm for approximately 2 minutes. 1 Does
