JAGUAR X308 1998 2.G Workshop Manual Conne ct the scan tool 1 Have the DTC(s) and fr eeze frame data been recorded? Yes GO to H2 H2: CHECK FOR LOW EXHAUST TEMPERATURE Chec k the engine and exhaust system for correct operatio

Page 1626 of 2490

JAGUAR X308 1998 2.G Workshop Manual With the conditions held as H3, suddenly decelerate to idle. 1 Has the voltage d ropped to 400mV or less ? Yes Stop the engine GO to H5 No Renew O2 sensor. Reconnect plug(s). GO to H7 H

Page 1627 of 2490

JAGUAR X308 1998 2.G Workshop Manual GO to H8 No Renew O2 sensor. Reconnect plug(s) GO to H7 H7 : STOP Perform appropriate service drive cycle and check for the presence of DTC. 1 Has the fault code cleared? Yes STOP N

Page 1628 of 2490

JAGUAR X308 1998 2.G Workshop Manual Wi th EM012 and EM024 disconnected, measure the resistance between EM012/022 and EM024/001. 1 I s the resistance < 0.5 OHM? Yes GO to H10 No Inspect harness / connectors EM012 and EM024 f

Page 1629 of 2490

JAGUAR X308 1998 2.G Workshop Manual W ith EM024 disconnected measur e the insulation resistance between sensor pin 001 and sensor body. 1 Repeat for pin 002 and sensor body. 2 I s the resistance > 10 MOHM? Yes GO to H12 No

Page 1630 of 2490

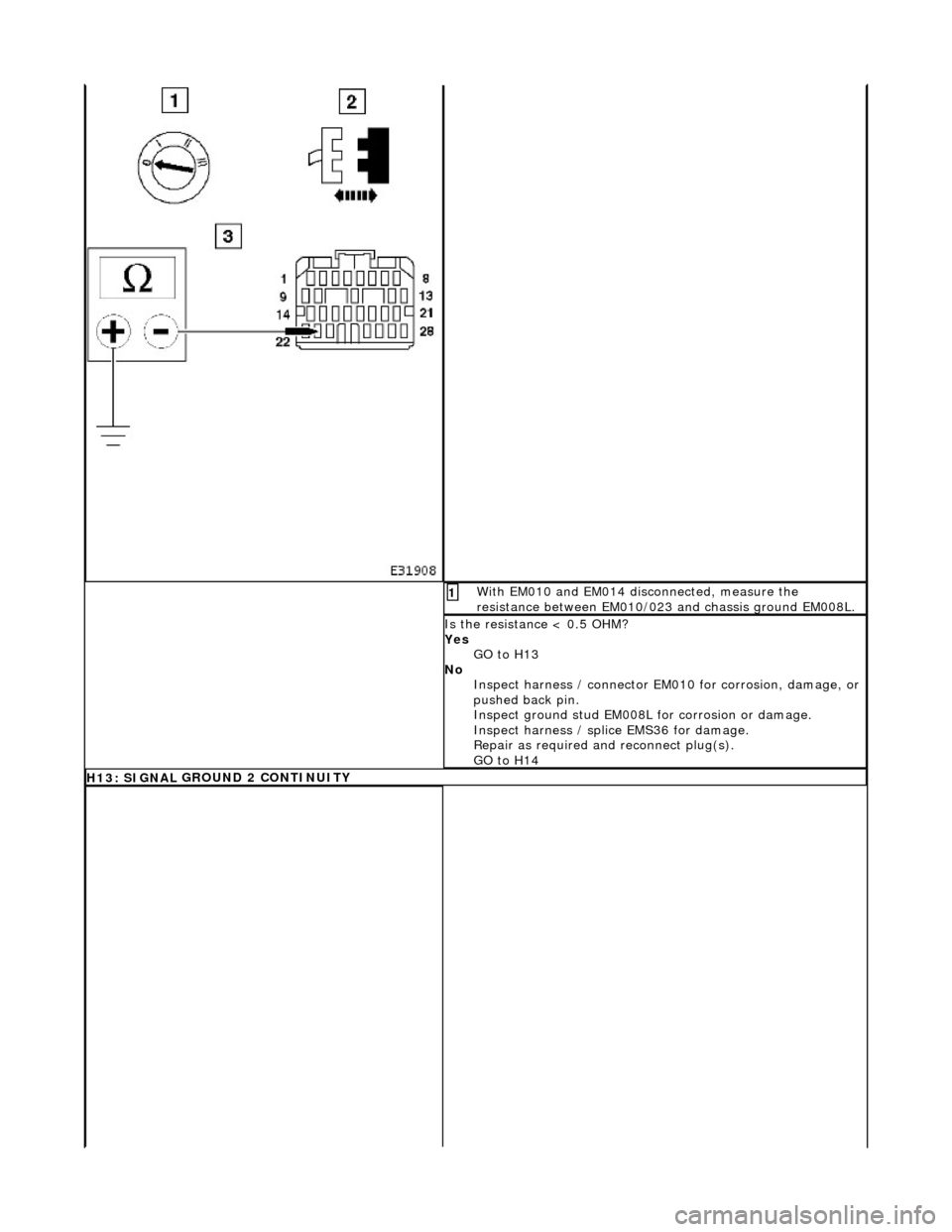

JAGUAR X308 1998 2.G Workshop Manual Wi th EM010 and EM014 disconnected, measure the resistance between EM010/023 and chassis ground EM008L. 1 I s the resistance < 0.5 OHM? Yes GO to H13 No Inspect harness / connector EM010 f

Page 1631 of 2490

JAGUAR X308 1998 2.G Workshop Manual W ith EM010 and EM014 disconnected, measure the resistance between EM014/004 and chassis ground EM008L. 1 I s the resistance < 0.5 OHM? Yes GO to H15 No Inspect harness / connector EM014 for

Page 1632 of 2490

JAGUAR X308 1998 2.G Workshop Manual Wi th EM012 and EM024 disconnected, measure the resistance between EM012/016 and EM024/002. 1 I s the resistance < 0.5 OHM? Yes GO to H16 No Inspect harness / connecto rs EM012, and EM024
