Front caliper bleed
nipple: 4-6
Nm.
Rear caliper
bleed
nipple: 8-11 Nm.
7. F
ollowing the procedure below,
bleed the brakes in the order
shown:
1. Left-Hand Front,
2. Right-Hand Front,
3. Left- Hand Rear,
4. Right-Hand Rear.
8. CAUTI
ON: Remove brake flui
d spillage immediately from
paint work with clean water.
Fill fluid reservoir.
F
ill reservoir to the 'MAX' mark.
F
it filler cap.
9.
Start e
ngine.
10. Check for correct brake-pedal travel and pressure.
11. Apply brake pedal and check around vehicle for brake fluid
leaks.
12. Make sure brake fluid level is at the 'MAX' mark.
Page 322 of 2490

Brake Sys
tem - General Informatio
n - Brake System BleedingVehicles
With: High Performance Brakes
Gen e
ral Procedures
1. WARNINGS:
IF BRAKE FLUID IS TAKEN INTERNALLY, DRINK WATER
AND INDUCE VOMITING. GET MEDICAL ATTENTION
IMMEDIATELY.
WASH HANDS AFTER HANDLING BRAKE FLUID. IF BRAKE
FLUID COMES INTO CONTACT WITH THE EYES, FLUSH EYES
WITH COLD RUNNING WATER. IF IRRITATION PERSISTS SEEK
MEDICAL ATTENTION.
CAUTION: Remove brake flui d spillage immediately from
paint work with clean water.
Position vehicle on a four-post lift.
2. Op
en engine compartment and fit
paint work protection covers
to fenders.
3. NO
TE: Make sure the
brake-fluid level does not fall below the
fluid reservoir 'MIN' (minimum) mark when bleeding the brake
system.
Fill fluid reservoir to the 'MAX' (maximum) mark.
4. Pr
epare the left-hand front,
brake-caliper for bleeding.
Connect b
leed pipes an
d fluid containers to bleed nipples.
5. Bleed the brake.
1. Apply pressure to brake pedal.
2. Open caliper's outer bleed nipple.
3. Fully depres s brake pedal.
Page 323 of 2490
4
. Close bleed nipple.
5. Release brake pedal.
6. Wait two seconds to allow system to prime.
7. Repeat procedure until air- free brake fluid is expelled
from the bleed nipple.
8. Repeat procedure to ca liper's inner bleed nipple.
6. Tigh
ten bleed nipples to 12-16 Nm.
7. F
ollowing the procedure above,
bleed the brakes in the order
shown:
1. Left-Hand Front,
2. Right-Hand Front,
3. Left- Hand Rear,
4. Right-Hand Rear.
8. CAUTI
ON: Remove brake flui
d spillage immediately from
paint work with clean water.
Fill fluid reservoir.
F
ill reservoir to the 'MAX' mark.
F
it filler cap.
9.
Start e
ngine.
10. Check for correct brake-pedal travel and pressure.
11. Apply brake pedal and check around vehicle for brake fluid
leaks.
12. Make sure brake fluid level is at the 'MAX' mark.
Page 324 of 2490

Brake System - Gener
al Information - Front Brake Disc Runout
CheckVehicles With: Standard Brakes
Gen e
ral Procedures
S
p
ecial Tool(s)
Dial Test Indicator
G
auge and Stand.
1. Raise front of vehicle and support on stands. Refer to section
100-02.
2. Remove wheel.
3. CAUT
ION: Tie caliper housing aside. Do not allow the
caliper housing to hang on the hydraulic hose, as this will damage
the hose.
Remove caliper housing from caliper carrier.
1. Remove anti-rattle spring.
2. Remove dust covers.
3. Remove guide pins.
Remove an
d tie caliper housing aside.
4.
Make sure that wheel
bearing en
d-float is correct. Refer to
specification section 204-01.
5. Measure brake d
isc run-out.
Inst
al
l brake disc to hub and secure with all wheel nuts,
tighten wheel nuts to 20 Nm in a diagonal sequence.
Posi
tion the gauge so that the pointer contacts the disc,
10 mm from its outer edge.
Slo w
ly rotate the disc one revolution, the disc run-out
must not exceed the specification. Refer to Specification
Section 206-03.
6. If the brake disc run-out exceeds specification, reposition the
brake disc on the hub and re peat the above procedure.
Continue repositioning the brake di sc until the run-out is within
specification.
7. If the brake disc run-out still exceeds specification, check the
hub face run-out.
8. Remove brake disc. Refer to procedure 70.10.12.
9. Measure hub face run-out.
Posi
tion the gauge so that the pointer contacts the hub
face.
Slo w
ly rotate the hub one revolution, the hub run-out

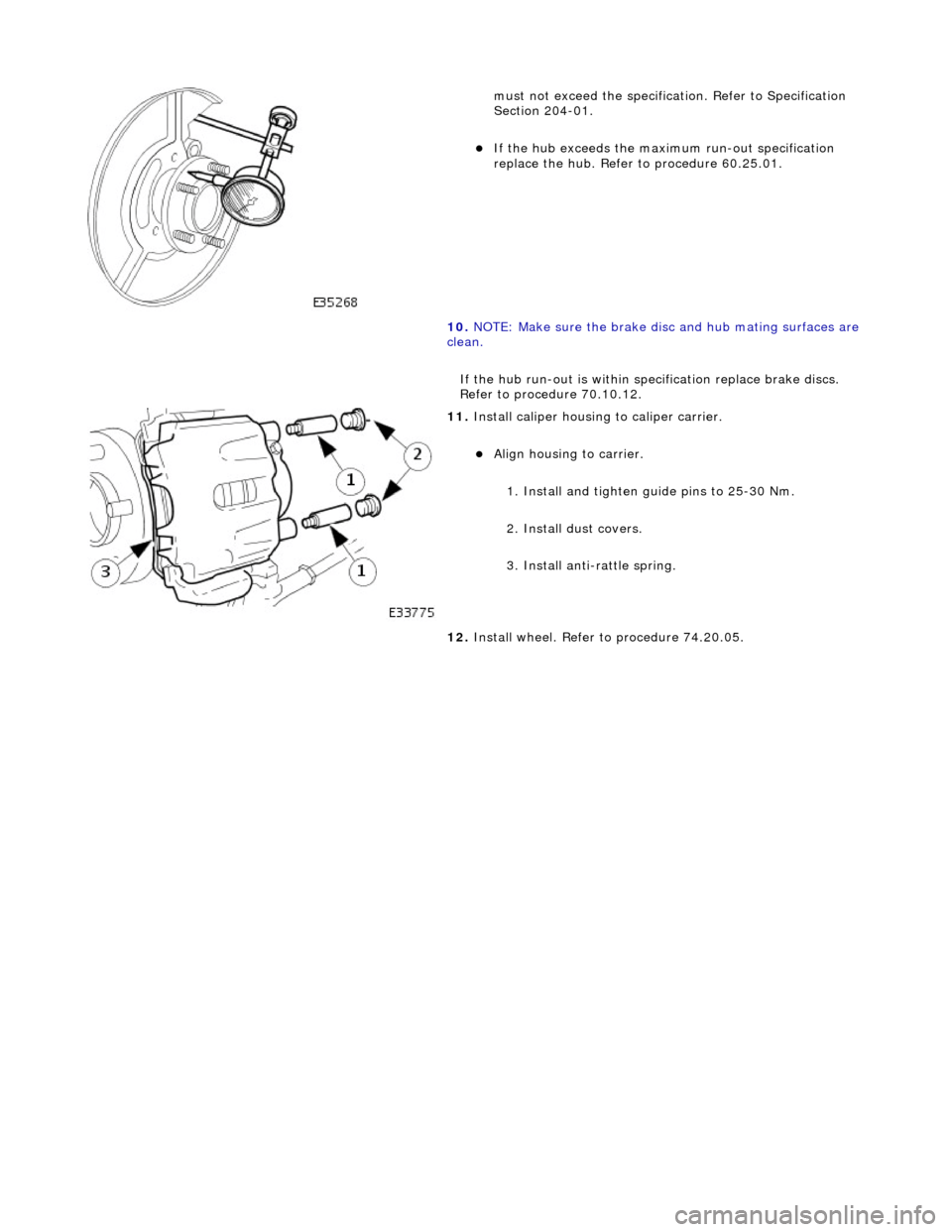

Page 325 of 2490
mu
st not exceed the specification. Refer to Specification
Section 204-01.
I
f the hub exceeds the maximum run-out specification
replace the hub. Refer to procedure 60.25.01.
10. NOTE: Make sure the brake disc and hub mating surfaces are
clean.
If the hub run-out is within sp ecification replace brake discs.
Refer to procedure 70.10.12.
11
.
Install caliper housing to caliper carrier.
Align hou
sing to carrier.
1. Install and tighten guide pins to 25-30 Nm.
2. Install dust covers.
3. Install anti-rattle spring.
12. Install wheel. Refer to procedure 74.20.05.
Page 326 of 2490
Fr
ont Brake Disc Runout Check Vehicles With: Brembo Brakes
Special Service tools
Di
al Test Indicator Gauge and Stand.
1.
WA
RNING:
BRAKE DUST, IF INHALED CAN DAMAGE YOUR HEALTH. ALWAYS REMOVE BRAKE DUST USING A VACUUM BRUSH. DO NOT USE A COMPRESSED-AIR LINE TO DISPERSE BRAKE DUST
INTO THE ATMOSPHERE.
CA
UTION:
Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts
throughout the vehicle. These devices restrict the number of times a nut or bolt can be used. See
section <<100-00>> for information.
CA
UTION:
The Brembo caliper is aligned to the brake disc when it is first installed to the vehicle, therefore,
care must be taken not to disturb this alignment. When removing the caliper; remove the bolts
that secure the anchor bracket to the vertical link only. DO NOT loosen any other caliper bolts.
Raise front of vehicle and support on stands. Refer to section <<100-02>>.
2. Remove wheel. Refer to section <<74.20.05>>.
Page 327 of 2490
3
. Remove brake pads from caliper.
1. Remove 'R' clips.
2. Withdraw pins from caliper.
3. Remove anti-rattle spring.
4. Remove brake pads.
4
.
C
AUTION:
Only remove the bolts securing the caliper anchor bracket to the vertical link. Refer to caution
above for more information.
C
AUTION:
Do not allow the caliper to hang on the hydraulic hose, as this will damage the hose.
Remove caliper from vertical link. Remove bolts.
Page 328 of 2490
R
emove and tie caliper aside.
5. Make sure that wheel bearing end-float is within specification. Refer to specification section <<204-01>>.
6.
Measure brake disc run-out.
1. Install brake disc to hub and secure with all wheel nuts, tighten wheel nuts to 20 Nm in a diagonal sequence.
2. Position the gauge so that the pointer contacts the disc, between the disc's outer drill holes and the disc's outer edge.
Slowly rotate the disc one revolution, the disc run-out must not exceed the specification. Refer to
Specification Section <<206-03>>.
7. If the brake disc run-out exceeds specification, reposition the brake disc on the hub and repeat the above
procedure. Continue repositioning the brake disc until the run-out is within specification.
8. If the brake disc run-out still exceeds specification, check the hub face run-out.
9. Remove brake disc.
