Page 1601 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM023 disconnected measure the insulation resistance between sensor pin 001 and sensor body. 1 Repeat for pin 003 and sensor body. 2 Is the resistance > 10 MOHM? Yes GO to F11 No Renew t

Page 1602 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM014 disconnected, measure the resistance between EM010/023 and chassis ground EM008L. 1 Is the resistance < 0.5 OHM? Yes GO to F12 No Inspect harness / connector EM010 for co

Page 1603 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM014 disconnected, measure the resistance between EM014/004 and chassis ground EM008L. 1 Is the resistance < 0.5 OHM? Yes GO to F14 No Inspect harness / connector EM014 for co

Page 1604 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM012 and EM023 disconnected, measure the resistance between EM012/014 and EM023/003. 1 Is the resistance < 0.5 OHM? Yes GO to F14 No Inspect harness / connectors EM012 and EM023 for corro

Page 1605 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM012 and EM023 disconnected, measure the resistance between EM012/022 and EM023/004. 1 Is the resistance < 0.5 OHM? Yes GO to F15 No Inspect harness / connectors EM012 and EM023 for corr

Page 1606 of 2490

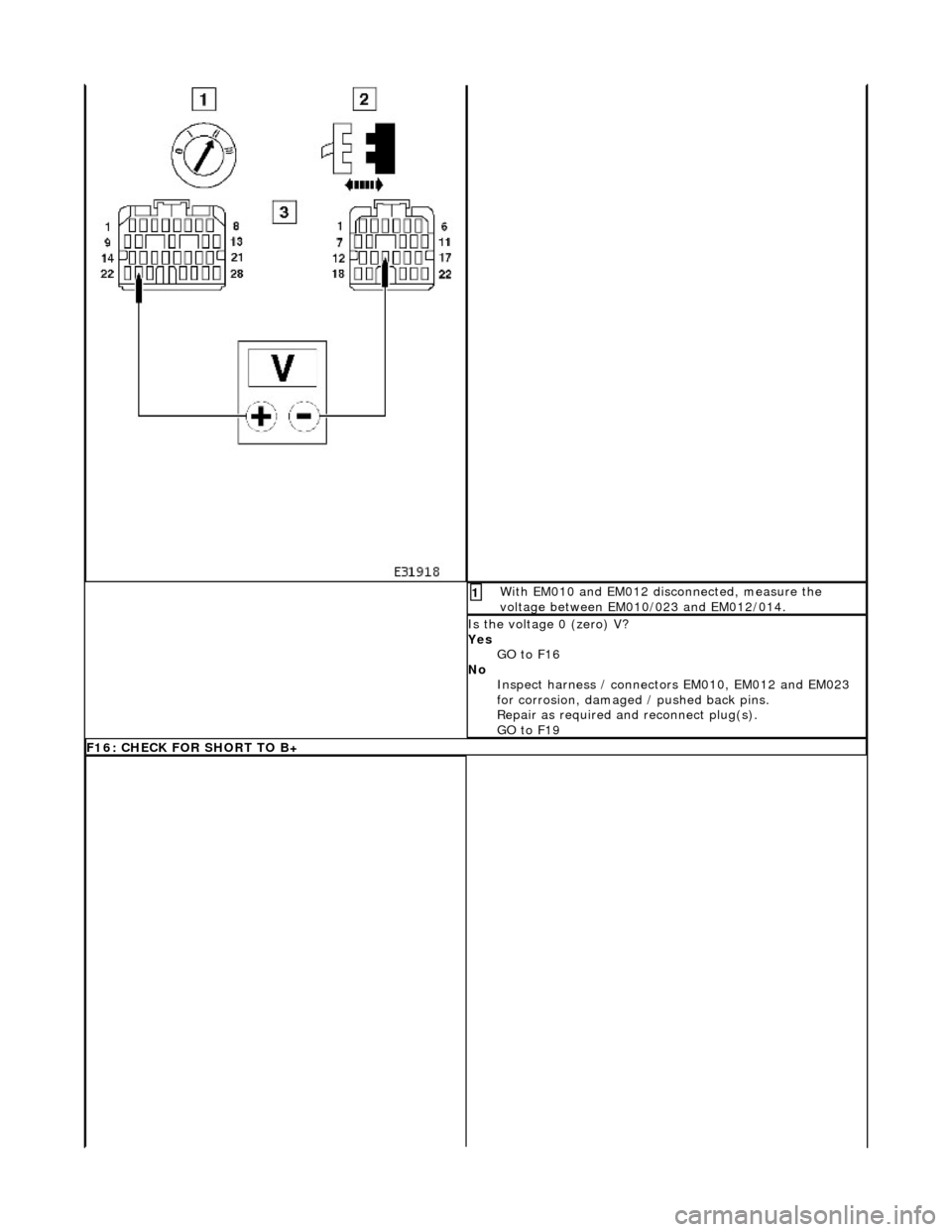

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM012 disconnected, measure the voltage between EM010/023 and EM012/014. 1 Is the voltage 0 (zero) V? Yes GO to F16 No Inspect harness / connecto rs EM010, EM012 and EM023 for c

Page 1607 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM012 disconnected, measure the voltage between EM010/023 and EM012/022. 1 Is the voltatage 0 (zero) V? Yes GO to F17 No Inspect harness / connecto rs EM010, EM012 and EM023 for

Page 1608 of 2490

JAGUAR X308 1998 2.G Workshop Manual Ignition switch to position 0 1 Remove EMS fuse F14. 2 Disconnect EM010 and EM015. 3 Using a link lead, bridge EM010/016 and EM010/022. 4 Measure the voltage between EM010/023 and EM015/001. 5
