Page 1617 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM014 disconnected, measure the resistance between EM010/023 and chassis ground EM008L. 1 Is the resistance < 0.5 OHM? Yes GO to G12 No Inspect harness / connector EM010 for corr

Page 1618 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM014 disconnected, measure the resistance between EM014/004 and chassis ground EM008L. 1 Is the resistance < 0.5 OHM? Yes GO to G14 No Inspect connector EM014 for co rrosion, da

Page 1619 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM012 and EM024 disconnected, measure the resistance between EM012/016 and EM024/002. 1 Is the resistance < 0.5 OHM? Yes GO to G15 No Inspect harness / connecto rs EM012, and EM024 for co

Page 1620 of 2490

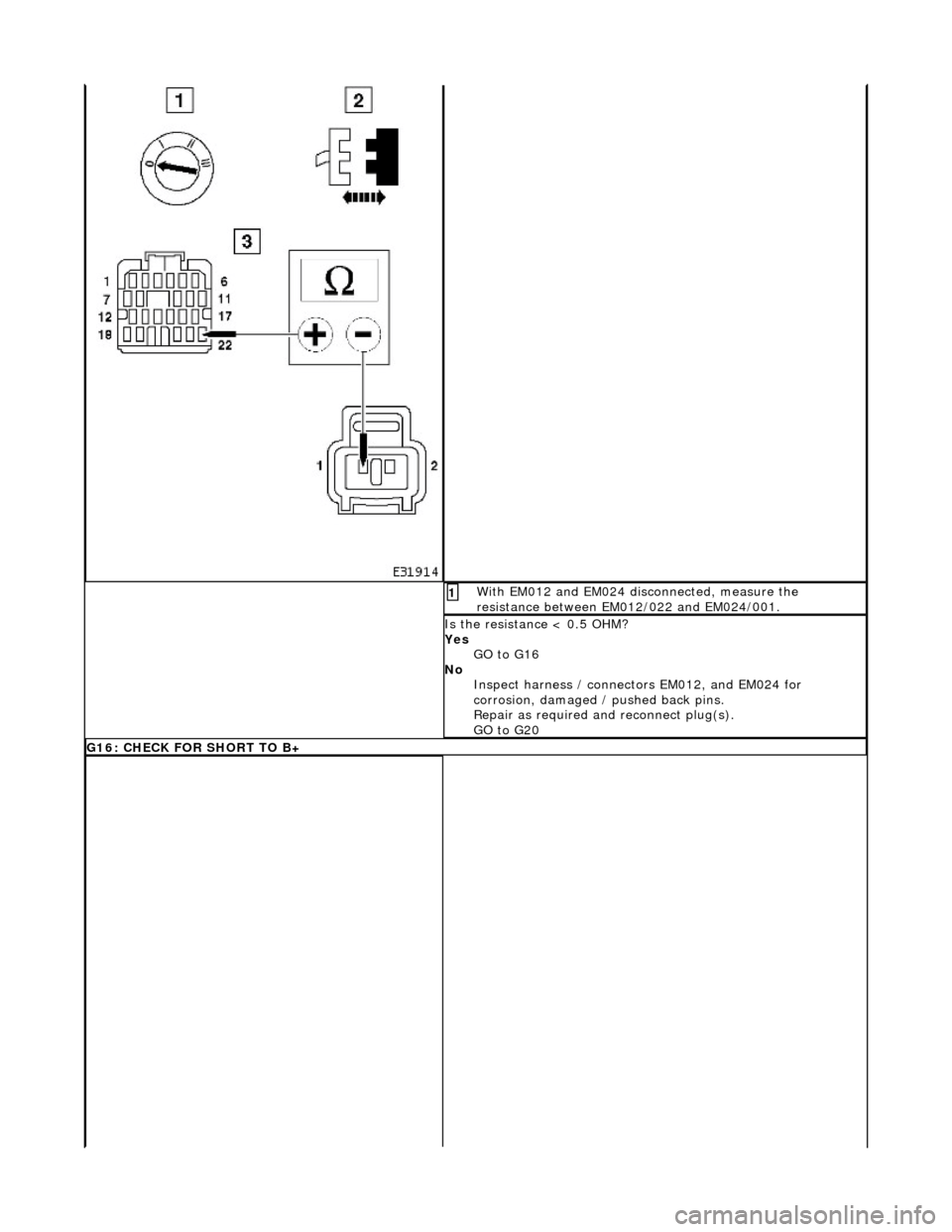

JAGUAR X308 1998 2.G Workshop Manual With EM012 and EM024 disconnected, measure the resistance between EM012/022 and EM024/001. 1 Is the resistance < 0.5 OHM? Yes GO to G16 No Inspect harness / connecto rs EM012, and EM024 for co

Page 1621 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM012 disconnected, measure the voltage between EM010/023 and EM012/016. 1 Is the voltage 0 (zero) V? Yes GO to G17 No Inspect harness / connectors EM010, EM012 and EM024 for co

Page 1622 of 2490

JAGUAR X308 1998 2.G Workshop Manual Wi th EM010 and EM012 disconnected, measure the voltage between EM010/023 and EM012/022 1 Is th e volt age 0 (zero) V? Yes GO to G18 No Inspect harness / connectors EM010, EM012 and EM024

Page 1623 of 2490

JAGUAR X308 1998 2.G Workshop Manual M easure the insulation resistance between EM012/016 and ground EM010/023. 1 I s the resistance > 10 MOHM? Yes GO to G19 No Inspect harness / connectors EM012 and EM024 for corrosion, ben

Page 1624 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test H: P0160 Me asure the insulation resistance between EM012/016 and EM015/001. 1 I s the resistance > 10 MOHM? Yes Reconnect all plugs. GO to G20 No Inspect harness / EM012,
