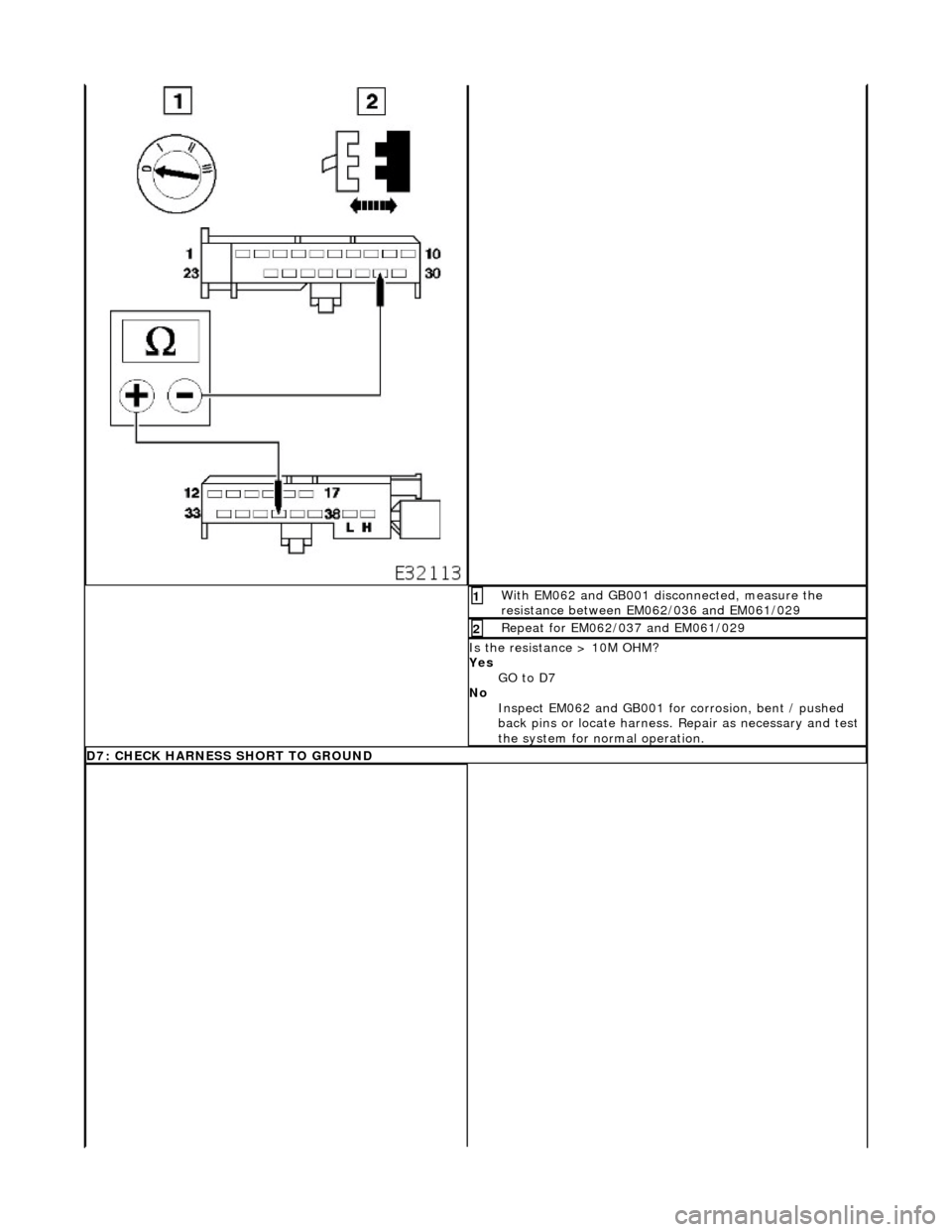

Page 1417 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between EM062/036 and EM061/029 1 Repeat for EM062/037 and EM061/029 2 Is the resistance > 10M OHM? Yes GO to D7 No Inspect EM062 and

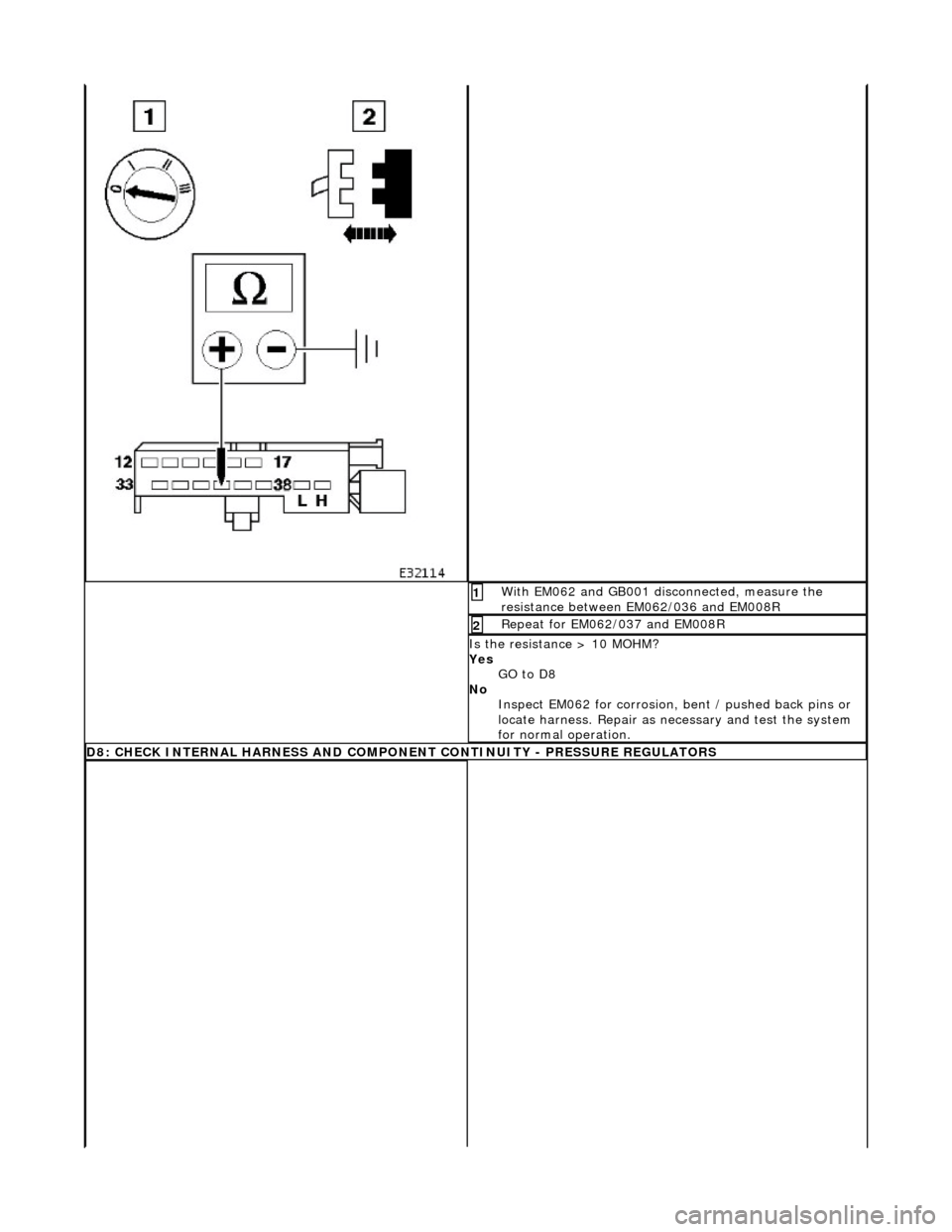

Page 1418 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between EM062/036 and EM008R 1 Repeat for EM062/037 and EM008R 2 Is the resistance > 10 MOHM? Yes GO to D8 No Inspect EM062 for corros

Page 1419 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test E: P0702 With EM062 disconnected, measure the resistance between the following, noting the relevant DTC 1 For P0702 or P0748 EM062/38 and EM062/036 2 For P0702 or P1748 EM062/38 and

Page 1420 of 2490

JAGUAR X308 1998 2.G Workshop Manual Connect the scan tool 1 Have the DTC(s) and freeze frame data been recorded? Yes GO to E2 E2: CHECK SENSOR SUPPLY VOLTAGE With GB001 disconnected, measure the voltage between GB001/007 and GB00

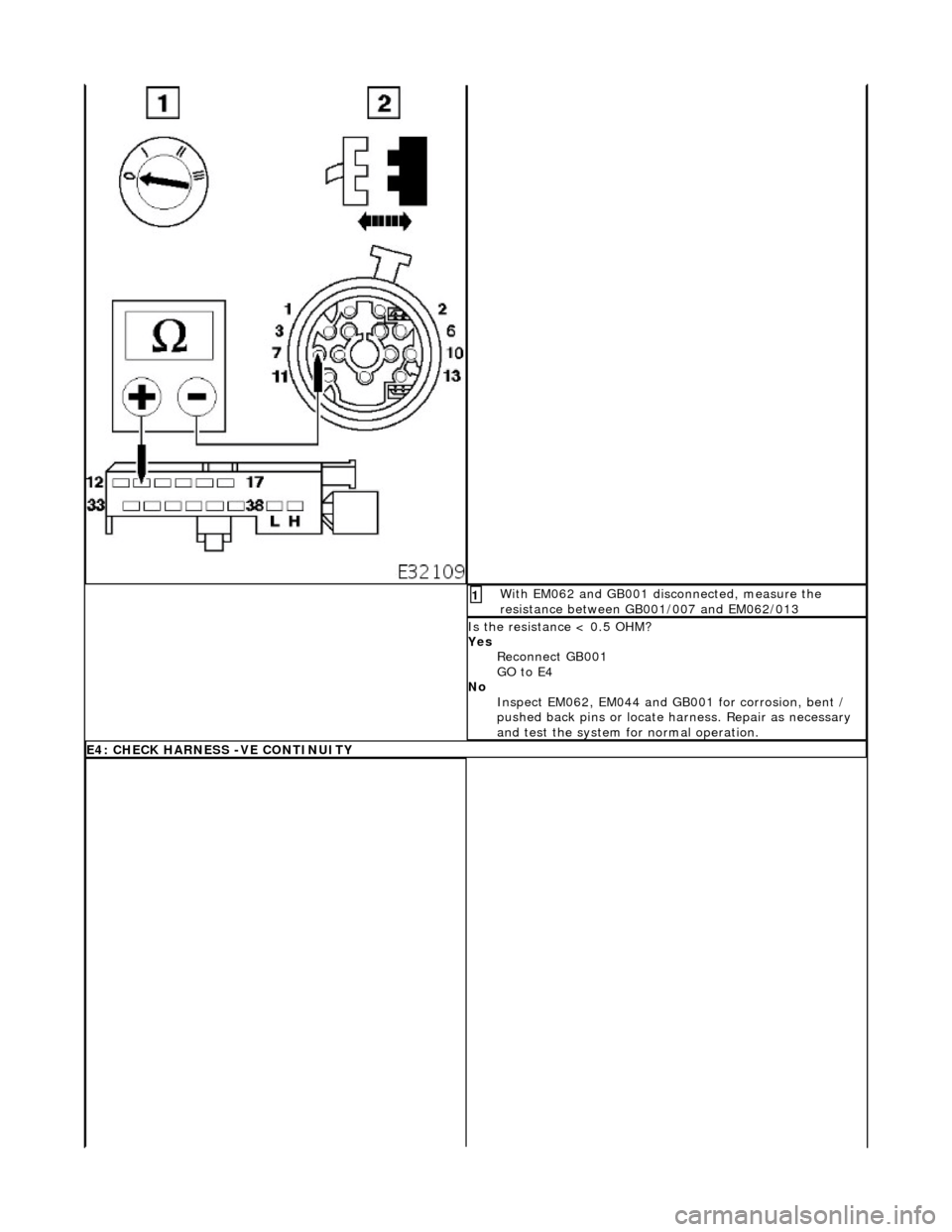

Page 1421 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between GB001/007 and EM062/013 1 Is the resistance < 0.5 OHM? Yes Reconnect GB001 GO to E4 No Inspect EM062, EM044 and GB001 for corro

Page 1422 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test F: P0715 With EM062 and GB001 disconnected, measure the resistance between GB001/012 and EM062/033 1 Is the resistance < 0.5 OHM? Yes GO to E5 No Inspect EM062, EM044 and GB001 fo

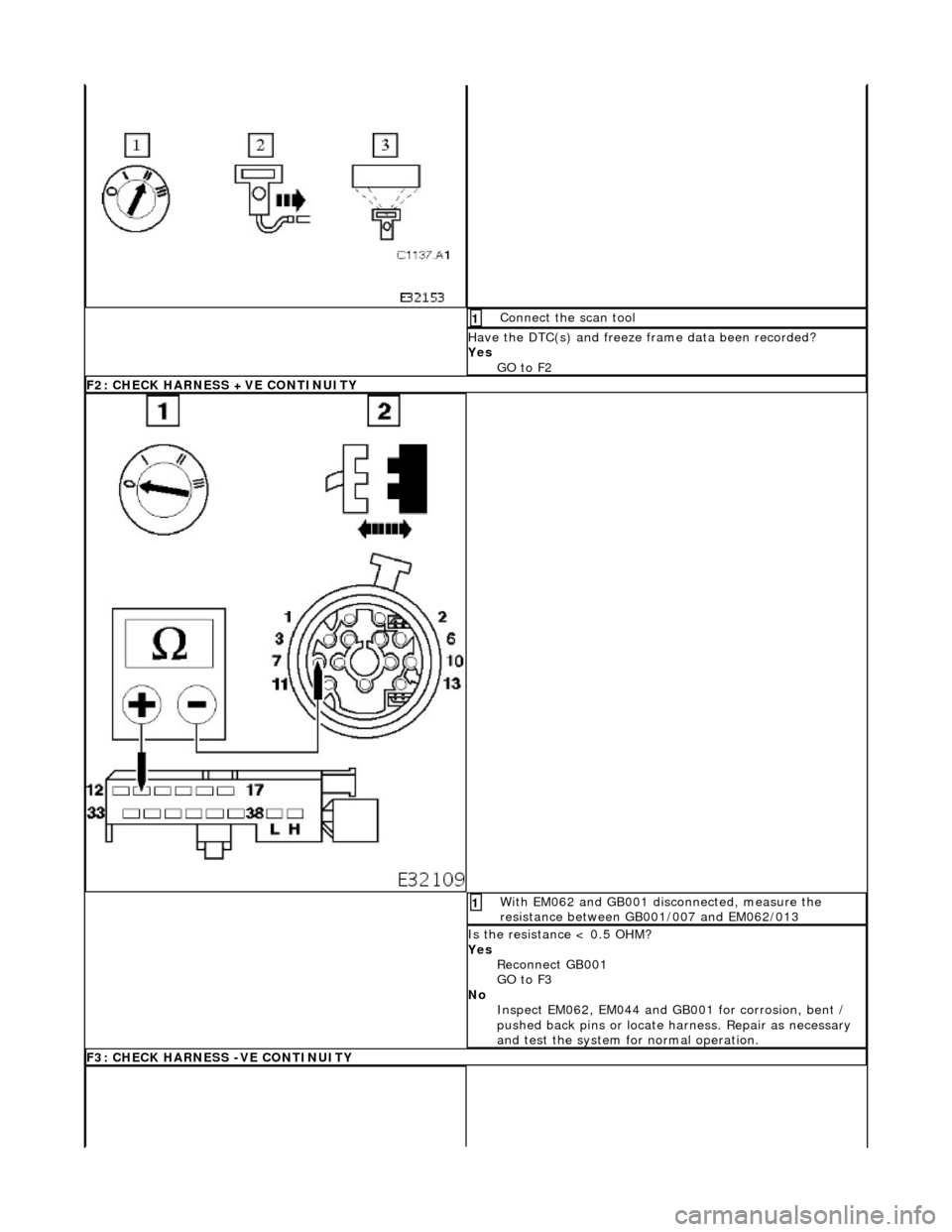

Page 1423 of 2490

JAGUAR X308 1998 2.G Workshop Manual Connect the scan tool 1 Have the DTC(s) and freeze frame data been recorded? Yes GO to F2 F2: CHECK HARNESS +VE CONTINUITY With EM062 and GB001 disconnected, measure the resistance between GB00

Page 1424 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between GB001/012 and EM062/033 1 Is the resistance < 0.5 OHM? Yes GO to F4 No Inspect EM062, EM044 and GB001 for corrosion, bent / pus
