Page 1337 of 2490

JAGUAR X308 1998 2.G Workshop Manual 8. Cycle the gear selector. From P to D. From D to R. From R to P. 9. From below. 10. Adjust the transmission fluid level. 1. Remove the filler / level plug. 2. Inject fluid

Page 1338 of 2490

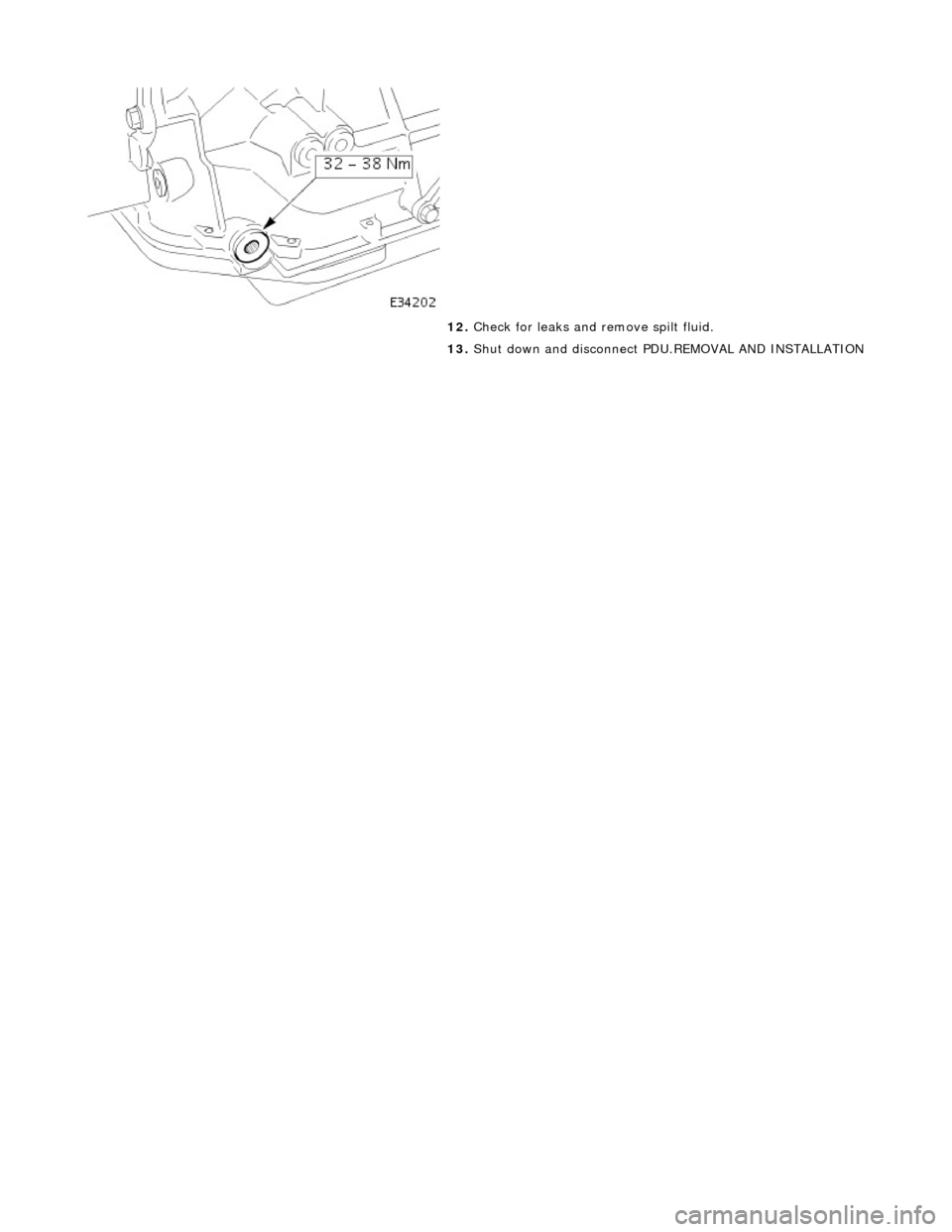

JAGUAR X308 1998 2.G Workshop Manual 12. Check for leaks and remove spilt fluid. 13. Shut down and disconnect PDU.REMOVAL AND INSTALLATION

Page 1339 of 2490

JAGUAR X308 1998 2.G Workshop Manual Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26 - Electronic Pressure Control (EPC) Solenoid In-vehicle Repair Removal 1. Disconnect battery ground cable. Remove the b

Page 1340 of 2490

JAGUAR X308 1998 2.G Workshop Manual Installation 6. Remove the nine screws from th e pressure regulator / solenoid retaining plate. 7. Remove the relevant pressure regulator. 1. Installation is the reverse of the removal

Page 1341 of 2490

JAGUAR X308 1998 2.G Workshop Manual 3. NOTE: Ensure extreme clea nliness and never reuse transmission fluid. Using a new gasket, install the fl uid pan and tighten the fixings to the specified torque figure. 4. Connect the

Page 1342 of 2490

JAGUAR X308 1998 2.G Workshop Manual Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26 - Extension Housing Seal In-vehicle Repair Removal Special Tool(s) Drive shaft flange wrench 205-053 Coupling nut socke

Page 1343 of 2490

JAGUAR X308 1998 2.G Workshop Manual Installation 5. Use tool 307 - 356 to remove the coupling nut. 6. Remove tool 205 - 053 from the coupling. 7. Remove the drive coupling from the housing. Hold the housing assembly in a vic

Page 1344 of 2490

JAGUAR X308 1998 2.G Workshop Manual Hold the housing assembly in a vice with soft jaws fitted and carefully insert the coupling. Fit tool 205 - 053 to the coupling. 3. Use tool 307 - 356 to tighten th e coupling nut t
