JAGUAR X308 1998 2.G Workshop Manual Panel Surface Preparation ALIGNING AND WELDING PANELS • NOTE: Observe all appropriate safety procedures. Apply appropriate sealer or joint preparation. Align the replacement panel with adjacen

Page 2394 of 2490

JAGUAR X308 1998 2.G Workshop Manual Cutting and Welding Symbols CAUTION: Reference should always be made to the welding tables and illust rations in the relevant procedures. Observe all safety precautions with respect to yourself, ot

Page 2395 of 2490

JAGUAR X308 1998 2.G Workshop Manual CAVITY WAX INJECTION - APPROVED ADHESIVES, SEALERS AND BODY PROTECTION SYSTEMS • NOTE: Cavity wax processes should only be applied on completion of all other refinishing and protection procedures.

Page 2396 of 2490

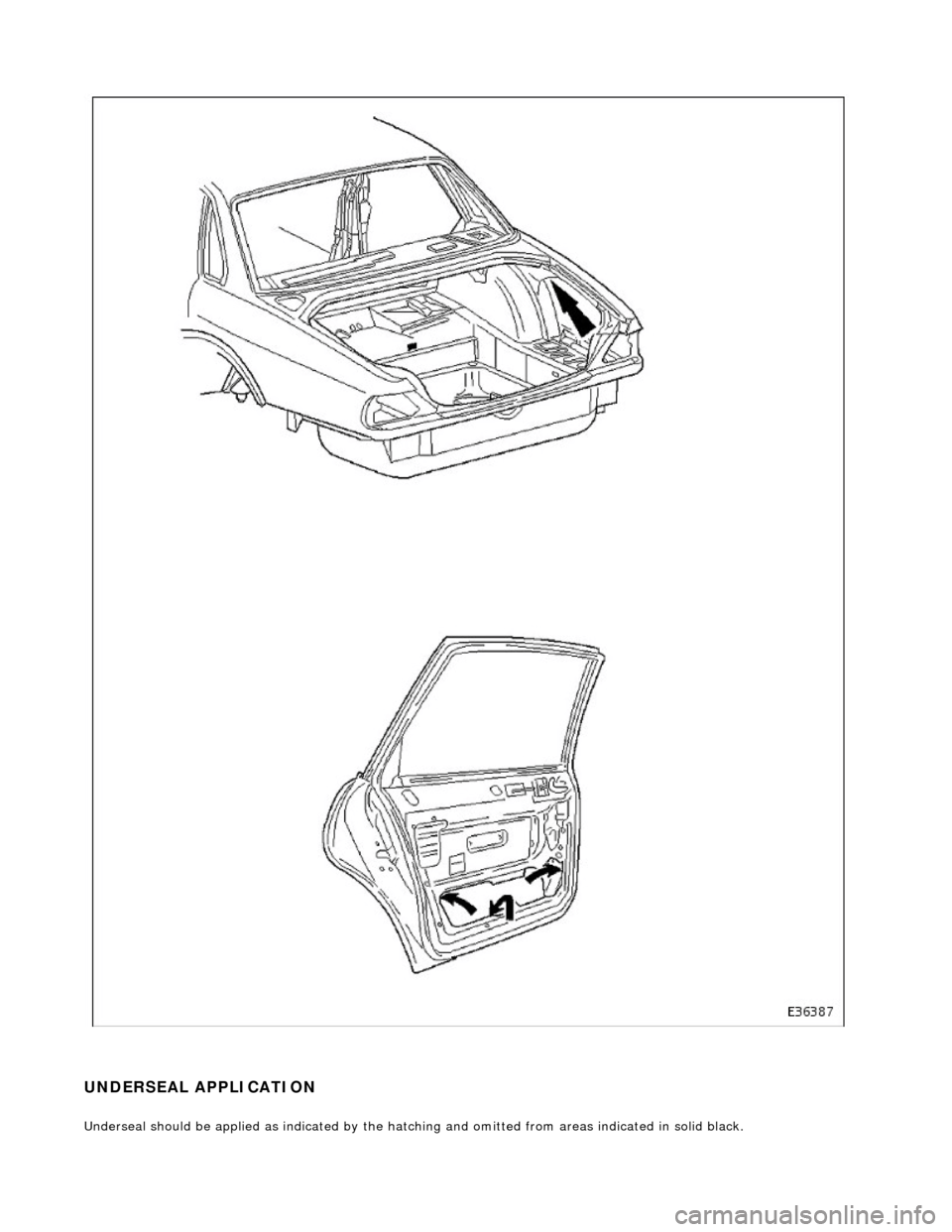

JAGUAR X308 1998 2.G Workshop Manual Cavity Wax Injection Points-Rear

Page 2397 of 2490

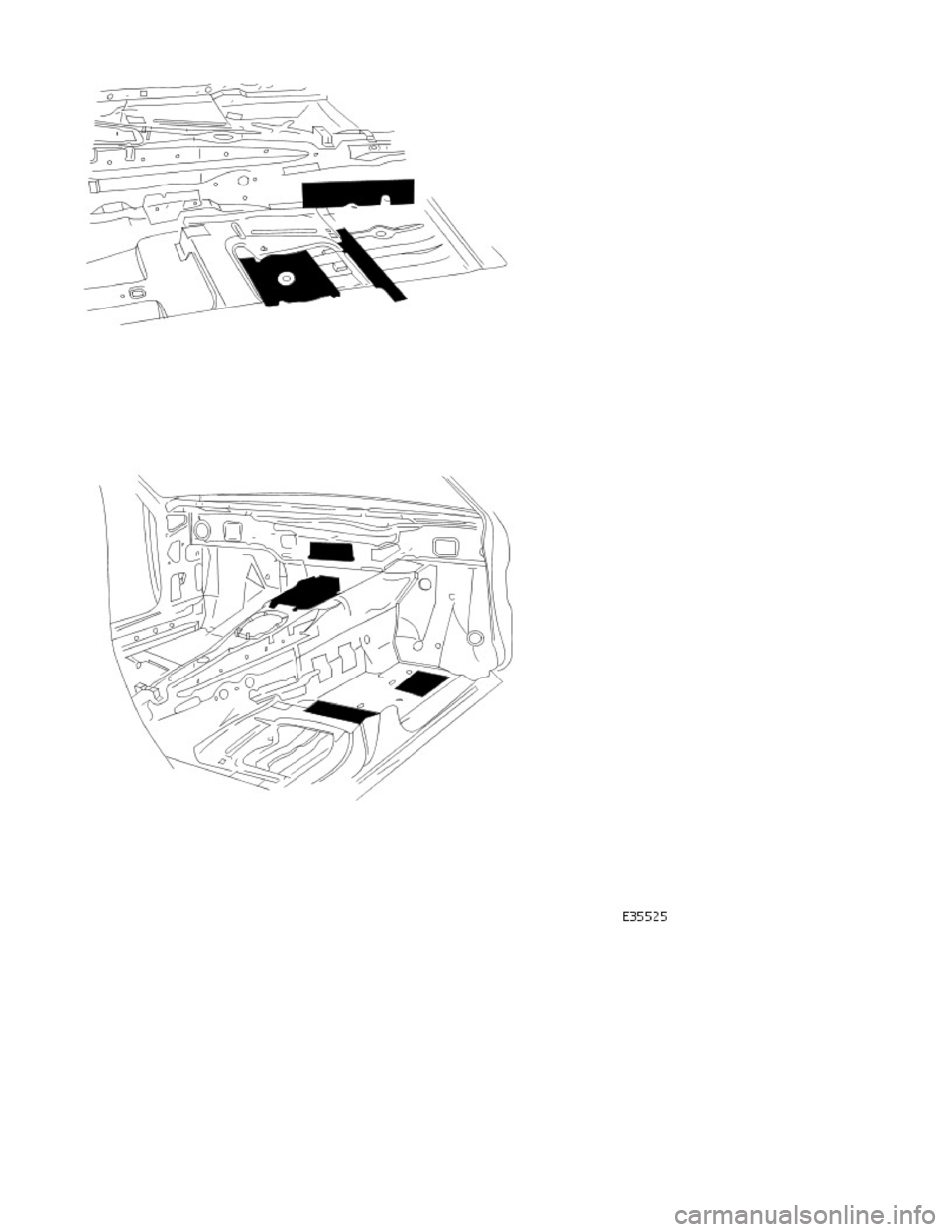

JAGUAR X308 1998 2.G Workshop Manual UNDERSEAL APPLICATION Underseal should be applied as indicated by the hatching and omitted fro m areas indicated in solid black.

Page 2398 of 2490

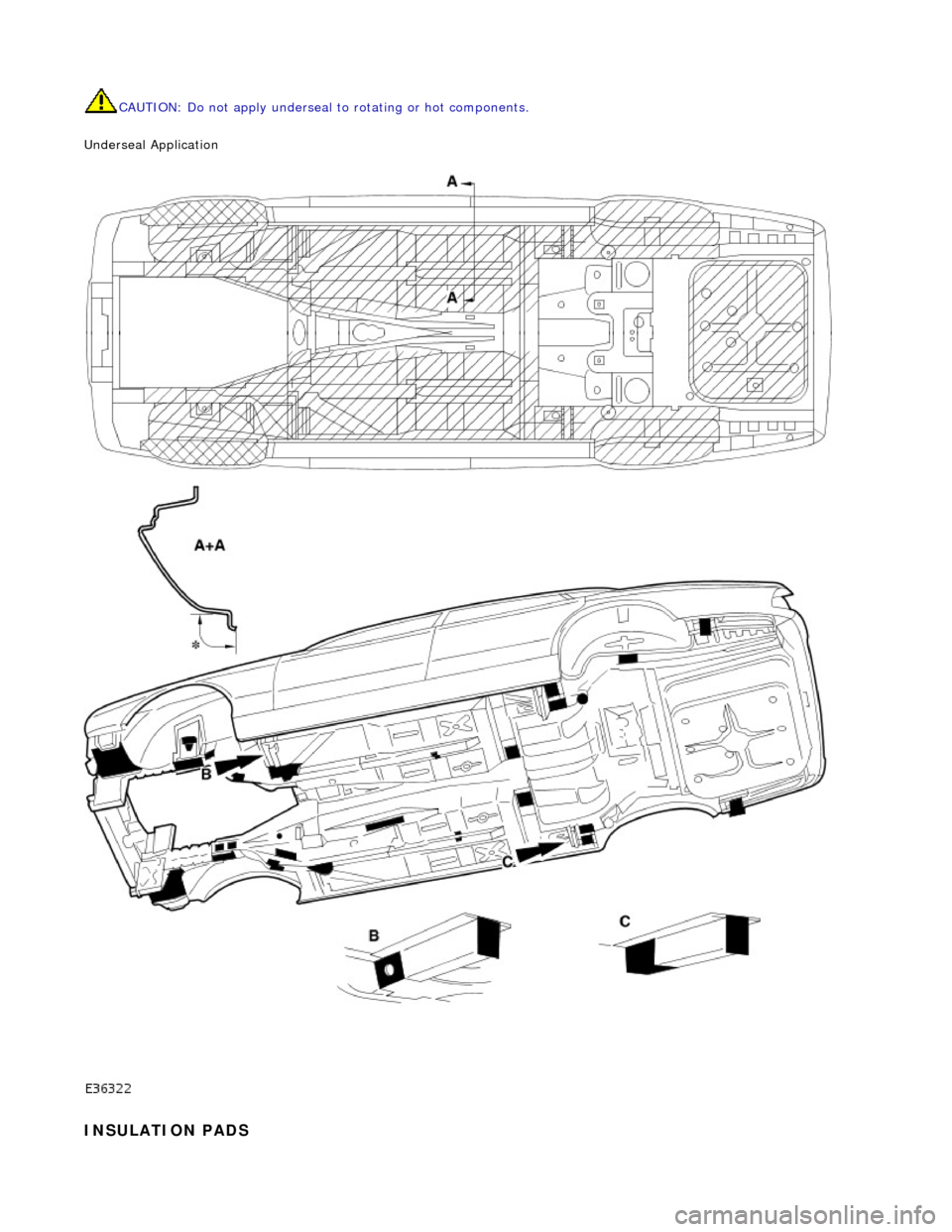

JAGUAR X308 1998 2.G Workshop Manual CAUTION: Do not apply underseal to rotating or hot components. Underseal Application INSULATION PADS

Page 2399 of 2490

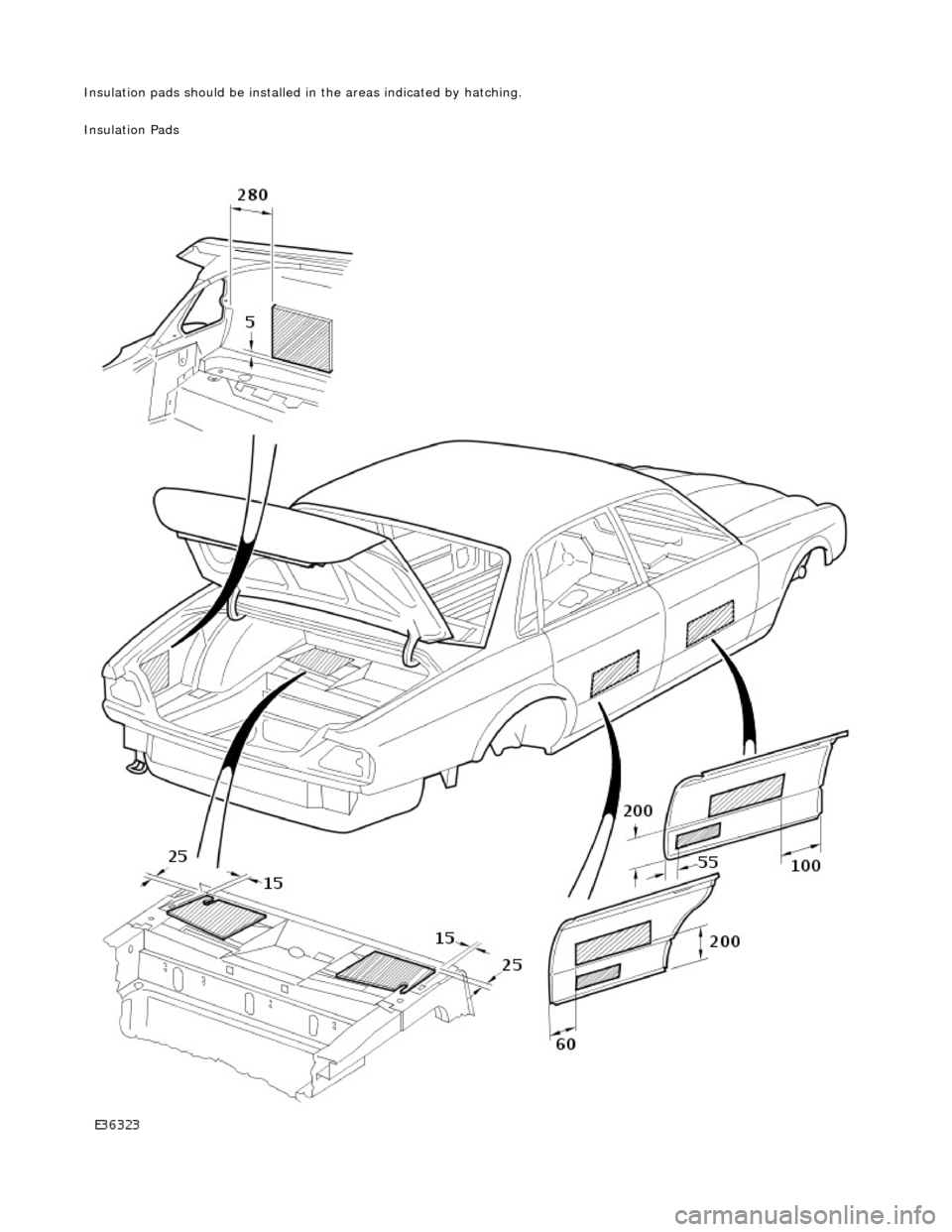

JAGUAR X308 1998 2.G Workshop Manual Insulation pads should be installed in the areas indicated by hatching. Insulation Pads

Page 2400 of 2490

JAGUAR X308 1998 2.G Workshop Manual
