JAGUAR X308 1998 2.G Workshop Manual Body Closures - Fuel Filler Door Removal and Installation Removal Installation 1. Remove battery cover and disconnect ground cable from battery terminal. Refer to Section 86.15.19. 2. Remo

Page 2042 of 2490

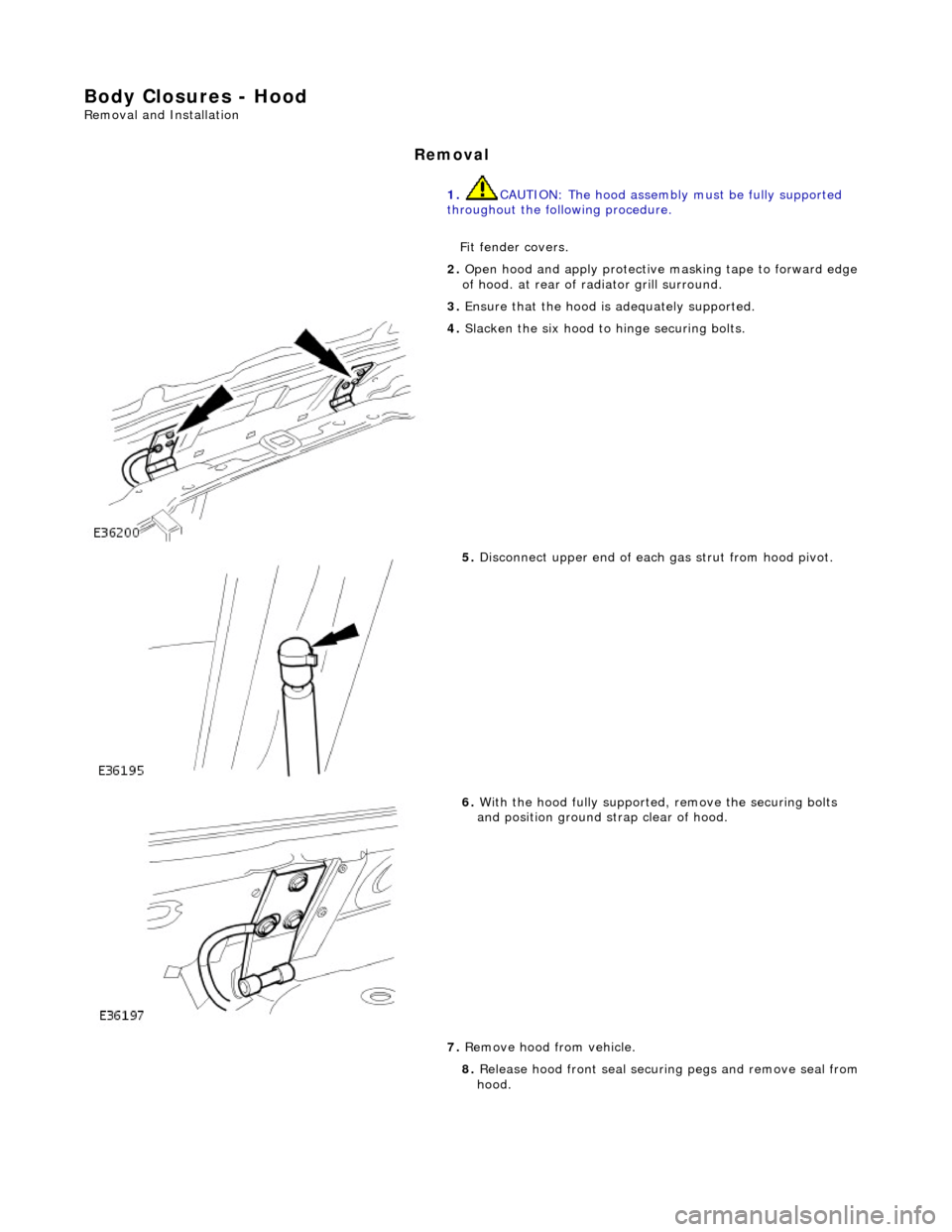

JAGUAR X308 1998 2.G Workshop Manual Body Closures - Hood Removal and Installation Removal 1. CAUTION: The hood assembly must be fully supported throughout the following procedure. Fit fender covers. 2. Open hood and apply protec

Page 2043 of 2490

JAGUAR X308 1998 2.G Workshop Manual Installation 9. Remove hood insulation pad. Slacken and remove the hood insulation pad securing screws and remove insulation pad from hood. Remove and discard the screw inserts 10.

Page 2044 of 2490

JAGUAR X308 1998 2.G Workshop Manual 9. Fit gas struts to hood ensuring that securing clips fully seat. 10. Remove any temporary supports, carefully lower hood and check and adjust alignmen t. Refer to 76.16.02. 11. Fully tig

Page 2045 of 2490

JAGUAR X308 1998 2.G Workshop Manual Body Closures - Hood Hinge Removal and Installation Removal Installation 1. CAUTION: Before slackening hi nge bolts, ensure that the hood is sufficiently supported to prevent damage to paint

Page 2046 of 2490

JAGUAR X308 1998 2.G Workshop Manual Body Closures - Hood Striker Removal and Installation Removal Installation 1. Raise hood and fit fender covers. 2. Slacken locknut and screw stri ker assembly out of nylon insert. 1. Scr

Page 2047 of 2490

JAGUAR X308 1998 2.G Workshop Manual Body Closures - Hood Strut Removal and Installation Removal Installation 1. Open hood and fit fender covers. 2. Install suitable supports for hood. 3. Release retaining clip in stru t upp

Page 2048 of 2490

JAGUAR X308 1998 2.G Workshop Manual Body Closures - Luggage Compartment Lid Hinge Removal and Installation Removal Installation 1. CAUTION: Before slackening hi nge securing bolts, ensure that trunk lid is sufficiently supported to
