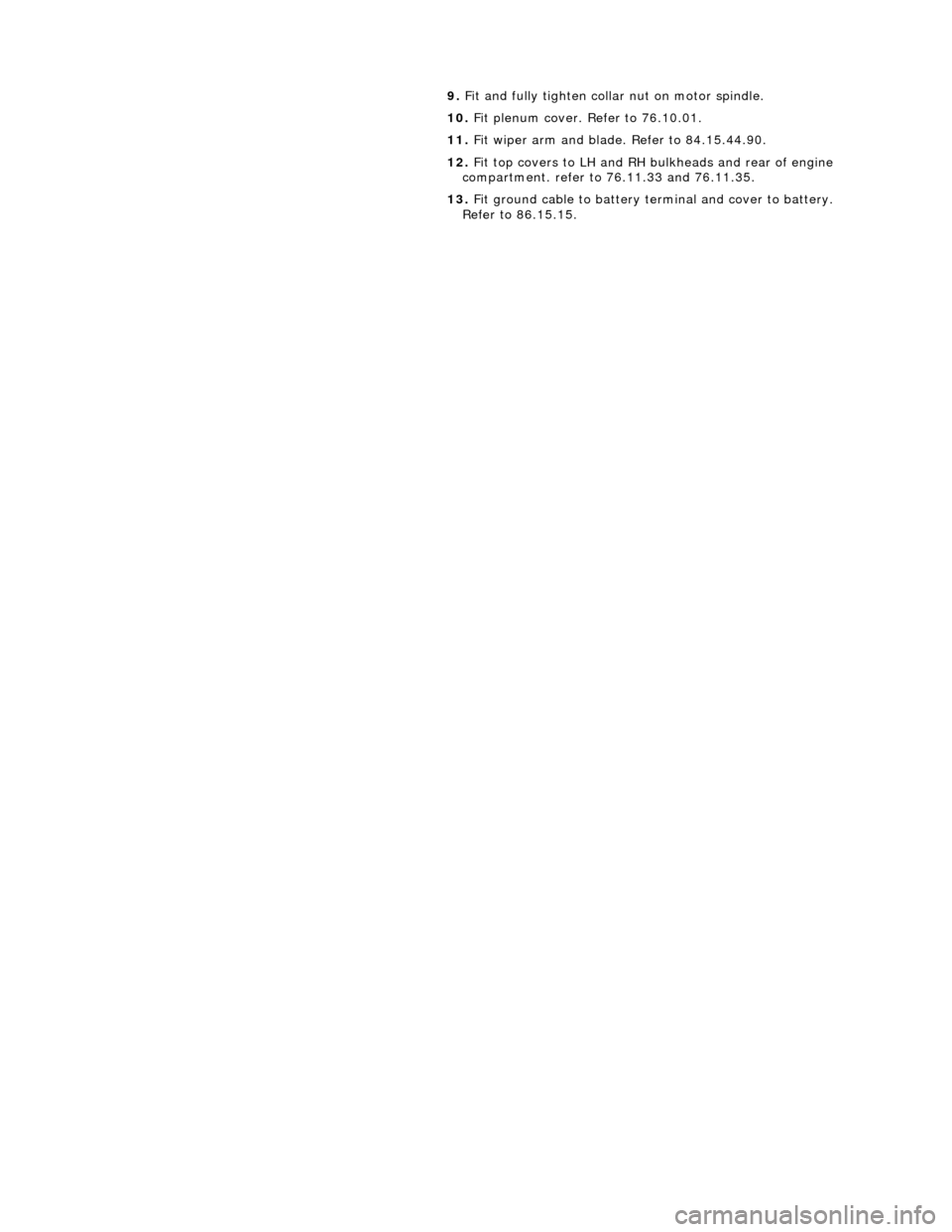

Page 2321 of 2490
9.
Fit and fully tighten collar nut on motor spindle.
10. Fit plenum cover. Refer to 76.10.01.
11. Fit wiper arm and blade. Refer to 84.15.44.90.
12. Fit top covers to LH and RH bulkheads and rear of engine
compartment. refer to 76.11.33 and 76.11.35.
13. Fit ground cable to battery te rminal and cover to battery.
Refer to 86.15.15.
Page 2322 of 2490

Wipers and Washers - Windshield Wiper/Washer Switch
Removal and Installation
Removal
1. Ensure that steering wheel is in the straight ahead, fully
lowered and fully ex tended position.
2. Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
3. WARNINGS:
FOLLOWING DISCONNECTION OF THE BATTERY, A PERIOD
OF AT LEAST ONE MINUTE MUST BE ALLOWED TO ELAPSE
BEFORE ANY WORK IS CARRIED OUT ON AN AIR BAG MODULE.
FOLLOWING TEN YEARS IN SERVICE, AN AIR BAG MODULE
MUST BE REMOVED AND DISPOSED OF IN THE APPROVED
MANNER, AND A NEW AIR BAG MUST BE FITTED.
AIR BAGS CONTAIN A CHEMICAL IRRITANT. IF AN AIR BAG
IS RENEWED, THE ORIGINAL UNIT MUST BE DISPOSED OF IN
ACCORDANCE WITH CURRENT SAFETY PROCEDURES.
IN THE EVENT OF A FAULT RUPTURING THE 10A BATTERY
SUPPLY FUSE (F4 LOCATED IN THE FUSE-BOX AT THE DRIVER'S
END OF THE FASCIA), THE FUSE MUST NOT BE RENEWED UNTIL
THE AIRBAG/SRS SYSTEM HAS BEEN DE-ACTIVATED. FUSES OF
ANY OTHER VALUE MUST NEVER BE USED, AS THIS CAN CAUSE
DISARM FAILURE.
Remove driver airbag. Refer to 76.73.39.
4. Remove steeri ng wheel.
5. Remove steering column lowe r cowl. Refer to 76.46.03.
6. Remove steering column upper cowl. Refer to 76.46.02.
7. Remove driver side unders cuttle. Refer to 76.46.11.
8. Release wipe/washer switch mult iplug from retaining bracket
and disconnect multiplug.
9. Sever and discard tie straps se curing key transponder exciter
coil multiplug to harness and disconnect multiplug.
Page 2323 of 2490
10. Disconnect key interlock solenoid harness multiplug.
11. Release flasher/lamp/trip swit ch harness multiplugs from
retaining bracket and di sconnect multiplugs.
12. Disconnect cancellation module harness multiplugs.
13. Slacken and remove bolts securing switch
assemblies/cancellation module to column.
Page 2324 of 2490
14. Remove steering column swit chgear assembly for access.
15. Remove flasher/lamp/trip switch assembly from switchgear
bracket.
16. NOTE: Due to soldered connections, it is not possible to
remove wiper/washer sw itch at this stage.
Release windshield wiper/washer switch from switchgear
bracket and position for access.
17. Remove cancellation module from mounting bracket.
Page 2325 of 2490
Installation
18. Remove windshield wiper/ washer switch/mounting
bracket/audible warning speaker assembly from vehicle.
1. Position windshield wipe r/washer switch/mounting
bracket/audible warning speaker assembly for access in
vehicle.
2. Fit cancellation module to mounting bracket.
3. Fit wiper/washer switch to cancellation module/mounting
bracket.
4. Fit flasher/lamp/trip switch to cancellation module/mounting
bracket.
5. Position switchgear assembly on steering column and fit and
tighten securing bolts.
6. Connect cancellation module harness multiplugs and fit
multiplugs to retaining bracket.
7. Connect flasher/lamp/trip switch harness multiplugs and fit
multiplugs to retaining bracket.
Page 2326 of 2490
8. Conne
ct key interlock solenoid harness multiplug.
9. Connect key t
ransponder exciter
coil multiplug and using new
tie straps, secure mu ltiplug to harness.
10 . Conne
ct wiper/washer switch mu
ltiplug, and fit multiplug onto
retaining bracket.
11. Fit driver side underscu ttle. Refer to 76.46.11.
12. Fit steering column uppe r cowl. Refer to 76.46.02.
13. Fit steering column lower cowl. Refer to 76.46.03
14. Fit steering wheel.
15. Fit driver airbag module. Refer to 76.73.39.
16. Fit groun
d cable to battery te
rminal and fit battery cover.
Refer to 86.15.15.
Page 2327 of 2490

Wipers and Washers - Wiper Pivot Arm
Removal and Installation
Removal
Installation
1.
Fit fender covers.
2. Disconnect windshield washer tube from plenum cover
connector.
3. Using tape, mark po sition of wiper blade on windshield.
4. Withdraw wiper arm and blade from spindle.
1. Remove plastic cover fro m wiper arm securing nut.
2. Slacken but do not remove wiper arm nut.
3. Fit extractor 18G2 and ensuring that wiper and
plenum cover are not dama ged, release wiper arm
from tapered spindle.
5. Remove extractor, remove wi per arm securing nut and lift
wiper arm off spindle.
1. Fit wiper arm and blade assembly onto spindle splines aligning
blade with marked position on windshield.
2. Fit wiper arm securing nut.
3. Supporting the wiper ar m, carefully tighten the securing nut to
press arm onto tapered splines.
4. Fit plastic cover over securing nut.
5. Connect washer tubing to plenum cover connector.
6. Remove marking tape from windshield and clean windshield.
7. Remove fender covers.
Page 2328 of 2490

Roof Opening Panel - Roof Opening Panel
Description and Operation
General Description
The steel sliding roof panel which is externally painted to ma tch the vehicle and internally trimmed to match the headlining,
is of electrically operated tilt and slide design. Driven by a single electric motor via a cable and lever mechanism, the slidi ng
roof panel is operated via a switch on the roof console and controlled by the sliding roof control module (SRCM).
Both the electric motor and SRCM are mounted on an extens ion of the sliding roof panel frame and are accessed by
removing the roof console.
Operation
The sliding roof panel is a multi-feature unit providing tilt, one touch slide opening and closing, and slide position selectio n
on opening and closing. Additi onally, on operation of the vehicle automatic locking system with the roof panel open, an
input from the security and lockin g module will close it. On slide opening of the roof panel, a wind deflector elevates at the
aperture leading edge. In the event of electrical failure, the sliding roof can be manually operated by removing the roof
console and using a key or wide bladed scre wdriver in the slot in the motor spindle.
• NOTE: Following manual operation of the sliding roof panel, the motor drive must be re-engaged by manually turning the
spindle 1/4 turn counter-clockwise if the panel is open or clockwise if the panel is closed.
