Page 1409 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance in turn: 1 EM062/014 and GB001/013 2 EM062/016 and GB001/008 3 EM062/015 and GB001/009 4 Is the resistance < 0.5 OHM? Yes GO to C6 No

Page 1410 of 2490

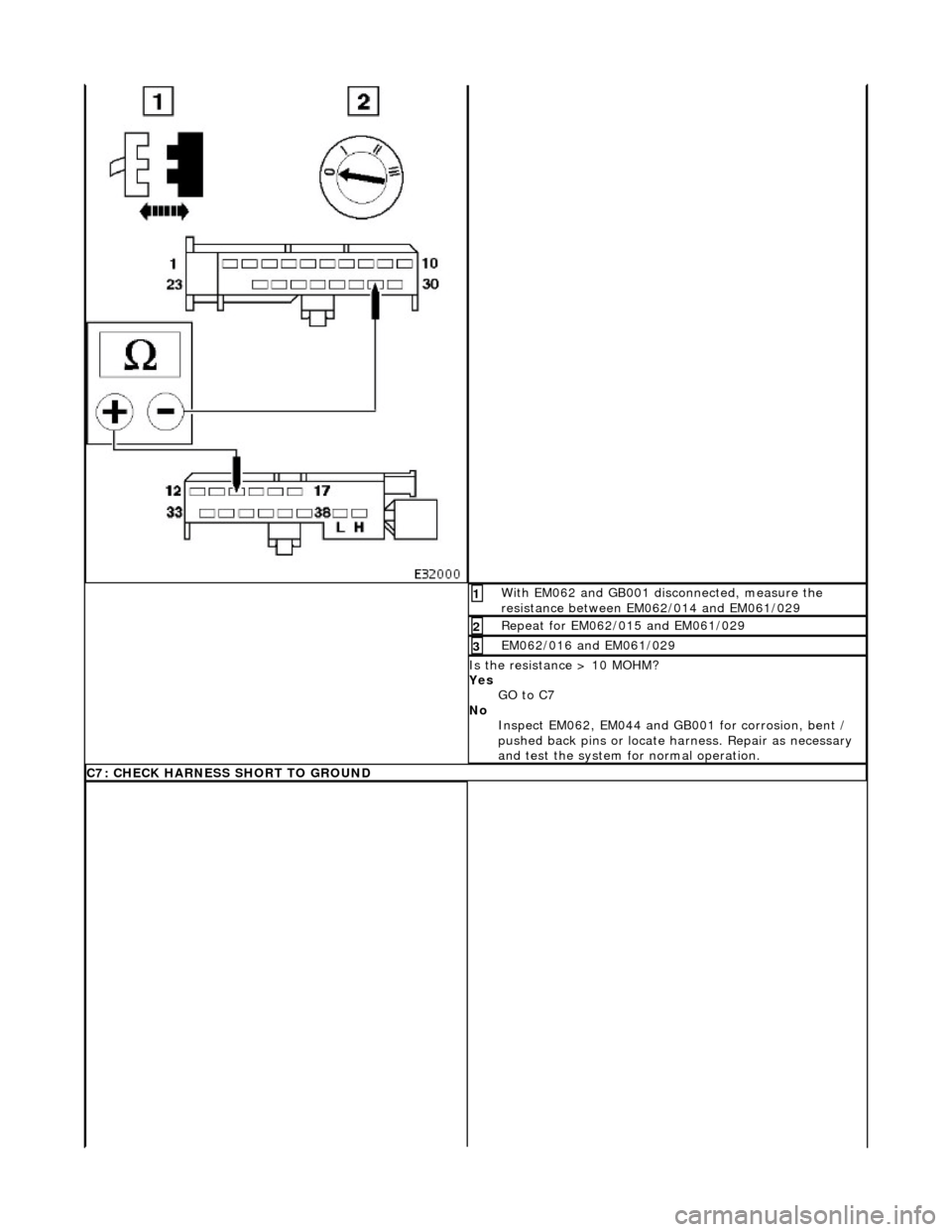

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between EM062/014 and EM061/029 1 Repeat for EM062/015 and EM061/029 2 EM062/016 and EM061/029 3 Is the resistance > 10 MOHM? Yes GO to C

Page 1411 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between EM062/014 and EM008R 1 Repeat for EM062/015 and EM008R 2 EM062/016 and EM008R 3 Is the resistance > 10 MOHM? Yes GO to C8 No I

Page 1412 of 2490

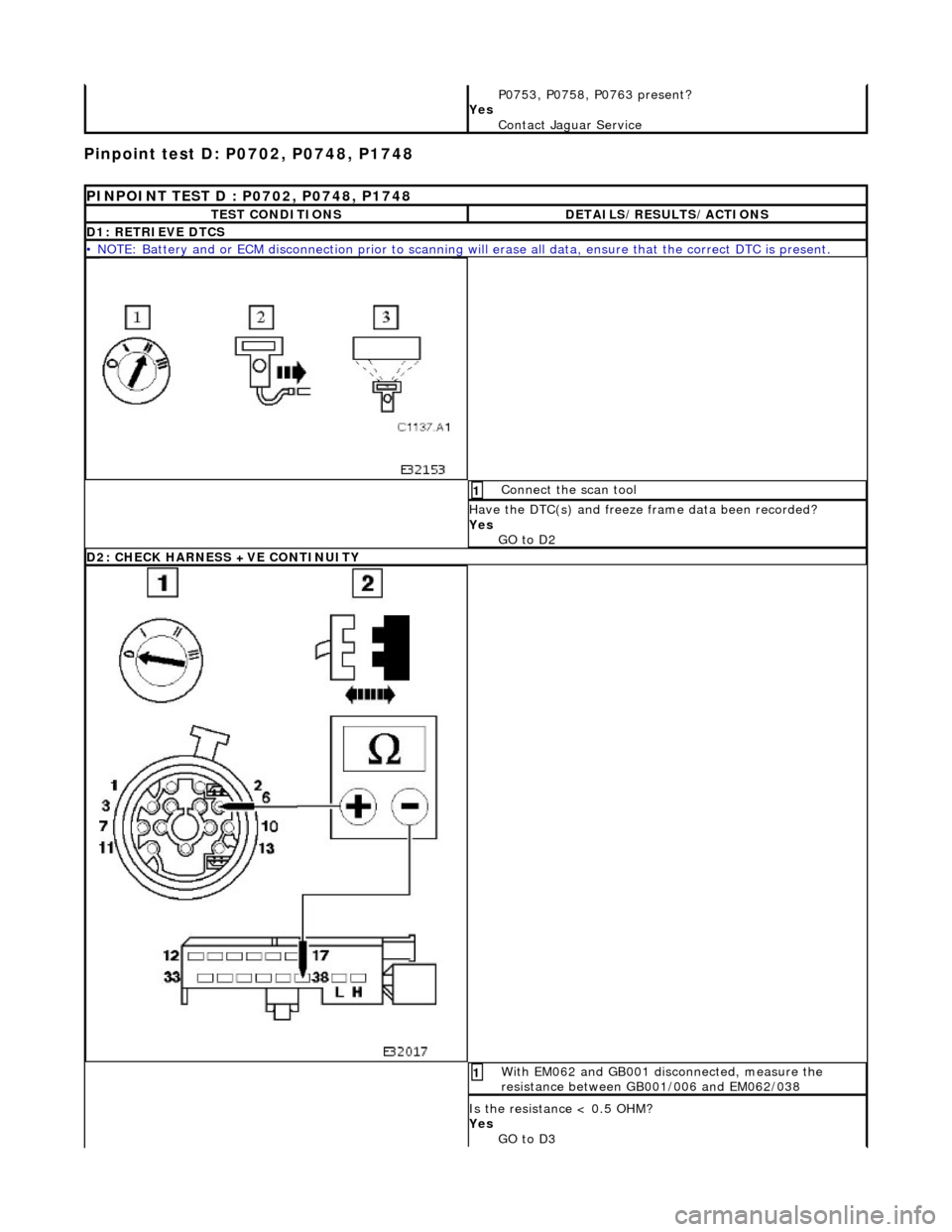

JAGUAR X308 1998 2.G Workshop Manual With EM062 disconnected, measure the resistance between the following, noting the relevant DTC 1 For P0702 or P0753 EM062/38 and EM062/014 2 For P0702 or P0758 EM062/38 and EM062/016 3 For P0702

Page 1413 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test D: P0702, P0748, P1748 P0753, P0758, P0763 present? Yes Contact Jaguar Service PINPOINT TEST D : P0702, P0748, P1748 TEST CONDITIONSDETAILS/RESULTS/ACTIONS D1: RETRIEVE DTCS • NOT

Page 1414 of 2490

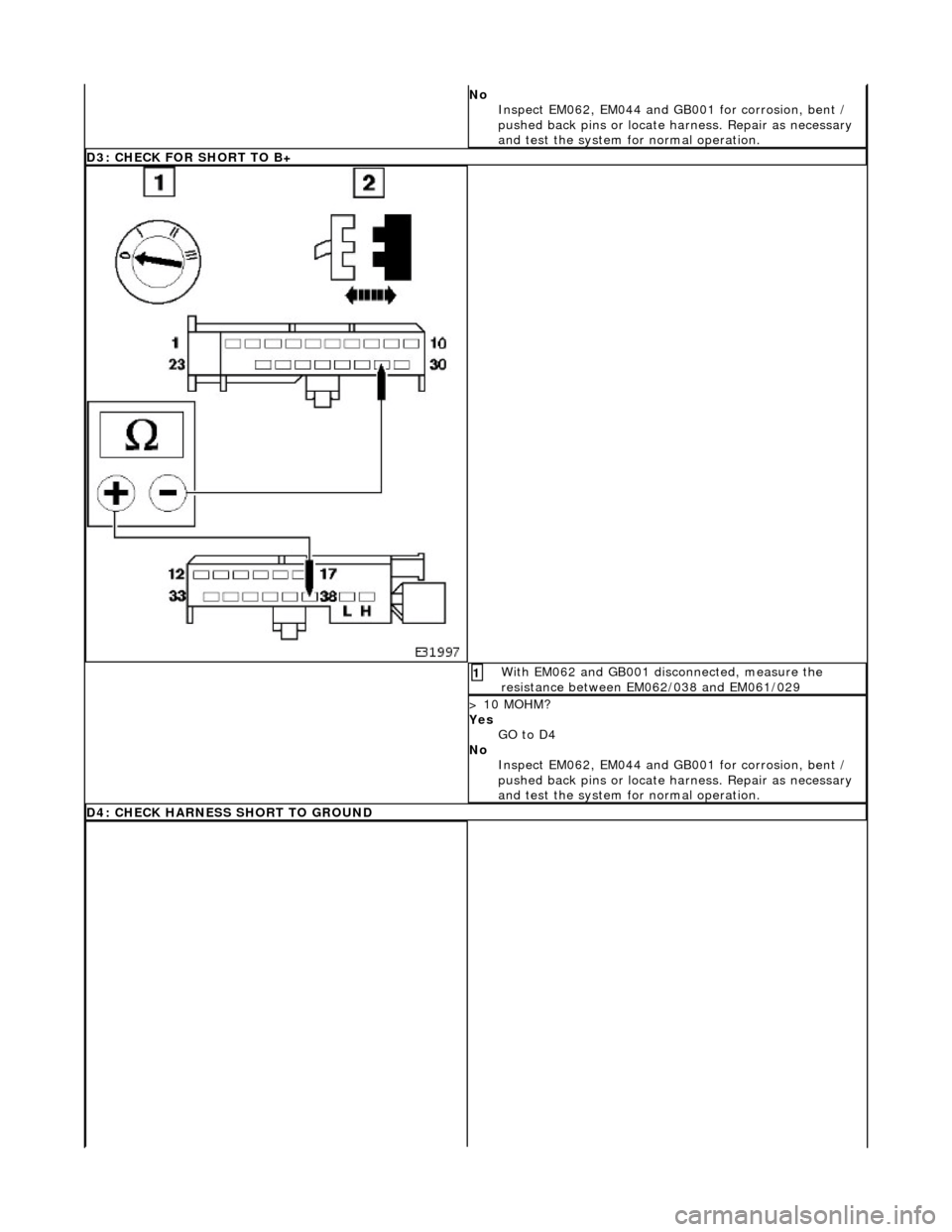

JAGUAR X308 1998 2.G Workshop Manual No Inspect EM062, EM044 and GB001 for corrosion, bent / pushed back pins or locate harness. Repair as necessary and test the system for normal operation. D3: CHECK FOR SHORT TO B+ With EM062 and

Page 1415 of 2490

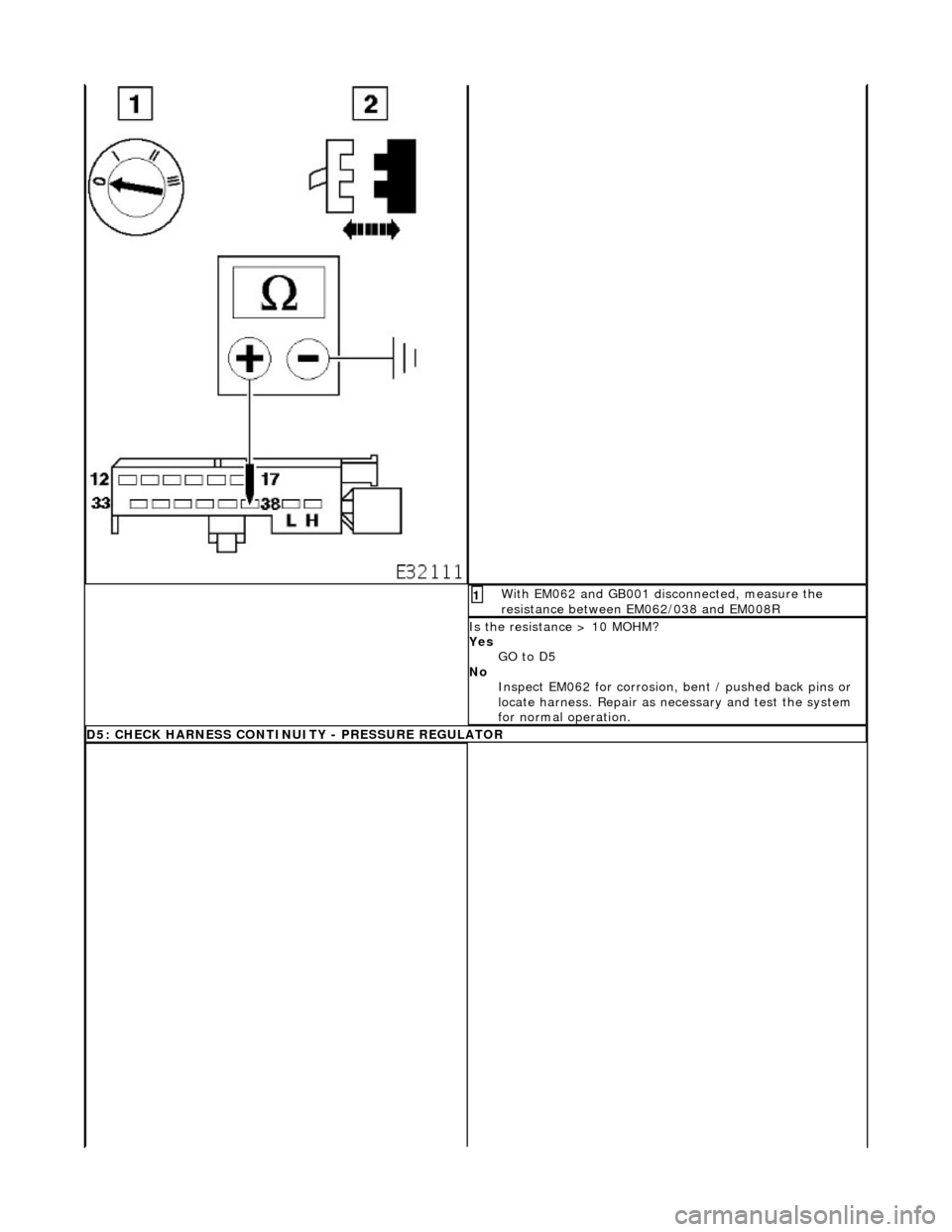

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between EM062/038 and EM008R 1 Is the resistance > 10 MOHM? Yes GO to D5 No Inspect EM062 for corrosion, bent / pushed back pins or lo

Page 1416 of 2490

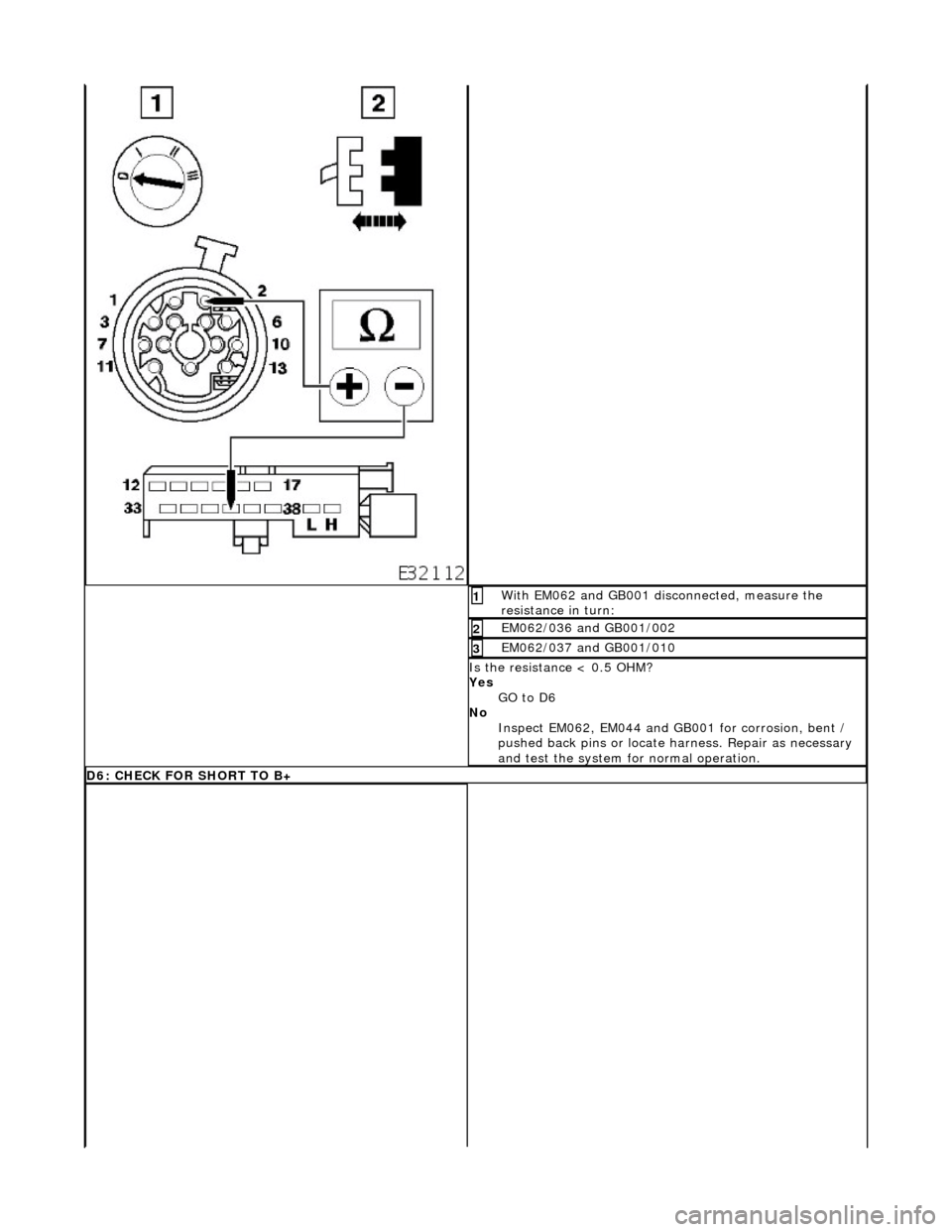

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance in turn: 1 EM062/036 and GB001/002 2 EM062/037 and GB001/010 3 Is the resistance < 0.5 OHM? Yes GO to D6 No Inspect EM062, EM044 and
