Page 1329 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM007 and EM046 disconnected, measure the insulation resistance between EM007/016 and EM007/023 1 Repeat for EM007/044 and EM007/023 2 Is the resistance > 10 MOHM? Yes GO to I10 No Inspect

Page 1330 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test J: P1603, P1605, P1608 With EM007 and EM046 disconnected, measure the insulation resistance between EM007/016 and EM007/044 1 Repeat for EM007/014 and EM007/042 2 Is the resistance >

Page 1331 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test K: P1789, P1793 Connect the scan tool 1 Have the DTC(s) and freeze frame data been recorded? Yes GO to J2 J2: RENEW TCM Renew the TCM 1 Has the TCM been renewed? Yes GO to J3 J

Page 1332 of 2490

JAGUAR X308 1998 2.G Workshop Manual Is underhood fuse F1 OK? Yes GO to K3 No Renew the fuse (10A) and te st the system for normal operation K3: CHECK SWITCHED POWER SUPPLY With EM007 disconnected measure the voltage between EM00

Page 1333 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test L: P0710 With EM007 and LS008 disconnected, measure the resistance between EM007/054 and LS008/007 1 Repeat for EM007/055 and LS008/007 2 Is the resistance < 0.5 OHM? Yes GO to K5

Page 1334 of 2490

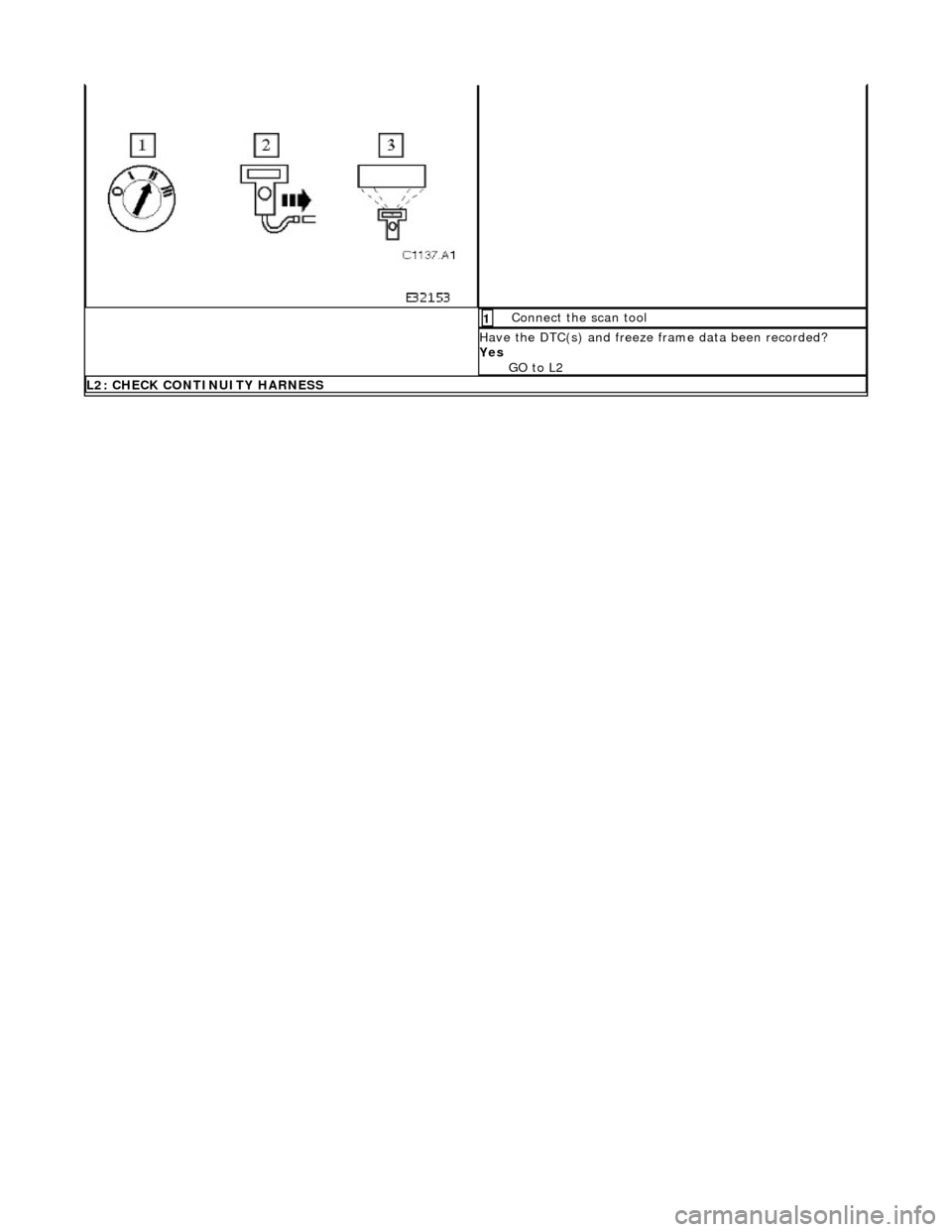

JAGUAR X308 1998 2.G Workshop Manual Connect the scan tool 1 Have the DTC(s) and freeze frame data been recorded? Yes GO to L2 L2: CHECK CONTINUITY HARNESS

Page 1335 of 2490

JAGUAR X308 1998 2.G Workshop Manual Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26 - Transmission Fluid Drain and Refill General Procedures Removal Installation Special Tool(s) Syringe 1. Raise the vehicl

Page 1336 of 2490

JAGUAR X308 1998 2.G Workshop Manual it overflows from the plug orifice. 2. CAUTION: It is essential that only the specified fluid is used. Wait until the flow of fluid has reduced to a trickle. 3. Fit, but do not tighten the
