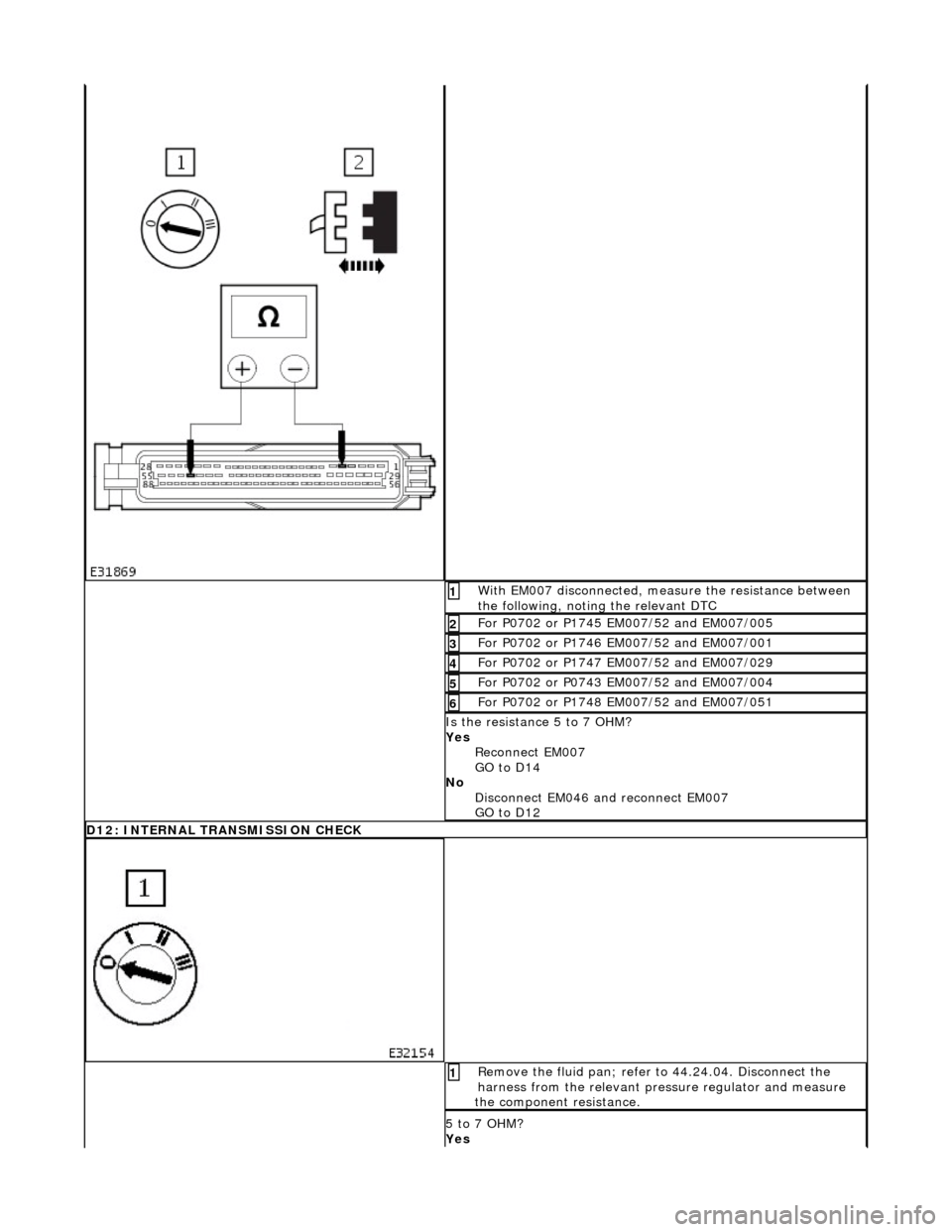

JAGUAR X308 1998 2.G Workshop Manual With EM007 disconnected, measure the resistance between the following, noting the relevant DTC 1 For P0702 or P1745 EM007/52 and EM007/005 2 For P0702 or P1746 EM007/52 and EM007/001 3 For P0702

Page 1306 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test E: P1720 (P0721) GO to D13 No Renew the pressure regulator; refer to 44.15.51. D13: INTERNAL TRANSMISSION HARNESS CHECK Measure the resistance from transmission internal harness m

Page 1307 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM007 and EM046 disconnected, measure the resistance between EM046/001 and EM007/016 1 Is the resistance < 0.5 OHM? Yes Reconnect EM046 GO to E3 No Inspect harness / connectors EM007 and

Page 1308 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM007 and EM046 disconnected, measure the resistance between EM046/010 and EM007/044 1 Is the resistance < 0.5 OHM? Yes GO to E4 No Inspect harness / connectors EM007 and EM046 for damage

Page 1309 of 2490

JAGUAR X308 1998 2.G Workshop Manual With, EM007 disconnected, measure the sensor value between EM007/016 and EM007/044 1 Is the resistance between 280 and 1200 OHM? Yes GO to E5 No Renew the output speed sensor. E5: CHECK FOR SH

Page 1310 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM007 and EM046 disconnected, measure the insulation resistance between EM007/016 and EM007/023 1 Is the resistance > 10 MOHM? Yes GO to E7 No Inspect harness / connectors EM007 and EM046

Page 1311 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test F: P0715 With EM007 and EM046 disconnected, measure the insulation resistance between EM007/016 and EM007/044 1 Is the resistance > 10 MOHM? Yes GO to E8 No Inspect harness / conn

Page 1312 of 2490

JAGUAR X308 1998 2.G Workshop Manual Connect the scan tool 1 Have the DTC(s) and freeze frame data been recorded? Yes GO to F2 F2: CHECK HARNESS +VE CONTINUITY (INPUT SPEED SENSOR) With EM007 and EM046 disconnected, measure the r
