Page 24 of 2490
414‐02: Generator and Regulator
Descriptio n and Operati
on
Generator
Diagnosis and Testing
Generator
Removal and Installation
Generator (86.10.02) ‐ 3.2L NA V8 ‐ AJ26/4.0L NA V8 ‐ AJ27
Generator (86.10.02) ‐ 4.0L SC V8 ‐ AJ26
Voltage Regulator (86.10.28)
415: Information and Entertainment Systems
415‐01: Audio Unit
Description and Operati
on
Audio System
Diagnosis and Testing
Audio System
Removal and Installation
Capacitor (86.10.33)
415‐02: Antenna
Description and Operation
Antenna
Diagnosis and Testing
Antenna
415‐03: Speakers
Description and Operation
Speakers
Diagnosis and Testing
Speakers
Removal and Installation
A‐Pillar T
weeter Speaker LH
A‐Pillar Tweeter Speaker RH (86.50.65)
Door Speaker (86.50.13)
Page 28 of 2490

Removal and Installation
Door (76. 28.04)
Front Doo
r
Opening Weatherstrip (76.40.01)
Fuel Filler Door (76.10.25)
Hood (76.16.01)
Hood Hinge (76.16.12)
Hood Striker (76.16.24)
Hood Strut (76.16.15)
Luggage Compartment Lid Hinge (76.19.28)
Luggage Compartment Lid Opening Weatherstrip (76.19.06)
Luggage Compartment Lid Striker (76.19.12)
Luggage Compartment Lid Strut (76.19.27)
Rear Door Opening Weathe
rstrip (76.40.02)
501‐05: Interior Trim and Ornamentation
Description and Operation
Interior Trim
Removal and Installation
A‐Pillar Trim Panel (76.13.31)
B‐Pillar Trim Panel (76.13.28)
Cowl Side Trim Panel (76.13.30)
C‐Pillar Trim Panel (76.13.73)
Door Window Control Switch Finish Pane
l (76.47.33)
Engine Cover (76.11.35)
Floor Covering (76.49.08)
Folding Tray (76.47.31)
Folding Tray Finish Panel (76.47.32)
Front Door Armrest (76.34.22)
Front Door Trim Panel Finish Panel (76.47.11)
Front Door Stowage Compartment (76.34.27)
Front Door Trim Panel (76.34.01)
Headliner (76.64.01)
Luggage Compartment Front Trim Panel (76.19.31)
Luggage Compart
ment Lid Trim Panel (76.19.05)
Luggage Compartment Rear Trim Panel (76.19.44)
Luggage Compartment Side Trim Panel (76.19.22)
Overhead Console Finish Panel (76.47.41)
Page 29 of 2490

Parcel Shelf (76.67. 06)
Parcel Shelf
Support (76.67.09)
Passenger Assist Handle (76.58.30)
Rear Door Armrest (76.34.23)
Rear Door Trim Panel Finish Panel (76.47.12)
Rear Door Trim Panel (76.34.04)
Rear Window Blind (76.14.04)
Rear Door Window Control Switch Finish Panel (76.47.34)
Scuff Plate Trim Panel (76.13.81)
Sun Visor (76.10.48)
501‐08: Exterior Trim and Or
namentation
Description and Operation
Exterior Trim
Removal and Installation
A‐Pillar Moulding LH (76.13.19)
A‐Pillar Moulding RH (76.13.20)
Coachlines
Door Moulding (76.43.72)
Front Fender Moulding (76.10.48) (76.43.73)
Luggage Compartment Lid Badges (76.44.03)
Luggage Compartment Lid Moulding (76.43.79)
Radiator Grille (76.
55.03)
Radiator Grille Bezel (76.55.15)
501‐09: Rear View Mirrors
Description and Operation
Rear View Mirrors
Removal and Installation
Auto‐Dimming Interior Mirror (76.10.56)
Exterior Mirror (76.10.52)
Exterior Mirror Cover (76.10.55)
Exterior Mirror Glass (76.10.53)
Exterior Mirror Motor (76.10.57) (76.11.09)
Interior Mirror (76.10.51)
Interior Mirro
r Mounting Block (76.10.62)

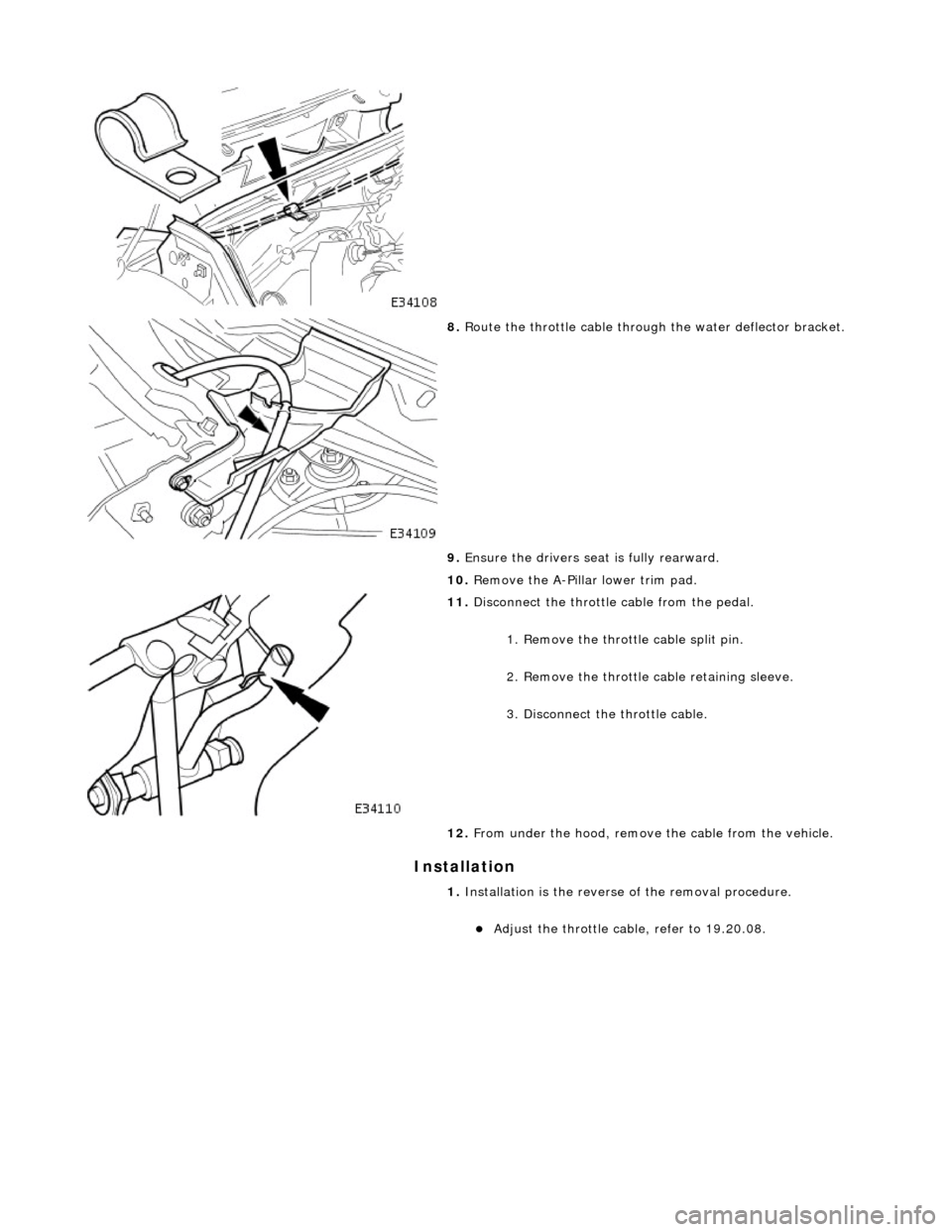

Page 1742 of 2490
In
stallation
8.
Ro
ute the throttle cable through the water deflector bracket.
9. Ensure the drivers seat is fully rearward.
10. Remove the A-Pillar lower trim pad.
11. Di
sconnect the throttle cable from the pedal.
1. Remove the throttle cable split pin.
2. Remove the throttle cable retaining sleeve.
3. Disconnect the throttle cable.
12. From under the hood, remove the cable from the vehicle.
1. Installation is th e reverse of the re moval procedure.
Adjust th
e throttle cabl
e, refer to 19.20.08.
Page 1801 of 2490

Condenser:
Multi-pass fin-over-tube type, mounted in front of the engine cooling pack and directly to the radiator.
Pressure (Bitron) switch:
Located in the discharge pipe. Provides a signal, via the A/CCM, to th e ECM, to disengage the compressor clut ch should the refrigerant pressure be
< 2 bar or > 30 bar.
Provides a hard-wired signal to the ECM, to switch the cool ing fans to HIGH speed at 22 bar rising pressure and to
LOW speed at 17,5 bar falling pressure.
Provides a hard-wired signal to the ECM, to switch the radiator cooling fans to LOW speed at 12 bar rising pressure
and to switch the fans OFF at 8 bar falling pressure.
Expansion Valve
Parts List
The expansion valve is located inside the heater / air conditioning unit and comprises of a diaphragm, connected by a
capillary tube to a temperat ure sensing bulb, which regulates the valve according to temperature variations at the
evaporator outlet pipe. This component is NOT serviceable. See 'Refrigeration Cycle'
Air Conditioning (Heater / Cooler) Unit
ItemPart NumberDescription
1—Valve body
2—Pressure spring
3—Diaphragm
4—Capillary tube
5—Temperature sensing bulb
6—Valve inlet
7—Valve outlet
8—Equalizer pipe
Page 1912 of 2490

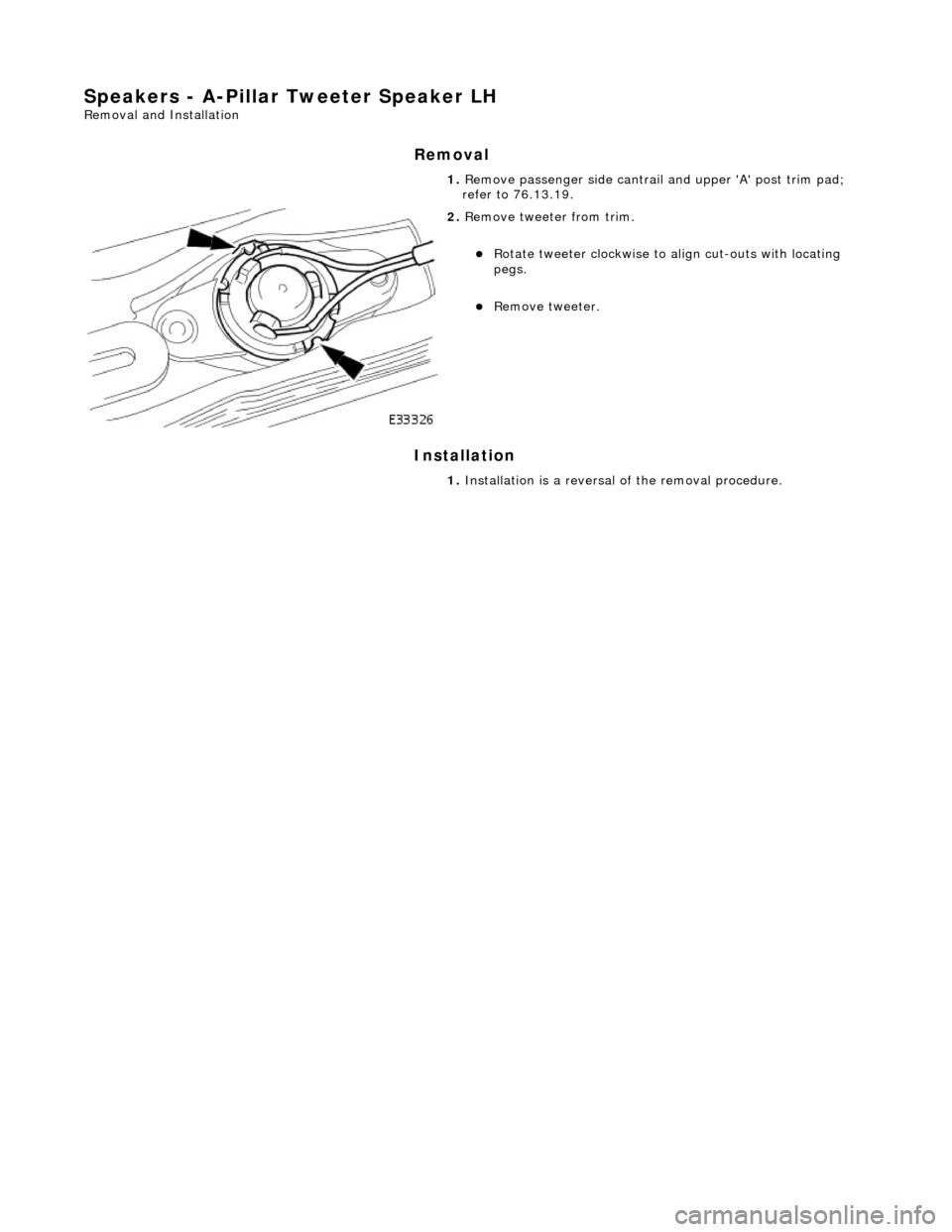

Speakers - A-Pillar Tweeter Speaker LH
Removal and Installation
Removal
Installation
1.
Remove passenger side cantrail and upper 'A' post trim pad;
refer to 76.13.19.
2. Remove tweeter from trim.
Rotate tweeter clockwise to align cut-outs with locating
pegs.
Remove tweeter.
1. Installation is a reversal of the removal procedure.
Page 1913 of 2490
Speakers - A-Pillar Tweeter Speaker RH
Removal and Installation
Removal
Installation
1.
Remove driver side cantrail and upper 'A' post trim pad; refer
to 76.13.20.
2. Remove tweeter from trim.
Rotate tweeter clockwise to align cut-outs with locating
pegs.
Remove tweeter.
1. Installation is a reversal of the removal procedure.
Page 2055 of 2490
Interior Trim and Ornamentation - A-Pillar Trim Panel
Removal and Installation
Removal
Installation
1.
Remove the passenger assist handle.
For additional information, refer to: Passenger Assist Handle
(501-05 Interior Trim and Ornamentation, Removal and
Installation).
2. Detach the door aperture weatherstrip.
3. Remove the A-pillar trim panel.
Remove and discard the A-pi llar trim panel fir tree
fasteners.
1. To install, reverse the removal procedure.
Install new fir tree fasteners to the A-pillar trim panel.
