Page 2129 of 2490

JAGUAR X308 1998 2.G Workshop Manual 2. Position squab pad and heater element in squab cover, ensuring that headrest gu ides pass through pad. 3. Using the eighteen hog rings, secure squab cover to pad. 4. Puul squab cover sid

Page 2130 of 2490

JAGUAR X308 1998 2.G Workshop Manual Seating - Front Seat Backrest Heater Mat Removal and Installation Removal Installation 1. WARNING: FOLLOWING DISCONNECTION OF THE BATTERY A PERIOD OF AT LEAST ONE MINUTE MUST BE ALLOWED TO E

Page 2131 of 2490

JAGUAR X308 1998 2.G Workshop Manual Seating - Front Seat Backrest Trim Panel Removal and Installation Removal Installation 1. Slacken and remove the two ba ck finisher lower securing screws. 2. Release back finisher from

Page 2132 of 2490

JAGUAR X308 1998 2.G Workshop Manual Seating - Front Seat Cushion Removal and Installation Removal Installation 1. WARNING: FOLLOWING DISCONNECTION OF THE BATTERY A PERIOD OF AT LEAST ONE MINUTE MUST BE ALLOWED TO ELAPSE BEFORE WOR

Page 2133 of 2490

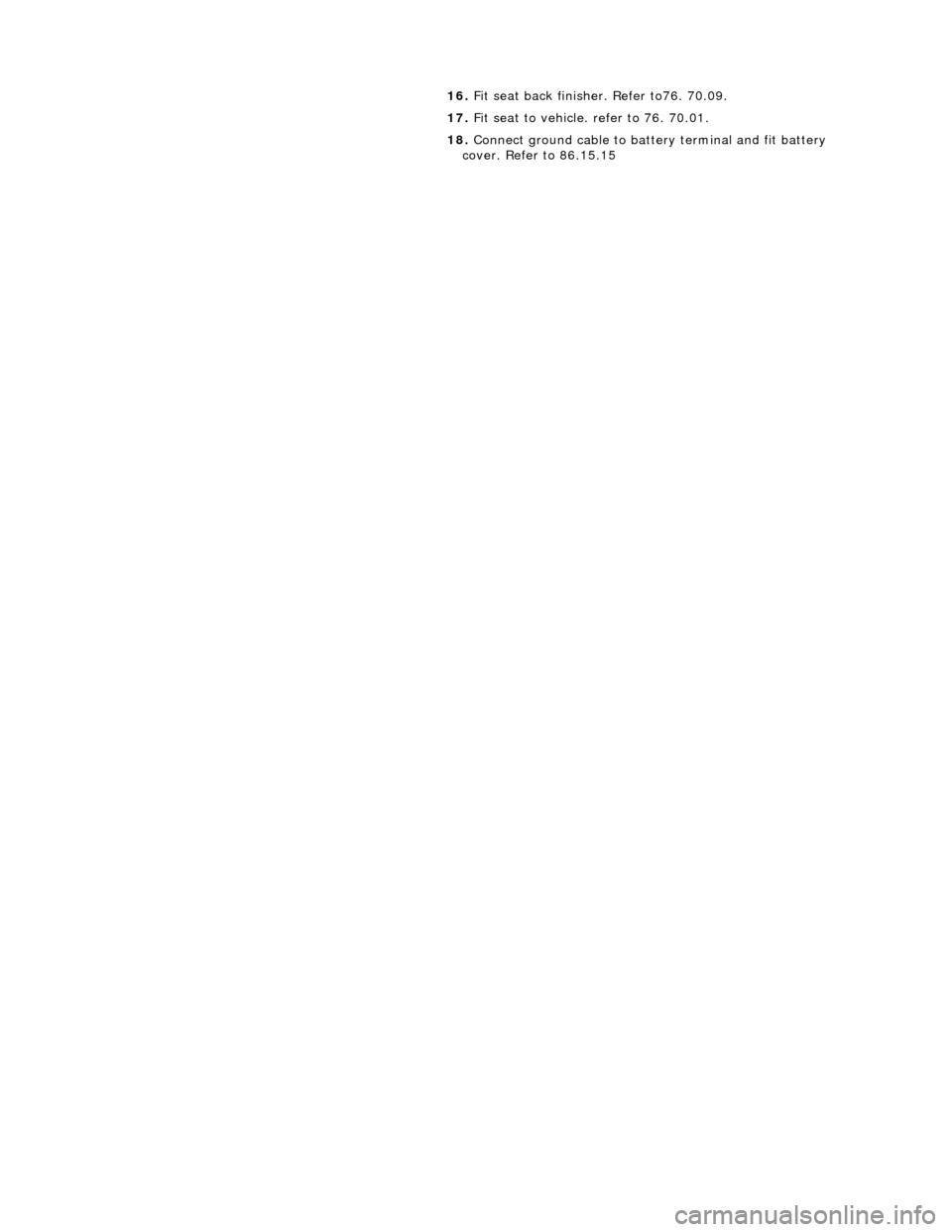

JAGUAR X308 1998 2.G Workshop Manual 16. Fit seat back finisher. Refer to76. 70.09. 17. Fit seat to vehicle. refer to 76. 70.01. 18. Connect ground cable to batt ery terminal and fit battery cover. Refer to 86.15.15

Page 2134 of 2490

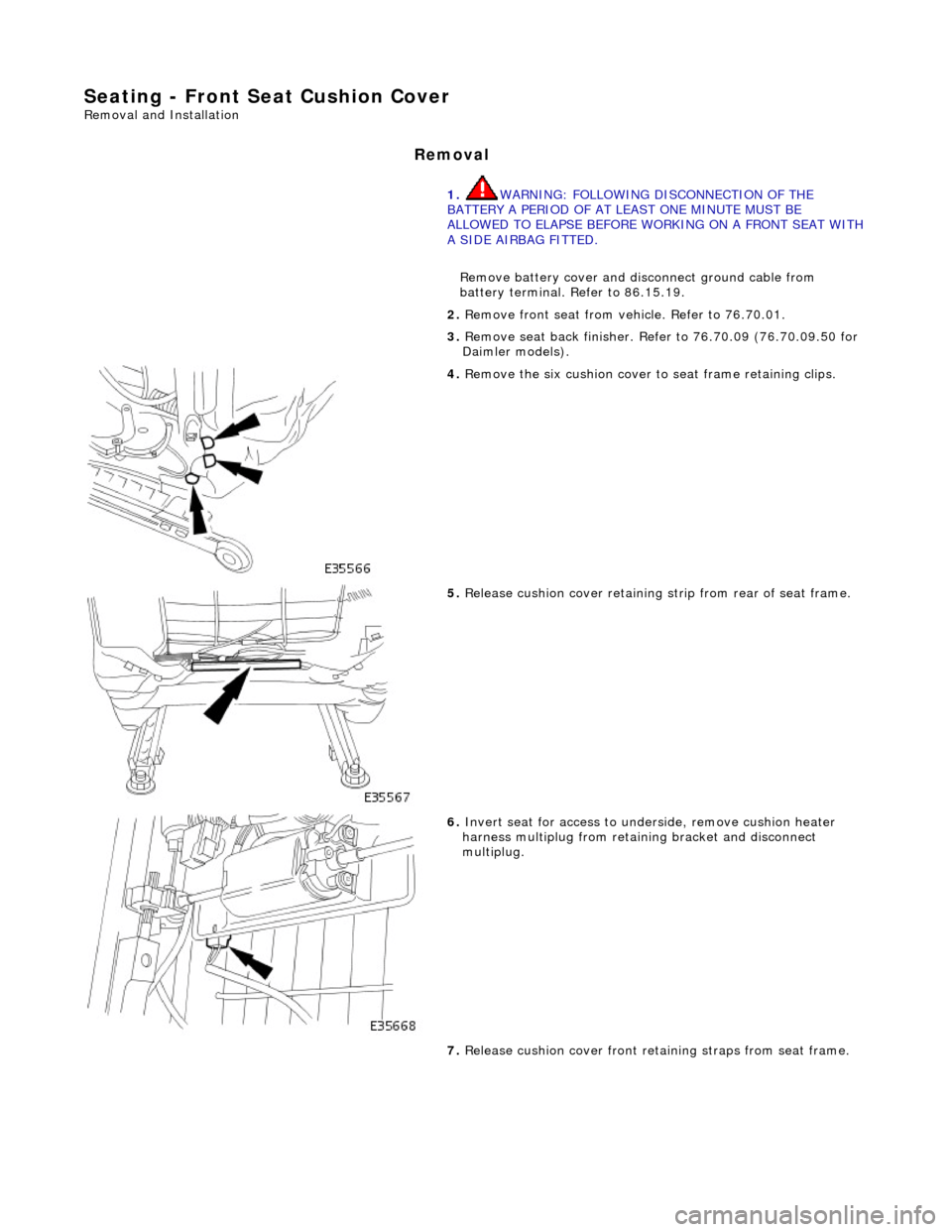

JAGUAR X308 1998 2.G Workshop Manual Seating - Front Seat Cushion Cover Removal and Installation Removal 1. WARNING: FOLLOWING DISCONNECTION OF THE BATTERY A PERIOD OF AT LEAST ONE MINUTE MUST BE ALLOWED TO ELAPSE BEFORE WORKING ON

Page 2135 of 2490

JAGUAR X308 1998 2.G Workshop Manual 8. Detach cushion cover front elas tic retaining straps from seat frame. 9. Remove seat cushion pad to cushion suspension hog rings. 10. Reposition cushion cover sides, lift and hold cus

Page 2136 of 2490

JAGUAR X308 1998 2.G Workshop Manual Installation 12. Slacken and remove the three switchpack mounting bracket to seat frame securing screws. 13. Remove cushion cover/cushion pad assembly from seat frame. 14. Remove staples
