Page 2025 of 2490

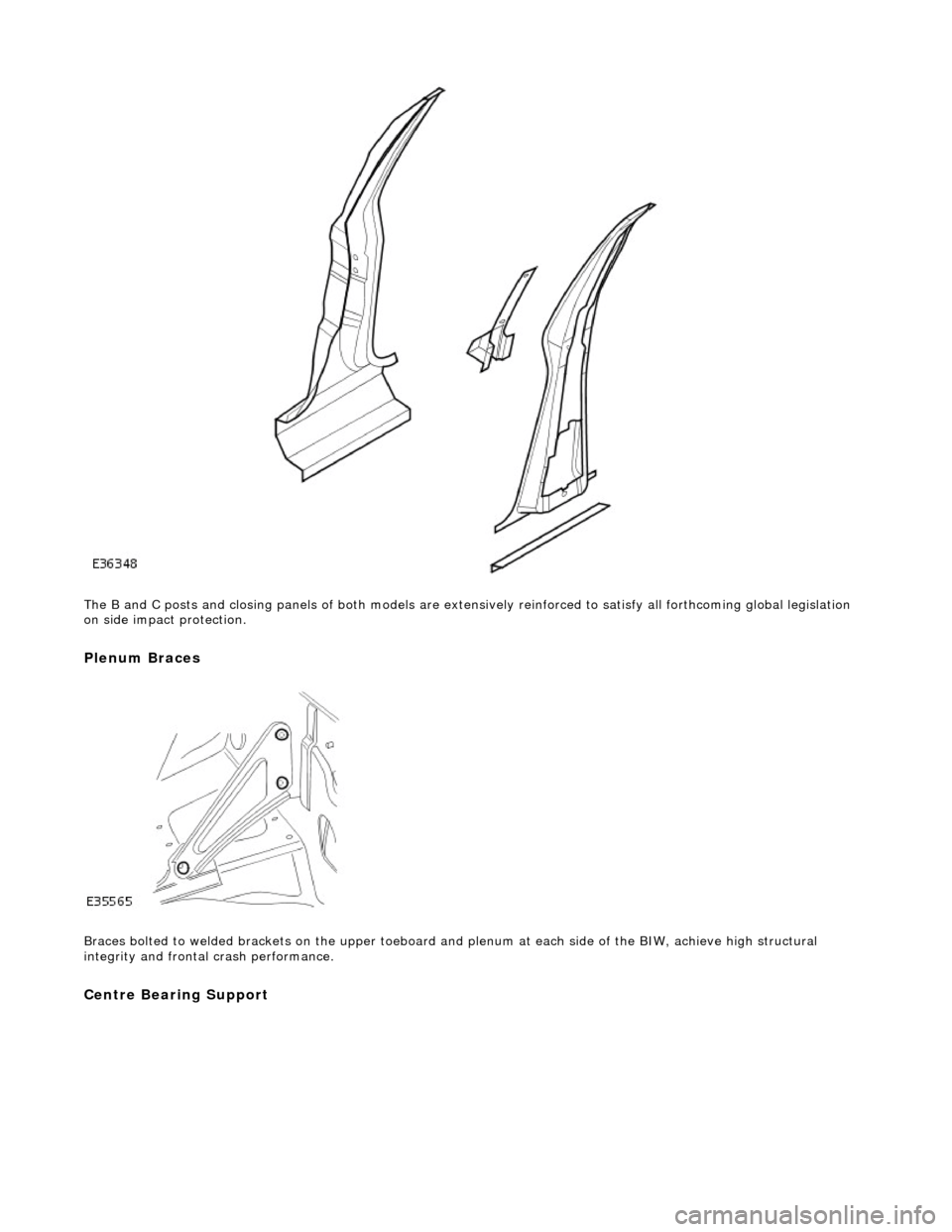

JAGUAR X308 1998 2.G Workshop Manual The B and C posts and closing pane ls of both models are extensively reinforced to satisfy all forthcoming global legislation on side impact protection. Plenum Braces Braces bolted to welded b

Page 2026 of 2490

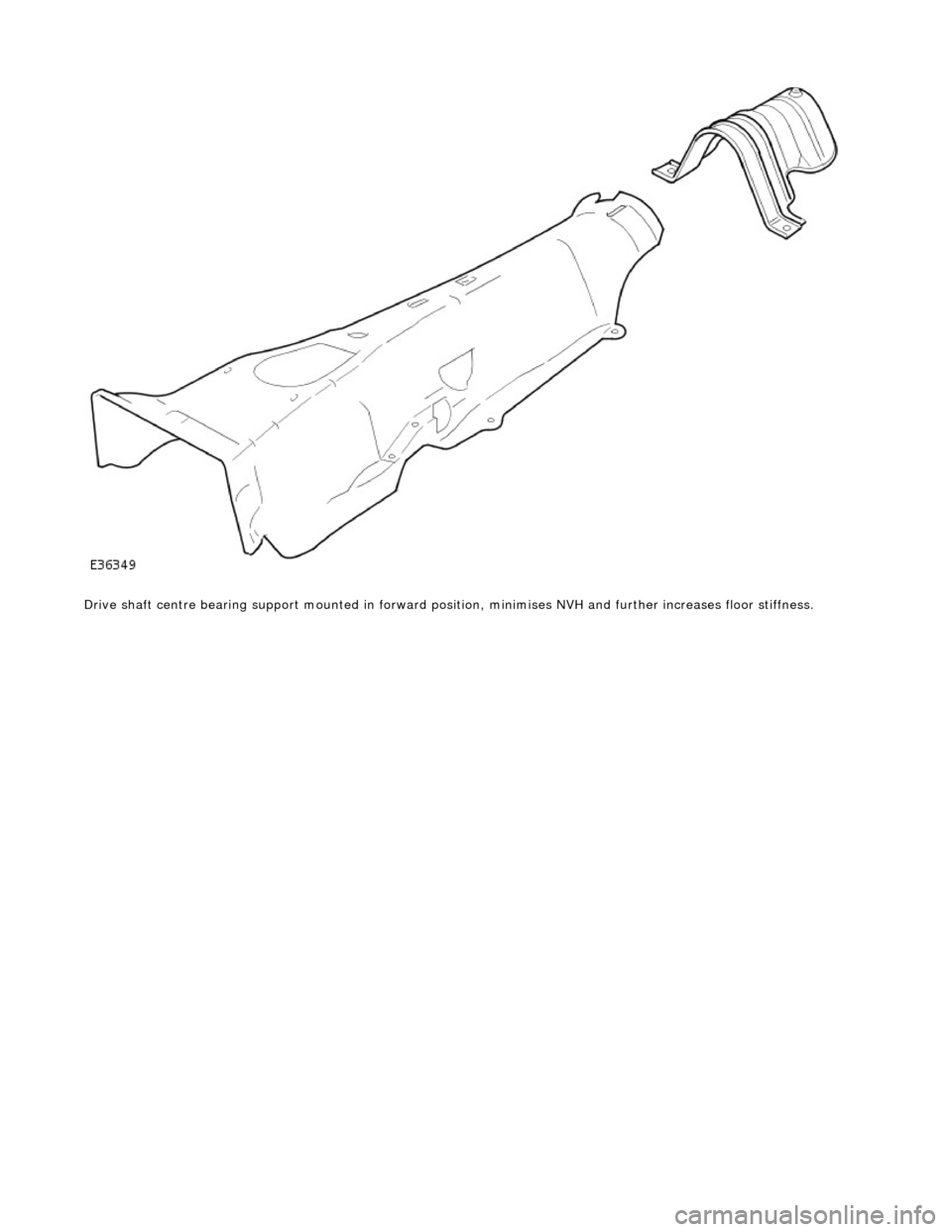

JAGUAR X308 1998 2.G Workshop Manual Drive shaft centre bearing support mounted in forward position, minimises NVH an d further increases floor stiffness.

Page 2027 of 2490

JAGUAR X308 1998 2.G Workshop Manual Front End Body Panels - Front End Body Panels Description and Operation The front body structure is de signed to satisfy bumper impact requiremen ts. The front bumper assembly forms a major front s

Page 2028 of 2490

JAGUAR X308 1998 2.G Workshop Manual Front End Body Panels - Cowl Panel Grille Removal and Installation Installation 1. Open the hood and fit fender covers. 2. Remove the wiper arm and blade assembly. Refer to 84.15.44.90. 3

Page 2029 of 2490

JAGUAR X308 1998 2.G Workshop Manual Front End Body Panels - Driver Side Bulkhead Cover Removal and Installation Removal Installation 1. CAUTION: Make sure the driver side bulkhead cover locating peg is not damaged during rem

Page 2030 of 2490

JAGUAR X308 1998 2.G Workshop Manual Front End Body Panels - Passenger Side Bulkhead Cover Removal and Installation Removal Installation 1. Lift and withdraw tool tray cover, and remove tools. 2. CAUTION: Make sure the pass

Page 2031 of 2490

JAGUAR X308 1998 2.G Workshop Manual Front End Body Panels - Radiator Grille Opening Panel Removal and Installation Removal Installation 1. Open hood and fit fender covers. 2. Slacken and remove the ten cl osing panel securi

Page 2032 of 2490

JAGUAR X308 1998 2.G Workshop Manual Front End Body Panels - Radiator Grille Opening Panel Reinforcement Removal and Installation Removal Installation 1. Remove radiator grilles. Refer to 76.55.03. 2. Remove radiator grille sur
