Page 1425 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between GB001/003 and EM062/012 1 Is the resistance < 0.5 OHM? Yes Reconnect GB001 GO to F5 No Inspect EM062, EM044 and GB001 for corr

Page 1426 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test G: P1601 With EM062 and GB001 disconnected, measure the resistance between GB001/001 and EM062/035 1 Is the resistance < 0.5 OHM? Yes GO to F6 No Inspect EM062, EM044 and GB001 f

Page 1427 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test H: P0730, P0780 Connect the scan tool 1 Have the DTC(s) and freeze frame data been recorded? Yes GO to G2 G2: RENEW TCM Renew the TCM 1 Has the TCM been renewed? Yes GO to G3 G

Page 1428 of 2490

JAGUAR X308 1998 2.G Workshop Manual Yes STOP No GO to H3 H3: RENEW TRANSMISSION Renew the transmission 1 Has the transmission been renewed? Yes GO to H4 H4: END Drive the vehicle for a period from cold to include idle, brisk

Page 1429 of 2490

JAGUAR X308 1998 2.G Workshop Manual Automatic Transmission/Transaxle - 4.0L SC V8 - AJ26 - Transmission Fluid Drain and Refill General Procedures Special Tool(s) Dipstick 307-379 1. Disconnect the battery ground lead. 2. Raise

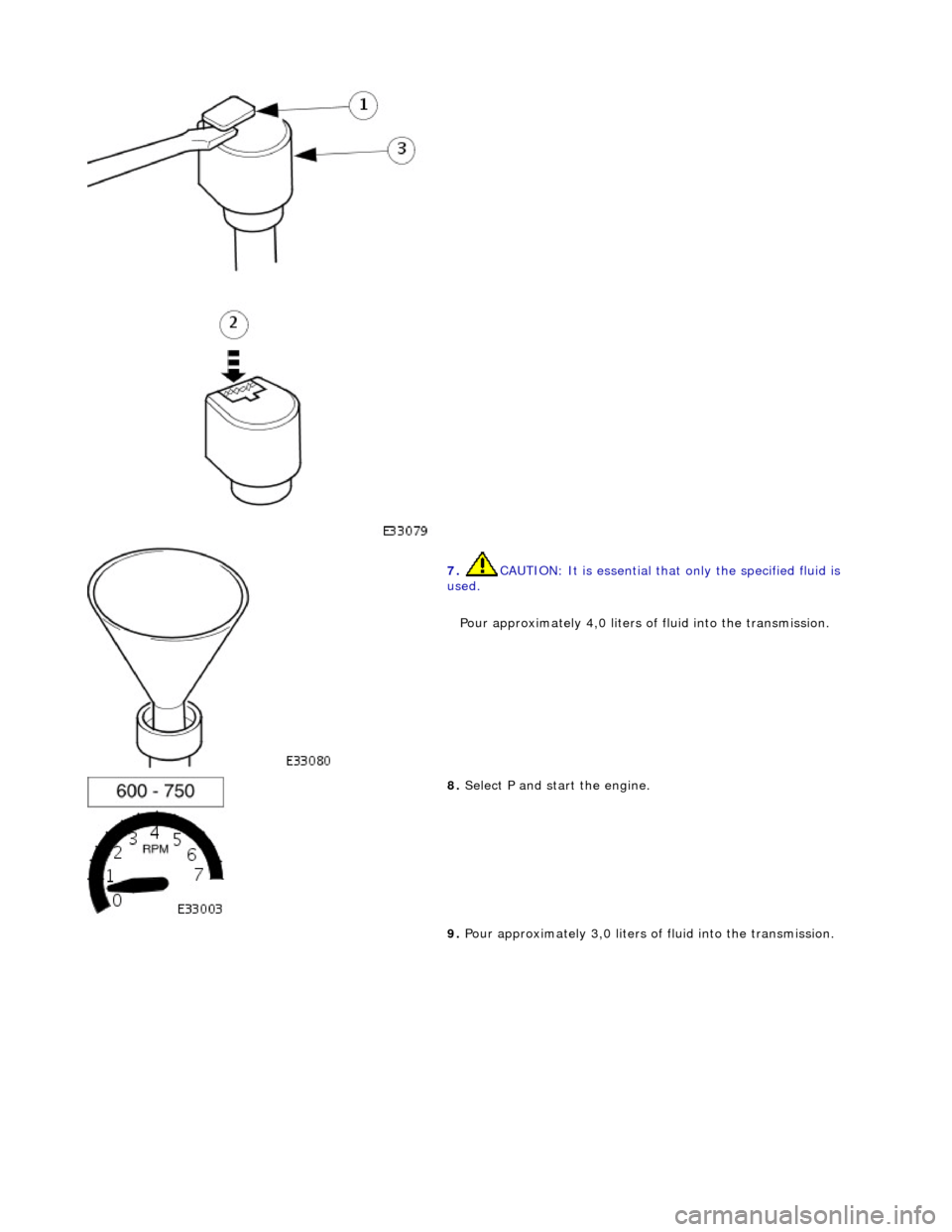

Page 1430 of 2490

JAGUAR X308 1998 2.G Workshop Manual 7. CAUTION: It is essential that only the specified fluid is used. Pour approximately 4,0 liters of fluid into the transmission. 8. Select P and start the engine. 9. Pour approximately 3,0

Page 1431 of 2490

JAGUAR X308 1998 2.G Workshop Manual 10. Cycle the gear selector: From P to D. From D to R. From R to P. 11. NOTE: Temperature will ONLY be displayed in D or R. Check the transmission fluid temperature to select t

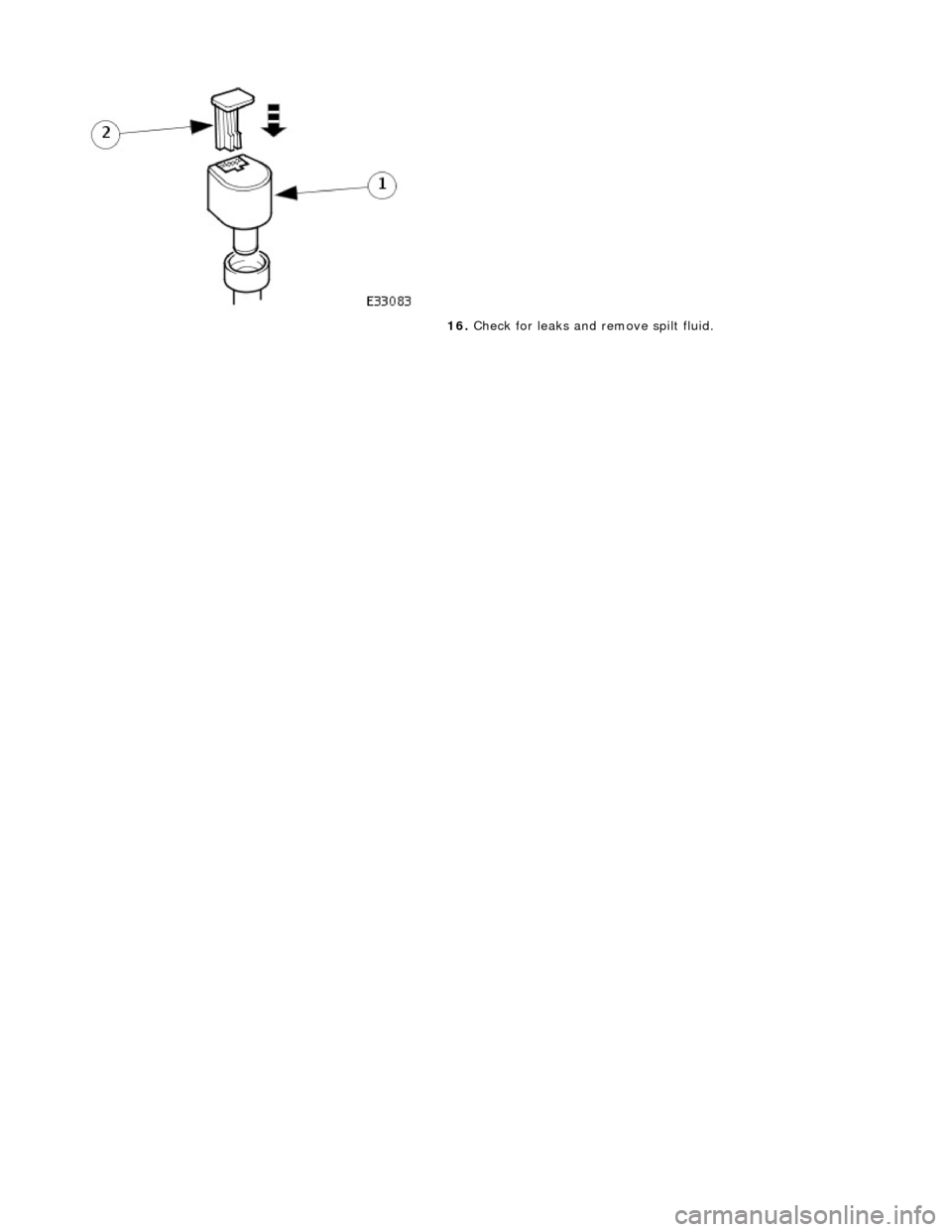

Page 1432 of 2490

JAGUAR X308 1998 2.G Workshop Manual 16. Check for leaks and remove spilt fluid.
