JAGUAR X308 1998 2.G Workshop Manual Pinpoint test A: P0740 DTC P0730 Incorrect gear ratioEngaged gear implausible / transmission slipping Oil level low Valve body assembly faulty Transmission faulty * * * *GO to Pinpoint Test H *

Page 1402 of 2490

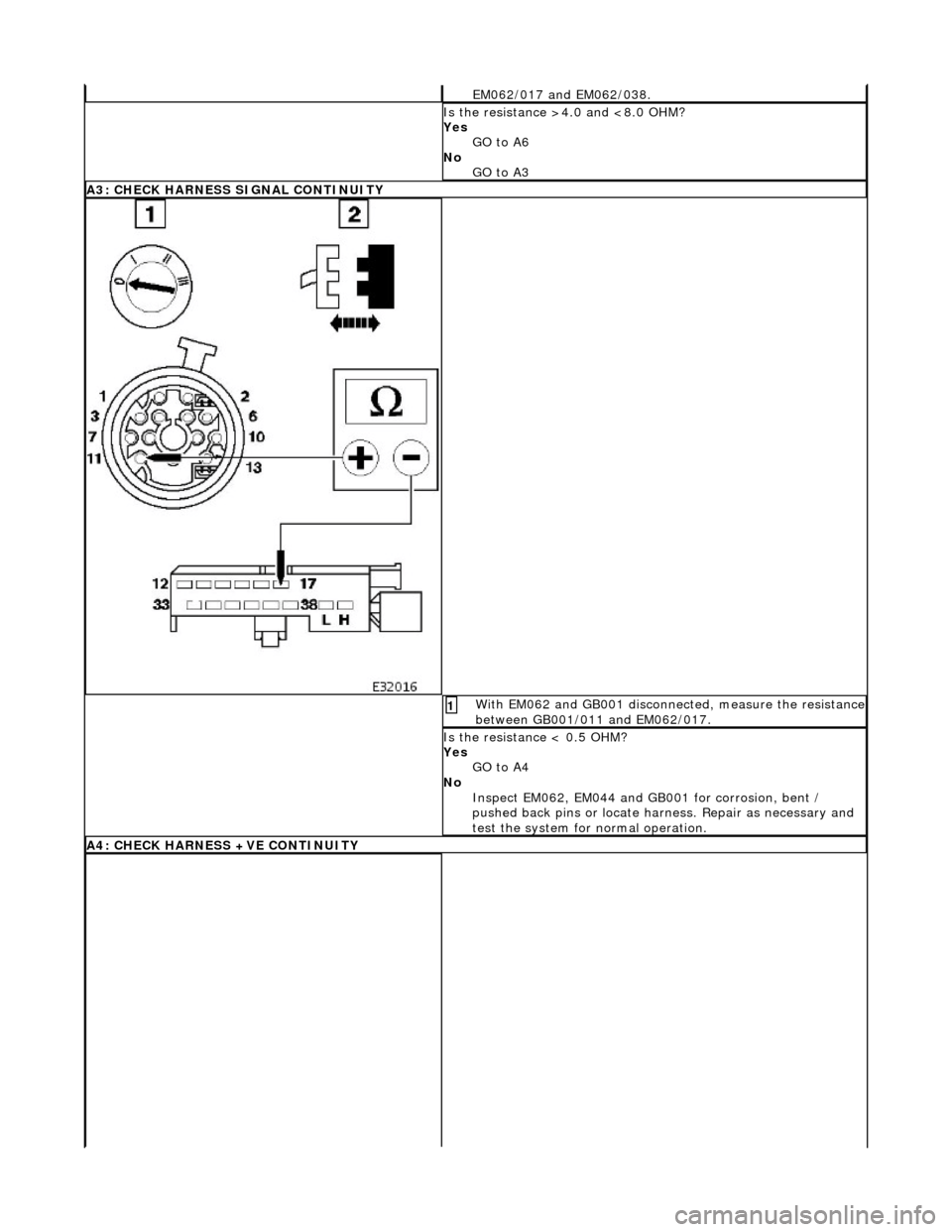

JAGUAR X308 1998 2.G Workshop Manual EM062/017 and EM062/038. Is the resistance >4.0 and <8.0 OHM? Yes GO to A6 No GO to A3 A3: CHECK HARNESS SIGNAL CONTINUITY With EM062 and GB001 disconnected, measure the resistance between GB00

Page 1403 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between GB001/006 and EM062/038 1 Is the resistance < 0.5 OHM? Yes GO to A5 No Inspect EM062, EM044 and GB001 for corrosion, bent / push

Page 1404 of 2490

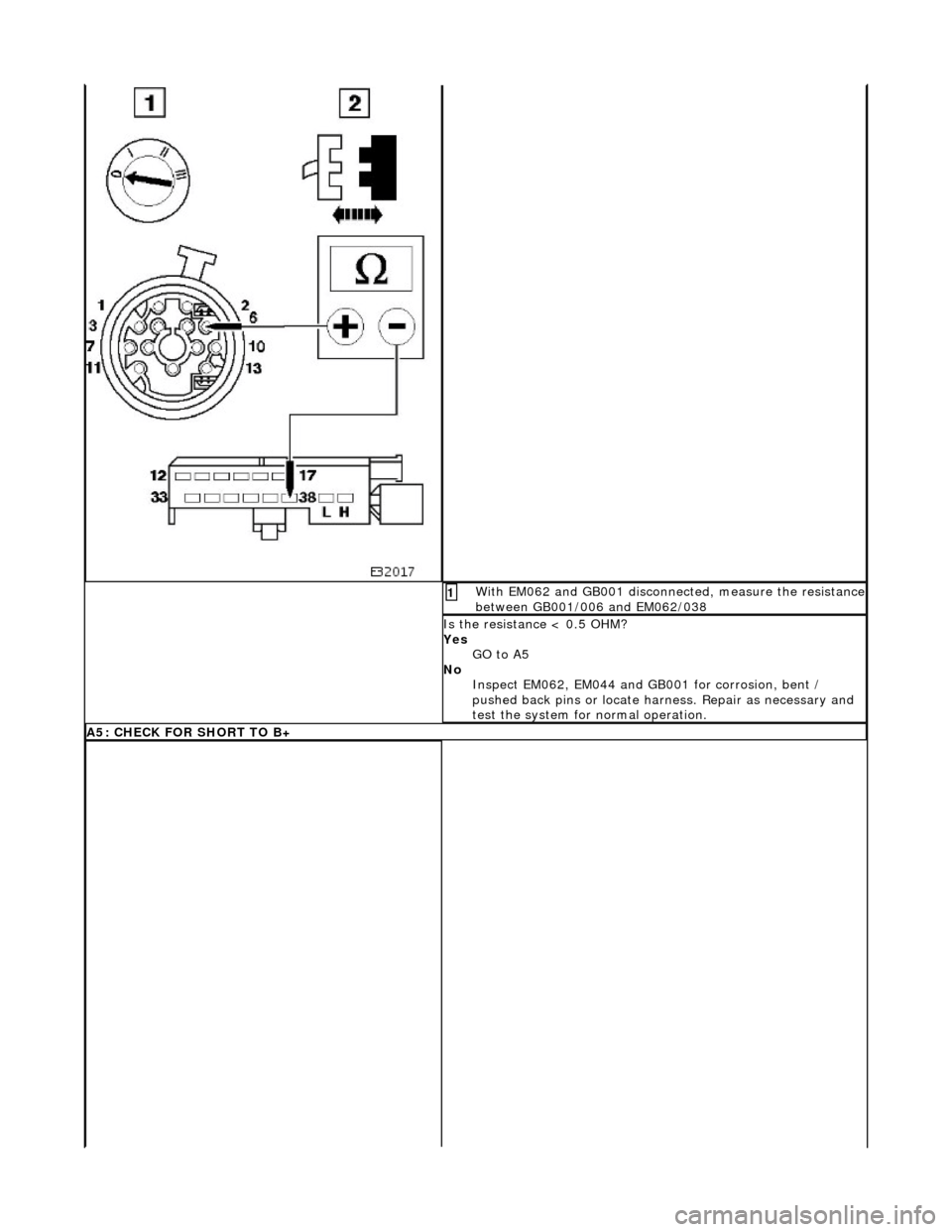

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test B: P0740, P1744 With EM062 and EM061 disconnected, measure the voltage between EM062/038 and EM061/030. 1 0V? Yes GO to A6 No Inspect EM062, EM063, EM044 and EM061 for corrosion,

Page 1405 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test C: P0702, P0753, P0758, P0763 Connect the scan tool 1 Have the DTC(s) and freeze frame data been recorded? Yes GO to B2 B2: RENEW TORQUE CONVERTER Renew the torque converter 1 Ha

Page 1406 of 2490

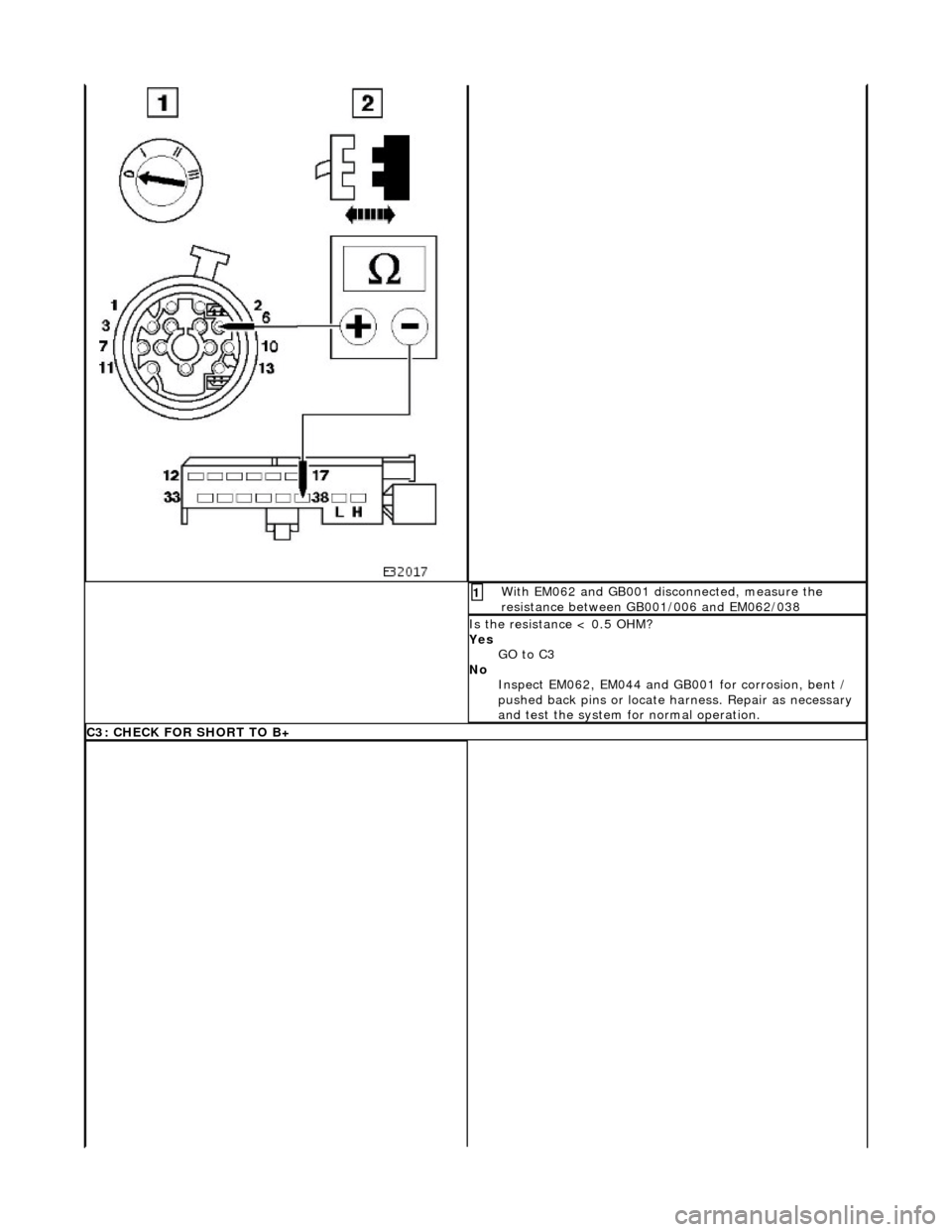

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between GB001/006 and EM062/038 1 Is the resistance < 0.5 OHM? Yes GO to C3 No Inspect EM062, EM044 and GB001 for corrosion, bent / pu

Page 1407 of 2490

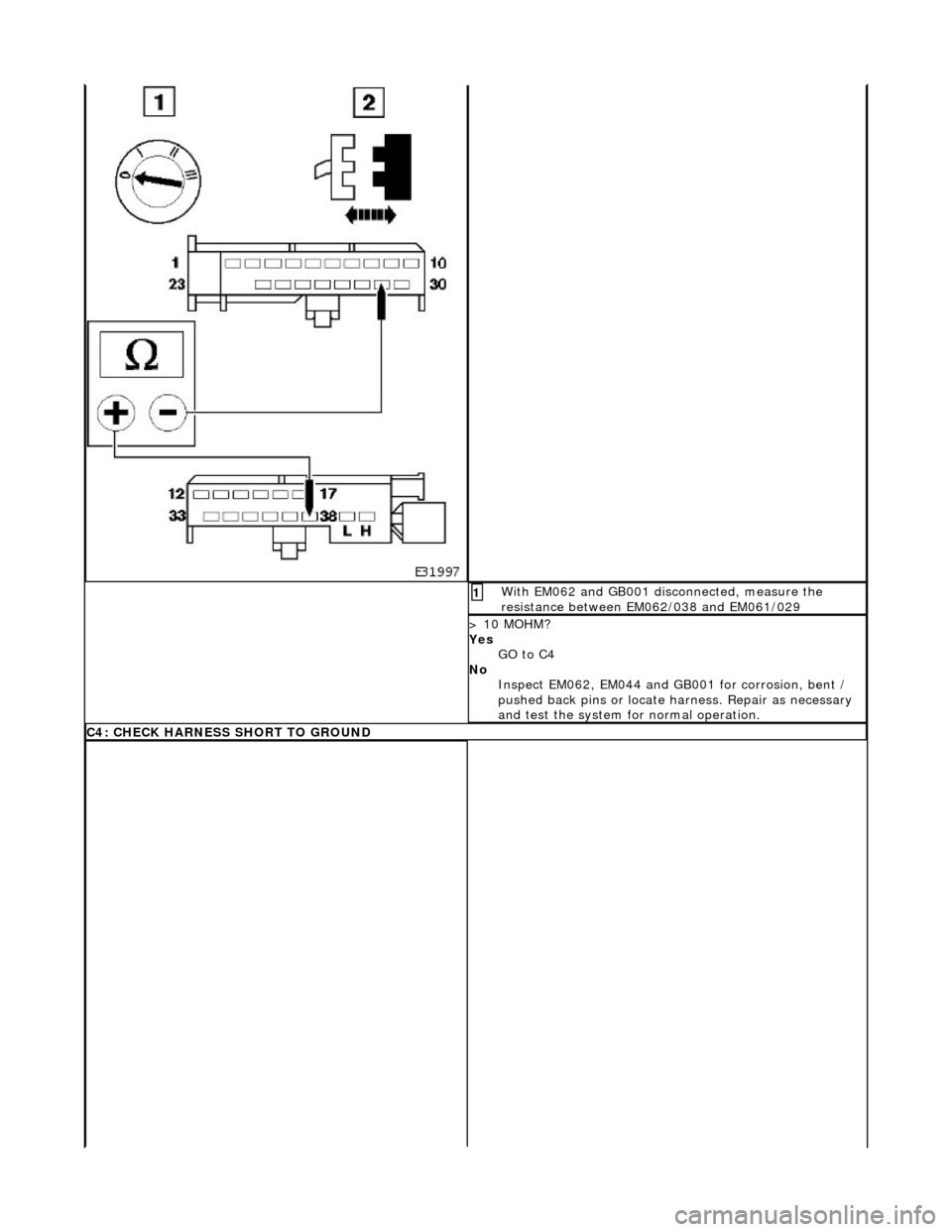

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between EM062/038 and EM061/029 1 > 10 MOHM? Yes GO to C4 No Inspect EM062, EM044 and GB001 for corrosion, bent / pushed back pins or

Page 1408 of 2490

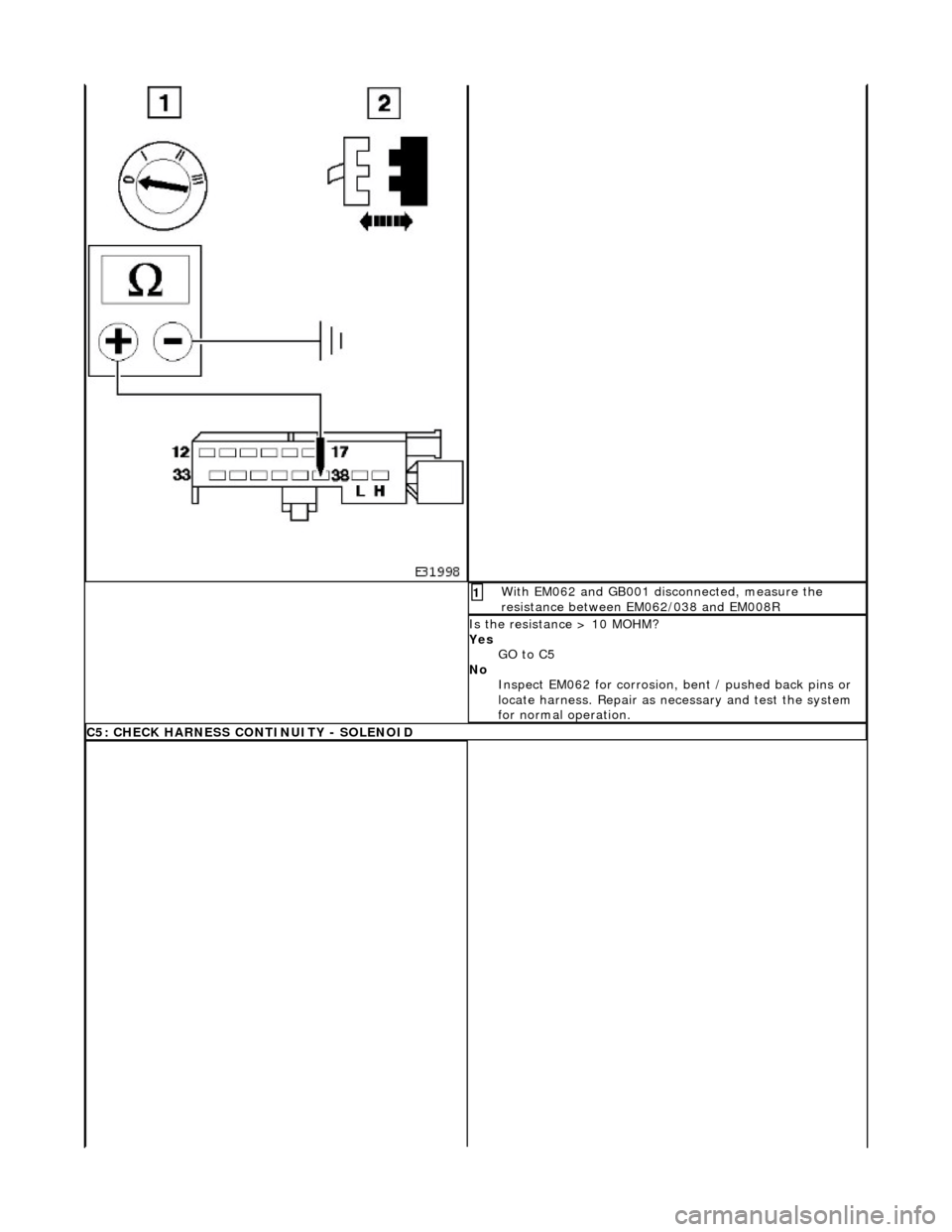

JAGUAR X308 1998 2.G Workshop Manual With EM062 and GB001 disconnected, measure the resistance between EM062/038 and EM008R 1 Is the resistance > 10 MOHM? Yes GO to C5 No Inspect EM062 for corrosion, bent / pushed back pins or lo
