Page 1577 of 2490

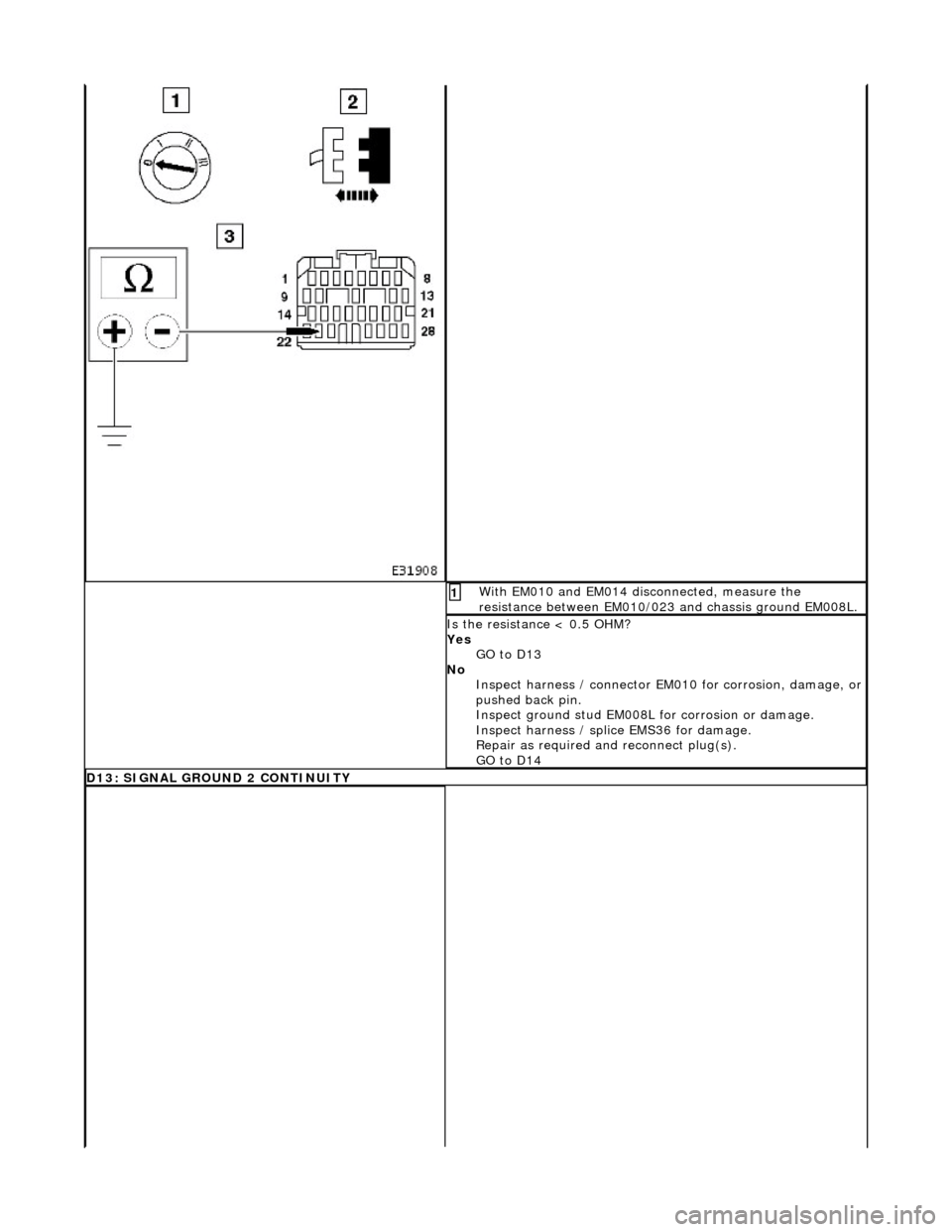

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM014 disconnected, measure the resistance between EM010/023 and chassis ground EM008L. 1 Is the resistance < 0.5 OHM? Yes GO to D13 No Inspect harness / connector EM010 for corr

Page 1578 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM014 disconnected, measure the resistance between EM014/004 and chassis ground EM008L. 1 Is the resistance < 0.5 OHM? Yes GO to D15 No Inspect harness / connector EM014 for corr

Page 1579 of 2490

JAGUAR X308 1998 2.G Workshop Manual With EM012 and EM022 disconnected, measure the resistance between EM012/017 and EM022/002. 1 Is the resistance < 0.5 OHM? Yes GO to D16 No Inspect harness / connectors EM012 and EM022 for corr

Page 1580 of 2490

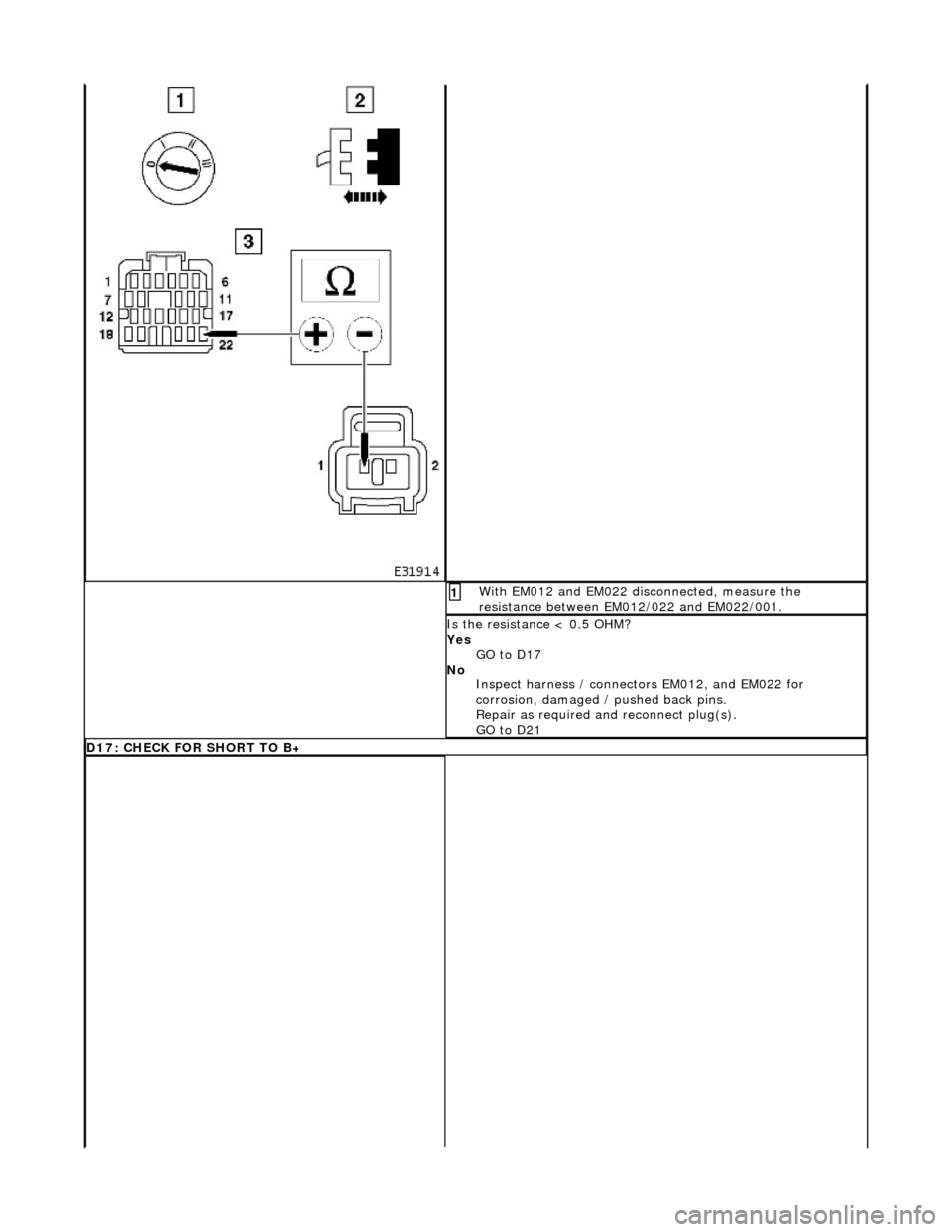

JAGUAR X308 1998 2.G Workshop Manual With EM012 and EM022 disconnected, measure the resistance between EM012/022 and EM022/001. 1 Is the resistance < 0.5 OHM? Yes GO to D17 No Inspect harness / connecto rs EM012, and EM022 for co

Page 1581 of 2490

JAGUAR X308 1998 2.G Workshop Manual Ignition switch to position 0 1 Disconnect EM010 Inside ECM housing 2 Disconnect EM012 Inside ECM housing 3 Ignition switch to position II 4 Measure the voltage between EM010/023 and

Page 1582 of 2490

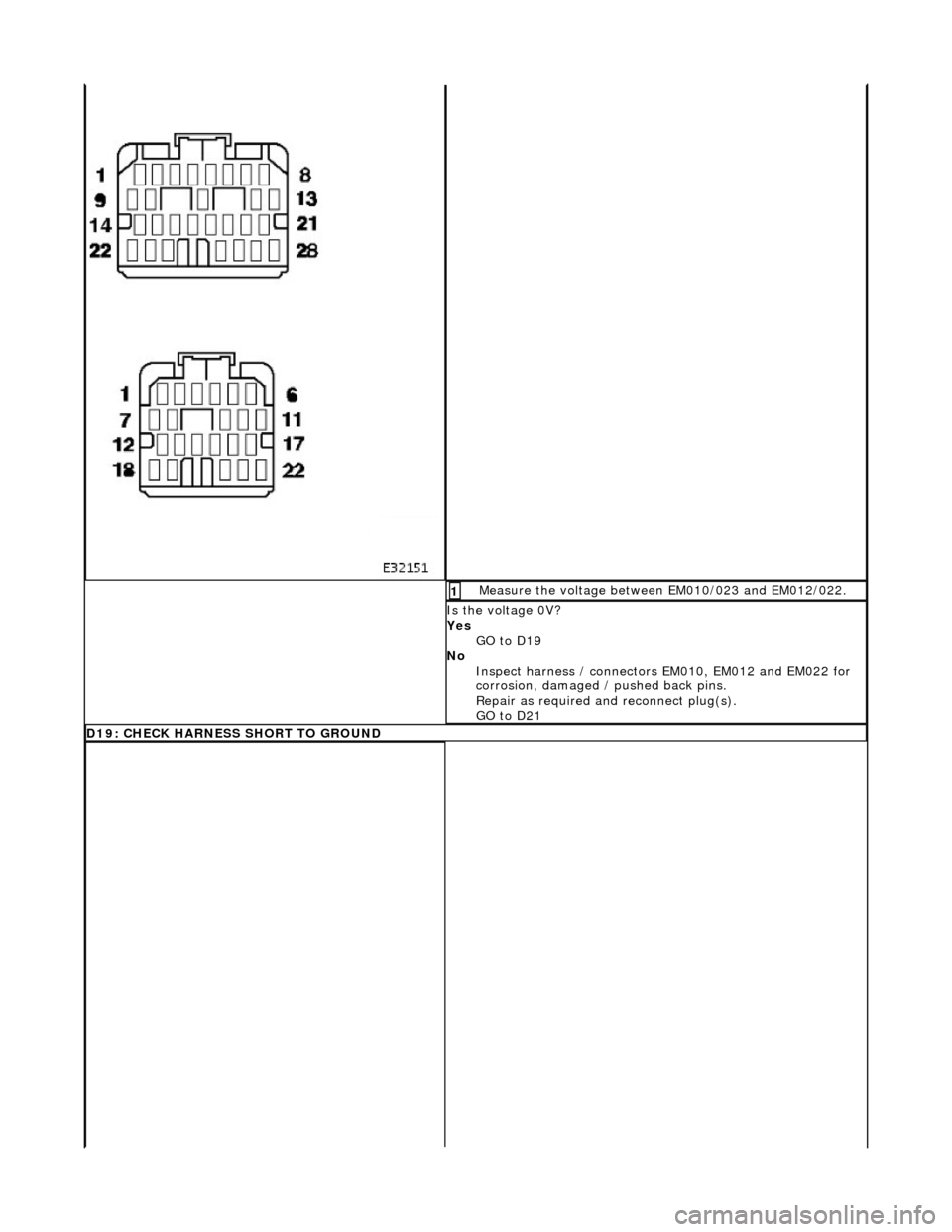

JAGUAR X308 1998 2.G Workshop Manual Measure the voltage between EM010/023 and EM012/022. 1 Is the voltage 0V? Yes GO to D19 No Inspect harness / connectors EM010, EM012 and EM022 for corrosion, damaged / pushed back pins. Repai

Page 1583 of 2490

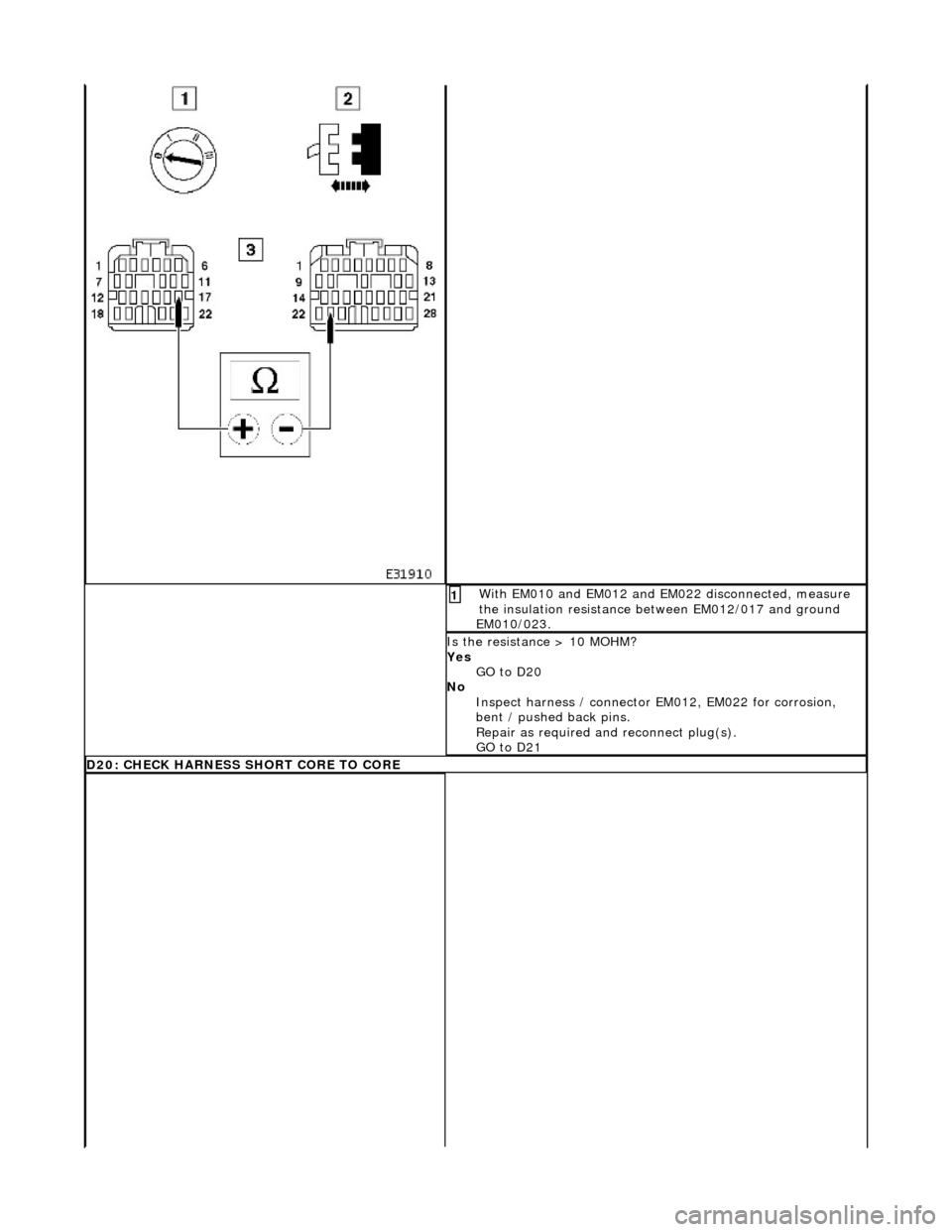

JAGUAR X308 1998 2.G Workshop Manual With EM010 and EM012 and EM022 disconnected, measure the insulation resistance between EM012/017 and ground EM010/023. 1 Is the resistance > 10 MOHM? Yes GO to D20 No Inspect harness / connec

Page 1584 of 2490

JAGUAR X308 1998 2.G Workshop Manual Pinpoint test E: P0151, P0152, P0155 Measure the insulation resistance between EM012/017 and EM012/022. 1 Is the resistance > 10 MOHM? Yes Reconnect all plugs GO to D21 No Inspect harness / co
