Page 2169 of 2490

JAGUAR X308 1998 2.G Workshop Manual 6. Secure cover left hand panel to centre of cushion using six hog rings. 7. Position cover left hand panel th rough cushion seat belt anchor aperture. 8. Secure horizontal seam of cover left

Page 2170 of 2490

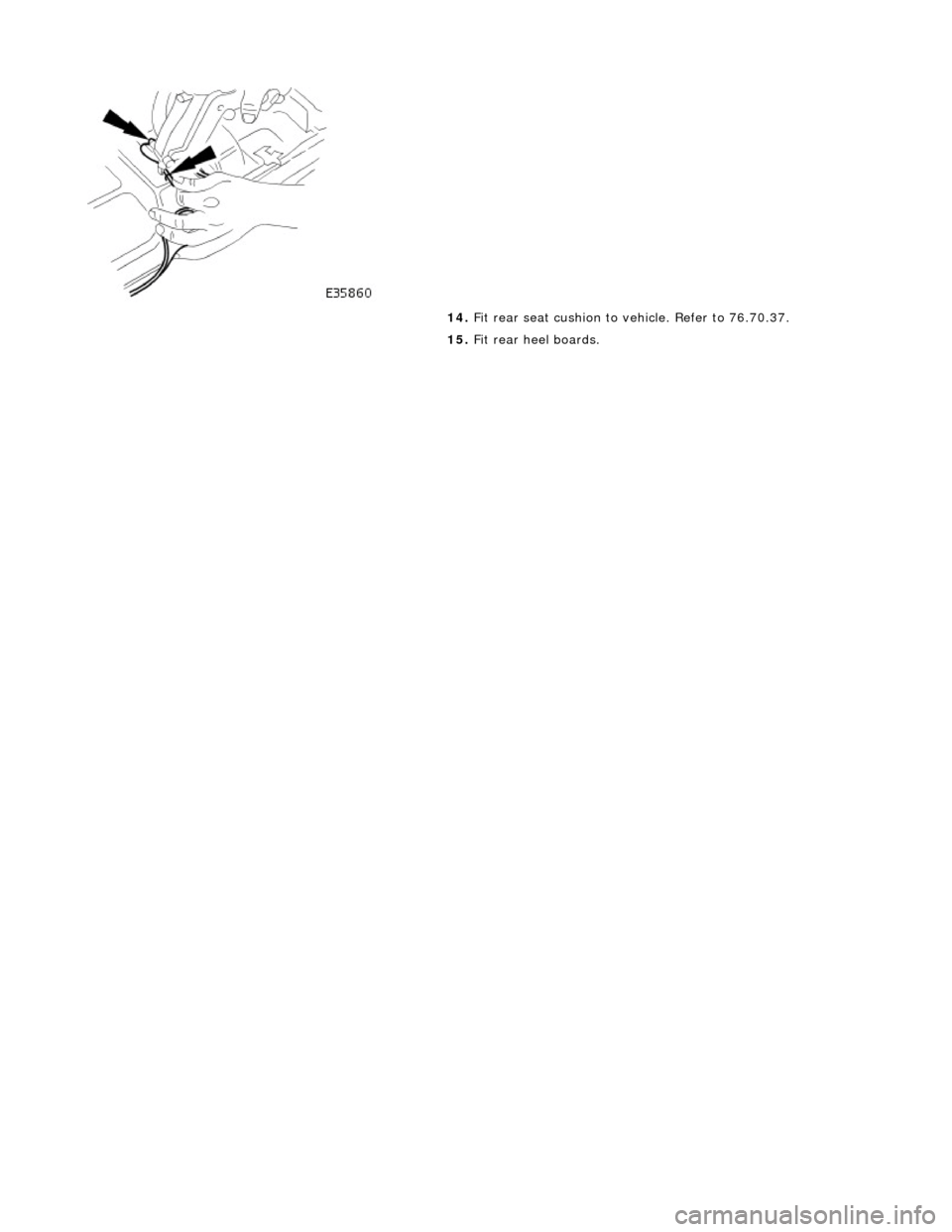

JAGUAR X308 1998 2.G Workshop Manual 14. Fit rear seat cushion to ve hicle. Refer to 76.70.37. 15. Fit rear heel boards.

Page 2171 of 2490

JAGUAR X308 1998 2.G Workshop Manual Seating - Rear Seat Cushion Heater Mat Removal and Installation Removal Installation 1. Remove the rear seat cushion. Fo r additional information, refer to the procedure in this section: Rear

Page 2172 of 2490

JAGUAR X308 1998 2.G Workshop Manual Seating - Rear Seat Head Restraint Removal and Installation Removal Installation 1. Remove rear heel boards. 2. Remove rear seat cushion. 3. Remove rear seat belt escu tcheon. Refer to 76.

Page 2173 of 2490

JAGUAR X308 1998 2.G Workshop Manual Seating - Rear Seat Track Removal and Installation Removal 1. Remove battery cover and disc onnect ground cable from battery terminal. Refer to 86.15.19. 2. Slacken and remove the two seat cu

Page 2174 of 2490

JAGUAR X308 1998 2.G Workshop Manual 6. Push trim upwards to release keyhole aperture from squab fixing and partially withdraw trim for access. 7. Slacken and remove seat belt lower anchor securing bolt. 8. Carefully withdraw

Page 2175 of 2490

JAGUAR X308 1998 2.G Workshop Manual Installation 12. Disconnect seat motor and squab heater harness multiplugs. 13. Slacken and remove four bolts securing seat frame to floor and remove seat from vehicle. 1. Position seat in

Page 2176 of 2490

JAGUAR X308 1998 2.G Workshop Manual 11. Fit and tighten cushion front securing bolts and nuts. 12. Connect ground cable to batt ery terminal and fit battery cover. Refer to 86.15.15. 13. Return seat to original position.
