Page 705 of 3115
INSTALLATION
Foamed Material
Application Area
Body Sealer
Swing Type Back Door only:
Cloth Tape
Roof Drip No. 2 Channel
Wooden Hammer
2. Bend the flange hem with a wooden hammer
and dolly.
HINT: Perform hemming three steps, being careful
not to warp the panel.
3. After installing the new parts, apply foamed
materials. Before temporarily installing the new parts, apply
body sealer to the windshield header panel, roof
panel reinforcement and back window frame.
HINT:
1) Apply just enough sealer for the new parts to
make contact.
2) For other sealing points, refer to Section AR.
BODY PANEL REPLACEMENTRE-71
Page 706 of 3115
ROOF PANEL (ASSY): Normal Roof
REMOVAL
BODY PANEL REPLACEMENTRE-68
Page 707 of 3115
INSTALLATION
Foamed Material
Application Area
Body Sealer
Swing Type Back
Door Only:
Roof Drip No. 2 Channel
1. Before temporarily installing the new parts,
apply body sealer to the windshield header
panel, roof panel reinforcement and back
door opening upper frame.
HINT:
1) Apply just enough sealer for the new parts to
make contact.
2) For other sealing points, refer to Section AR.
2. After installing the new parts, apply foamed
materials.
BODY PANEL REPLACEMENTRE-69
Page 708 of 3115
ROOF SIDE INNER REAR PANEL (ASSY)
REMOVAL (With the quarter panel rear extension
removed.)
BODY PANEL REPLACEMENTRE-40
Page 709 of 3115

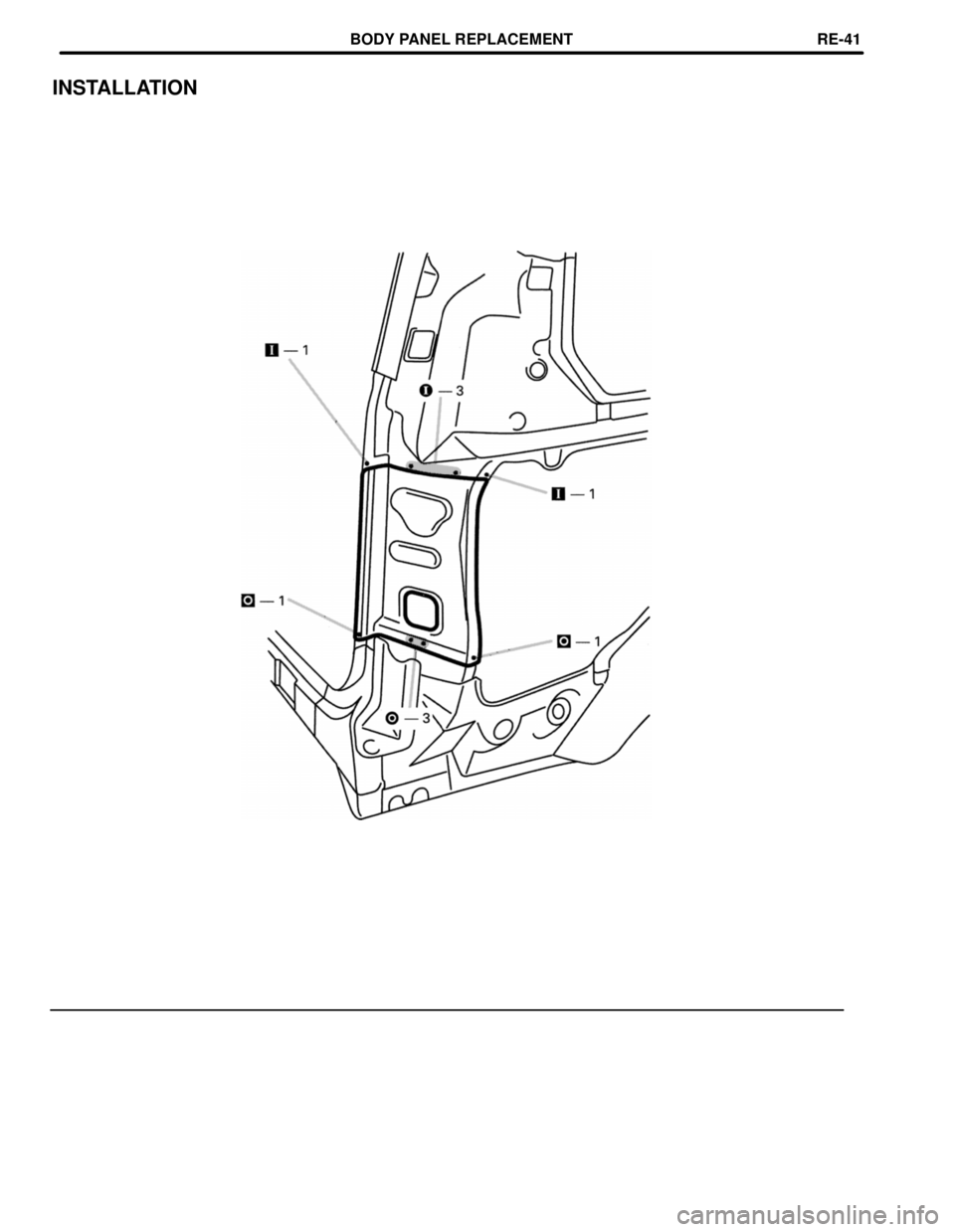

INSTALLATION
BODY PANEL REPLACEMENTRE-41
Page 710 of 3115
HINT: For symbols, capital letters indicate right side of vehicle,
small letters indicate left side of vehicle (Seen from rear).
(Three-Dimensional Distance)
mm (in.)
Hole dia.
12 (0.47)
9 (0.35)
11y9 (0.43
y0.35)
6 (0.24) nut Name
Radiator installation hole
Radiator installation hole
Radiator installation hole
Hood lock support installation nut Symbol
F, f
G
g
H Hole dia.
6 (0.24) nut
6 (0.24) nut
6 (0.24) nut
10 (0.39) Name
Front fender installation nut
Front fender installation nut
Front fender installation nut
Cowl top panel vehicle center mark
Front fender apron standard hole Symbol
A, a
B, b
C, c
D
E, e

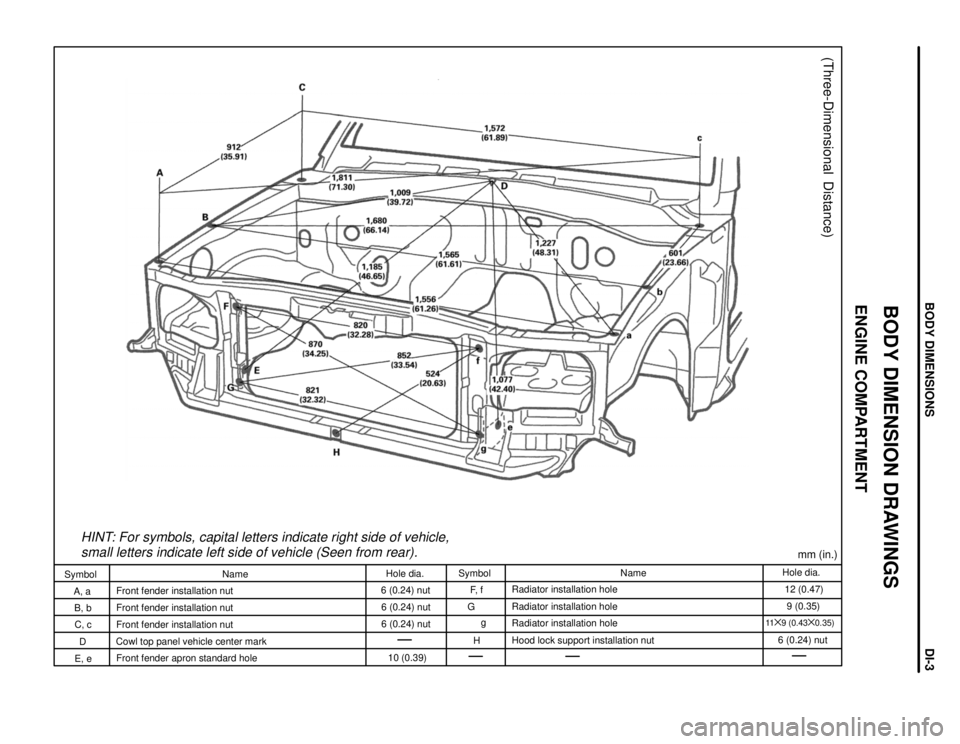

BODY DIMENSION DRAWINGS
ENGINE COMPARTMENT
BODY DIMENSIONSDI-3
Page 711 of 3115
1,472
(57.95)N-n O-o
1,613
(63.50)Vehicle Dimensions Left e Right
P-p
1,619
(63.74)Q-q
1,330
(52.36)R-r
1,442
(56.77)S-s
1,607
(63.27)N-r
or
n-R
1,649
(64.92)N-s
or
n-S
1,782
(70.16)1,734
(68.27)O-s
or
o-S
1,875
(73.82)P-q
or
p-QR-s
or
r-S
1,692
(66.61)
HINT: For symbols, capital letters indicate right side of vehicle,
small letters indicate left side of vehicle (Seen from rear).
(Three-Dimensional Distance)
mm (in.)
Hole dia.
Name
Roof side rail assembly mark
Quarter panel assembly mark
Quarter panel assembly mark Symbol
Q, q
R, r
S, s Hole dia.
Name
Center body pillar assembly mark
Center body pillar assembly mark
Rocker panel assembly mark Symbol
N, n
O, o
P, p

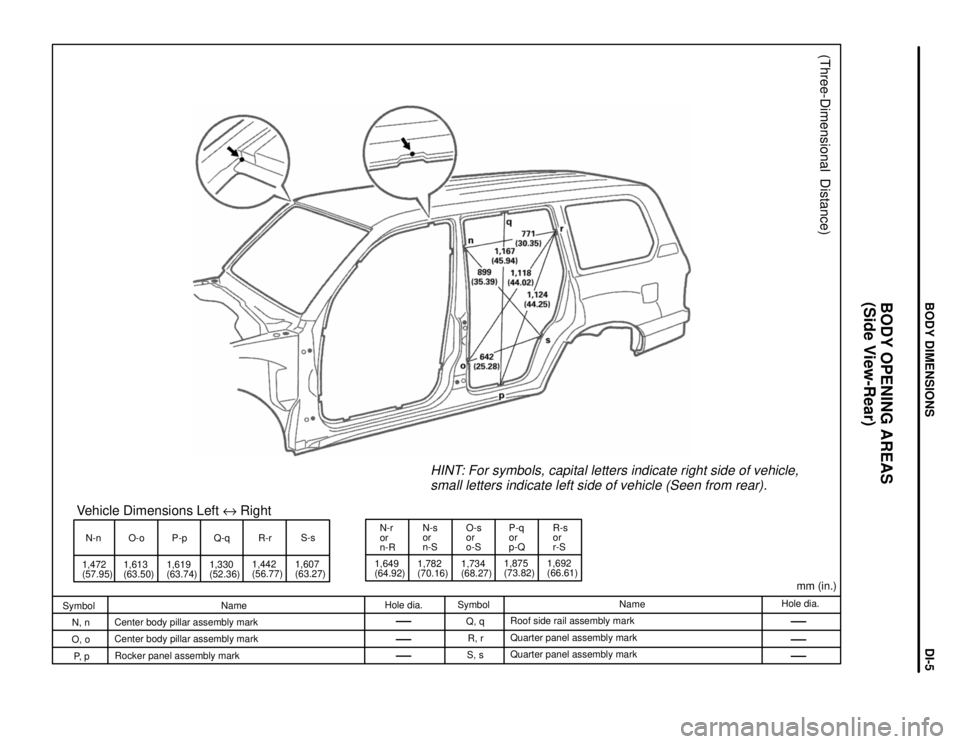

BODY OPENING AREAS
(Side View-Rear)
BODY DIMENSIONSDI-5
Page 712 of 3115
HINT: For symbols, capital letters indicate right side of vehicle,
small letters indicate left side of vehicle (Seen from rear).
mm (in.)
(Three-Dimensional Distance)
Hole dia.
8 (0.31) nut
8 (0.31) nut Name
Tail gate lock striker installation nut
Tail gate hinge installation nut-outer Symbol
C, c
D, d Hole dia.
8.2 (0.323)
11y8.2 (0.43
y0.323)
8 (0.31) nut Name
Back door hinge installation hole-outer = front tip: RH
Back door hinge installation hole-outer = front tip: LH
Back door damper stay installation nut Symbol
A
a
B, b

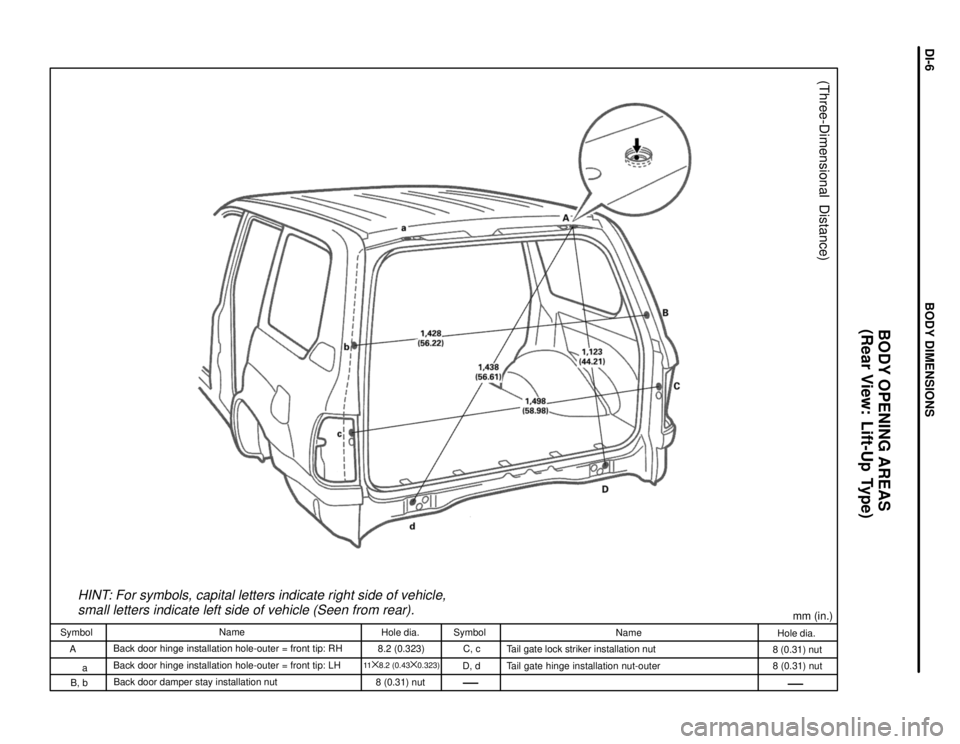

BODY OPENING AREAS
(Rear View: Lift-Up Type)
BODY DIMENSIONSDI-6
