TOYOTA LAND CRUISER 1998 Factory Repair Manual (Three-Dimensional Distance) mm (in.) Hole dia. 8 (0.31) nut 14 (0.55) nut Name Stopper lubber installation nut Hook installation nut Symbol D, d E, e Hole dia. 14 (0.55) nut 8 (0.31) nut 16y16 (0.63

Page 722 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual Imaginary Standard Line mm (in.) (Two-Dimensional Distance) Hole dia. 8 (0.31) nut 14 (0.55) nut Name Stopper lubber installation nut Hook installation nut Symbol D, d E, e Hole dia. 14 (0.55) nut 8

Page 723 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual mm (in.) (Three-Dimensional Distance) Hole dia. 14 (0.55) 9 (0.35) Name Frame side rail standard hole Frame side rail working hole Symbol C, c D, d Hole dia. 12 (0.47) nut 10 (0.39) Name Winch instal

Page 724 of 3115

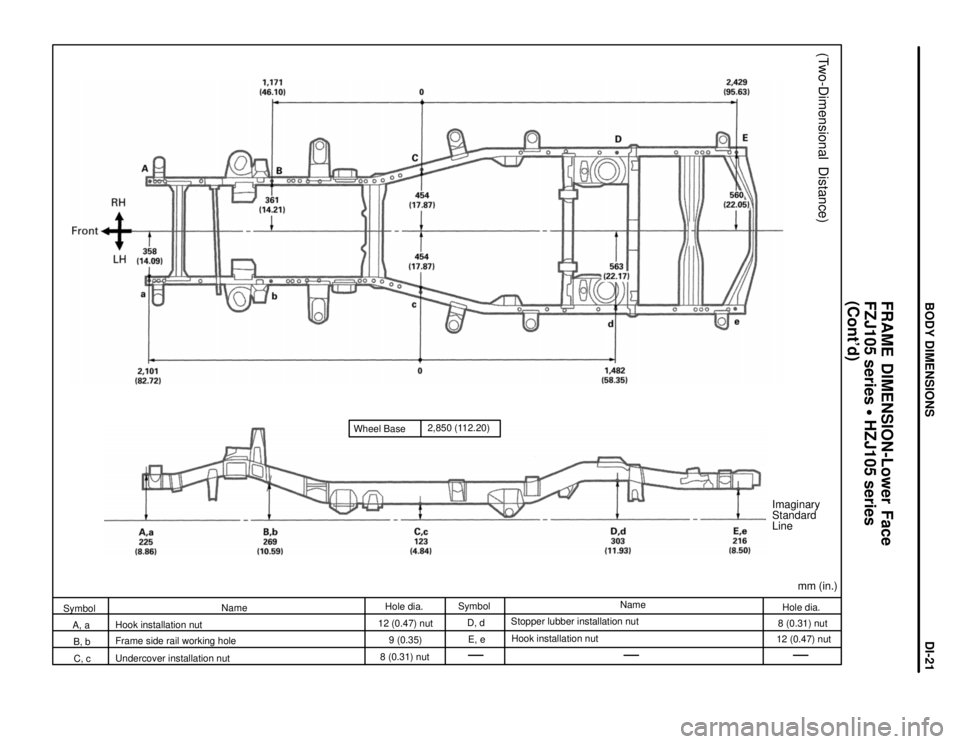

TOYOTA LAND CRUISER 1998 Factory Repair Manual Wheel Base2,850 (112. 20) mm (in.) Imaginary Standard Line (Two-Dimensional Distance) Hole dia. 14 (0.55) 9 (0.35) Name Frame side rail standard hole Frame side rail working hole Symbol C, c D, d Hol

Page 725 of 3115

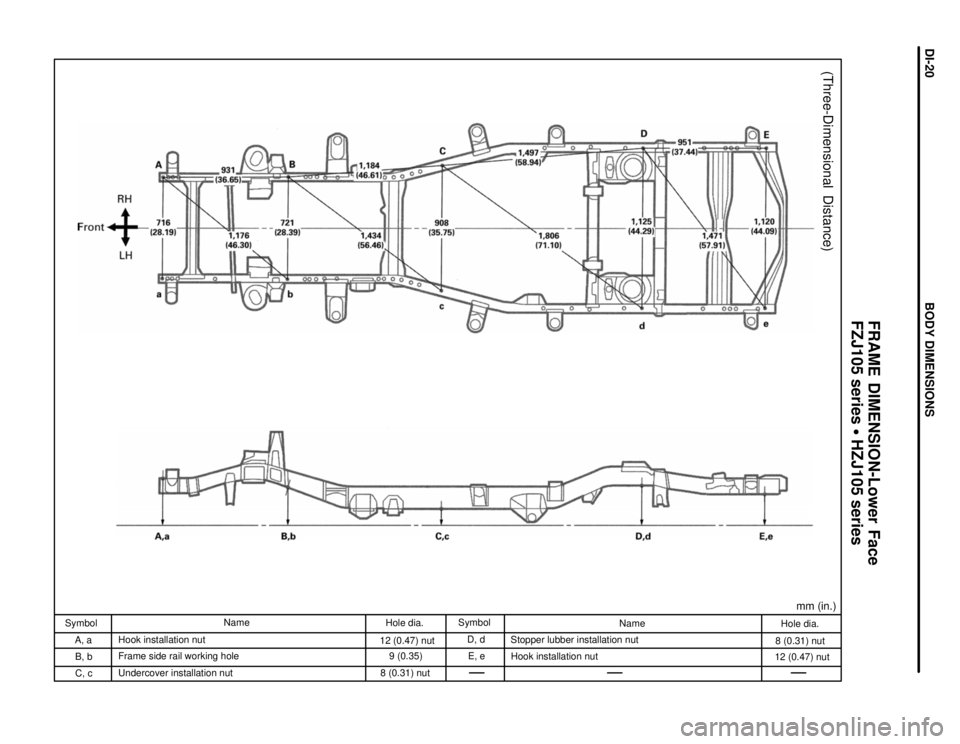

TOYOTA LAND CRUISER 1998 Factory Repair Manual (Three-Dimensional Distance) mm (in.) Hole dia. 8 (0.31) nut 12 (0.47) nut Name Stopper lubber installation nut Hook installation nut Symbol D, d E, e Hole dia. 12 (0.47) nut 9 (0.35) 8 (0.31) nut Nam

Page 726 of 3115

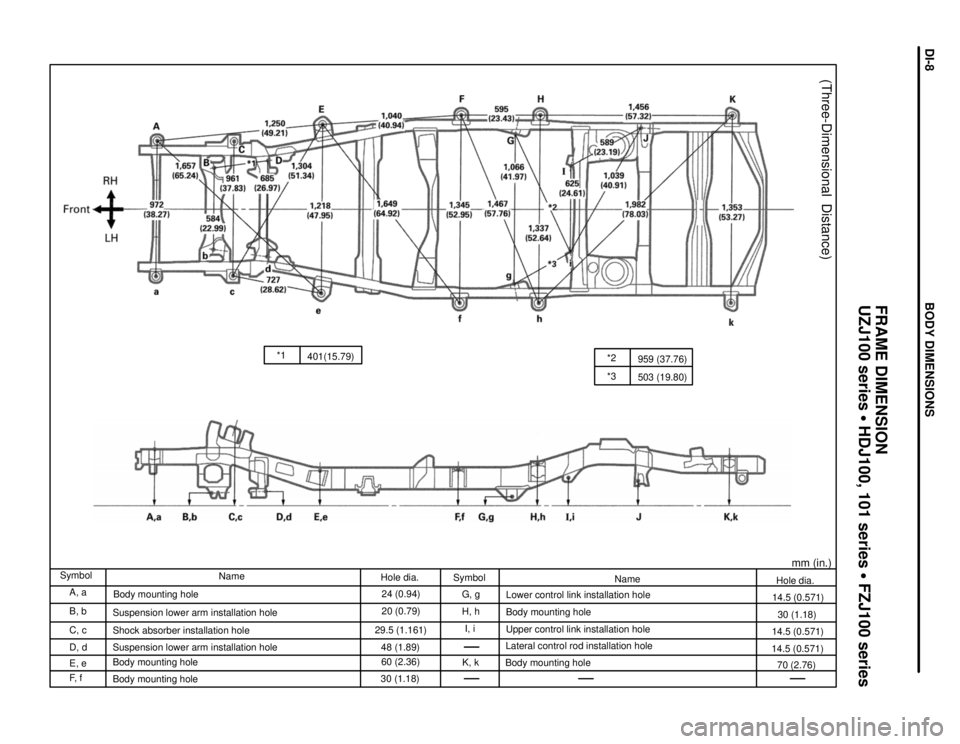

TOYOTA LAND CRUISER 1998 Factory Repair Manual Wheel Base2,850 (112.20) Imaginary Standard Line (Two-Dimensional Distance) mm (in.) Hole dia. 8 (0.31) nut 12 (0.47) nut Name Stopper lubber installation nut Hook installation nut Symbol D, d E, e H

Page 727 of 3115

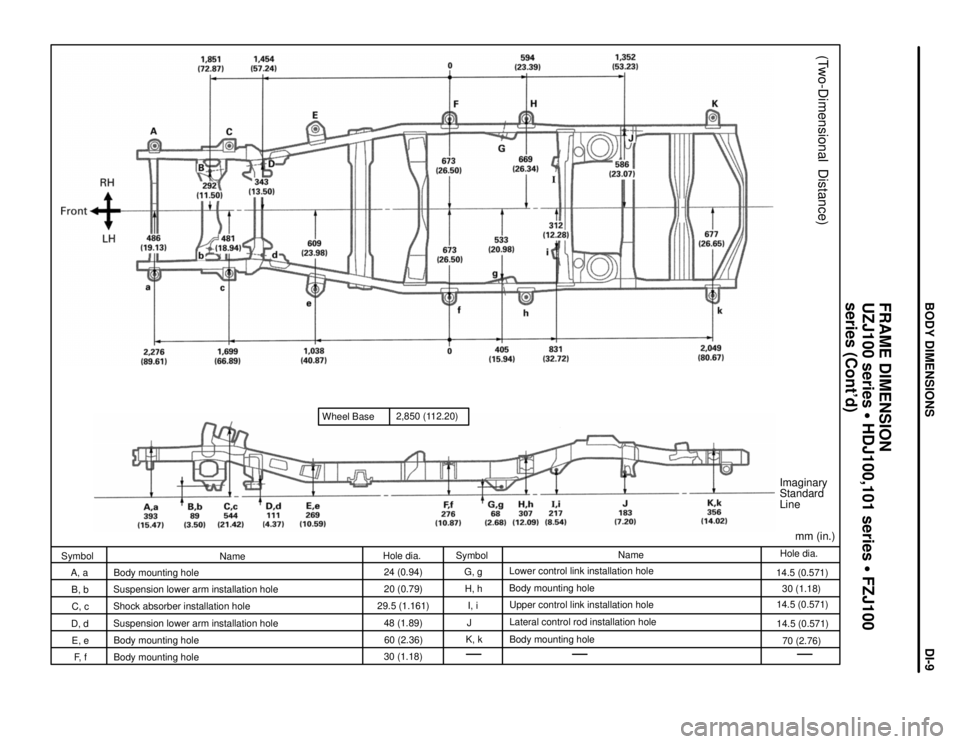

TOYOTA LAND CRUISER 1998 Factory Repair Manual *1 401(15.79) *3*2 959 (37.76) 503 (19.80) (Three-Dimensional Distance) mm (in.) Hole dia. 14.5 (0.571) 30 (1.18) 14.5 (0.571) 14.5 (0.571) 70 (2.76) Name Lower control link installation hole Body mo

Page 728 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual Wheel Base2,850 (112.20) Imaginary Standard Line mm (in.) (Two-Dimensional Distance) Hole dia. 14.5 (0.571) 30 (1.18) 14.5 (0.571) 14.5 (0.571) 70 (2.76) Name Lower control link installation hole Bod
