Page 689 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual INSTALLATION BODY PANEL REPLACEMENTRE-55

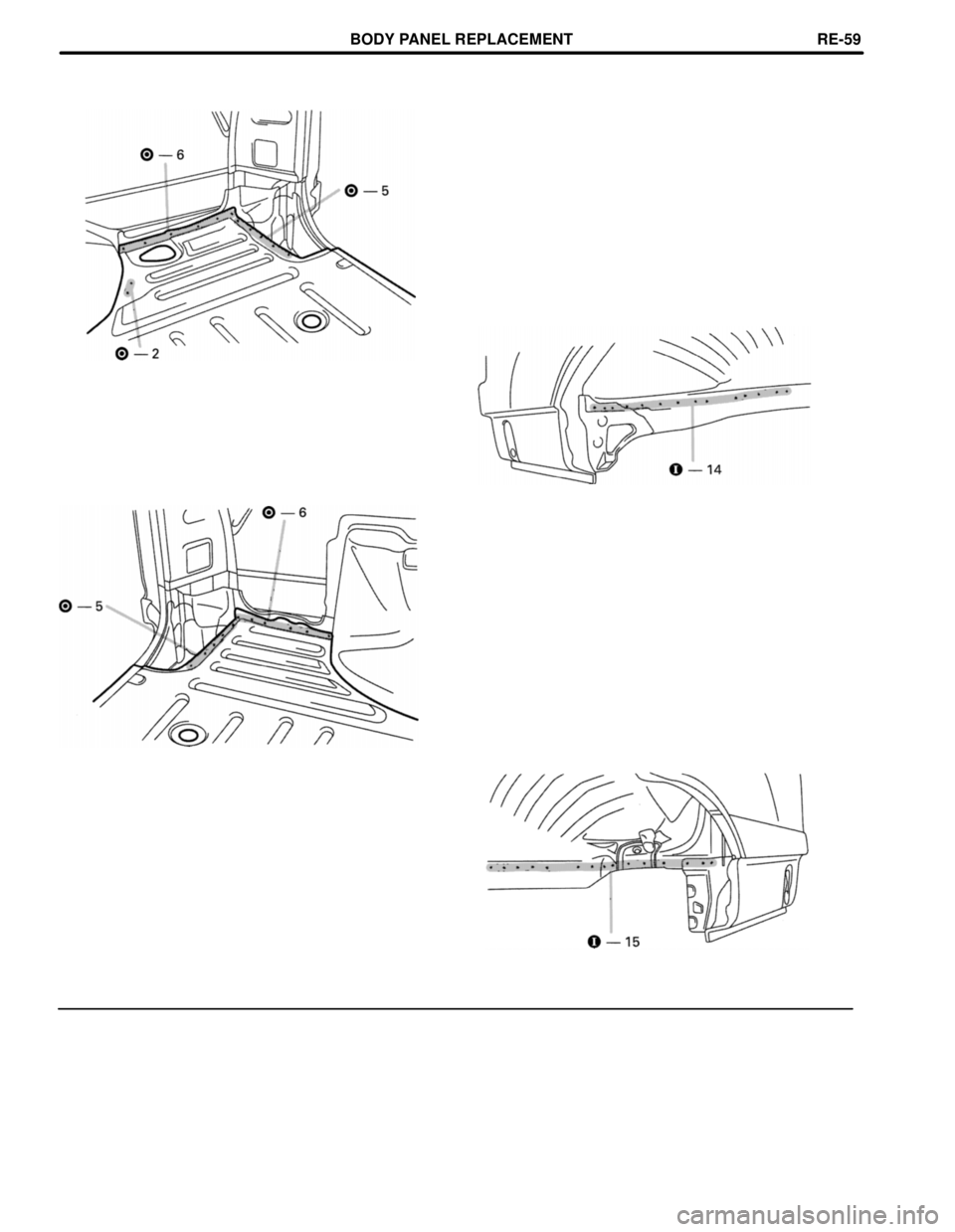

Page 690 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual mm in. 620 24.41 REAR FLOOR PAN (CUT) 620 mm REMOVAL (With the body lower back panel, lower back upper gusset removed.) Cut Location 1. Cut the parts at the location as shown above. BODY PANEL REPLACE

Page 691 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual BODY PANEL REPLACEMENTRE-59

Page 692 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual mm in. 600 23.62 INSTALLATION Cut Location 600 mm 1. Cut the new parts at the location as shown above. 2. Plug weld the overlapping portion of the new parts. HINT: Be sure the portion to be welded are

Page 693 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual BODY PANEL REPLACEMENTRE-61

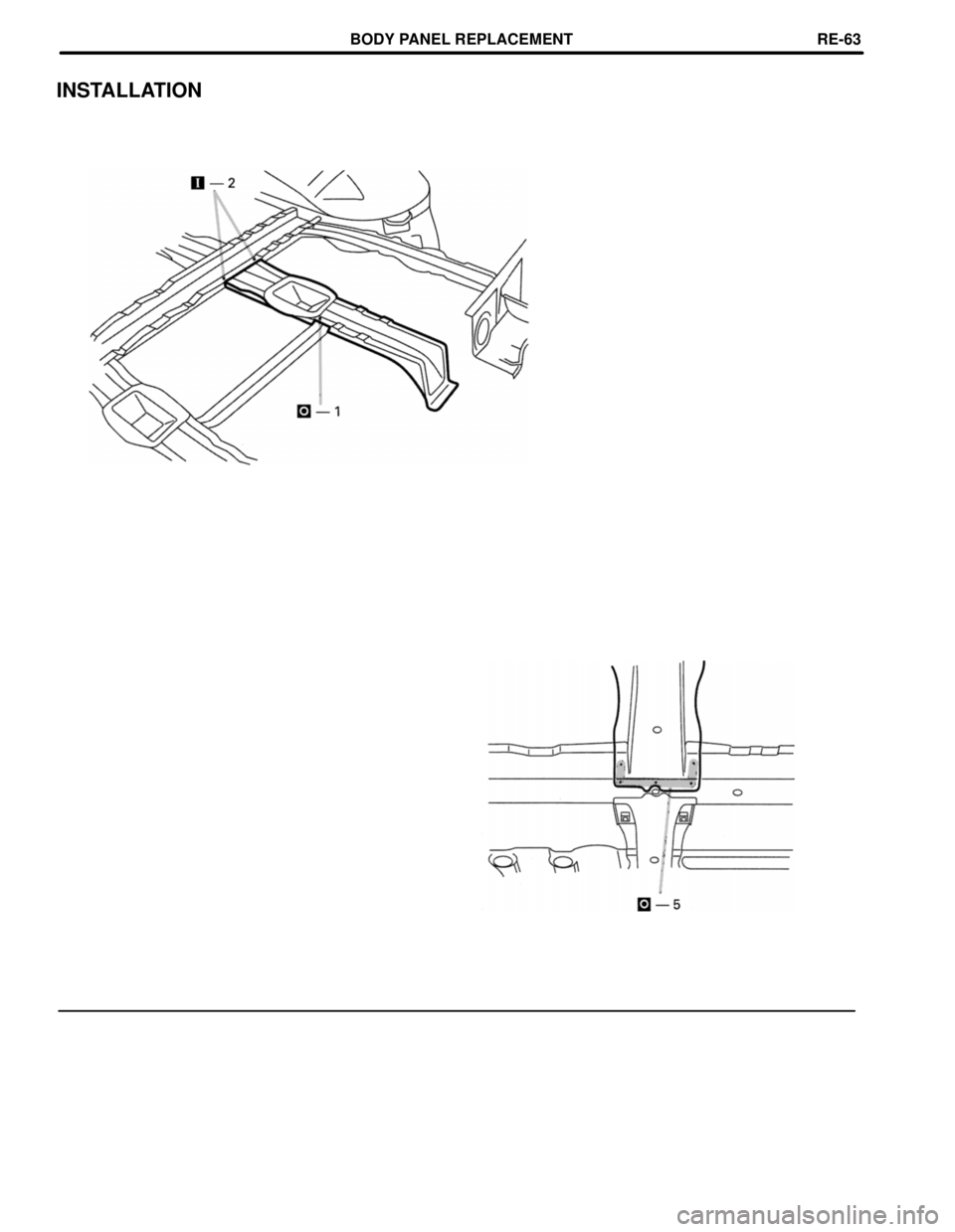

Page 694 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual REAR FLOOR SIDE REAR CENTER MEMBER (ASSY) REMOVAL (With the body lower back panel, rear floor pan removed.) BODY PANEL REPLACEMENTRE-62

Page 695 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual INSTALLATION BODY PANEL REPLACEMENTRE-63

Page 696 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual REAR FLOOR No. 3 CROSSMEMBER (ASSY) REMOVAL (With the rear floor pan removed.) BODY PANEL REPLACEMENTRE-64
