TOYOTA LAND CRUISER 1998 Factory Repair Manual INSTALLATION Assembly MarkAssembly Mark Butt Weld Foamed Material Application Area Seat Belt Anchor Reinforcement 3. After installing the new parts, apply foamed materials. 1. Determine the position o

Page 674 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual QUARTER PANEL REAR EXTENSION (ASSY) REMOVAL (With the back door opening reinforcement removed.) BODY PANEL REPLACEMENTRE-38

Page 675 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual INSTALLATION Quarter Panel Extension Quarter Panel Extension Reinforcement Door Lock Striker Retainer (Lift-Up Type Back Door only) 1. Before welding the new parts, temporarily install the back door

Page 676 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual mm in. 150 2605.91 9.84 QUARTER PANEL (CUT) REMOVALCut and Join Location Cut and Join Location 150 mm 250 mm [Cut and Join Location] Cut and Join Location (Cut Location for Supply Parts) [Cut and Joi

Page 677 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual mmin. 5 0.20 INSTALLATIONButt Weld Butt Weld Foamed Material Application Area Body Sealer Butt Weld Body Sealer about 5 mm 1. Before temporarily installing the new parts, apply body sealer to the whee

Page 678 of 3115

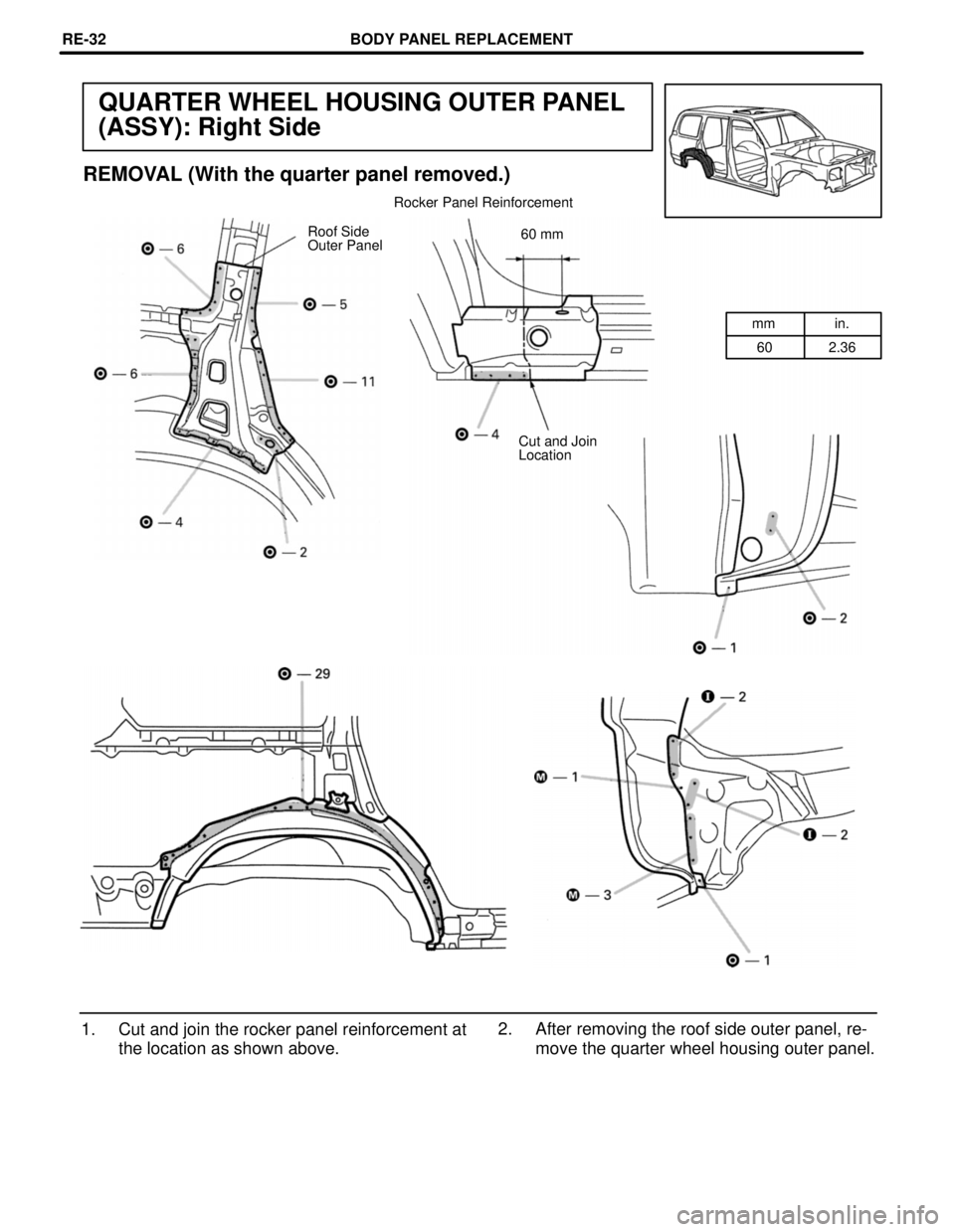

TOYOTA LAND CRUISER 1998 Factory Repair Manual mm in. 60 2.36 QUARTER WHEEL HOUSING OUTER PANEL (ASSY): Right Side REMOVAL (With the quarter panel removed.) 60 mm Roof Side Outer Panel Cut and Join Location 1. Cut and join the rocker panel reinfor

Page 679 of 3115

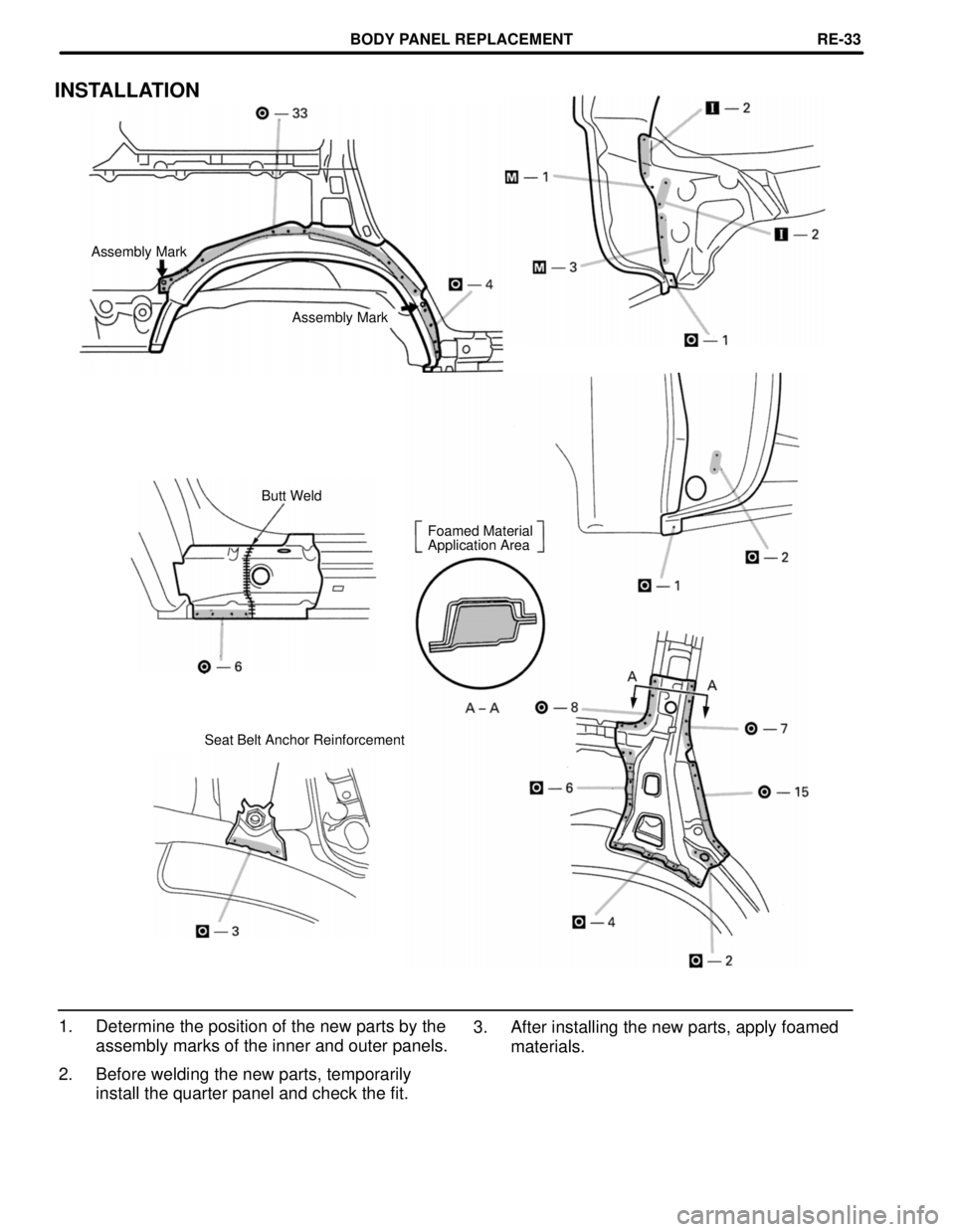

TOYOTA LAND CRUISER 1998 Factory Repair Manual INSTALLATION Assembly Mark Assembly Mark Butt Weld Foamed Material Application Area Seat Belt Anchor Reinforcement 3. After installing the new parts, apply foamed materials. 1. Determine the position

Page 680 of 3115

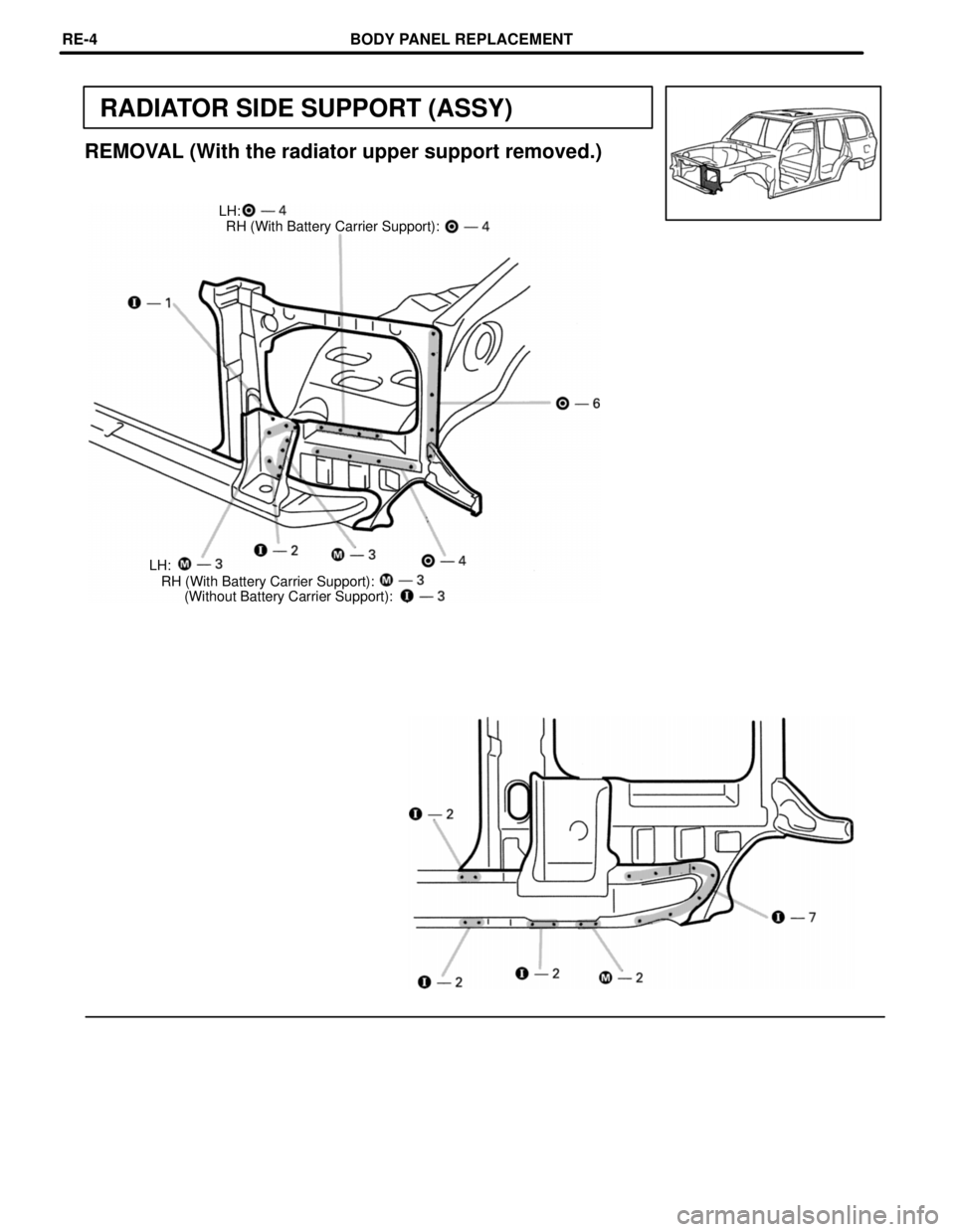

TOYOTA LAND CRUISER 1998 Factory Repair Manual RADIATOR SIDE SUPPORT (ASSY) (Without Battery Carrier Support): RH (With Battery Carrier Support): REMOVAL (With the radiator upper support removed.) LH: RH (With Battery Carrier Support): LH: BODY PA
