TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
72G ELECTRICAL WIRING ROUTING
Position of Parts in Body
A 32 A/C Amplifier (Rear)
A 33 A/C Amplifier (Rear)
A 34 A/C Amplifier (Rear)
A 35 ABS Speed Sensor Rear LH
A 36 AB

Page 1954 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
73 G
Position of Parts in Body
P 8 Parking Brake SW
P 9 Power Outlet (Luggage Compartment)
P 10 Power Vent Window Motor LH
P 11 Power Vent Window Motor RH
P 12 Power Wind

Page 1955 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
74G ELECTRICAL WIRING ROUTING
Position of Parts in Seat
B 5 Buckle SW LH
B 6 Buckle SW RH
L 3 Lumbar Support Control SW (Drivers Seat)
P 23 Power Seat Control SW (Driv

Page 1956 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
75 Memo

Page 1957 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
18E GLOSSARY OF TERMS AND SYMBOLS
BATTERY
Stores chemical energy and
converts it into electrical energy.
Provides DC current for the autos
various electrical circuits.GRO

2004 LAND CRUISER (EWD548U)
18E GLOSSARY OF TERMS AND SYMBOLS
BATTERY
Stores chemical energy and
converts it into electrical energy.
Provides DC current for the auto's
various electrical circuits.GROUND
The point at which wiring attaches to
the Body, thereby providing a return
path for an electrical circuit; without a
ground, current cannot flow.
CAPACITOR (Condenser)
A small holding unit for temporary
storage of electrical voltage.HEADLIGHTS
Current flow causes a headlight
filament to heat up and emit light. A
headlight may have either a single
(1) filament or a double (2) filament
1. SINGLE
FILAMENT
CIGARETTE LIGHTER
An electric resistance heating
element.2. DOUBLE
FILAMENT
CIRCUIT BREAKER
Basically a reusable fuse, a circuit
breaker will heat and open if too
much current flows through it.
Some units automatically reset when
cool, others must be manually reset.HORN
An electric device which sounds a
loud audible signal.
DIODE
A semiconductor which allows
current flow in only one direction.IGNITION COIL
Converts low-voltage DC current
into high-voltage ignition current for
firing the spark plugs.
DIODE, ZENERA diode which allows current flow in one
direction but blocks reverse flow only up
to a specific voltage. Above that potential,
it passes the excess voltage. This acts as
a simple voltage regulator.LIGHT
Current flow through a filament
causes the filament to heat up and
emit light.
PHOTODIODE
The photodiode is a semiconductor
which controls the current flow
according to the amount of light.LED (LIGHT EMITTING DIODE)
Upon current flow, these diodes emit
light without producing the heat of a
comparable light.
DISTRIBUTOR, IIA
Channels high-voltage current from
the ignition coil to the individual
spark plugs.METER, ANALOG
Current flow activates a magnetic
coil which causes a needle to move,
thereby providing a relative display
against a background calibration.
FUSEA thin metal strip which burns through
when too much current flows through it,
thereby stopping current flow and
protecting a circuit from damage.
FUSIBLE LINK
METER, DIGITAL
Current flow activates one or many
LED's, LCD's, or fluorescent
displays, which provide a relative or
digital display.
FUEL
FUSIBLE LINK
A heavy-gauge wire placed in high
amperage circuits which burns through on
overloads, thereby protecting the circuit.
The numbers indicate the crosssection
surface area of the wires.(for Medium Current Fuse)
(for High Current Fuse or
Fusible Link)MOTOR
A power unit which converts
electrical energy into mechanical
energy, especially rotary motion.
M

Page 1958 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
19 E
RELAY
Basically, an electrically operated
switch which may be normally
closed (1) or open (2).
Current flow through a small coil
creates a magnetic field which either

2004 LAND CRUISER (EWD548U)
19 E
RELAY
Basically, an electrically operated
switch which may be normally
closed (1) or open (2).
Current flow through a small coil
creates a magnetic field which either
opens or closes an attached switch.
1. NORMALLY
CLOSED
2. NORMALLY
OPEN
SWITCH, MANUAL
Opens and closes
iitth b
SPEAKER
An electromechanical device which
creates sound waves from current
flow.
RELAY, DOUBLE THROW
A relay which passes current
through one set of contacts or the
other.
circuits, thereby
stopping (1) or
allowing (2) current
flow.1. NORMALLY
OPEN
2. NORMALLY
CLOSED
RESISTOR
An electrical component with a fixed
resistance, placed in a circuit to
reduce voltage to a specific value.SWITCH, DOUBLE THROW
A switch which continuously passes
current through one set of contacts
or the other.
RESISTOR, TAPPED
A resistor which supplies two or
more different non adjustable
resistance values.SWITCH, IGNITION
A key operated switch with several
positions which allows various
circuits, particularly the primary
ignition circuit, to become
operational.
RESISTOR, VARIABLE or RHEOSTAT
A controllable resistor with a variable
rate of resistance.
Also called a potentiometer or
rheostat.
SENSOR (Thermistor)
A resistor which varies its resistance
with temperature.SWITCH, WIPER PARK
Automatically returns wipers to the
stop position when the wiper switch
is turned off.
(Reed Switch Type)
SENSOR, SPEED
Uses magnetic impulses to open
and close a switch to create a signal
for activation of other components.TRANSISTOR
A solidstate device typically used as
an electronic relay; stops or passes
current depending on the voltage
applied at ºbaseº.
SHORT PIN
Used to provide an unbroken
connection within a junction block.WIRES
Wires are always drawn as
straight lines on wiring
diagrams.
Crossed wires (1) without a
black dot at the junction are
tj i d
(1) NOT
CONNECTED
SOLENOID
An electromagnetic coil which forms
a magnetic field when current flows,
to move a plunger, etc.
j
not joined;
crossed wires (2) with a
black dot or octagonal ( )
mark at the junction are
spliced (joined)
connections.
(2) SPLICED

Page 1959 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
376I GROUND POINT
(
VER4) (
GND) (
VER1)
A/C Control
Assembly(
VER2)
Air Vent Mode
Control Ser vo Motor
Overhead J/B
Unlock Warning SWEngine
Control
Module Cigarette Ligh

Page 1960 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)

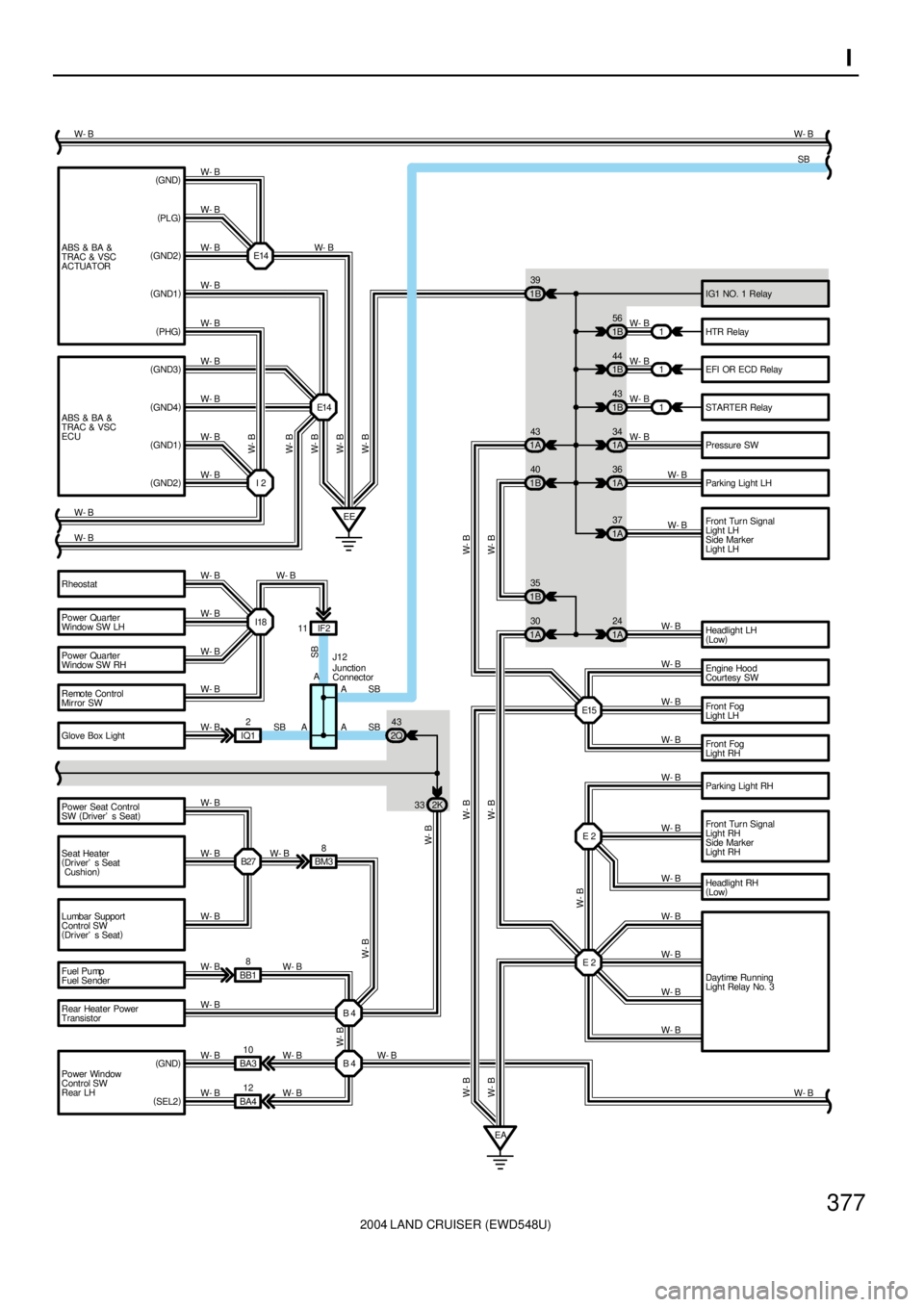

377I
Seat Heater
(
Dr iver s Seat
Cushi on) Power Seat Control
SW (
Driver s Seat)
B27 W- B W- B
Lumbar Support
Control SW
(
Dr iver s Seat)W- BBM38
W- BE 2HTR Relay
He
