Page 2201 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
194Multiplex Communication System
:Connector Joining Wire Harness and Wire Harness
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
EA276Engine Room M

2004 LAND CRUISER (EWD548U)
194Multiplex Communication System
:Connector Joining Wire Harness and Wire Harness
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
EA276Engine Room Main Wire and Engine Room No.2 Wire (Engine Compartment Right)
EB176Engine Wire and Transmission Wire (On the Transmission)
EE176Engine Room Main Wire and Alternator Wire (Near the Battery)
IC278Front Door LH Wire and Dash Wire (Left Kick Panel)
ID478Dash Wire and Floor No.1 Wire (Left Kick Panel)
IF178Instrument Panel Integration Wire and Instrument Panel Wire (Left Side of Instrument Panel)
IG178Engine Room No.2 Wire and Dash Wire (Behind the Combination Meter)
IH280Instrument Panel Integration Wire and Column Wire (Near the Ignition SW)
II380Dash Wire and Column Wire (Near the Ignition SW)II580Dash Wire and Column Wire (Near the Ignition SW)
IL380Instrument Panel Integration Wire and Computer Wire (Instrument Panel Center)
IM280Instrument Panel Integration Wire and Instrument Panel No.3 Wire (Right Side of Instrument Panel)
IN280Engine Wire and Dash Wire (Behind the Glove Box)
IU1
IU382Instrument Panel Integration Wire and Dash Wire (Behind the Glove Box)
IU4
g()
IV382Dash Wire and Floor No 2 Wire (Right Kick Panel)IV482Dash Wire and Floor No.2 Wire (Right Kick Panel)
IX182Instrument Panel Integration Wire and Engine Wire (Behind the Glove Box)
IY282Front Door RH Wire and Dash Wire (Right Kick Panel)
Ib284Dash Wire and Dash Wire (Behind the Combination Meter)
BA386Rear Door LH Wire and Floor No 1 Wire (Left Side of Center Pillar)BA486Rear Door LH Wire and Floor No.1 Wire (Left Side of Center Pillar)
BC386Rear Door RH Wire and Floor No 2 Wire (Right Side of Center Pillar)BC486Rear Door RH Wire and Floor No.2 Wire (Right Side of Center Pillar)
BD486Floor No.3 Wire and Floor No.1 Wire (Left Rear Side Quarter Panel)
BH186Pillar No 1 Wire and Back Door Upper Wire (Left Side of Back Door)BH286Pillar No.1 Wire and Back Door Upper Wire (Left Side of Back Door)
BL588Floor No.2 Wire and Floor No.3 Wire (Right Side of Rear Floor Crossmember)
BM290Floor No.1 Wire and Front Seat LH Wire (Front Side Under the Driver's Seat)
BP388Pillar No 1 Wire and Floor No 1 Wire (Left Rear Side Quarter Panel)BP488Pillar No.1 Wire and Floor No.1 Wire (Left Rear Side Quarter Panel)
BQ288Back Door Lower Wire and Floor No.1 Wire (Left Rear Side Quarter Panel)
BR188Roof No.3 Wire and Roof No.1 Wire (Front Side of Roof)
BS188Door Lock LH Sub Wire and Front Door LH Wire (Front Door LH)
BT188Door Lock RH Sub Wire and Front Door RH Wire (Front Door RH)
BU188Floor No.1 Wire and Floor No.1 Wire (Near the Left Rear Suspension Support)
:Ground Points
CodeSee PageGround Points Location
EA76Front Right Side of Fender Apron
EC76Rear Bank of Right Cylinder Head
IF78Set Bolt of Cowl Side J/B LHIG78Set Bolt of Cowl Side J/B LH
II78Set Bolt of Cowl Side J/B RH
BJ86Under the Driver's Seat
BK86Front Side Under the Front Passenger's Seat

Page 2202 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
195
:Splice Points
CodeSee PageWire Harness with Splice PointsCodeSee PageWire Harness with Splice Points
E176Engine Room Main WireB688Floor No.1 Wire
E276Engine Room Main

Page 2203 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)

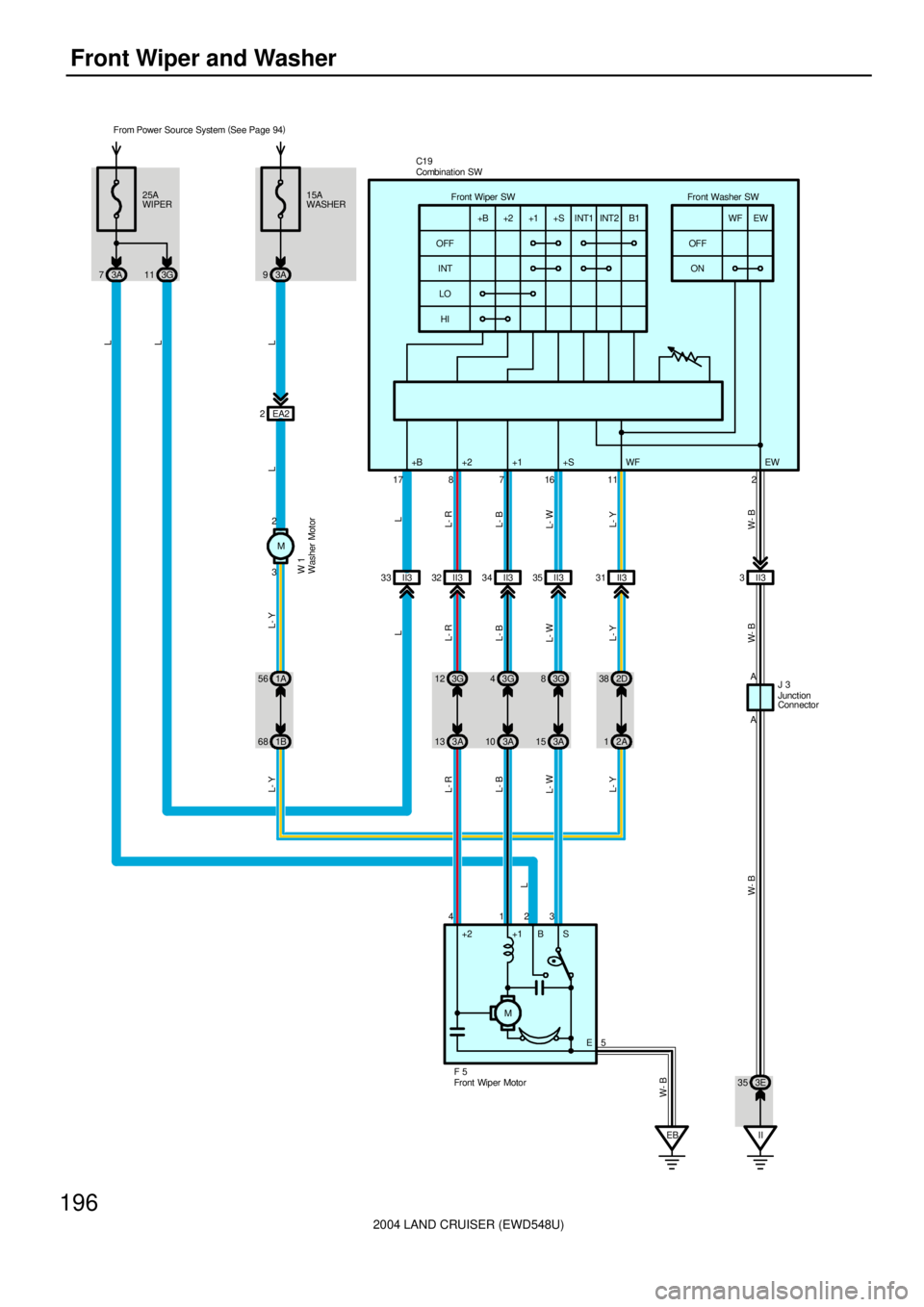

196Front Wiper and Washer
25A
WIPER From Power Source System (
See Page 94)
3A 7Front Wiper SW Front Washer SW
EW WF
ON OFF B1 +S INT2INT1
HI+1 +2 +B
LO INT OFF
17 8 7 16

Page 2204 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
197
When the ignition SW turned on, the current from the WIPER fuse flows to the front wiper and washer SW TERMINAL 17,
and the front wiper motor TERMINAL 2.
1. Low Positi

2004 LAND CRUISER (EWD548U)
197
When the ignition SW turned on, the current from the WIPER fuse flows to the front wiper and washer SW TERMINAL 17,
and the front wiper motor TERMINAL 2.
1. Low Position
When the front wiper SW is turned to LO position, the current flows from the front wiper and washer SW TERMINAL 17 to
TERMINAL 7 to the front wiper motor TERMINAL 1 to TERMINAL 5 to GROUND, and operates the front wiper motor at low
speed.
2. High Position
When the front wiper SW is turned to HI position, the current flows from the front wiper and washer SW TERMINAL 17 to
TERMINAL 8 to the front wiper motor TERMINAL 4 to TERMINAL 5 to GROUND, and operates the front wiper motor at high
speed.
3. INT Position
When the front wiper SW is turned to INT position, the relay operates and the current which is connected by the relay
function flows from the front wiper and washer SW TERMINAL 17 to TERMINAL 2 to GROUND, and operates the wipe.
The intermittent operation is controlled by the charge/discharge function of the condenser installed in the relay, and the
intermittent time is controlled by a time control SW to change the charging time of the condenser.
4. Washer Interlocking Operation
When the front washer SW is pulled up, the current flows from the washer motor TERMINAL 2 to TERMINAL 3 to the front
wiper and washer SW TERMINAL 11 to TERMINAL 2 to GROUND, operates the washer motor and the window washer
emits a water spray. This causes the current to flow to the washer continuous operation circuit in the front wiper and washer
SW TERMINAL 11 to TERMINAL 7 to front wiper motor TERMINAL 1 to TERMINAL 5 to GROUND, and operates the wiper.
C19 Combination SW
17-Ground : Approx. 12 volts with ignition SW at ON or ST position
7-Ground : Approx. 12 volts with front wiper and washer SW at LO position
: Approx. 12 volts 1.6 to 10.7 seconds intermittently with the front wiper and washer SW at INT position
16-Ground : Approx. 12 volts with ignition SW on unless the front wiper motor at STOP position
8-Ground : Approx. 12 volts with front wiper and washer SW at HI position
2-Ground : Always continuity
F5 Front Wiper Motor
2-Ground : Approx. 12 volts with ignition SW at ON or ST position
5-Ground : Always continuity
: Parts Location
CodeSee PageCodeSee PageCodeSee Page
C1970J371
F568W169
:Junction Block and Wire Harness Connector
CodeSee PageJunction Block and Wire Harness (Connector Location)
1A24Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)
1B24Engine Room No.2 Wire and Engine Room J/B (Engine Compartment Left)
2A28Engine Room No.2 Wire and Cowl Side J/B LH (Left Kick Panel)
2D28Dash Wire and Cowl Side J/B LH (Left Kick Panel)
3A40Engine Room No.2 Wire and Cowl Side J/B RH (Right Kick Panel)
3E40Dash Wire and Cowl Side J/B RH (Right Kick Panel)3G40Dash Wire and Cowl Side J/B RH (Right Kick Panel)
:Connector Joining Wire Harness and Wire Harness
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
EA276Engine Room Main Wire and Engine Room No.2 Wire (Engine Compartment Right)
II380Dash Wire and Column Wire (Near the Ignition SW)
System Outline
Service Hints

Page 2205 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
198Front Wiper and Washer
:Ground Points
CodeSee PageGround Points Location
EB76Front Right Side of Fender Apron
II78Set Bolt of Cowl Side J/B RH

Page 2206 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
199 Memo

Page 2207 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)

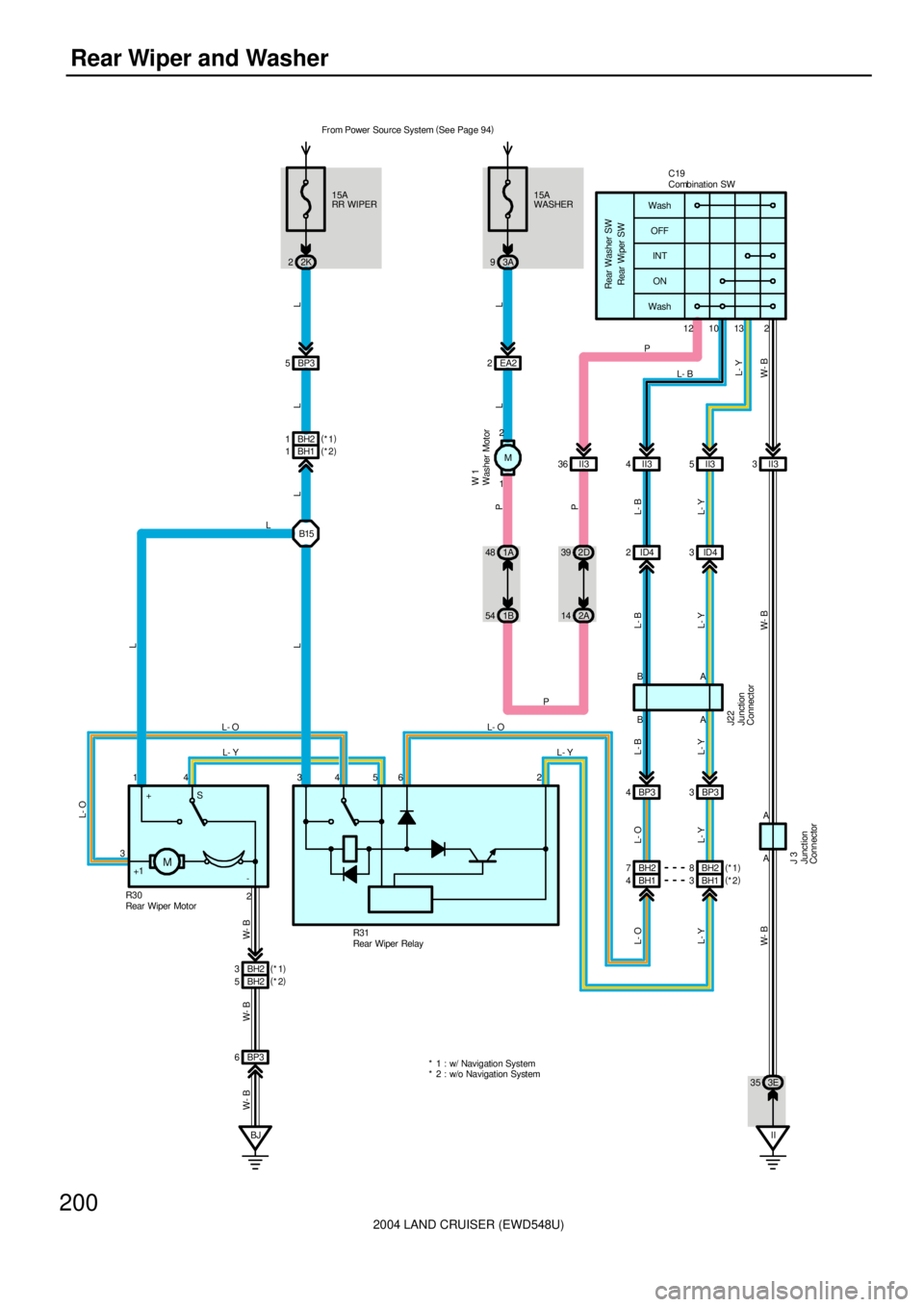

200Rear Wiper and Washer
M
Wash
OFF
INT
ON
Wash
+
+1
- S
II 3E 35A A
J 3
15A
RR WIPER
2K 2
BP3 5
L
BH1 1
L
B15
L L
314
2
BJ BP3 6
W- B W- B
BH2 5
W- B
15A
WASHER Fr om Powe

Page 2208 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual 2004 LAND CRUISER (EWD548U)
201
When the ignition SW is turned on, the current flows from the WASHER fuse to washer motor TERMINAL 2, and the current
flows from the RR WIPER fuse to rear wiper relay T

2004 LAND CRUISER (EWD548U)
201
When the ignition SW is turned on, the current flows from the WASHER fuse to washer motor TERMINAL 2, and the current
flows from the RR WIPER fuse to rear wiper relay TERMINAL 3, and the rear wiper motor TERMINAL 1 respectively.
1. Rear Wiper Normal Operation
When the ignition SW is turned on, and the rear wiper and washer SW is turned to ON position, the current flows from the
rear wiper relay TERMINAL 3 to TERMINAL 6 to the rear wiper and washer SW TERMINAL 10 to TERMINAL 2 to
GROUND, and turns on the rear wiper relay. As a result, the current flows from the rear wiper relay TERMINAL 3 to
TERMINAL 4 to the rear wiper motor TERMINAL 3 to TERMINAL 2 to GROUND, and operates the rear wiper.
2. Rear Wiper Intermittent Operation
When the ignition SW is turned on, and the rear wiper and washer SW is turned to INT position, the current flows from the
rear wiper relay TERMINAL 3 to TERMINAL 2 to the rear wiper and washer SW TERMINAL 13 to TERMINAL 2 to
GROUND, and the intermittent circuit in the rear wiper relay is controlled to operate the wiper intermittently.
3. Washer Operation
When the ignition SW is turned on, and the rear wiper and washer SW is turned from OFF to WASH position, the current
flows from the WASHER fuse to the washer motor TERMINAL 2 to TERMINAL 1 to the rear wiper and washer SW
TERMINAL 12 to TERMINAL 2 to GROUND. This activates the washer motor, and the window washer emits a water spray.
When the rear wiper and washer SW is turned to ON position, the window washer emits a water spray during rear wiper
normal operation.
W1 Washer Motor
2-Ground : Approx. 12 volts with ignition SW at ON or ST position
1-Ground : Continuity with rear wiper and washer SW at WASH position
R30 Rear Wiper Motor
1-Ground : Approx. 12 volts with ignition SW at ON or ST position
2-Ground : Always continuity
: Parts Location
CodeSee PageCodeSee PageCodeSee Page
C1970J2272R3173
J371R3073W169
:Junction Block and Wire Harness Connector
CodeSee PageJunction Block and Wire Harness (Connector Location)
1A24Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)
1B24Engine Room No.2 Wire and Engine Room J/B (Engine Compartment Left)
2A28Engine Room No.2 Wire and Cowl Side J/B LH (Left Kick Panel)
2D28Dash Wire and Cowl Side J/B LH (Left Kick Panel)
2K28Floor No.1 Wire and Cowl Side J/B LH (Left Kick Panel)
3A40Engine Room No.2 Wire and Cowl Side J/B RH (Right Kick Panel)
3E40Dash Wire and Cowl Side J/B RH (Right Kick Panel)
:Connector Joining Wire Harness and Wire Harness
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
EA276Engine Room Main Wire and Engine Room No.2 Wire (Engine Compartment Right)
ID478Dash Wire and Floor No.1 Wire (Left Kick Panel)
II380Dash Wire and Column Wire (Near the Ignition SW)
BH186Pillar No 1 Wire and Back Door Upper Wire (Left Side of Back Door)BH286Pillar No.1 Wire and Back Door Upper Wire (Left Side of Back Door)
BP388Pillar No.1 Wire and Floor No.1 Wire (Left Rear Side Quarter Panel)
System Outline
Service Hints
