Page 713 of 3115
HINT: For symbols, capital letters indicate right side of vehicle,
small letters indicate left side of vehicle (Seen from rear).
mm (in.)
(Three-Dimensional Distance)
Hole dia.
8 (0.31) nut
12.5y8.5 (0.492y0.335)
Name
Back door hinge installation nut-lower
Rear floor finish plate installation hole Symbol
C, c
D, d Hole dia.
10 (0.39)
8 (0.31) nut Name
Back door opening frame standard hole
Back door hinge installation nut-upper Symbol
A, a
B, b

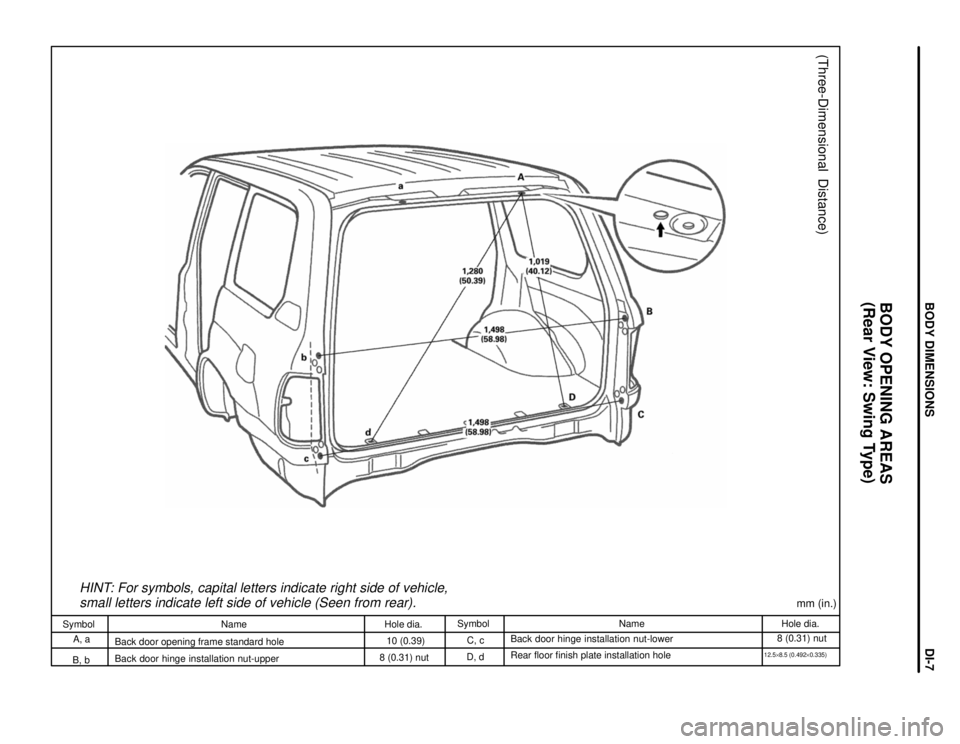

BODY OPENING AREAS
(Rear View: Swing Type)
BODY DIMENSIONSDI-7
Page 714 of 3115

E-e
1,438
(56.61)1,599
(62.95)F-f
1,608
(63.31)G-gVehicle Dimensions Left e Right
1,614
(63.54)H-h
I-i
1,340
(52.76)1,472
(57.95)J-j K-k
1,610
(63.39)1,757
(69.17)E-f
or
e-F
1,827
(71.93)E-h
or
e-HE-j
or
e-J
1,585
(62.40)1,980
(77.95)F-j
or
f-J
1,821
(71.69)F-k
or
f-KG-p
or
g-P
1,979
(77.91)H-i
or
h-I
1,890
(74.41)I-q
or
i-Q
1,459
(57.44)1,706
(67.17)J-k
or
j-K
HINT: For symbols, capital letters indicate right side of vehicle,
small letters indicate left side of vehicle (Seen from rear).
(Three-Dimensional Distance)
mm (in.)
Hole dia.
13 (0.51)
8 (0.31) nut Name
Roof side rail assembly mark
Center body pillar assembly mark
Center body pillar assembly mark
Rear door hinge installation hole
Rear door hinge installation nut
Rocker panel assembly mark
Roof side rail assembly mark Symbol
I, i
J, j
K, k
L, l
M, m
P, p
Q, q Hole dia.
8 (0.31) nut
8 (0.31) nut
8 (0.31) nut Name
Roof panel/Front body pillar adjoining portion
Hood hinge installation nut-rear
Front door hinge installation nut
Front door hinge installation nut
Front body pillar assembly mark
Front body pillar assembly mark
Rocker panel assembly mark
Rocker panel assembly mark Symbol
A, a
B, b
C, c
D, d
E, e
F, f
G, g
H, h

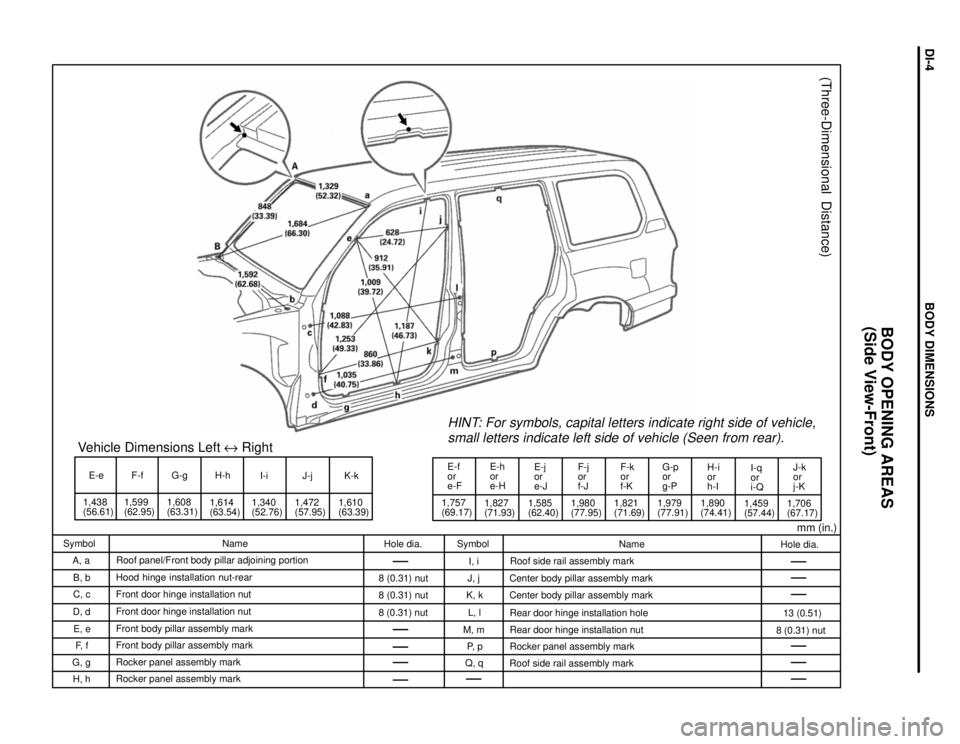

BODY OPENING AREAS
(Side View-Front)
BODY DIMENSIONSDI-4
Page 715 of 3115
(Three-Dimensional Distance)
mm (in.)
Hole dia.
18.5 (0.728)
30 (1.18)
18.5 (0.728)
18.5 (0.728)
16 (0.63)
70 (2.76) Name
Lower control arm installation hole-inner
Body mounting hole
Upper control arm installation hole-inner
Lateral control rod installation hole-front
Body mounting hole
Body mounting hole Symbol
G, g
H, h
I, i
J
K, k
L, l Hole dia.
24 (0.94)
16.5 (0.650)
24 (0.94)
60 (2.36)
18.5 (0.728)
30 (1.18) Name
Body mounting bole
Lateral control rod installation hole-rear
Shock absorber installation hole
Body mounting hole
Leading arm installation hole-inner
Body mounting hole Symbol
A, a
B
C, c
D, d
E, e
F, f

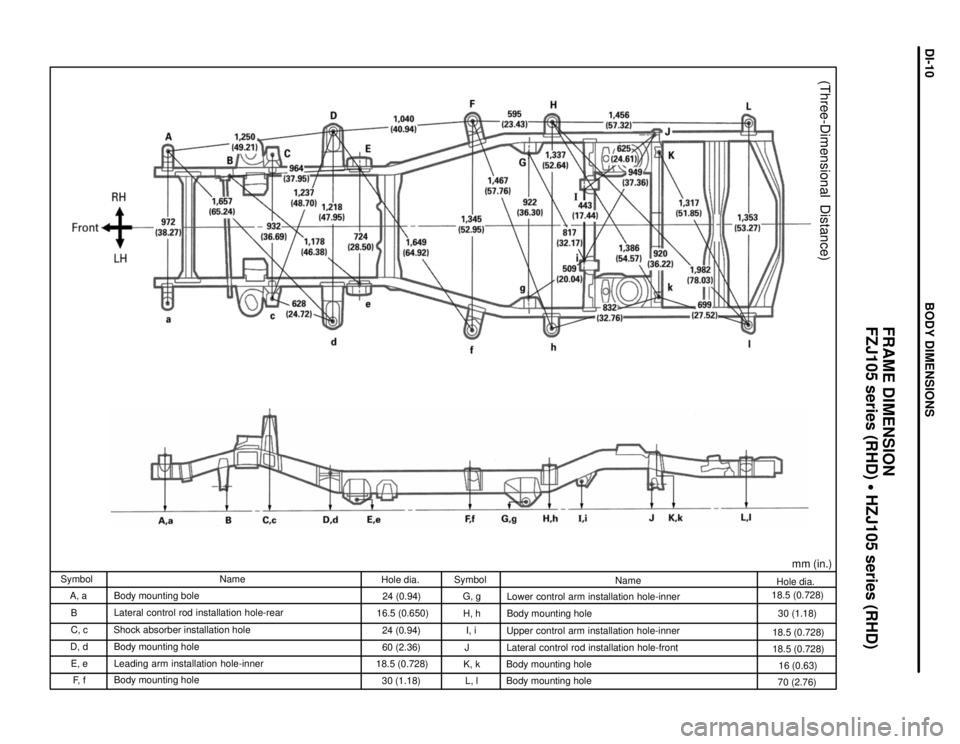

FRAME DIMENSION
FZJ105 series (RHD)
w HZJ105 series (RHD)
BODY DIMENSIONSDI-10
Page 716 of 3115
Wheel Base 2,850 (112.20)
Imaginary
Standard
Line
mm (in.)
(Two-Dimensional Distance)
Hole dia.
18.5 (0.728)
30 (1.18)
18.5 (0.728)
18.5 (0.728)
16 (0.63)
70 (2.76) Name
Lower control arm installation hole-inner
Body mounting hole
Upper control arm installation hole-inner
Lateral control rod installation hole-front
Body mounting hole
Body mounting hole Symbol
G, g
H, h
I, i
J
K, k
L, l Hole dia.
25 (0.94)
16.5 (0.650)
24 (0.94)
60 (2.36)
18.5 (0.728)
30 (1.18) Name
Body mounting hole
Lateral control rod installation hole-rear
Shock absorber installation hole
Body mounting hole
Leading arm installation hole-inner
Body mounting hole Symbol
A, a
B
C, c
D, d
E, e
F, f

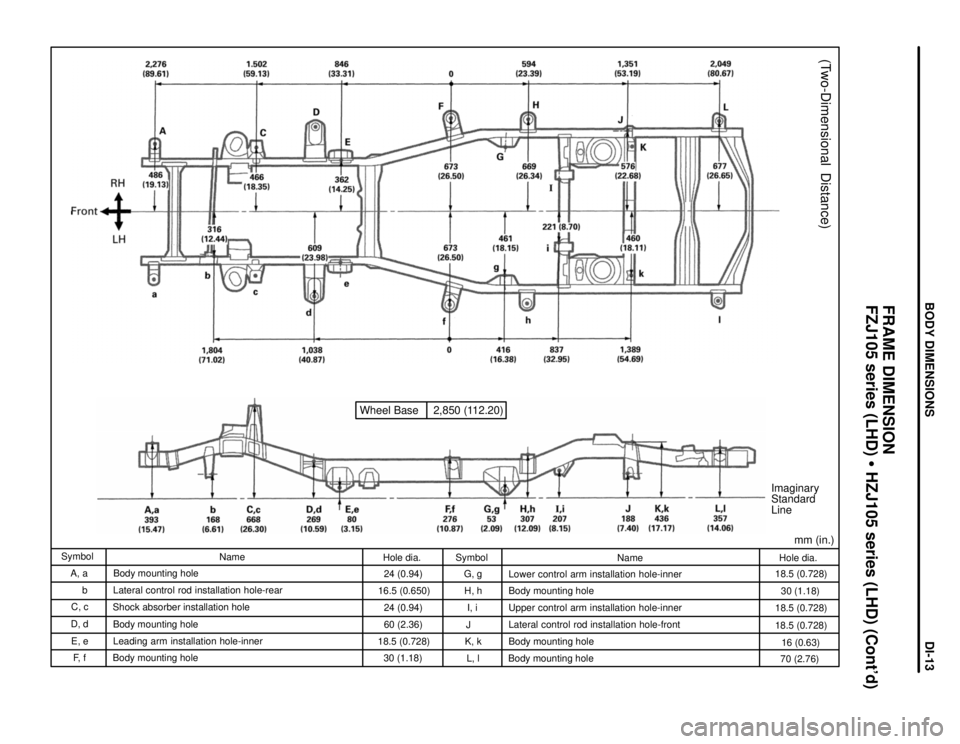

FRAME DIMENSION
FZJ105 series (RHD)
w HZJ105 series (RHD) (Cont'd)
BODY DIMENSIONSDI-11
Page 717 of 3115
mm (in.)
(Three-Dimensional Distance)
Hole dia.
18.5 (0.728)
30 (1.18)
18.5 (0.728)
18.5 (0.728)
16 (0.63)
70 (2.76) Name
Lower control arm installation hole-inner
Body mounting hole
Upper control arm installation hole-inner
Lateral control rod installation hole-front
Body mounting hole
Body mounting hole Symbol
G, g
H, h
I, i
J
K, k
L, l Hole dia.
24 (0.94)
16.5 (0.650)
24 (0.94)
60 (2.36)
18.5 (0.728)
30 (1.18) Name
Body mounting hole
Lateral control rod installation hole-rear
Shock absorber installation hole
Body mounting hole
Leading arm installation hole-inner
Body mounting hole Symbol
A, a
b
C, c
D, d
E, e
F, f

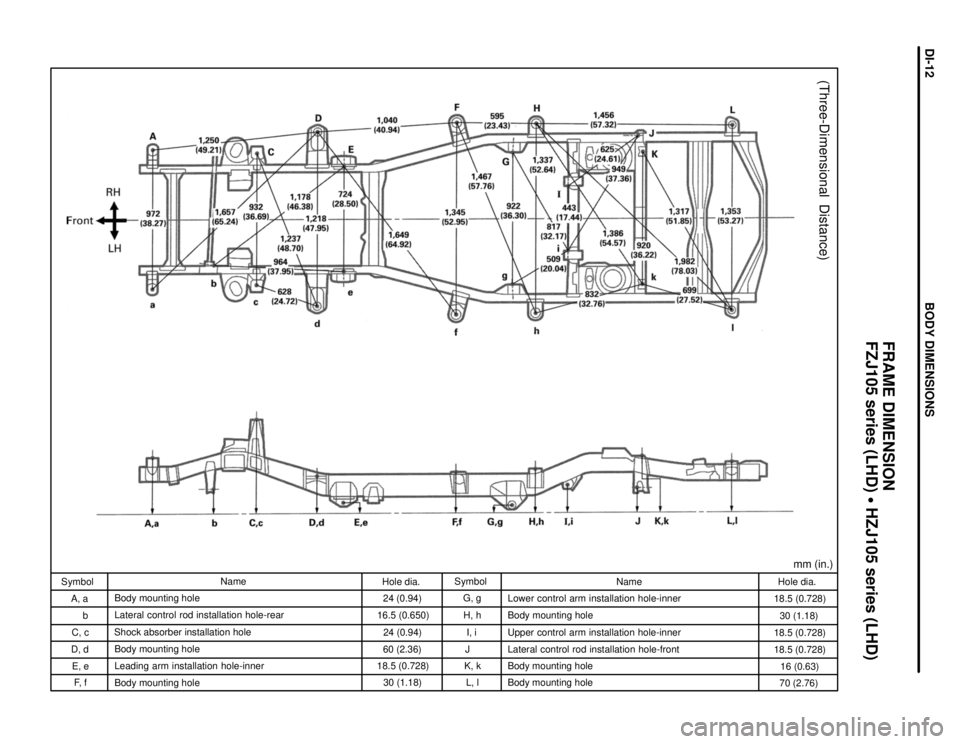

FRAME DIMENSION
FZJ105 series (LHD)
w HZJ105 series (LHD)
BODY DIMENSIONSDI-12
Page 718 of 3115
Wheel Base 2,850 (112.20)
mm (in.) Imaginary
Standard
Line
(Two-Dimensional Distance)
Hole dia.
18.5 (0.728)
30 (1.18)
18.5 (0.728)
18.5 (0.728)
16 (0.63)
70 (2.76) Name
Lower control arm installation hole-inner
Body mounting hole
Upper control arm installation hole-inner
Lateral control rod installation hole-front
Body mounting hole
Body mounting hole Symbol
G, g
H, h
I, i
J
K, k
L, l Hole dia.
24 (0.94)
16.5 (0.650)
24 (0.94)
60 (2.36)
18.5 (0.728)
30 (1.18) Name
Body mounting hole
Lateral control rod installation hole-rear
Shock absorber installation hole
Body mounting hole
Leading arm installation hole-inner
Body mounting hole Symbol
A, a
b
C, c
D, d
E, e
F, f
FRAME DIMENSION
FZJ105 series (LHD) HZJ105 series (LHD) (Cont'd)
BODY DIMENSIONSDI-13
Page 719 of 3115
mm (in.)
(Three-Dimensional Distance)
Hole dia.
7 (0.28)
12y7 (0.47y0.28)
Name
Frame side rail working hole
Wire harness installation hole Symbol
D, d
E, e Hole dia.
12 (0.47) nut
8 (0.31) nut
16y16 (0.63y0.63)
Name
Winch installation nut
Accumulator installation nut
Frame side rail standard hole Symbol
A, a
B, b
C, c

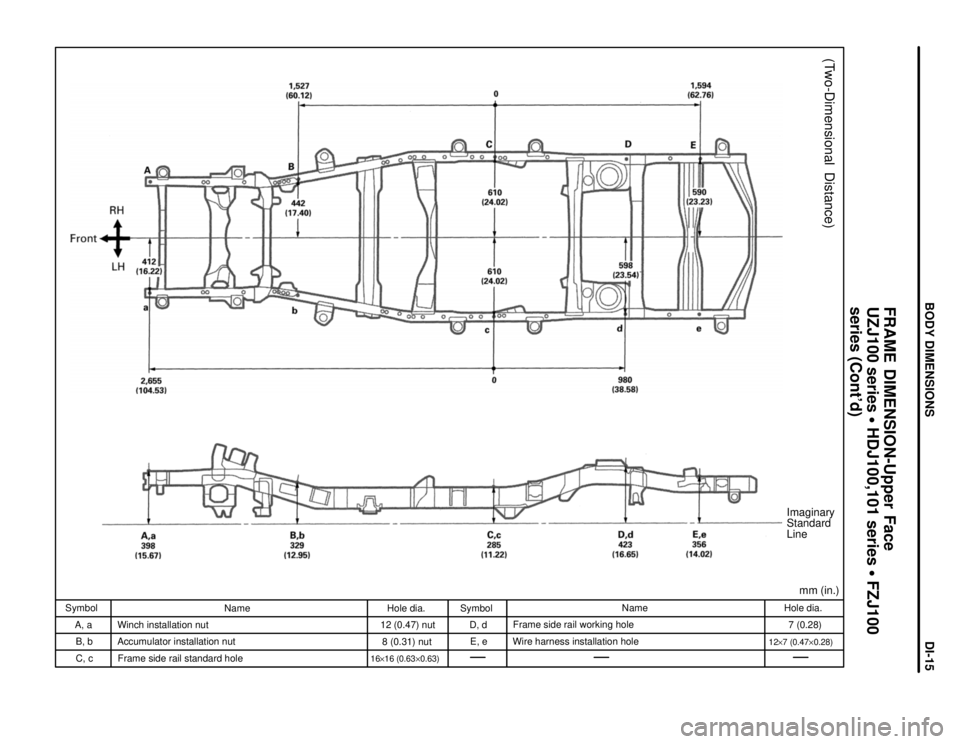

FRAME DIMENSION-Upper Face
UZJ100 series
w HDJ100, 101 series w FZJ100 series
BODY DIMENSIONSDI-14
Page 720 of 3115
mm (in.) Imaginary
Standard
Line
(Two-Dimensional Distance)
Hole dia.
7 (0.28)
12y7 (0.47y0.28)
Name
Frame side rail working hole
Wire harness installation hole Symbol
D, d
E, e Hole dia.
12 (0.47) nut
8 (0.31) nut
16y16 (0.63y0.63)
Name
Winch installation nut
Accumulator installation nut
Frame side rail standard hole Symbol
A, a
B, b
C, c
FRAME DIMENSION-Upper Face
UZJ100 series
w HDJ100,101 series w FZJ100
series (Cont'd)
BODY DIMENSIONSDI-15
