TOYOTA LAND CRUISER 1998 Factory Repair Manual FRONT FENDER APRON (ASSY) REMOVAL (With the radiator support, cowl top side panel removed.) BODY PANEL REPLACEMENTRE-12

Page 666 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual INSTALLATION 1. Temporarily install the new parts and measure each part in accordance with the body dimen- sion diagram.2. Temporarily install the front fender and hood, and check the fit. BODY PANEL

Page 667 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual -MEMO- BODY PANEL REPLACEMENTRE-14

Page 668 of 3115

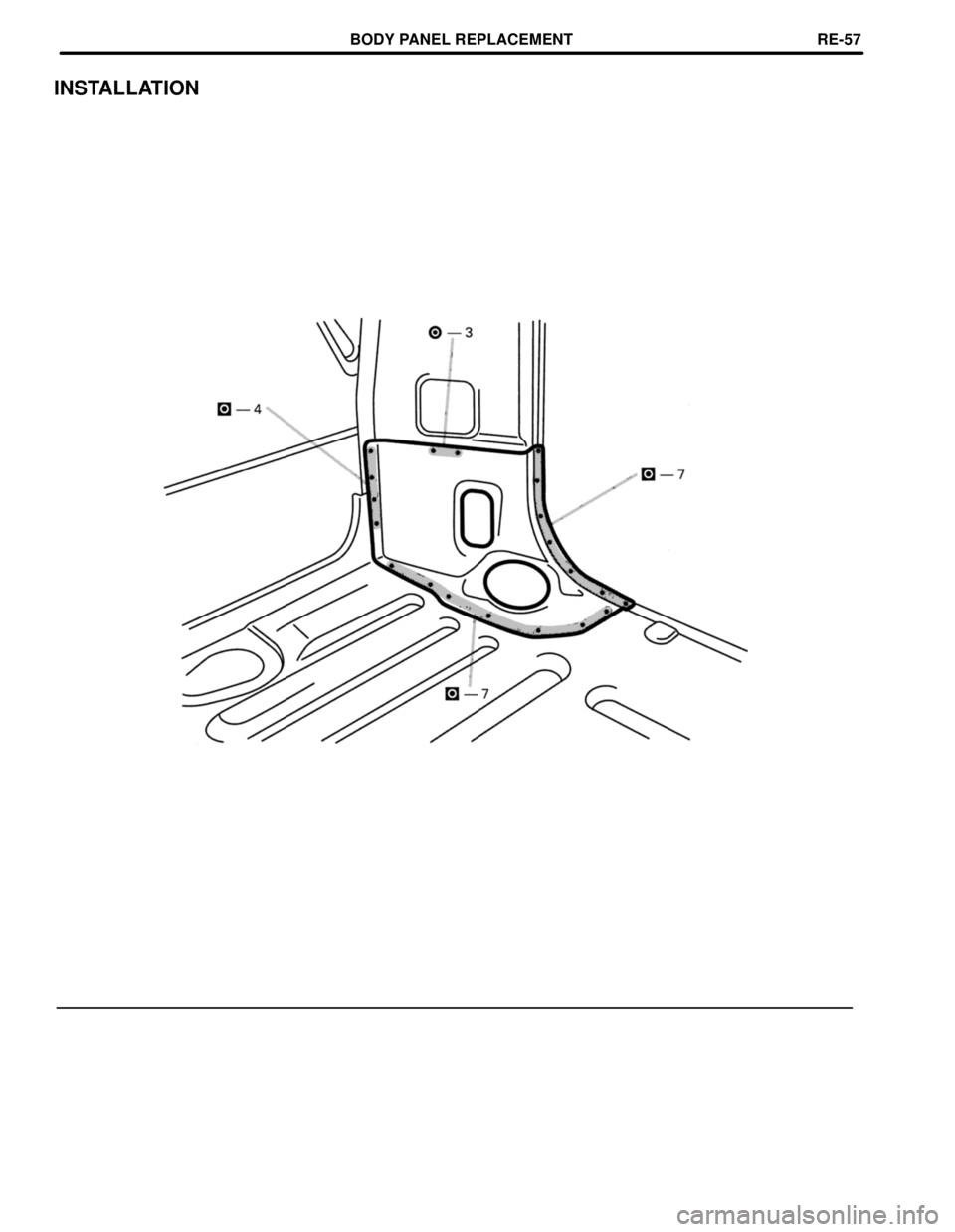

TOYOTA LAND CRUISER 1998 Factory Repair Manual LOWER BACK UPPER GUSSET (ASSY) REMOVAL BODY PANEL REPLACEMENTRE-56

Page 669 of 3115

TOYOTA LAND CRUISER 1998 Factory Repair Manual INSTALLATION BODY PANEL REPLACEMENTRE-57

Page 670 of 3115

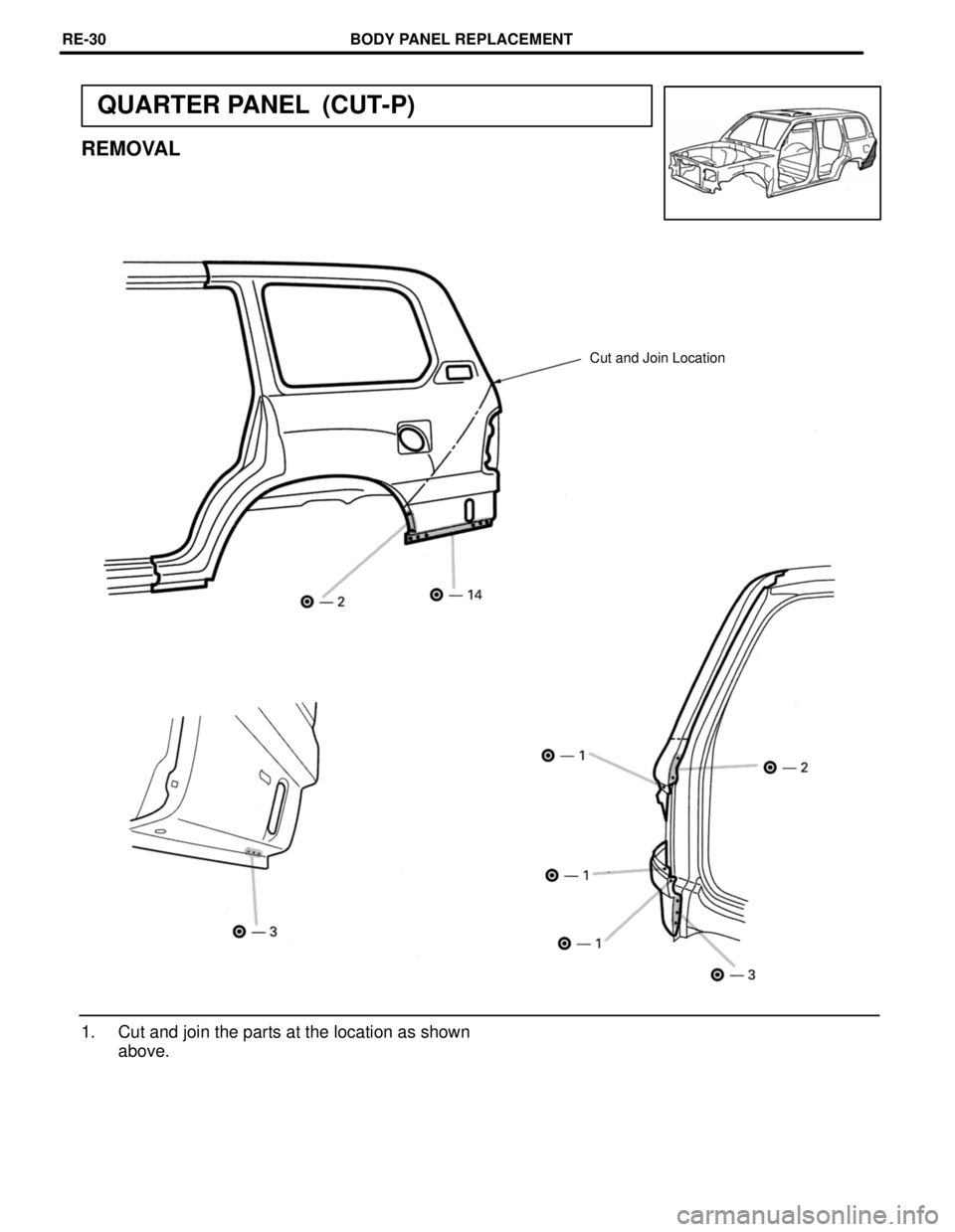

TOYOTA LAND CRUISER 1998 Factory Repair Manual QUARTER PANEL (CUT-P) REMOVAL Cut and Join Location 1. Cut and join the parts at the location as shown above. BODY PANEL REPLACEMENTRE-30

Page 671 of 3115

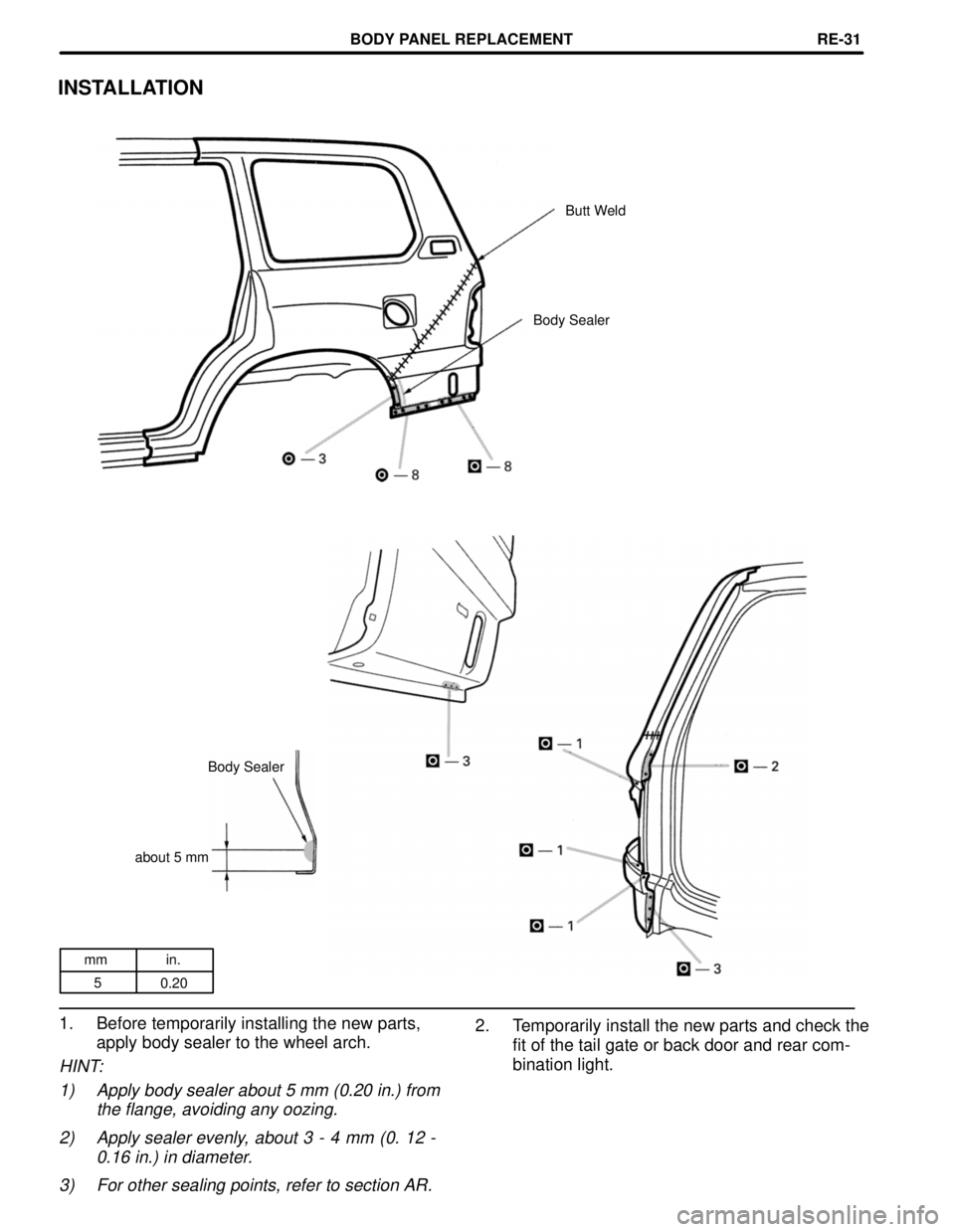

TOYOTA LAND CRUISER 1998 Factory Repair Manual mm in. 5 0.20 INSTALLATION Butt Weld Body Sealer Body Sealer about 5 mm 2. Temporarily install the new parts and check the fit of the tail gate or back door and rear com- bination light. 1. Before tem

Page 672 of 3115

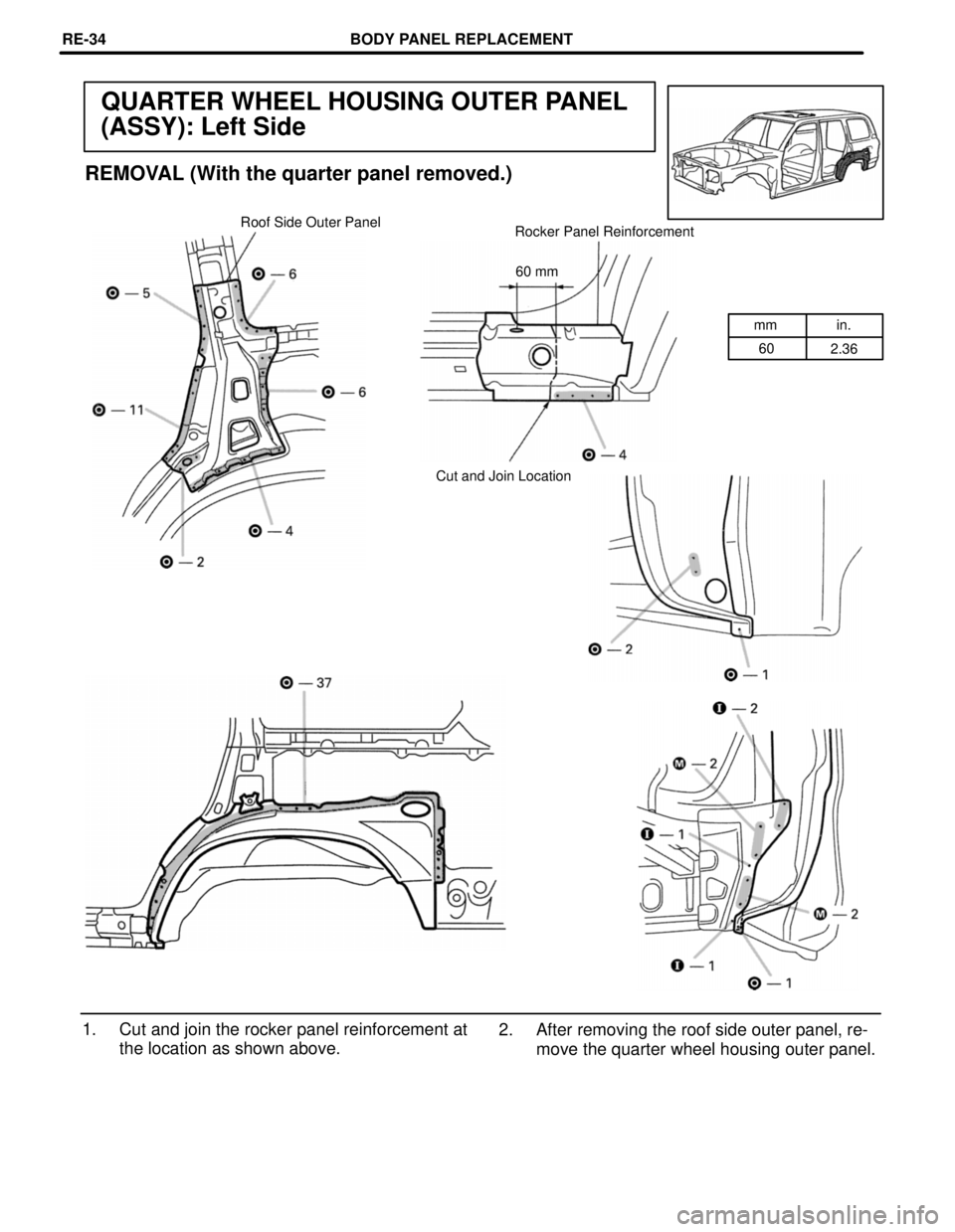

TOYOTA LAND CRUISER 1998 Factory Repair Manual mm in. 60 2.36 QUARTER WHEEL HOUSING OUTER PANEL (ASSY): Left Side REMOVAL (With the quarter panel removed.) Roof Side Outer Panel Rocker Panel Reinforcement 60 mm Cut and Join Location 1. Cut and joi
