Page 1033 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BR0AM±03 F06431 ± BRAKEBRAKE BOOSTER ASSEMBLY BR±19 2042 Author: Date: REMOVAL 1. REMOVE AIR CLEANER COVER WITH AIR CLEANER HOSE 2. REMOVE MASTER CYLINDER (See page BR±11) 3. REMOVE CHARCOL CANI

Page 1034 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BR0AN±03 F03521 SST Gasket R11347 SST BR±20 ± BRAKEBRAKE BOOSTER ASSEMBLY 2043 Author: Date: INSTALLATION 1. INSTALL BRAKE BOOSTER (a) Install the booster and a new gasket. (b) Install the clevis

Page 1035 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BR0AO±03 F06983F07224 F07225 Anti±squeal Shim Inner Anti±squeal Shim Anti±squeal Spring Pad Support Plate Inner PadOuter Pad 1MZ±FE engine: 5S±FE engine: Anti±squeal Shim Inner Anti±squeal Shi

Page 1036 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BR0AP±03 F07213 R02874 BR±22 ± BRAKEFRONT BRAKE PAD 2045 Author: Date: REPLACEMENT 1. REMOVE FRONT WHEEL Remove the wheel and temporarily fasten the disc with hub nuts. 2. INSPECT PAD LINING THIC

Page 1037 of 4592

TOYOTA CAMRY 1999 Service Repair Manual R00595 R02981 ± BRAKEFRONT BRAKE PAD BR±23 2046 Author: Date: (a) 1MZ±FE engine: Install a pad wear indicator plate on the inner pad. (b) Apply disc brake grease to both sides of the inner anti±

Page 1038 of 4592

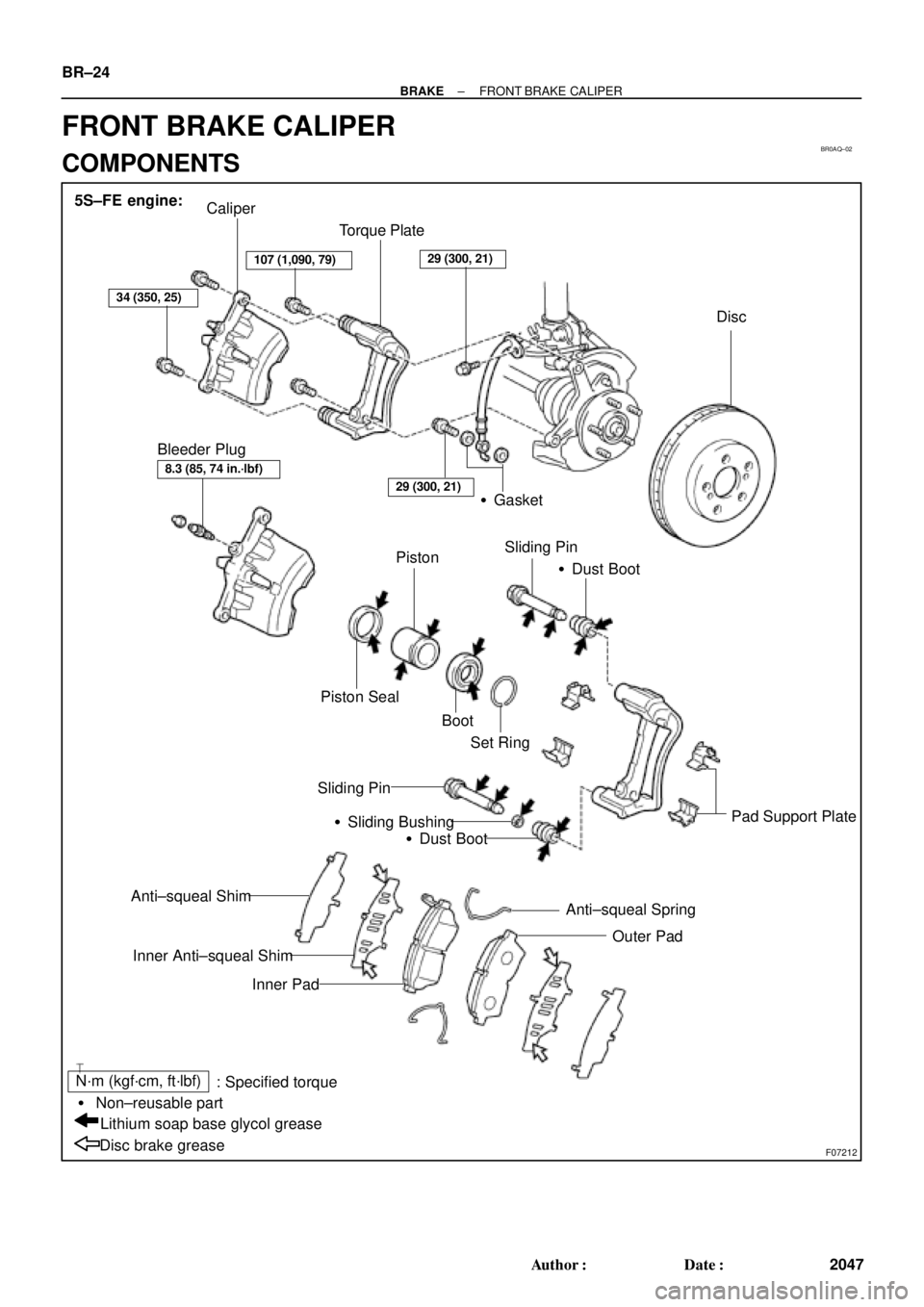

TOYOTA CAMRY 1999 Service Repair Manual BR0AQ±02 F07212 Caliper Torque Plate Disc Gasket Piston Piston SealSliding Pin Dust Boot Pad Support Plate Sliding Pin Sliding Bushing Dust Boot Anti±squeal Spring Outer Pad Anti±squeal Shim In

Page 1039 of 4592

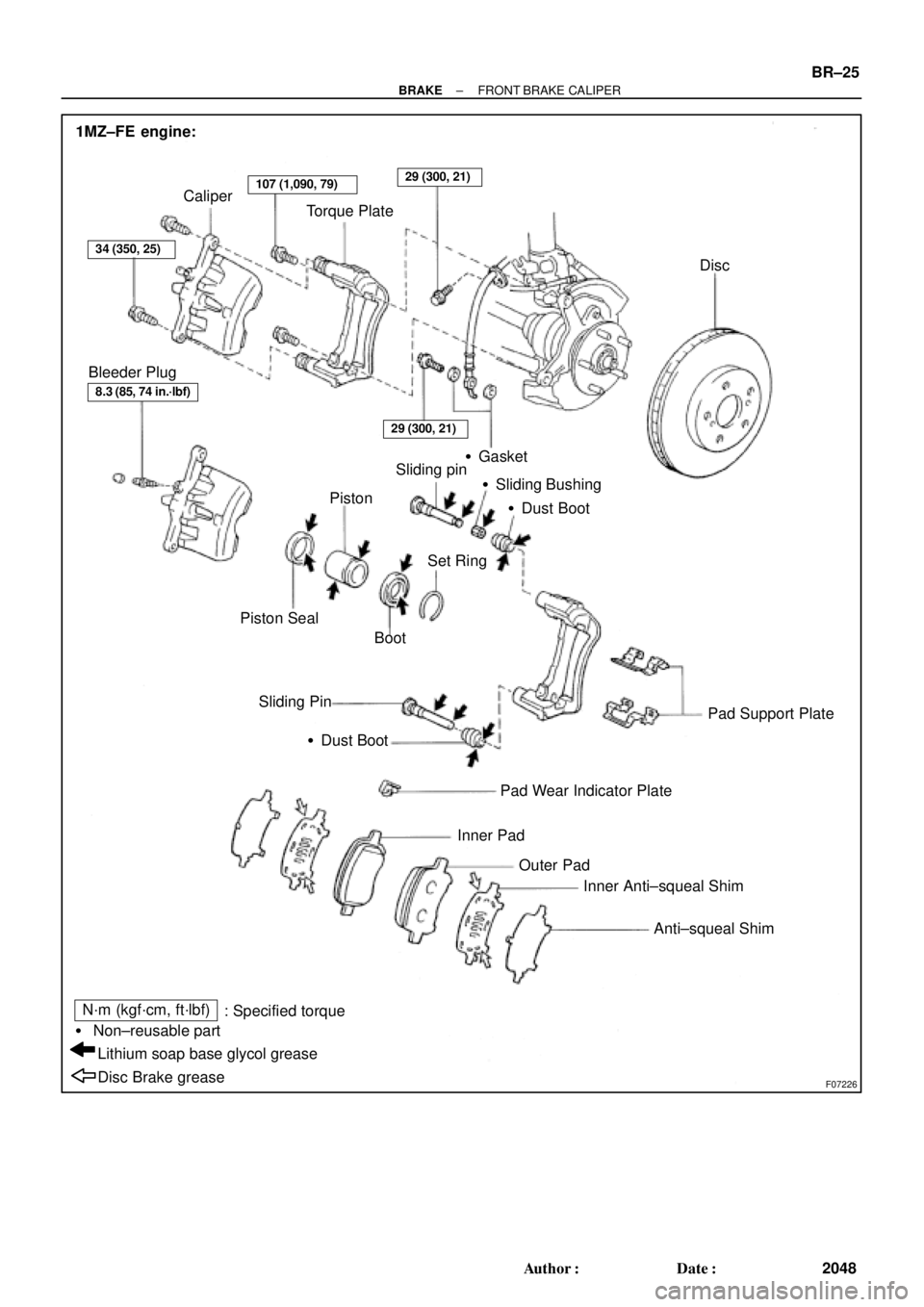

TOYOTA CAMRY 1999 Service Repair Manual F07226 1MZ±FE engine: Caliper Torque Plate Disc PistonSliding pin Sliding Bushing Dust Boot Pad Support Plate Sliding Pin Dust Boot Pad Wear Indicator Plate Inner Pad Piston Seal BootSet Ring Oute

Page 1040 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BR0AR±03 R02840 BR±26 ± BRAKEFRONT BRAKE CALIPER 2049 Author: Date: REMOVAL 1. REMOVE FRONT WHEEL Torque: 103 N´m (1.050 kgf´cm, 76 ft´lbf) 2. DISCONNECT FLEXIBLE HOSE (a) Remove the union bol
