Page 929 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MI±01 ± BODYROOF HEADLINING BO±85 2433 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±83).

Page 930 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MI±01 ± BODYROOF HEADLINING BO±85 2433 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±83).

Page 931 of 4592

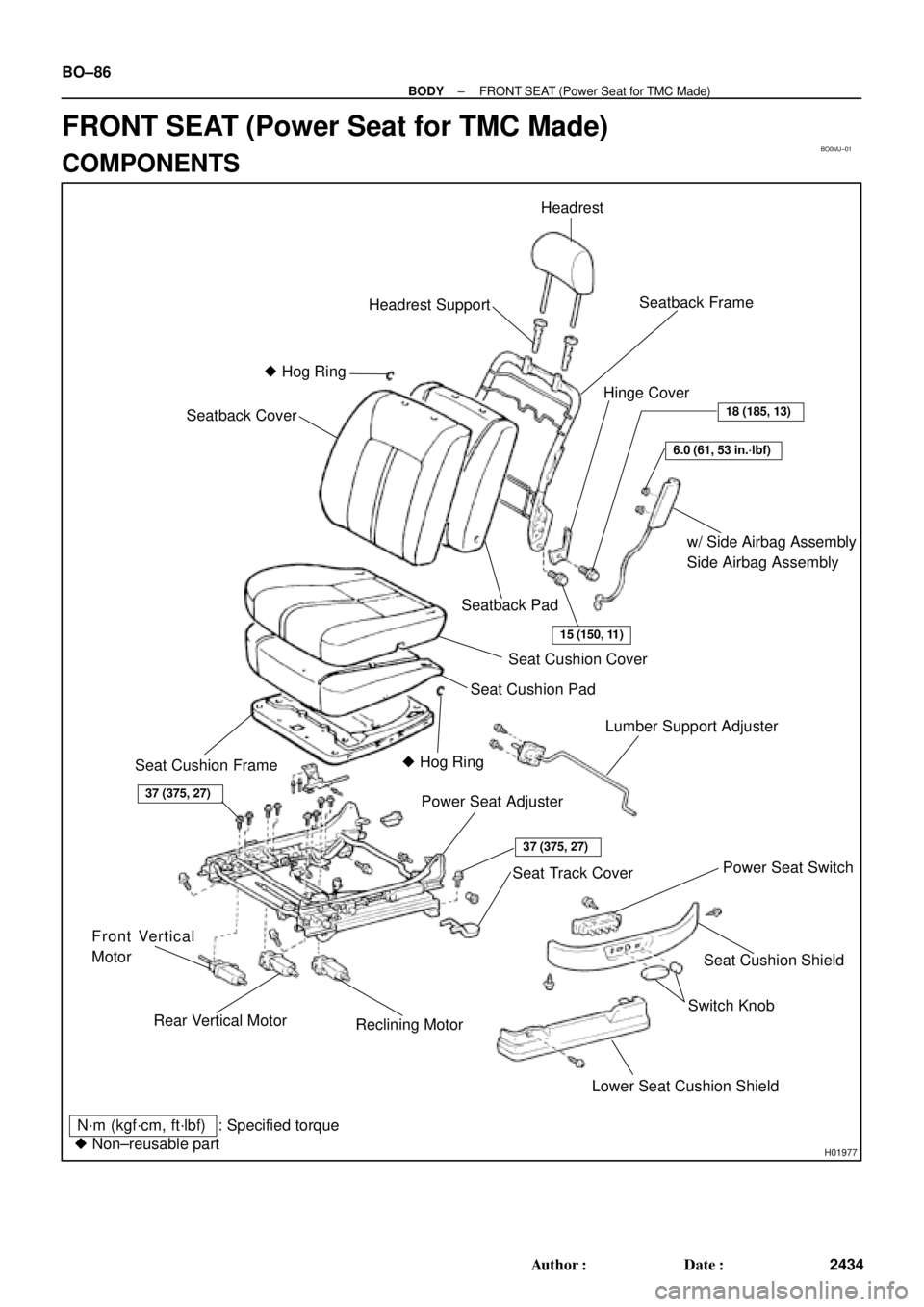

TOYOTA CAMRY 1999 Service Repair Manual BO0MJ±01 H01977 Headrest Seatback Frame w/ Side Airbag Assembly Side Airbag Assembly Headrest Support  Hog Ring Seatback Pad Seatback Cover Seat Cushion Cover Seat Cushion Pad Seat Cushion Frame Ho

Page 932 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MK±01 ± BODYFRONT SEAT (Power Seat for TMC Made) BO±87 2435 Author: Date: REMOVAL REMOVE FRONT SEAT (a) Using a screwdriver, remove the seat track covers. HINT: Tape the screwdriver tip before

Page 933 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0ML±01 H01870 BO±88 ± BODYFRONT SEAT (Power Seat for TMC Made) 2436 Author: Date: DISASSEMBLY 1. REMOVE THESE PARTS: (a) Headrest (b) Switch knobs (c) Seat cushion shield (d) Lower seat cushion

Page 934 of 4592

TOYOTA CAMRY 1999 Service Repair Manual H01978 H01979 H01980 ± BODYFRONT SEAT (Power Seat for TMC Made) BO±89 2437 Author: Date: 8. REMOVE REAR VERTICAL MOTOR Remove the 2 screws and front vertical motor. 9. REMOVE SLIDE MOTOR (a) Remov

Page 935 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MM±01 H01980 H01979 H01978 BO±90 ± BODYFRONT SEAT (Power Seat for TMC Made) 2438 Author: Date: REASSEMBLY 1. INSTALL RECLINING MOTOR Connect the No.2 drive cable, then install the reclining m

Page 936 of 4592

TOYOTA CAMRY 1999 Service Repair Manual H01870 ± BODYFRONT SEAT (Power Seat for TMC Made) BO±91 2439 Author: Date: (d) Hang the hook onto the seatback frame. CAUTION: Take care to hung the hook securely. Otherwise the seat cover slides,
