SF08S±01
SF±74
± SFI (1MZ±FE)ENGINE CONTROL MODULE (ECM)
1573 Author: Date:
INSPECTION
1. REMOVE ECM
2. INSPECT ECM (See page DI±218)
3. REINSTALL ECM
Page 3466 of 4592

S04528
5 mm
Hexagon
Wrench
Clip
SF08T±03
S05358
TOYOTA
Hand±Held Tester
B00623
Sound Scope
Sound Scope California A/T
Except California A/T
± SFI (1MZ±FE)FUEL CUT RPM
SF±75
1574 Author: Date:
FUEL CUT RPM

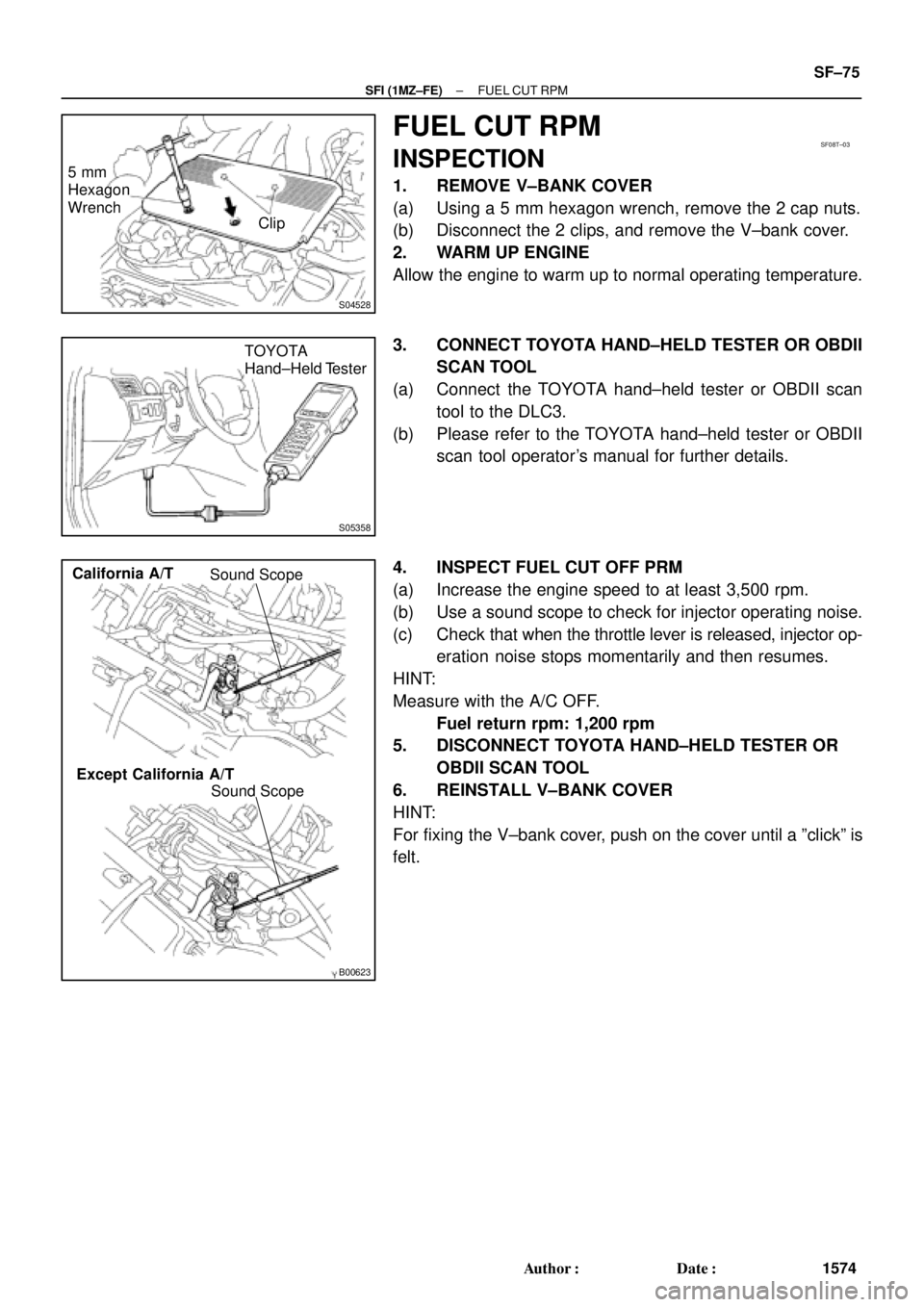

INSPECTION
1. REMOVE V±BANK COVER
(a) Using a 5 mm hexagon wrench, remove the 2 cap nuts.
(b) Disconnect the 2 clips, and remove the V±bank cover.
2. WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.
3. CONNECT TOYOTA HAND±HELD TESTER OR OBDII
SCAN TOOL
(a) Connect the TOYOTA hand±held tester or OBDII scan
tool to the DLC3.
(b) Please refer to the TOYOTA hand±held tester or OBDII
scan tool operator's manual for further details.
4. INSPECT FUEL CUT OFF PRM
(a) Increase the engine speed to at least 3,500 rpm.
(b) Use a sound scope to check for injector operating noise.
(c) Check that when the throttle lever is released, injector op-
eration noise stops momentarily and then resumes.
HINT:
Measure with the A/C OFF.
Fuel return rpm: 1,200 rpm
5. DISCONNECT TOYOTA HAND±HELD TESTER OR
OBDII SCAN TOOL
6. REINSTALL V±BANK COVER
HINT:
For fixing the V±bank cover, push on the cover until a ºclickº is
felt.
Page 3467 of 4592
ST03H±01
± STARTING (5S±FE)STARTING SYSTEM
ST±1
1708 Author: Date:
STARTING SYSTEM
ON±VEHICLE INSPECTION
NOTICE:
Before changing the starter, check the following items again:
Connector connection
Accessory installation, e.g.: theft deterrent system

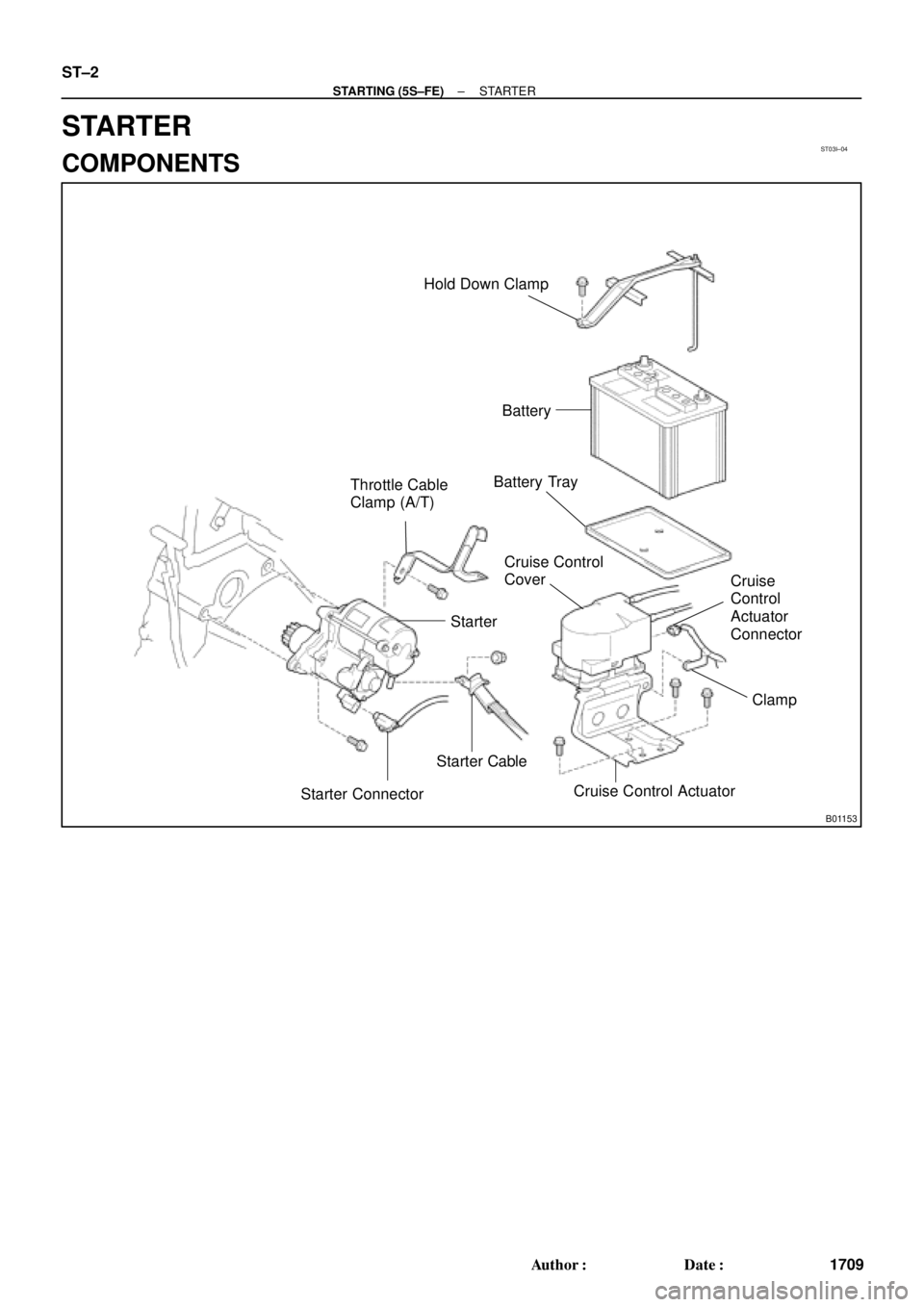

Page 3468 of 4592
ST03I±04
B01153
Throttle Cable
Clamp (A/T)Battery Tray
Cruise
Control
Actuator
Connector
Cruise Control Actuator Cruise Control
Cover
Clamp Hold Down Clamp
Starter Cable
Starter Connector
Starter
Battery
ST±2
± STARTING (5S±FE)STARTER
1709 Author: Date:
STARTER
COMPONENTS
Page 3469 of 4592
B01154
Snap Ring
Starter Housing
Starter Clutch
Compression Spring
Clutch Shaft
Starter Housing and
Clutch Assembly
Idler Gear
Bearing Stop Collar
Pinion Gear
Compression Spring
Spring Retainer
Steel Ball
Return
Spring
Front Bearing
Armature
O±Ring
Field Frame
(Field Coil)
End Cover Brush Holder Rear Bearing
Dust Protector
Non±reusable part
Magnetic Switch
Assembly
O±Ring
± STARTING (5S±FE)STARTER
ST±3
1710 Author: Date:

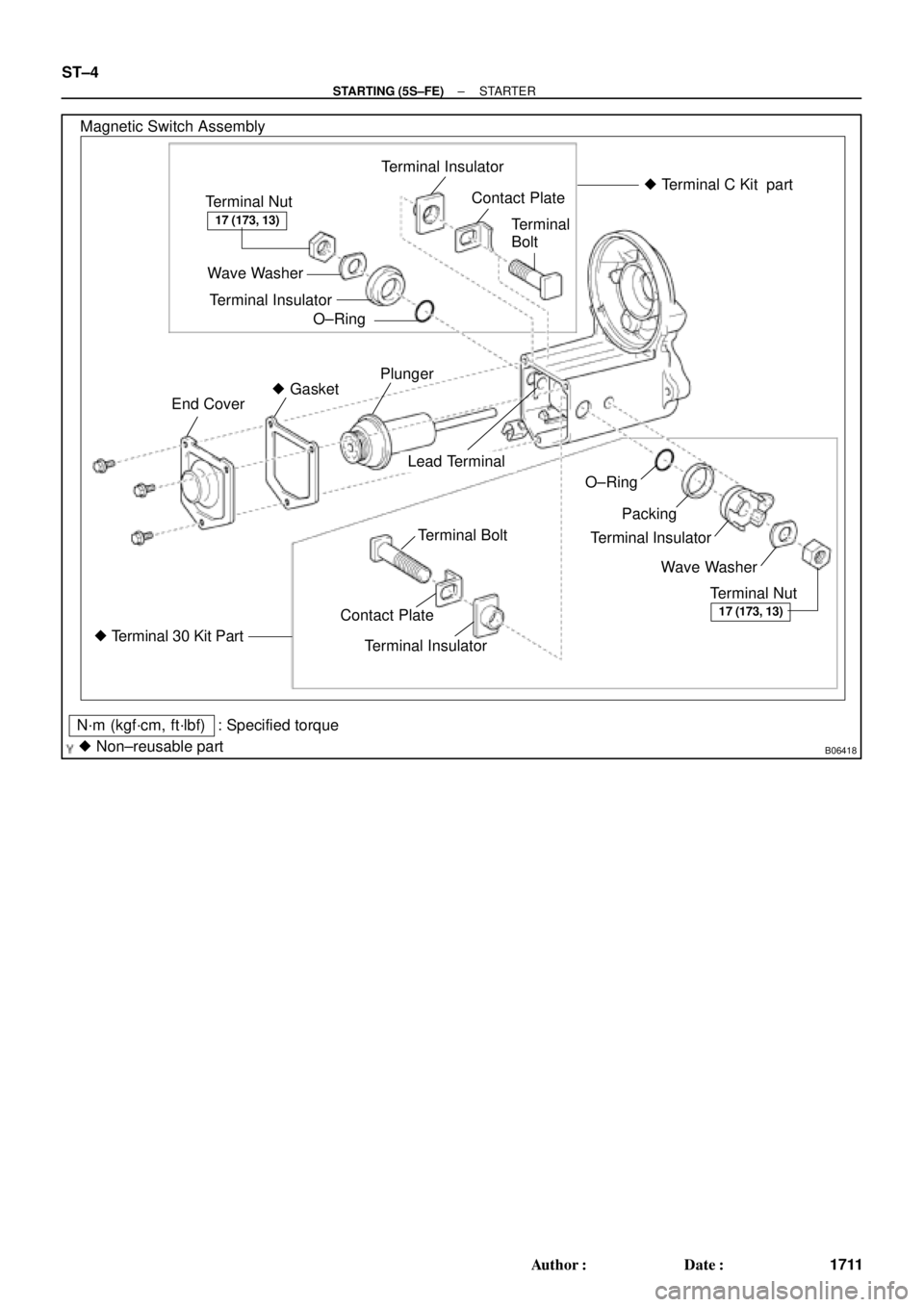

Page 3470 of 4592
B06418
Magnetic Switch Assembly
Terminal Nut
Wave Washer
Terminal Insulator
O±RingContact Plate
Terminal
Bolt
Terminal Insulator Terminal C Kit part
Plunger
Gasket
End Cover
O±Ring
Packing
Terminal Insulator
Wave Washer
Terminal Nut Terminal Bolt
Terminal 30 Kit PartContact PlateTerminal Insulator
N´m (kgf´cm, ft´lbf)
Non±reusable part: Specified torque
17 (173, 13)
17 (173, 13)
Lead Terminal
ST±4
± STARTING (5S±FE)STARTER
1711 Author: Date:
Page 3471 of 4592
ST03J±01
± STARTING (5S±FE)STARTER
ST±5
1712 Author: Date:
REMOVAL
1. REMOVE BATTERY AND TRAY
2. w/ CRUISE CONTROL SYSTEM:
REMOVE CRUISE CONTROL ACTUATOR
(a) Disconnect the actuator connector and clamp.
(b) Remove the 3 bolts, and disconnect the actuator with the bracket.
3. REMOVE STARTER
(a) Disconnect the starter connector.
(b) Remove the 2 bolts, throttle cable clamp (A/T) and starter.
(c) Remove the nut, and disconnect the starter cable.
Torque: 37 N´m (380 kgf´cm, 27 ft´lbf)
Page 3472 of 4592

ST03K±01
B01156
B01157
Protrusion
Identation
B01158
B01160
(1)
(4)
(3)
(2)
B01159
ST±6
± STARTING (5S±FE)STARTER
1713 Author: Date:

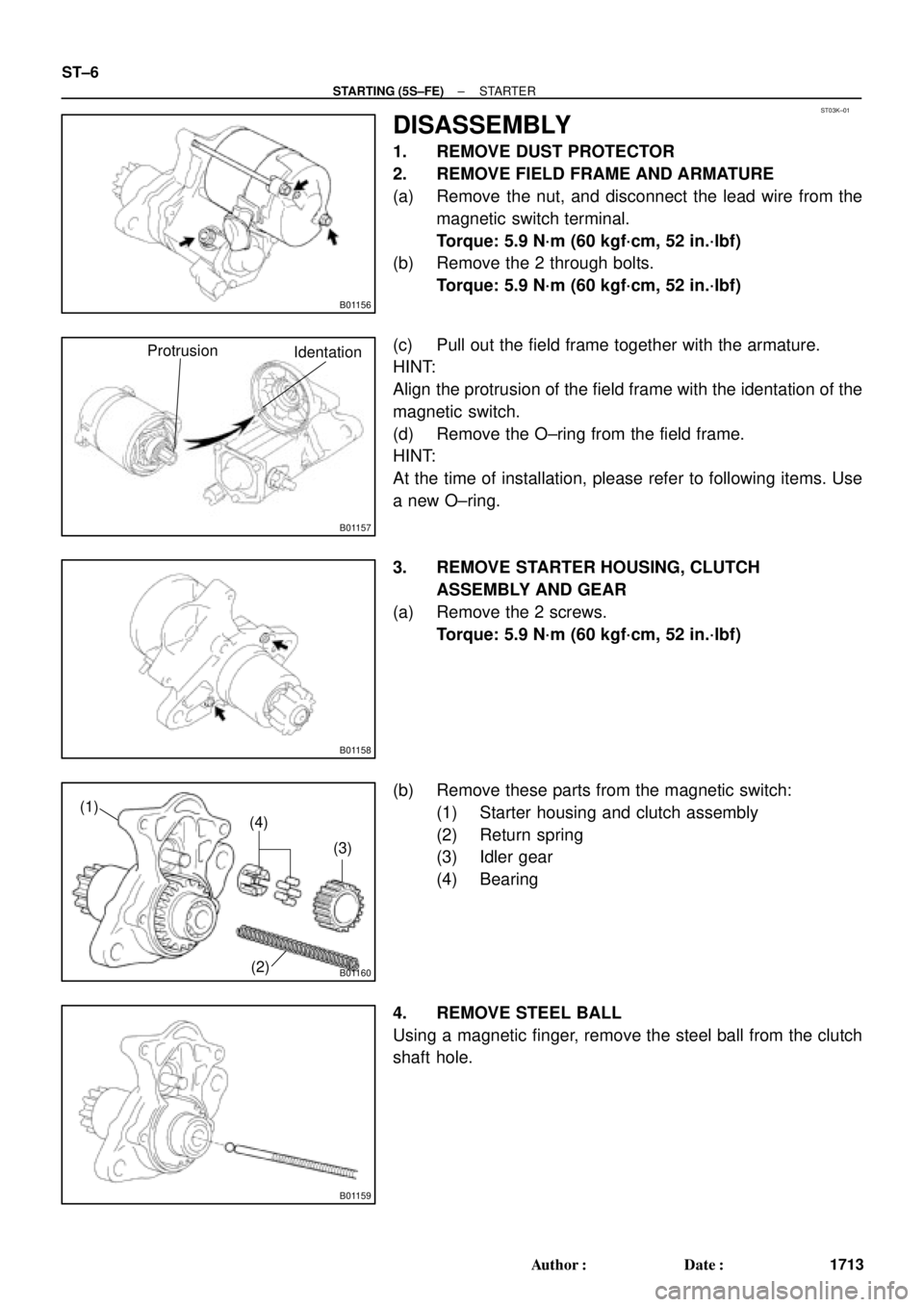

DISASSEMBLY
1. REMOVE DUST PROTECTOR
2. REMOVE FIELD FRAME AND ARMATURE
(a) Remove the nut, and disconnect the lead wire from the
magnetic switch terminal.
Torque: 5.9 N´m (60 kgf´cm, 52 in.´lbf)
(b) Remove the 2 through bolts.
Torque: 5.9 N´m (60 kgf´cm, 52 in.´lbf)
(c) Pull out the field frame together with the armature.
HINT:
Align the protrusion of the field frame with the identation of the
magnetic switch.
(d) Remove the O±ring from the field frame.
HINT:
At the time of installation, please refer to following items. Use
a new O±ring.
3. REMOVE STARTER HOUSING, CLUTCH
ASSEMBLY AND GEAR
(a) Remove the 2 screws.
Torque: 5.9 N´m (60 kgf´cm, 52 in.´lbf)
(b) Remove these parts from the magnetic switch:
(1) Starter housing and clutch assembly
(2) Return spring
(3) Idler gear
(4) Bearing
4. REMOVE STEEL BALL
Using a magnetic finger, remove the steel ball from the clutch
shaft hole.
