Page 825 of 4592

TOYOTA CAMRY 1999 Service Repair Manual I03357 19 CD Player SOUND JUMPS Jumping caused by vibration. Installed properly. CD faulty. Formation of condensation due to temp. changes. No No No NoYe s Ye s Ye s Ye s Does sound jump only during s

Page 826 of 4592

TOYOTA CAMRY 1999 Service Repair Manual I03358 Does radio operate normally? Is hiss noise produced by non±functioning speaker? Does continuity exist in speaker wire harness? Temporarily install another speaker. Function OK. Power amplifier

Page 827 of 4592

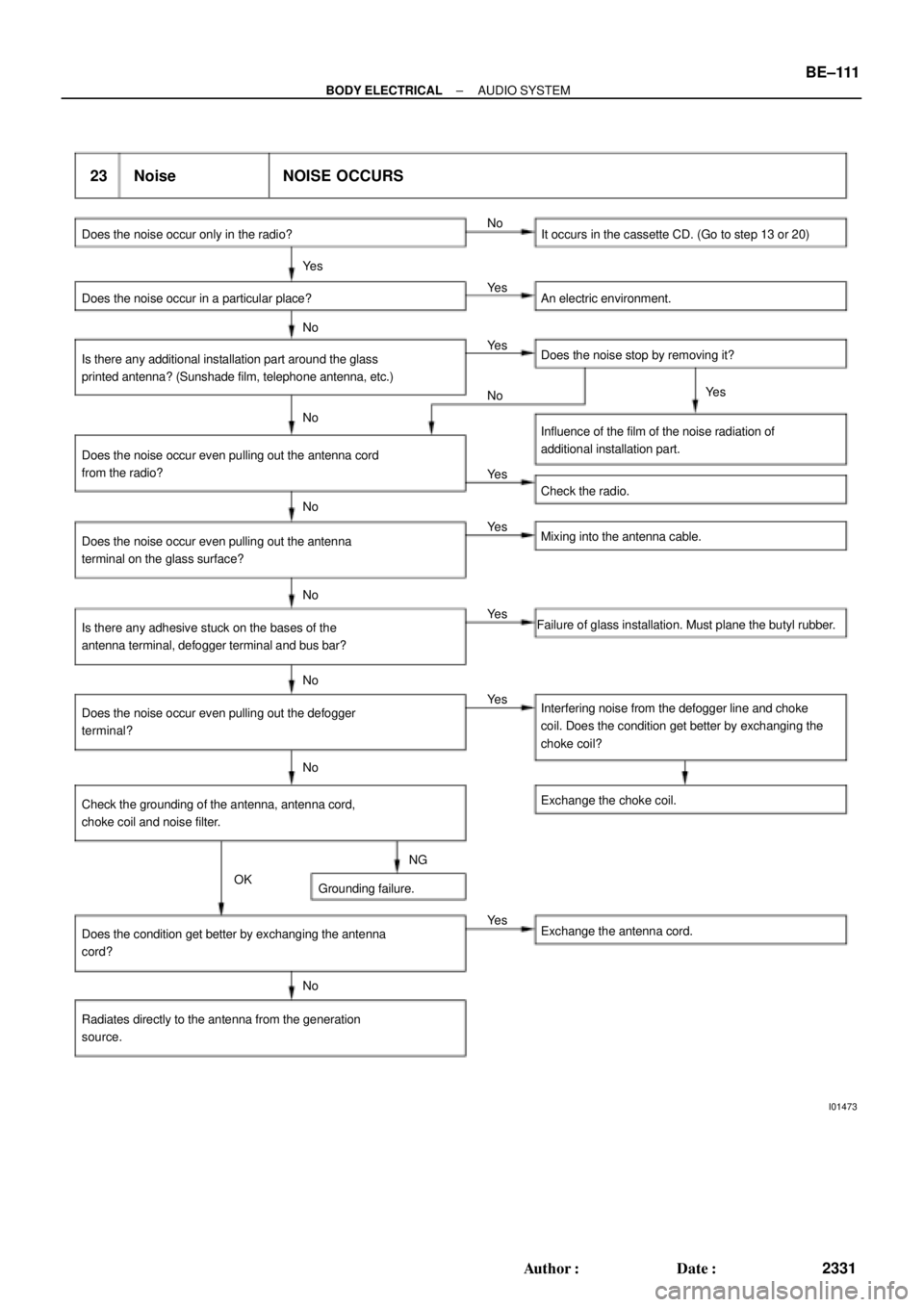

TOYOTA CAMRY 1999 Service Repair Manual I01473 23 Noise NOISE OCCURS Does the noise occur only in the radio? It occurs in the cassette CD. (Go to step 13 or 20) Does the noise occur in a particular place? An electric environment.No Ye s Ye

Page 828 of 4592

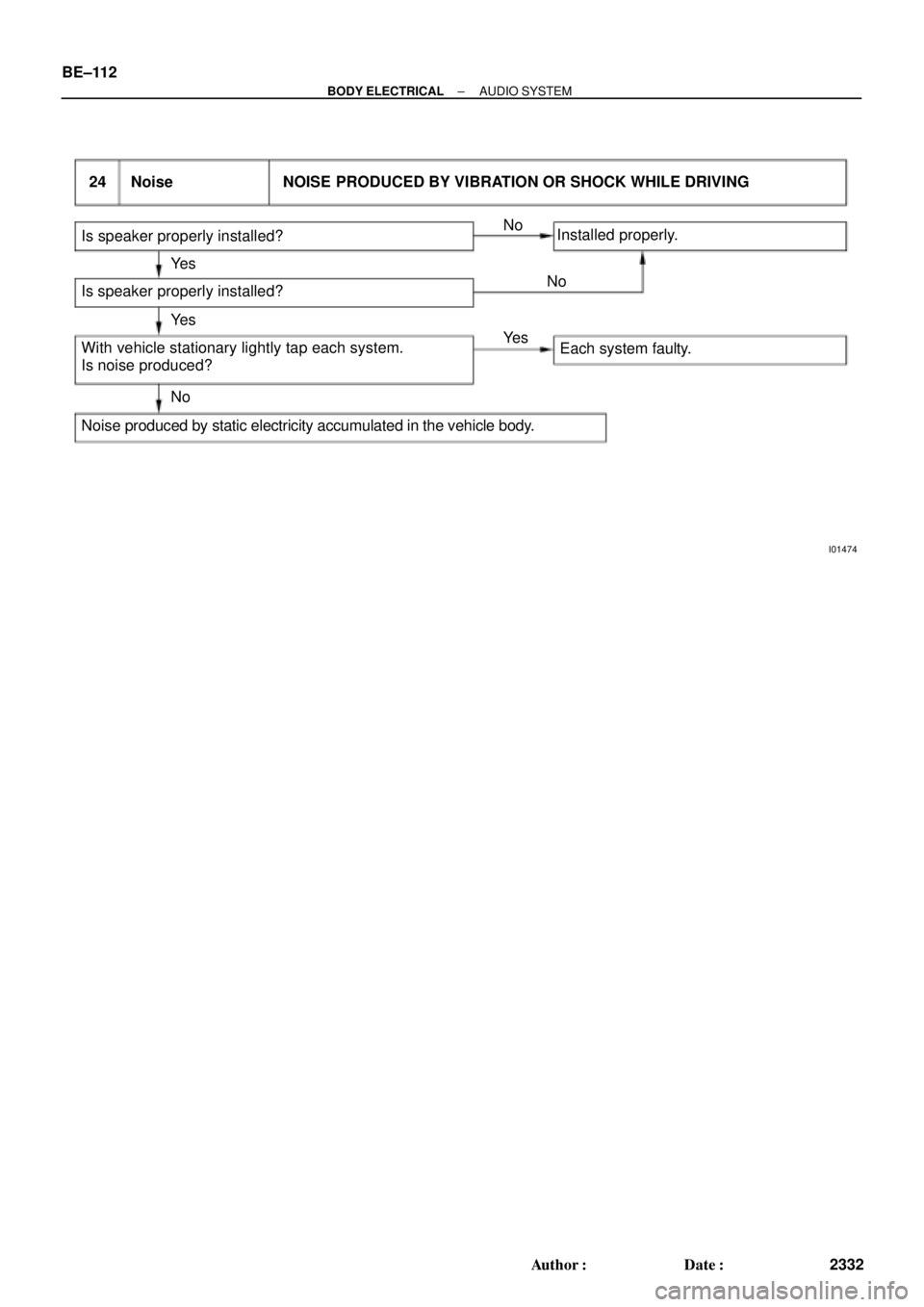

TOYOTA CAMRY 1999 Service Repair Manual I01474 24 Noise NOISE PRODUCED BY VIBRATION OR SHOCK WHILE DRIVING Is speaker properly installed? Is speaker properly installed? With vehicle stationary lightly tap each system. Is noise produced? Noi

Page 829 of 4592

TOYOTA CAMRY 1999 Service Repair Manual I01475 25 Noise NOISE PRODUCED WHEN ENGINE STARTS Whistling noise which becomes high±pitched when accelerator strongly depressed, disappears shortly after engine stops.Generator noise. Whining noise

Page 830 of 4592

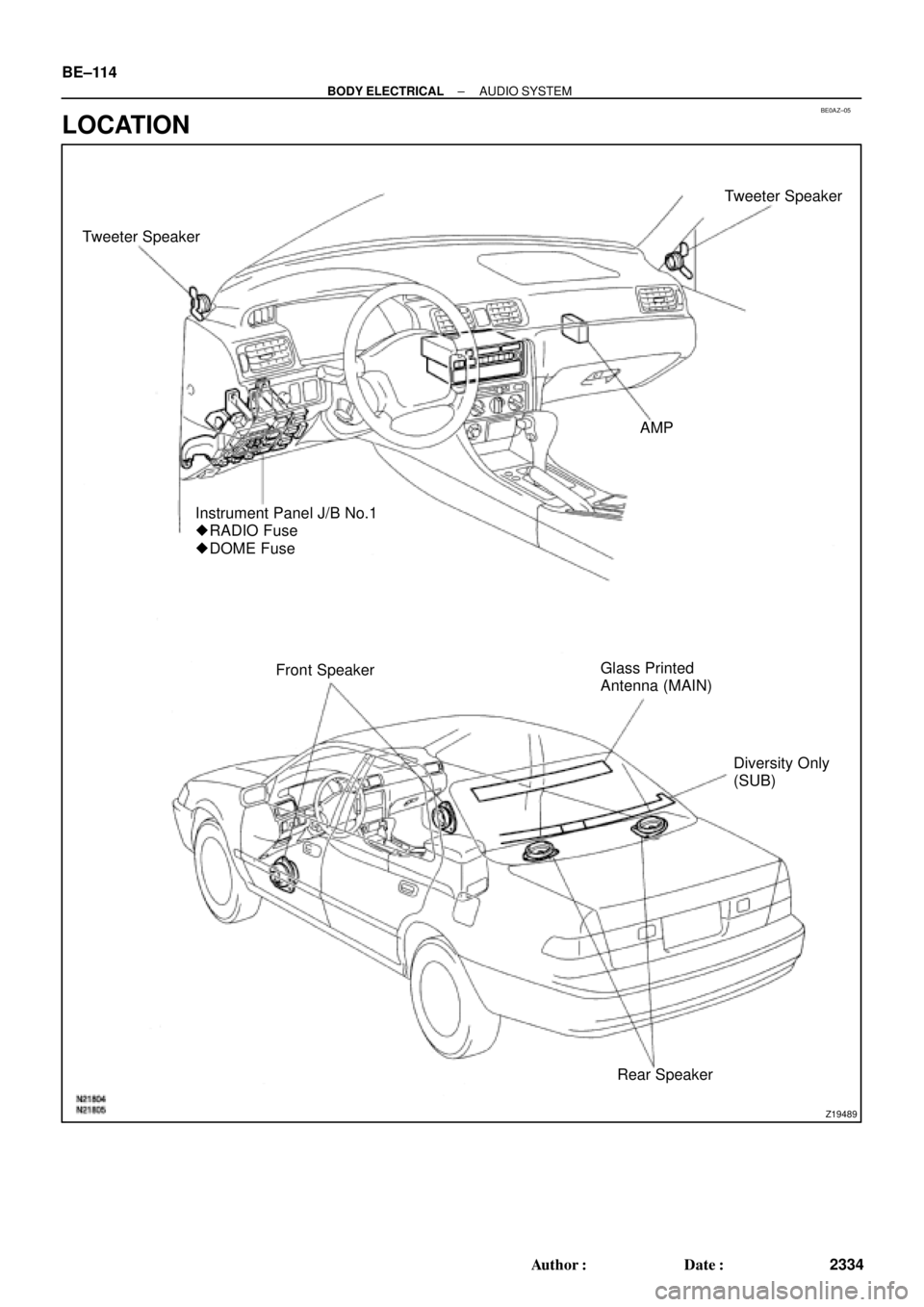

TOYOTA CAMRY 1999 Service Repair Manual BE0AZ±05 Z19489 Tweeter SpeakerTweeter Speaker AMP Instrument Panel J/B No.1  RADIO Fuse  DOME Fuse Front SpeakerGlass Printed Antenna (MAIN) Diversity Only (SUB) Rear Speaker BE±114 ± BODY ELECT

Page 831 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE0B0±06 BE4029 Tester Probe Aluminum Foil I00430 I00459 Matching module BE0150 Repair Point Masking TapeBroken Wire ± BODY ELECTRICALAUDIO SYSTEM BE±115 2335 Author: Date: INSPECTION 1. GLASS PR

Page 832 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE0151 BE±116 ± BODY ELECTRICALAUDIO SYSTEM 2336 Author: Date: (d) Using a fine tip brush, apply a small amount of the agent to the wire. (e) After a few minutes, remove the masking tape.
