Page 953 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MQ±01 H01870 BO±108 ± BODYFRONT SEAT (Manual Seat for TMMK Made) 2456 Author: Date: DISASSEMBLY 1. REMOVE THESE PARTS: (a) Release handle (b) Front seat cushion shield (c) Vertical Seat Adjust

Page 954 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MR±01 ± BODYFRONT SEAT (Manual Seat for TMMK Made) BO±109 2457 Author: Date: INSPECTION INSPECT RECLINING LOCK POSITION AND SLIDING LOCK POSITION SLIPPING OFF (a) When reclining the seat, insp

Page 955 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MS±01 BO±110 ± BODYFRONT SEAT (Manual Seat for TMMK Made) 2458 Author: Date: REASSEMBLY 1. INSTALL OUTER ADJUSTER SUB±ASSEMBLY Install the outer adjuster sub±assembly to the inner adjuster s

Page 956 of 4592

TOYOTA CAMRY 1999 Service Repair Manual H01870 H01871 ± BODYFRONT SEAT (Manual Seat for TMMK Made) BO±111 2459 Author: Date: (d) w/ Side Airbag Assembly: Hang the hook on to the seatback frame. CAUTION: Take care to hung the hook secure

Page 957 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0MT±01 BO±112 ± BODYFRONT SEAT (Manual Seat for TMMK Made) 2460 Author: Date: INSTALLATION INSTALL FRONT SEAT (a) Slide the front seat to the most front position. NOTICE: Make sure that seat ad

Page 958 of 4592

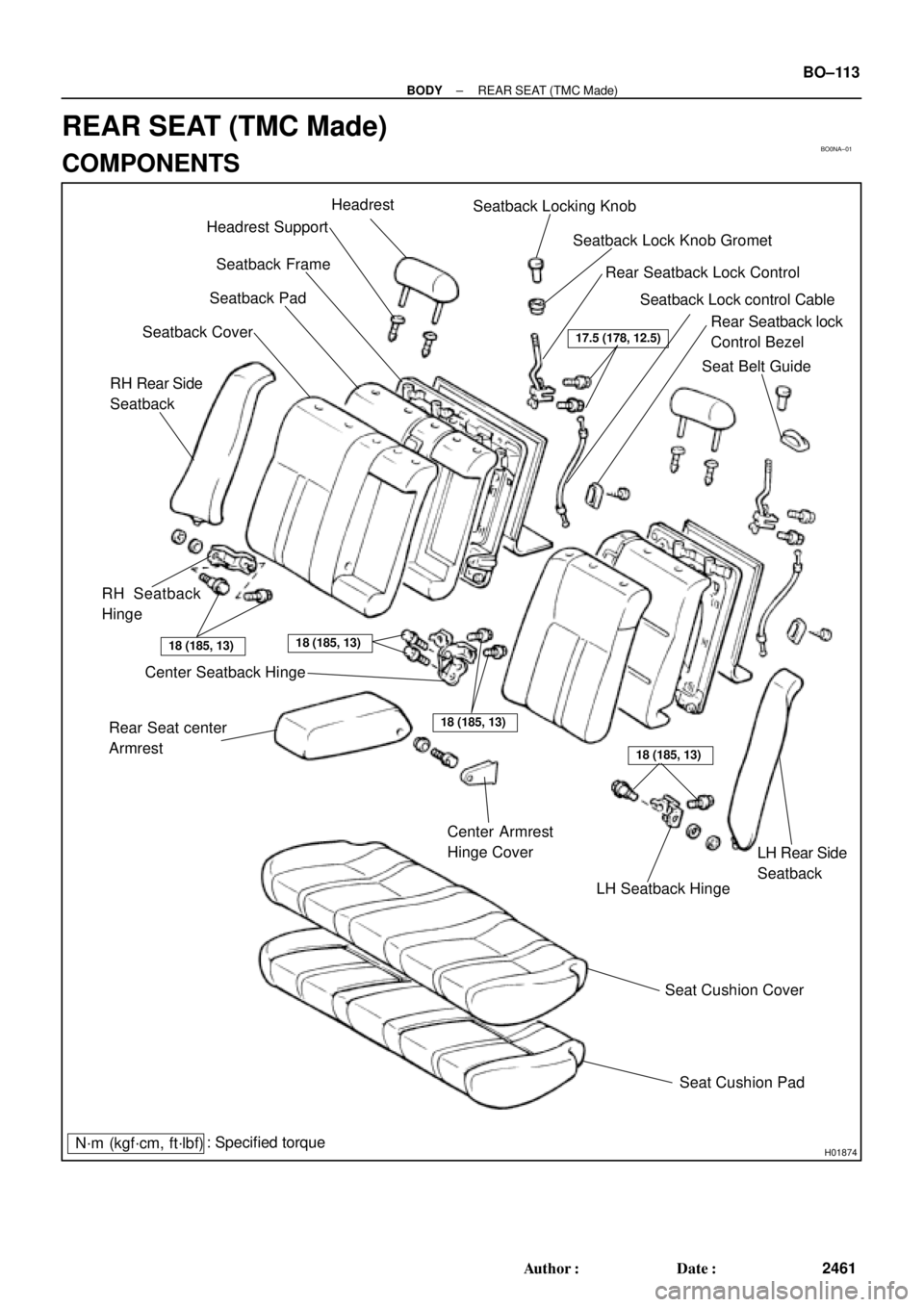

TOYOTA CAMRY 1999 Service Repair Manual BO0NA±01 H01874 Headrest SupportHeadrest Seatback Frame Seatback Pad Seatback Cover RH Seatback Hinge Center Seatback Hinge Rear Seat center Armrest Center Armrest Hinge Cover LH Seatback Hinge Seat

Page 959 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0NB±01 BO±114 ± BODYREAR SEAT (TMC Made) 2462 Author: Date: REMOVAL 1. REMOVE LH SEATBACK ASSEMBLY (a) Release lock to lean the seat back to front. (b) Remove the clips. (c) Remove the 2 bolts

Page 960 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0NC±01 ± BODYREAR SEAT (TMC Made) BO±115 2463 Author: Date: DISASSEMBLY 1. REMOVE SEAT CUSHION COVER Remove the hog rings and seat cushion cover from the seat cushion pad. 2. REMOVE THESE PARTS
