Page 137 of 4592
AX03T±01
D01026
Key Interlock Solenoid
Shift Lock Override ButtonShift Lock Override Cover
Stop Light Switch
Shift Lock Control Unit Assembly
AX±16
± AUTOMATIC TRANSAXLE (A541E)SHIFT LOCK SYSTEM (TMC Made)
1936 Author: Date:
SHIFT LOCK SYSTEM (TMC Made)
LOCATION
Page 138 of 4592

AX03U±02
Q09455
1 (ACC) 5 (IG)
4 (KLS+)
3 (E)
2 (STP)
Wire Harness Side
Q09456
1 (KLS+)
2 (E)
Q09457
1 (KLS+)
2 (E)
(±) (+)
± AUTOMATIC TRANSAXLE (A541E)SHIFT LOCK SYSTEM (TMC Made)
AX±17
1937 Author: Date:
INSPECTION
1. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY
Using a voltmeter, measure the voltage at each terminal.
HINT:
Do not disconnect the shift lock control unit assembly connec-
tor.
TerminalMeasuring ConditionVoltage (V)
1 ± 3 (ACC ± E)Ignition switch ACC10 ± 14
5 ± 3 (IG ± E)Ignition switch ON10 ± 14
2 ± 3 (STP ± E)Depressing brake pedal10 ± 14
4 ± 3 (KLS+ ± E)
(1) Ignition switch ACC and P position
(2) Ignition switch ACC and except P position
(3) Ignition switch ACC and except P position (After approx. 1 second)0
7.5 ± 11
6 ± 9.5
2. INSPECT KEY INTERLOCK SOLENOID
(a) Disconnect the solenoid connector.
(b) Using an ohmmeter, measure resistance between termi-
nals.
Standard resistance: 12.5 ± 16.5 W
If resistance value is not as specified, replace the solenoid.
(c) Apply battery positive voltage between terminals. Check
that an operation noise can be heard from the solenoid.
If the solenoid does not operated, replace the solenoid.
Page 139 of 4592
AX03V±01
D01027
Key Interlock Solenoid
Shift Lock Control ECU Shift Lock Override Cover
Shift Lock Control SwitchShift Lock Override Button Stop Light Switch
Shift Lock Solenoid
AX±18
± AUTOMATIC TRANSAXLE (A541E)SHIFT LOCK SYSTEM (TMMK Made)
1938 Author: Date:
SHIFT LOCK SYSTEM (TMMK Made)
LOCATION
Page 140 of 4592

AX03W±01
Q09459
1 (ACC)
1 (P)
4 (KLS+) 3 (IG)
6 (STP)
5 (E)
BBack Side
Front Side A
4 (P2)
5 (SLS±)
3 (P1)
2 (SLS+)
Q09460
5 (SLS±)
2 (SLS+)
Q09461
5 (SLS±)
2 (SLS+)
± AUTOMATIC TRANSAXLE (A541E)SHIFT LOCK SYSTEM (TMMK Made)
AX±19
1939 Author: Date:

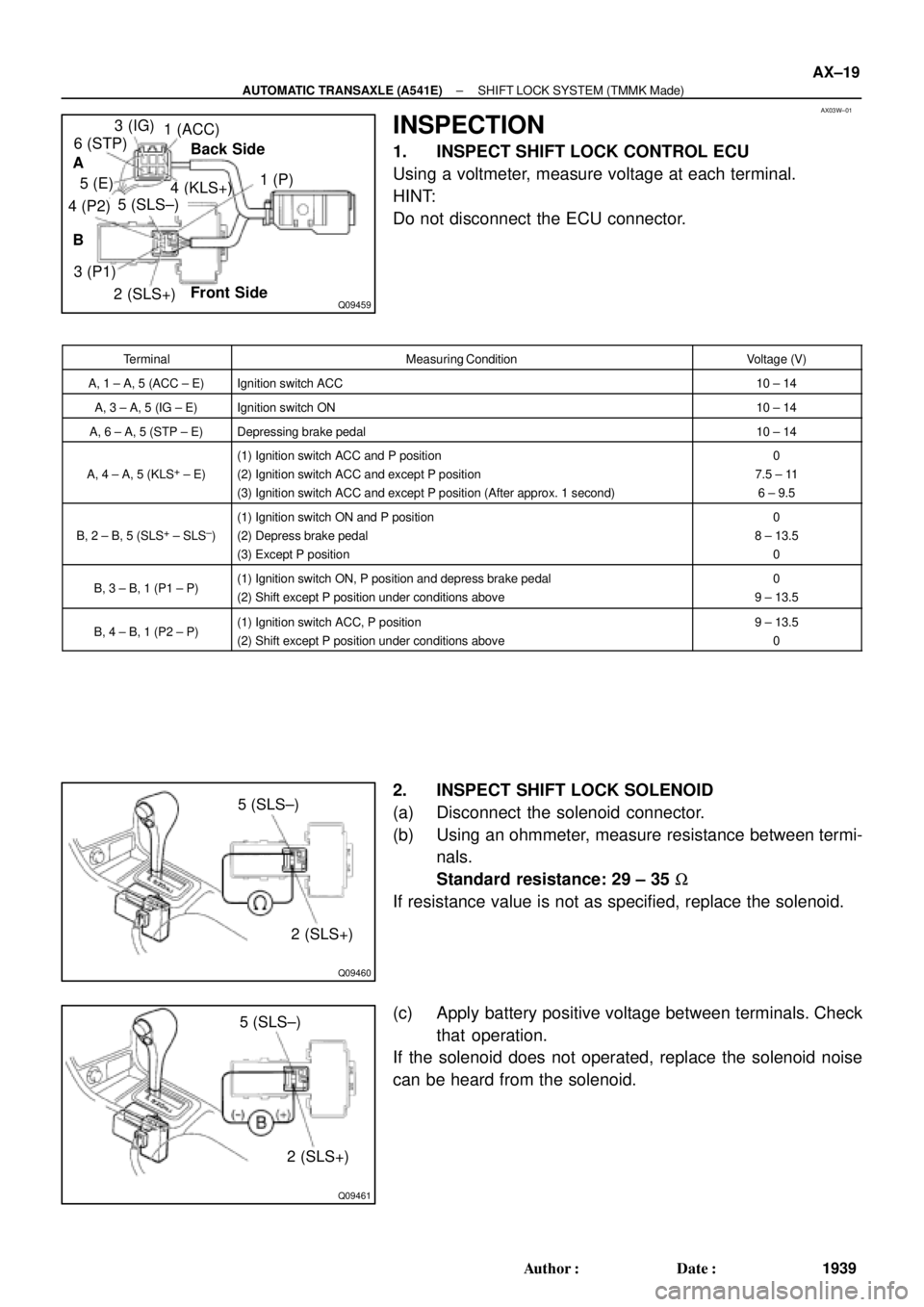

INSPECTION
1. INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure voltage at each terminal.
HINT:
Do not disconnect the ECU connector.
TerminalMeasuring ConditionVoltage (V)
A, 1 ± A, 5 (ACC ± E)Ignition switch ACC10 ± 14
A, 3 ± A, 5 (IG ± E)Ignition switch ON10 ± 14
A, 6 ± A, 5 (STP ± E)Depressing brake pedal10 ± 14
A, 4 ± A, 5 (KLS+ ± E)
(1) Ignition switch ACC and P position
(2) Ignition switch ACC and except P position
(3) Ignition switch ACC and except P position (After approx. 1 second)0
7.5 ± 11
6 ± 9.5
B, 2 ± B, 5 (SLS+ ± SLS±)
(1) Ignition switch ON and P position
(2) Depress brake pedal
(3) Except P position0
8 ± 13.5
0
B, 3 ± B, 1 (P1 ± P)(1) Ignition switch ON, P position and depress brake pedal
(2) Shift except P position under conditions above0
9 ± 13.5
B, 4 ± B, 1 (P2 ± P)(1) Ignition switch ACC, P position
(2) Shift except P position under conditions above9 ± 13.5
0
2. INSPECT SHIFT LOCK SOLENOID
(a) Disconnect the solenoid connector.
(b) Using an ohmmeter, measure resistance between termi-
nals.
Standard resistance: 29 ± 35 W
If resistance value is not as specified, replace the solenoid.
(c) Apply battery positive voltage between terminals. Check
that operation.
If the solenoid does not operated, replace the solenoid noise
can be heard from the solenoid.
Page 141 of 4592
Q09456
1 (KLS+)
2 (E)
Q09457
1 (KLS+)
2 (E)
(±) (+)
Q09464
3 (P1) 4 (P2) 1 (P) AX±20
± AUTOMATIC TRANSAXLE (A541E)SHIFT LOCK SYSTEM (TMMK Made)
1940 Author: Date:
3. INSPECT KEY INTERLOCK SOLENOID
(a) Disconnect the solenoid connector.
(b) Using an ohmmeter, measure resistance between termi-
nals.
Standard resistance: 12.5 ± 16.5 W
If resistance value is not as specified, replace the solenoid.
(c) Apply battery positive voltage between terminals. Check
that an operation noise can be heard from the solenoid.
If the solenoid does not operated, replace the solenoid.
4. INSPECT SHIFT LOCK CONTROL SWITCH
Inspect that there is continuity between at each terminal.
Shift positionTester connectionSpecified value
P position (Release
button is not pushed)1 ± 3 (P ± P1)Continuity
P position (Release
button is pushed)1 ± 3 (P ± P1)
1 ± 4 (P ± P2)Continuity
R, N, D, 2, L position1 ± 4 (P ± P2)Continuity
If continuity is not as specified, replace the switch.
Page 142 of 4592
AX03X±01
D01057
Engine Hood
Cruise Control Actuator
RH Drive ShaftAir Cleaner
Assembly
Shift Control Cable
LH Drive Shaft Plug for Line
Pressure TestBattery TrayBatteryBattery
Insulator Snap Ring
Exhaust manifold
Bracket Hole CoverTorque Converter ClutchShift Control
Cable Clamp
Starter
x6
ClipHold±Down
Clamp
26 (265, 19)
15 (150, 11)
34 (350, 25)
39 (400, 29)
66 (670, 48)48 (490, 35)
32 (330, 24)41 (420, 30)
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable part Snap Ring
20 (200, 15)
20 (200, 14)
13 (130, 9)
x5Exhaust Manifold
Plate w/ Cruise Control :
California:
Exhaust Manifold Plate
34 (350, 25)
Exhaust manifold Bracket
California:
± AUTOMATIC TRANSAXLE (A541E)AUTOMATIC TRANSAXLE UNIT
AX±21
1941 Author: Date:
AUTOMATIC TRANSAXLE UNIT
COMPONENTS
Page 143 of 4592

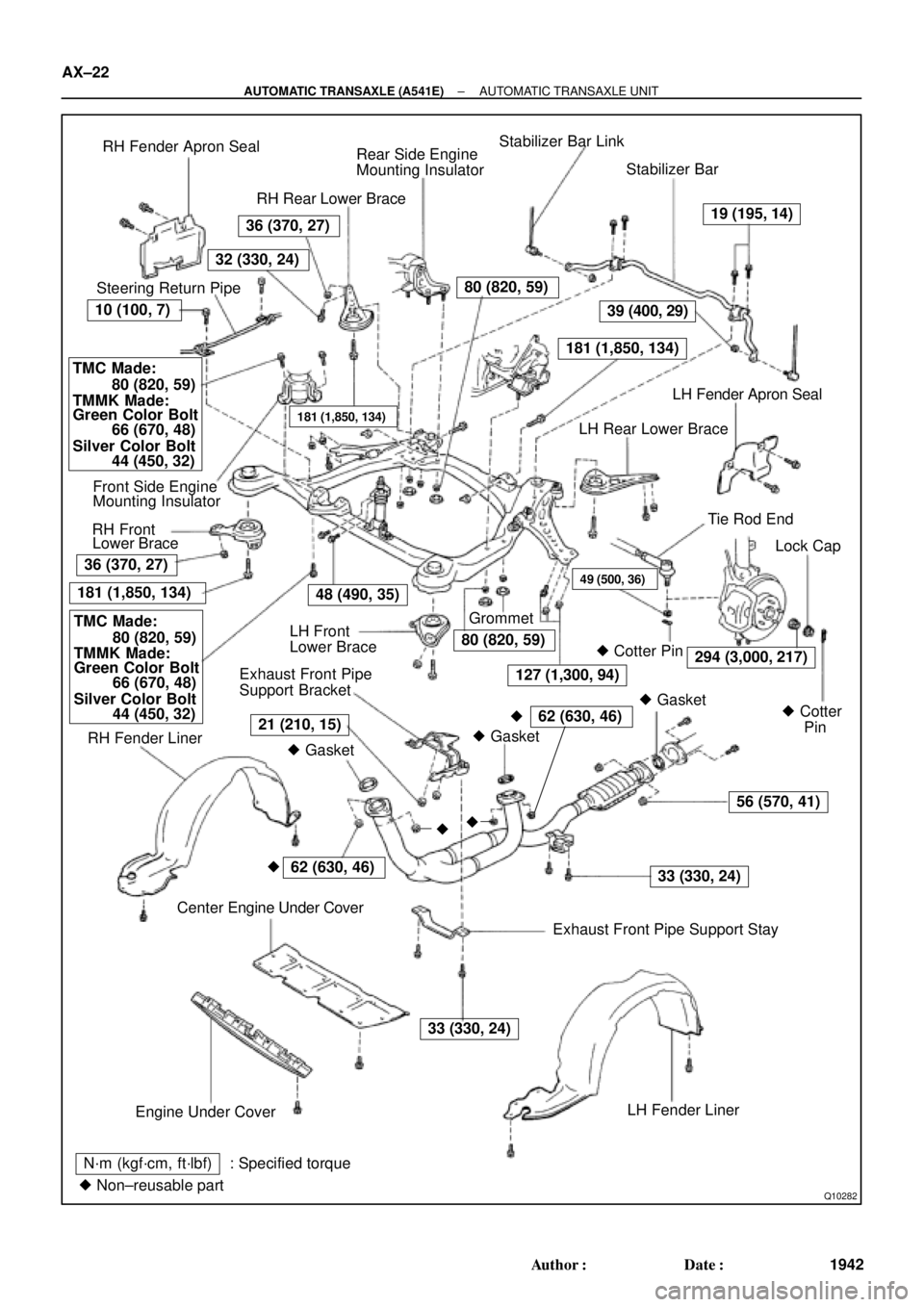

Q10282
RH Fender Apron Seal
RH Rear Lower BraceRear Side Engine
Mounting InsulatorStabilizer Bar Link
Stabilizer Bar
LH Fender Apron Seal
LH Rear Lower Brace
Tie Rod End
Lock Cap
Cotter Pin
Gasket
Cotter
Pin LH Front
Lower Brace
Exhaust Front Pipe
Support Bracket
RH Fender Liner
Center Engine Under Cover
Exhaust Front Pipe Support Stay Grommet Steering Return Pipe
Gasket
Gasket
80 (820, 59)
19 (195, 14)
39 (400, 29)
181 (1,850, 134)
36 (370, 27)
32 (330, 24)
10 (100, 7)
48 (490, 35)
49 (500, 36)
127 (1,300, 94)
294 (3,000, 217)
56 (570, 41)
33 (330, 24)62 (630, 46)
21 (210, 15) Green Color Bolt
80 (820, 59)
36 (370, 27)
181 (1,850, 134)
181 (1,850, 134)66 (670, 48)
Front Side Engine
Mounting Insulator
RH Front
Lower Brace
33 (330, 24)
LH Fender Liner
Engine Under Cover
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable part TMC Made:
80 (820, 59)
TMMK Made:
Silver Color Bolt
62 (630, 46)
44 (450, 32)
Green Color Bolt
66 (670, 48) TMC Made:
80 (820, 59)
TMMK Made:
Silver Color Bolt
44 (450, 32)
AX±22
± AUTOMATIC TRANSAXLE (A541E)AUTOMATIC TRANSAXLE UNIT
1942 Author: Date:
Page 144 of 4592

AX03Y±01
Q00225
Q09982
Q10287
Q00075
Q10028
± AUTOMATIC TRANSAXLE (A541E)AUTOMATIC TRANSAXLE UNIT
AX±23
1943 Author: Date:

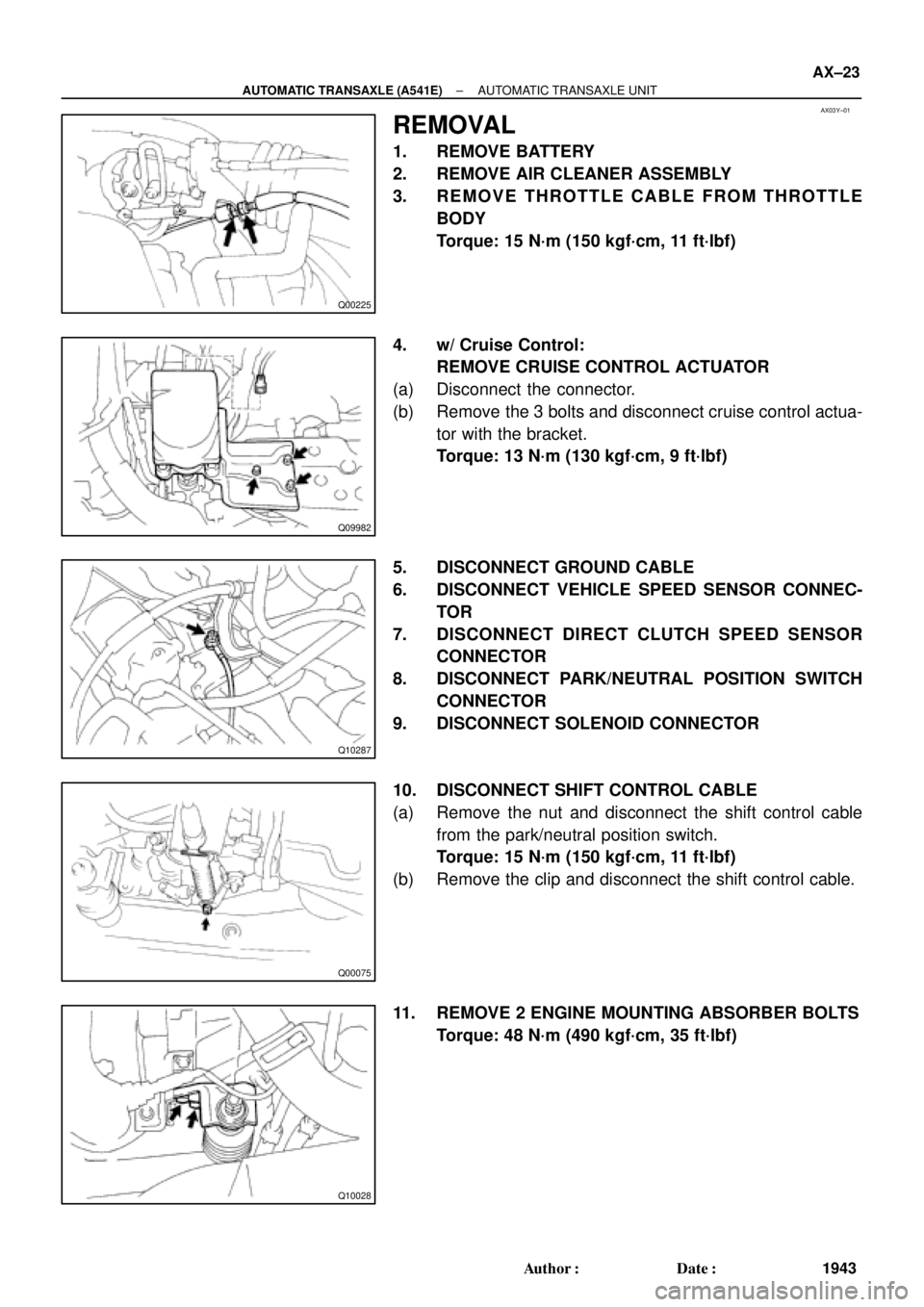

REMOVAL
1. REMOVE BATTERY
2. REMOVE AIR CLEANER ASSEMBLY
3. REMOVE THROTTLE CABLE FROM THROTTLE
BODY
Torque: 15 N´m (150 kgf´cm, 11 ft´lbf)
4. w/ Cruise Control:
REMOVE CRUISE CONTROL ACTUATOR
(a) Disconnect the connector.
(b) Remove the 3 bolts and disconnect cruise control actua-
tor with the bracket.
Torque: 13 N´m (130 kgf´cm, 9 ft´lbf)
5. DISCONNECT GROUND CABLE
6. DISCONNECT VEHICLE SPEED SENSOR CONNEC-
TOR
7. DISCONNECT DIRECT CLUTCH SPEED SENSOR
CONNECTOR
8. DISCONNECT PARK/NEUTRAL POSITION SWITCH
CONNECTOR
9. DISCONNECT SOLENOID CONNECTOR
10. DISCONNECT SHIFT CONTROL CABLE
(a) Remove the nut and disconnect the shift control cable
from the park/neutral position switch.
Torque: 15 N´m (150 kgf´cm, 11 ft´lbf)
(b) Remove the clip and disconnect the shift control cable.
11. REMOVE 2 ENGINE MOUNTING ABSORBER BOLTS
Torque: 48 N´m (490 kgf´cm, 35 ft´lbf)
