Page 2825 of 4592

TOYOTA CAMRY 1999 Service Repair Manual Important Points in the Customer Problem Analysis
What ±±±±± Vehicle model, system name
When ±±±±± Date, time, occurrence frequency
Where ±±±±± Road conditions
Under what condit

Important Points in the Customer Problem Analysis
What ±±±±± Vehicle model, system name
When ±±±±± Date, time, occurrence frequency
Where ±±±±± Road conditions
Under what conditions? ±±±±± Running conditions, driving conditions, weather conditions
How did it happen? ±±±±± Problem symptoms
(Sample) Engine control system check sheet.
ENGINE CONTROL SYSTEM Check Sheet
Customer's Name
Driver's Name
Data Vehicle
Brought in
License No.
Model and Model
Year
Frame No.
Engine Model
Odometer Reading
km
miles
Problem Symptoms
Engine does
not Start
Difficult to
Start
Poor Idling
Poor
Drive ability
Engine Stall
Others
Engine does not crankNo initial combustionNo complete combustion
Engine cranks slowly
Other
Incorrect first idleIdling rpm is abnormalHigh ( rpm)Low ( rpm)
Rough idling
Other
HesitationBack fireMuffler explosion (after±fire)Surging
Knocking
Other
Soon after startingAfter accelerator pedal depressed
After accelerator pedal released
During A/C operation
Shifting from N to D
Other
Data Problem
ConstantSometimes ( times per day/month)
Inspector's
Name
CUSTOMER PROBLEM ANALYSIS CHECK
IN±22± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
22 Author: Date:
1. CUSTOMER PROBLEM ANALYSIS
In troubleshooting, the problem symptoms must be confirmed accurately and all preconceptions must be
cleared away in order to give an accurate judgment. To ascertain just what the problem symptoms are, it is
extremely important to ask the customer about the problem and the conditions at the time it occurred.
Important Point in the Problem Analysis:
The following 5 items are important points in the problem analysis. Past problems which are thought to be
unrelated and the repair history, etc. may also help in some cases, so as much information as possible should
be gathered and its relationship with the problem symptoms should be correctly ascertained for reference
in troubleshooting. A customer problem analysis table is provided in Diagnostics section for each system
for your use.

Page 2826 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DIAGNOSTIC TROUBLE CODE CHECK PROCEDURE
Diagnostic Trouble
Code Check (Make a
note of and then clear)Confirmation
of SymptomsDiagnostic Trouble
Code CheckProblem Condition
Diagnostic Trouble
Code D

DIAGNOSTIC TROUBLE CODE CHECK PROCEDURE
Diagnostic Trouble
Code Check (Make a
note of and then clear)Confirmation
of SymptomsDiagnostic Trouble
Code CheckProblem Condition
Diagnostic Trouble
Code DisplayProblem symptoms
existSame diagnostic
trouble code is
displayedProblem is still occurring in the diagnostic
circuit
Normal code is
displayedThe problem is still occurring in a place
other than in the diagnostic circuit
(The diagnostic trouble code displayed
first is either for a past problem or it is a
secondary problem)
No problem
symptoms existThe problem occurred in the diagnostic
circuit in the past
Normal Code DisplayProblem symptoms
existNormal code is
displayedThe problem is still occurring in a place
other than in the diagnostic circuit
No problem
symptoms existNormal code is
displayedThe problem occurred in a place other
than in the diagnostic circuit in the past
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN±23
23 Author: Date:
2. SYMPTOM CONFIRMATION AND DIAGNOSTIC TROUBLE CODE CHECK
The diagnostic system in the 1999 CAMRY fulfills various functions. The first function is the Diagnostic
Trouble Code Check in which a malfunction in the signal circuits to the ECU is stored in code in the ECU
memory at the time of occurrence, to be output by the technician during troubleshooting. Another function
is the Input Signal Check which checks if the signals from various switches are sent to the ECU correctly.
By using these check functions, the problem areas can be narrowed down quickly and troubleshooting can
be performed effectively. Diagnostic functions are incorporated in the following systems in the CAMRY.
SystemDiagnostic Trouble
Code CheckInput Signal Check
(Sensor Check)Diagnostic Test
Mode (Active Test)
Engine (5S±FE)
Engine (1MZ±FE)
Automatic Transaxle (A140E)
Automatic Transaxle (A541E)
Anti±Lock Brake System (DENSO made)
Anti±Lock Brake System (BOSCH made)
ABS & Traction Control System
Supplemental Restraint System
Wireless Door Lock Control System
Theft Deterrent System
Cruise Control System
Engine Immobiliser System (with Check
Mode)
(with Check
Mode)
(with Check
Mode)
(with Check
Mode)

In diagnostic trouble code check, it is very important to determine whether the problem indicated by the diag-
nostic trouble code is still occurring or occurred in the past but returned to normal at present. In addition,
it must be checked in the problem symptom check whether the malfunction indicated by the diagnostic
trouble code is directly related to the problem symptom or not. For this reason, the diagnostic trouble codes
should be checked before and after the symptom confirmation to determine the current conditions, as shown
in the table below. If this is not done, it may, depending on the case, result in unnecessary troubleshooting
for normally operating systems, thus making it more difficult to locate the problem, or in repairs not pertinent
to the problem. Therefore, always follow the procedure in correct order and perform the diagnostic trouble
code check.

Page 2827 of 4592

TOYOTA CAMRY 1999 Service Repair Manual Diagnostic trouble code check
Making a note of and clearing of the diagnostic trouble codes displayed
Symptom confirmation
No problem symptoms
exist Problem symptoms
exist
Simulation test using the s

Page 2828 of 4592

TOYOTA CAMRY 1999 Service Repair Manual V07268
VIBRATION METHOD: When vibration seems to be the major cause.
CONNECTORS
WIRE HARNESS
PARTS AND SENSOR1
Slightly shake the connector vertically and horizontally.
Slightly shake the wire harness

V07268
VIBRATION METHOD: When vibration seems to be the major cause.
CONNECTORS
WIRE HARNESS
PARTS AND SENSOR1
Slightly shake the connector vertically and horizontally.
Slightly shake the wire harness vertically and horizontally.
The connector joint, fulcrum of the vibration, and body
through portion are the major areas to be checked thorough-
ly.
Apply slight vibration with a finger to the part of the sensor
considered to be the problem cause and check that the mal-
function occurs.Shake Slightly
Swing Slightly
Vibrate Slightly
HINT:
Applying strong vibration to relays may result in open relays.
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN±25
25 Author: Date:
3. SYMPTOM SIMULATION
The most difficult case in troubleshooting is when there are no problem symptoms occurring. In such cases,
a thorough customer problem analysis must be carried out, then simulate the same or similar conditions and
environment in which the problem occurred in the customer's vehicle. No matter how much experience a
technician has, or how skilled he may be, if he proceeds to troubleshoot without confirming the problem
symptoms he will tend to overlook something important in the repair operation and make a wrong guess
somewhere, which will only lead to a standstill. For example, for a problem which only occurs when the en-
gine is cold, or for a problem which occurs due to vibration caused by the road during driving, etc., the prob-
lem can never be determined so long as the symptoms are confirmed with the engine hot condition or the
vehicle at a standstill. Since vibration, heat or water penetration (moisture) is likely cause for problem which
is difficult to reproduce, the symptom simulation tests introduced here are effective measures in that the ex-
ternal causes are applied to the vehicle in a stopped condition.
Important Points in the Symptom Simulation Test:
In the symptom simulation test, the problem symptoms should of course be confirmed, but the problem area
or parts must also be found out. To do this, narrow down the possible problem circuits according to the symp-
toms before starting this test and connect a tester beforehand. After that, carry out the symptom simulation
test, judging whether the circuit being tested is defective or normal and also confirming the problem symp-
toms at the same time. Refer to the problem symptoms table for each system to narrow down the possible
causes of the symptom.

Page 2829 of 4592

TOYOTA CAMRY 1999 Service Repair Manual B02389
B02390
HEAT METHOD: When the problem seems to occur when the suspect area is heated. 2
NOTICE:3 WATER SPRINKLING METHOD:
(1)
(2)
4 OTHER: When a malfunction seems to occur when electrical load

Page 2830 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DTC No.
Indicates the diagnostic trouble code.
Page or Instructions
Indicates the page where the inspection procedure
for each circuit is to be found, or gives instructions
for checkin

DTC No.
Indicates the diagnostic trouble code.
Page or Instructions
Indicates the page where the inspection procedure
for each circuit is to be found, or gives instructions
for checking and repairs.
Detection Item
Indicates the system of the problem or
contents of the problem. Trouble Area
Indicates the suspect area of the
problem.
Mass Air Flow Circuit MalfunctionDetection Item
Open or short in mass air flow meter circuit
Mass air flow meter
ECM DTC No.
(See page)Trouble AreaMIL* MemoryP0100
(DI±24)
P0101
(DI±28)
P0115
(DI±33) Open or short in intake air temp. sensor
circuit
Intake air temp. sensor
ECM Intake Air Temp. Circuit
Malfunction P0110
(DI±29)
Open or short in engine coolant temp. sensor circuit
Engine coolant temp. sensor
ECM
Throttle/ Pedal Position Sensor/Switch
ºAº Circuit MalfunctionEngine Coolant Temp.
Circuit Malfunction
Open or short in throttle position sensor circuit
Throttle position sensor
ECM
DTC CHART (SAE Controlled)
HINT:
Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other
factors.
If a malfunction code is displayed during the DTC check mode, check the circuit for that code listed in the table
below. For details of each code, turn to the page referred to under the ºSee pageº for the respective ºDTC No.º
in the DTC chart.
Mass Air Flow Circuit
Range/ Performance Problem Mass air flow meter
Throttle position sensor Throttle/ Pedal Position Sensor/ Switch
ºAº Circuit Range / Performance Prob-
lem P0116
(DI±37)Engine Coolant Temp.
Circuit Range/ Performance Problem Engine coolant temp. sensor
Cooling system
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN±27
27 Author: Date:
4. DIAGNOSTIC TROUBLE CODE CHART
The inspection procedure is shown in the table below. This table permits efficient and accurate troubleshoot-
ing using the diagnostic trouble codes displayed in the diagnostic trouble code check. Proceed with trouble-
shooting in accordance with the inspection procedure given in the diagnostic chart corresponding to the
diagnostic trouble codes displayed. The engine diagnostic trouble code chart is shown below as an example.

Page 2831 of 4592

TOYOTA CAMRY 1999 Service Repair Manual IN±28± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
28 Author: Date:
5. PROBLEM SYMPTOMS TABLE
The suspected circuits or parts for each problem symptom are shown in the table below. Use

Page 2832 of 4592

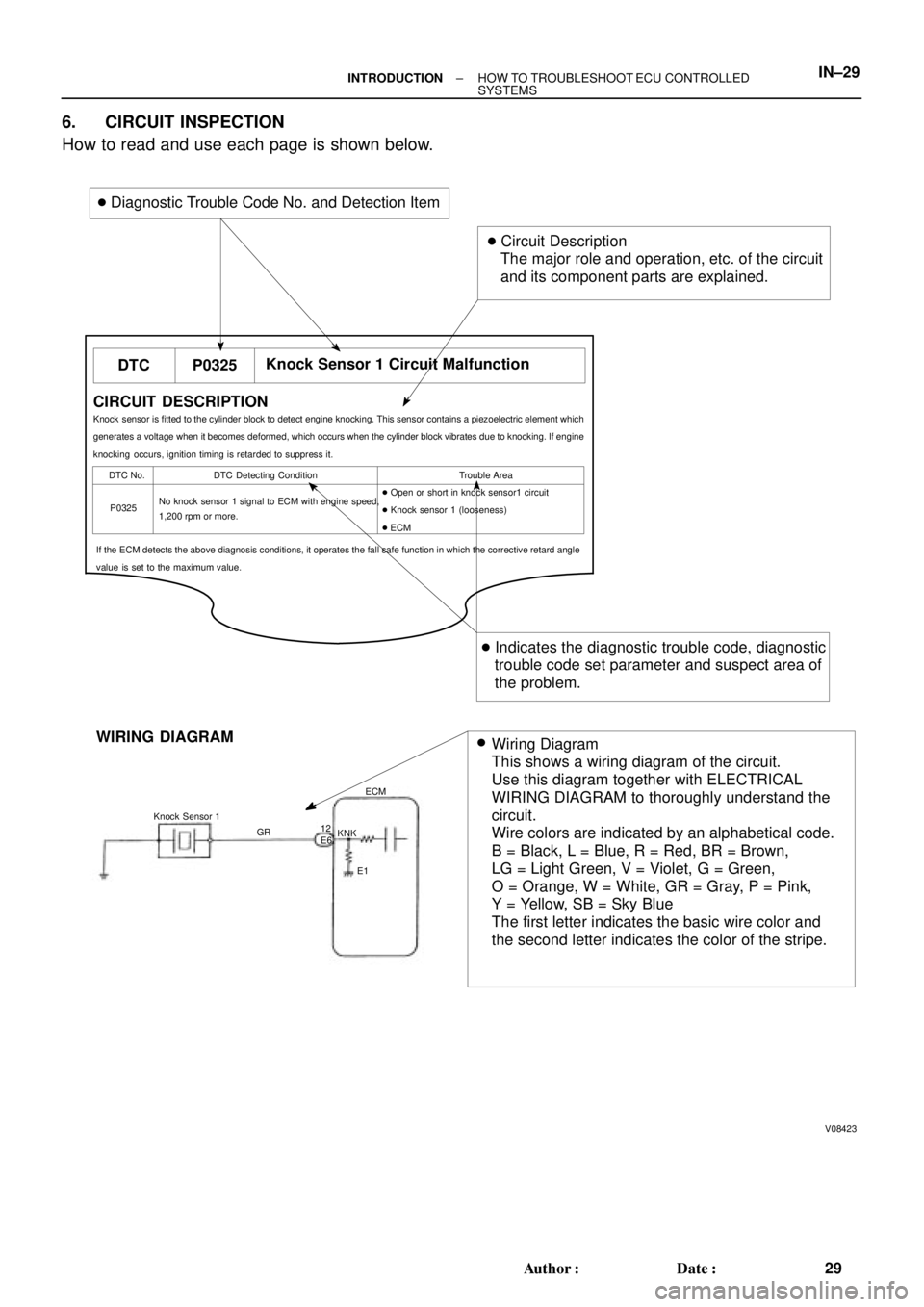

TOYOTA CAMRY 1999 Service Repair Manual V08423 Knock Sensor 1
GRECM
KNK
E1 12
E6
WIRING DIAGRAM
Wiring Diagram
This shows a wiring diagram of the circuit.
Use this diagram together with ELECTRICAL
WIRING DIAGRAM to thoroughly understand th

Load next 8 pages
