TOYOTA CAMRY 1999 Service Repair Manual IN0253
WRONG CORRECT
IN0252
WRONG CORRECT IN±6
± INTRODUCTIONREPAIR INSTRUCTIONS
6 Author: Date:
(k) Care must be taken when jacking up and supporting the
vehicle. Be sure to lift and support the

Page 2810 of 4592

TOYOTA CAMRY 1999 Service Repair Manual IN0002
Example
± INTRODUCTIONREPAIR INSTRUCTIONS
IN±7
7 Author: Date:
(m) Installation and removal of vacuum hose:
(1) When disconnecting vacuum hoses, use tags to
identify how they should be reco

Page 2811 of 4592

TOYOTA CAMRY 1999 Service Repair Manual IN0CP±03
N20619
Front
JACK POSITION
Front..................... Front crossmember
Rear..................... Rear axle beam
CAUTION :
PANTOGRAPH JACK POSITION
SUPPORT POSITION
Safety stand and swing a

Page 2812 of 4592

TOYOTA CAMRY 1999 Service Repair Manual N20620

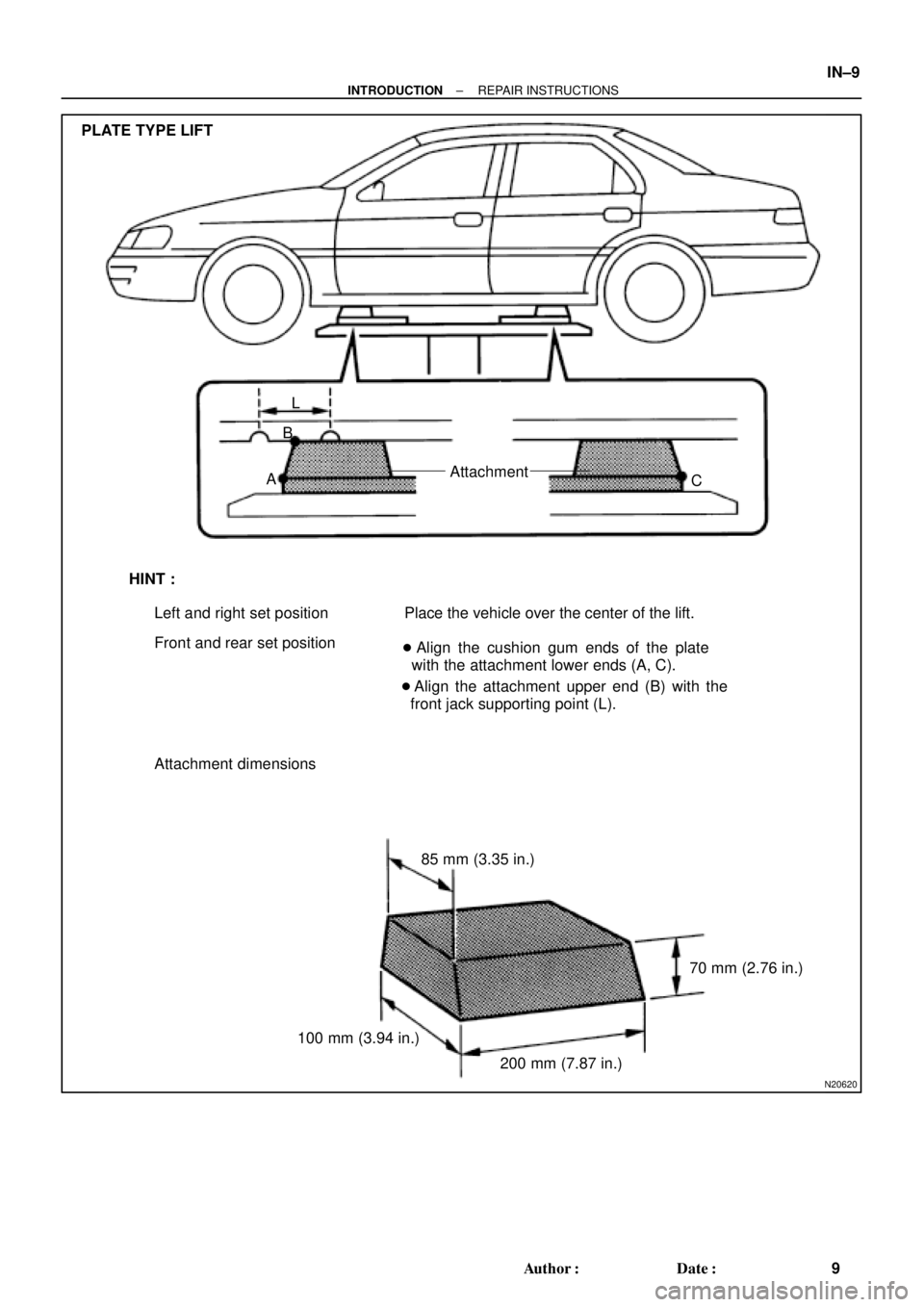

PLATE TYPE LIFT
L
B
AAttachment
C
HINT :
Left and right set position
Front and rear set positionPlace the vehicle over the center of the lift.
Align the cushion gum ends of the plate
with t

Page 2813 of 4592

TOYOTA CAMRY 1999 Service Repair Manual IN0CQ±03
BO4111
Negative Cable
IN±10
± INTRODUCTIONFOR ALL OF VEHICLES
10 Author: Date:
FOR ALL OF VEHICLES
PRECAUTION
1. FOR VEHICLES EQUIPPED WITH SRS AIRBAG AND
SEAT BELT PRETENSIONER
(a) The

IN0CQ±03
BO4111
Negative Cable
IN±10
± INTRODUCTIONFOR ALL OF VEHICLES
10 Author: Date:
FOR ALL OF VEHICLES
PRECAUTION
1. FOR VEHICLES EQUIPPED WITH SRS AIRBAG AND
SEAT BELT PRETENSIONER
(a) The 1999 CAMRY is equipped with an SRS (Supplemen-
tal Restraint System), such as the driver airbag, front pas-
senger airbag assembly, side airbag assembly and seat
belt pretensioner.
Failure to carry out service operations in the correct se-
quence could cause the supplemental restraint system to
unexpectedly deploy during servicing, possibly leading to
a serious accident.
Further, if a mistake is made in servicing the supplemental
restraint system, it is possible the SRS may fail to operate
when required. Before servicing (including removal or
installation of parts, inspection or replacement), be sure
to read the following items carefully, then follow the cor-
rect procedure described in this manual.
(b) GENERAL NOTICE
(1) Malfunction symptoms of the supplemental re-
straint system are difficult to confirm, so the diag-
nostic trouble codes become the most important
source of information when troubleshooting. When
troubleshooting the supplemental restraint system,
always inspect the diagnostic trouble codes before
disconnecting the battery (See page DI±626).
(2) Work must be started after 90 seconds from the
time the ignition switch is turned to the ºLOCKº posi-
tion and the negative (±) terminal cable is discon-
nected from the battery.
(The supplemental restraint system is equipped
with a back±up power source so that if work is
started within 90 seconds of disconnecting the neg-
ative (±) terminal cable from the battery, the SRS
may deploy.)
When the negative (±) terminal cable is discon-
nected from the battery, memory of the clock and
audio systems will be cancelled. So before starting
work, make a record of the contents memorized by
the each memory system. Then when work is fin-
ished, reset the clock and audio systems as before.
To avoid erasing the memory of each memory sys-
tem, never use a back±up power supply from anoth-
er battery.

Page 2814 of 4592

TOYOTA CAMRY 1999 Service Repair Manual W02655
Marks
± INTRODUCTIONFOR ALL OF VEHICLES
IN±11
11 Author: Date:
(3) Even in cases of a minor collision where the SRS
does not deploy, the steering wheel pad, front pas-
senger airbag assembl

Page 2815 of 4592

TOYOTA CAMRY 1999 Service Repair Manual Z13953
Example:CorrectWrong
Z13950
Example: IN±12
± INTRODUCTIONFOR ALL OF VEHICLES
12 Author: Date:
(d) STEERING WHEEL PAD (with Airbag)
(1) When removing the steering wheel pad or handling
a new

Page 2816 of 4592

TOYOTA CAMRY 1999 Service Repair Manual B00696
Example:
Correct Wrong
Z13951
Example:
± INTRODUCTIONFOR ALL OF VEHICLES
IN±13
13 Author: Date:
(e) FRONT PASSENGER AIRBAG ASSEMBLY
(1) Always store a removed or new front passenger air-
ba
