Page 3593 of 4592

TOYOTA CAMRY 1999 Service Repair Manual SA0II±01 W03648 ± SUSPENSION AND AXLEFRONT SHOCK ABSORBER SA±37 1988 Author: Date: DISPOSAL 1. FULLY EXTEND SHOCK ABSORBER ROD 2. DRILL HOLE TO REMOVE GAS FROM CYLINDER Using a drill, make a hole

Page 3594 of 4592

TOYOTA CAMRY 1999 Service Repair Manual SA07R±01 W03200 SST W03201 W03199 SST SA±38 ± SUSPENSION AND AXLEFRONT SHOCK ABSORBER 1989 Author: Date: REASSEMBLY 1. INSTALL LOWER INSULATOR ONTO SHOCK AB- SORBER 2. INSTALL SPRING BUMPER TO PI

Page 3595 of 4592

TOYOTA CAMRY 1999 Service Repair Manual SA07S±01 ± SUSPENSION AND AXLEFRONT SHOCK ABSORBER SA±39 1990 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page SA±34). AFTER INSTALLATION, CHECK FRONT WHEEL A

Page 3596 of 4592

TOYOTA CAMRY 1999 Service Repair Manual SA07T±04 F06530 Suspension Support Spring Bumper Link Stabilizer Bar Shock Absorber ABS Speed Sensor Wire Harness ClampFront Drive Shaft with Coil SpringUpper Seat Bearing Lower Insulator Lower Suspe

Page 3597 of 4592

TOYOTA CAMRY 1999 Service Repair Manual SA07U±01 W03202 W03203 W03204 ± SUSPENSION AND AXLEFRONT LOWER SUSPENSION ARM SA±41 1992 Author: Date: REMOVAL 1. REMOVE FRONT WHEEL Torque: 103 N´m (1,050 kgf´cm, 76 ft´lbf) 2. DISCONNECT LOW

Page 3598 of 4592

TOYOTA CAMRY 1999 Service Repair Manual SA07W±01 SA±42 ± SUSPENSION AND AXLEFRONT LOWER SUSPENSION ARM 1993 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page SA±41). AFTER INSTALLATION, CHECK FRONT W

Page 3599 of 4592

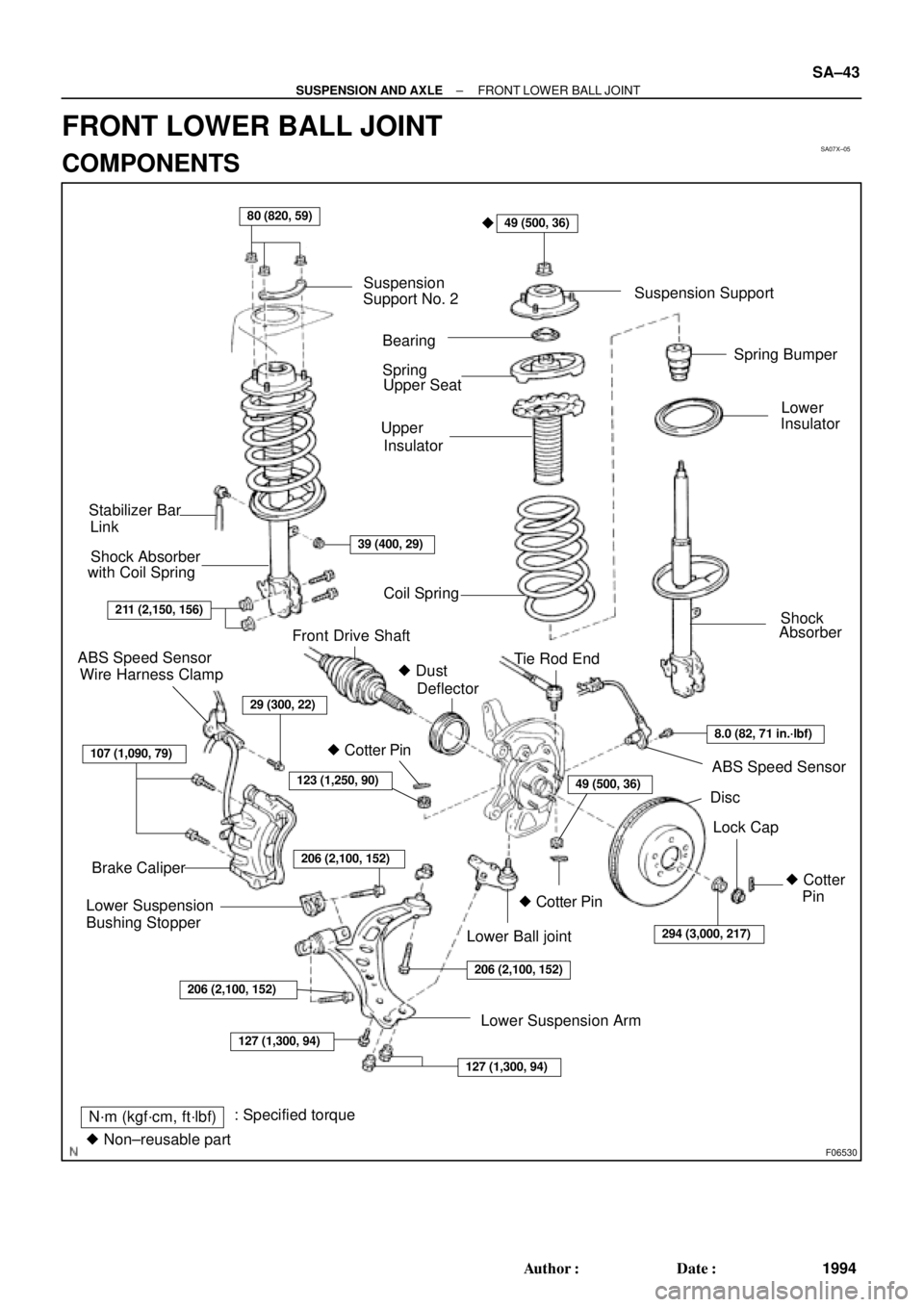

TOYOTA CAMRY 1999 Service Repair Manual SA07X±05 F06530 Suspension Support Spring Bumper Link Stabilizer Bar Shock Absorber ABS Speed Sensor Wire Harness ClampFront Drive Shaft with Coil SpringUpper Seat Bearing Lower Insulator Lower Suspe

Page 3600 of 4592

TOYOTA CAMRY 1999 Service Repair Manual SA07Y±01 R08859 SST SA±44 ± SUSPENSION AND AXLEFRONT LOWER BALL JOINT 1995 Author: Date: REMOVAL 1. REMOVE STEERING KNUCKLE WITH AXLE HUB (See page SA±10) 2. REMOVE LOWER BALL JOINT (a) Using a
