Page 721 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± BODY ELECTRICALBODY ELECTRICAL SYSTEM
BE±5
2225 Author: Date:
Dome light does not light up.
1. Bulb
2. Dome Light
3. Wire Harness±
BE±32
±
Map Light does not light up.
1. Bulb
2. Map Light
3.

Page 722 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE±6
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2226 Author: Date:
Washer fluid does not operate.1. Washer Hose and Nozzle±
In wiper switch HI position, the wiper blade is in contact with
the bod

BE±6
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2226 Author: Date:
Washer fluid does not operate.1. Washer Hose and Nozzle±
In wiper switch HI position, the wiper blade is in contact with
the body.
When the wiper switch is OFF, the wiper blade does not
retract or the retract position is wrong.1. *1Wiper Switch
2. Wire HarnessBE±40
±
COMBINATION METER
METER, GAUGES AND ILLUMINATION:
SymptomSuspect AreaSee page
Tachometer, Fuel Gauge and Engine Coolant Temperature Gauge
do not operate.1. GAUGE Fuse (I/P J/B No.1)
2. Meter Circuit Plate
3. Wire Harness±
BE±46
±
Speedometer does not operate.
1. No.1 Vehicle Speed Sensor
2. Meter Circuit Plate
3. Wire HarnessBE±47
BE±46
±
Tachometer does not operate.
1. Igniter (5S±FE)
(1MZ±FE)
2. Meter Circuit Plate
3. Wire HarnessIG±1
IG±1
BE±46
±
Fuel Gauge does not operate or abnormal operation.
1. Fuel Receiver Gauge
2. Fuel Sender Gauge
3. Meter Circuit Plate
4. Wire HarnessBE±47
BE±47
BE±46
±
Engine Coolant Temperature Gauge does not operate or abnormal
operation
1. Engine Coolant Temperature Receiver Gauge
2. Engine Coolant Temperature Sender Gauge
3. Meter Circuit Plate
4. Wire HarnessBE±47
BE±47
BE±46
±
All illumination lights do not light up.
1. TAIL Fuse (I/P J/B No.1)
2. Light Control Rheostat
3. Wire Harness±
BE±47
±
Brightness does not change even when rheostat turned.1. Bulb
2. Wire Harness±
±
Only one illumination light does not light up.1. Bulb
2. Wire Harness±
±
COMBINATION METER
WARNING LIGHTS:
SymptomSuspect AreaSee page
Warning lights do not light up. (Except Discharge, Open Door and
SRS)1. GAUGE Fuse (I/P J/B No.1)
2. Meter Circuit Plate
3. Wire Harness±
BE±46
±
Low Oil Pressure warning light does not light up.
1. Bulb
2. Low Oil Pressure Warning Switch
3. Meter Circuit Plate
4. Wire Harness±
BE±47
BE±46
±
Fuel Level warning light does not light up.
1. Bulb
2. Fuel Level Warning Switch
3. Meter Circuit Plate
4. Wire Harness±
BE±47
BE±46
±
ABS warning light does not light up.
1. Bulb
2. ABS ECU
3. Wire Harness±
IN±31
±

Page 723 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± BODY ELECTRICALBODY ELECTRICAL SYSTEM
BE±7
2227 Author: Date:
Seat Belt warning light does not light up.
1. Bulb
2. Seat Belt Buckle Switch
3. Integration Relay (I/P J/B No.1)
4. Wire Harness±

Page 724 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE±8
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2228 Author: Date:
Shift indicator lights do not light up.
1. Bulb
2. Meter Circuit Plate
3. Park/Neutral Position Switch (A140E)
(A541E)
4. Wire Harne

BE±8
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2228 Author: Date:
Shift indicator lights do not light up.
1. Bulb
2. Meter Circuit Plate
3. Park/Neutral Position Switch (A140E)
(A541E)
4. Wire Harness±
BE±46
DI±424
DI±479
±
Only one shift indicator does not light up.1. Bulb
2. Meter Circuit Plate±
BE±46
Malfunction indicator light does not light up.
1. Bulb
2. ECM
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
SLIP indicator light does not light up.
1. Bulb
2. Traction ECU
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
TRAC OFF indicator light does not light up.
1. Bulb
2. Traction ECU
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
Security indicator light does not light up.
1. Bulb
2. Security ECU
3. Meter Circuit Plate
4. Wire Harness±
±
BE±46
±
Indicator lights do not light up. (Except Turn, Hi±beam and
security)1. GAUGE Fuse (I/P J/B No.1)
2. Wire Harness±
±
DEFOGGER SYSTEM
SymptomSuspect AreaSee page
All defogger systems do not operate.
1. DEFOG M±Fuse (I/P J/B No.1)
2. HTR Fuse (I/P J/B No.1)
3. Defogger Relay (I/P J/B No.1)
4. Defogger Switch
5. Wire Harness±
±
BE±56
BE±56
±
Rear window defogger does not operate.
1. Defogger Wire
2. Choke Coil
3. Wire HarnessBE±56
±
±
Mirror defogger does not operate.
1. MIR/HTR Fuse (I/P J/B No.1)
2. Mirror Defogger
3. Wire Harness±
BE±56
±
POWER WINDOW CONTROL SYSTEM
SymptomSuspect AreaSee page
Power window does not operate (ALL).
(Power Door Lock does not operate)1. POWER M±Fuse (I/P J/B No.1)
2. Power Main Relay (I/P J/B No.1)
3. Wire Harness±
BE±60
±
Power window does not operate (ALL).
(Power Door Lock is normal)1. Ignition Switch
2. Power Window Master Switch
3. Wire HarnessBE±14
BE±60
±
ºOne Touch Power Window Systemº does not operate.1. Power Window Master SwitchBE±60
Only one window glass does not move.
1. Power Window Master Switch
2. Power Window Switch
3. Power Window Motor
4. Wire HarnessBE±60
BE±60
BE±60
±
ºWindow Lock Systemº does not operate.1. Power Window Master SwitchBE±60

Page 725 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± BODY ELECTRICALBODY ELECTRICAL SYSTEM
BE±9
2229 Author: Date:
ºWindow Lock Illuminationº does not light up.1. Power Window Master SwitchBE±60
Key±off power window does not operate.
1. GAUGE

± BODY ELECTRICALBODY ELECTRICAL SYSTEM
BE±9
2229 Author: Date:
ºWindow Lock Illuminationº does not light up.1. Power Window Master SwitchBE±60
Key±off power window does not operate.
1. GAUGE Fuse (I/P J/B No.1)
2. Integration Relay (I/P J/B No.1)
3. Ignition Switch
4. Door Courtesy Switch
5. Wire Harness±
BE±60
BE±14
BE±32
±
POWER DOOR LOCK CONTROL SYSTEM
SymptomSuspect AreaSee page
ºDoor lock systemº does not operate at all.
1. POWER M±Fuse (I/P J/B No.1)
2. CIG Fuse (I/P J/B No.1)
3. DOOR Fuse (I/P J/B No.1)
4. Integration Relay (I/P J/B No.1)
5. Wire Harness±
±
±
BE±70
±
Door lock system does not operate by manual switch.
1. Power Window Master Switch
2. Door Lock Manual Switch
3. Integration Relay (I/P J/B No.1)
4. Wire HarnessBE±60
BE±70
BE±70
±
Door lock system does not operate by door key.
1. Door Key Lock and Unlock Switch
2. Integration Relay (I/P J/B No.1)
3. Wire Harness
4. Door Lock Link DisconnectedBE±70
BE±70
±
±
Fault in 2±Operation unlock function of Driver's side door key lock
and unlock switch.1. Door Key Lock and Unlock Switch
2. Integration Relay (I/P J/B No.1)
3. Wire HarnessBE±70
BE±70
±
Fault in key confine prevention operate.
1. Integration Relay (I/P J/B No.1)
2. Key Unlock Warning Switch
3. Door Courtesy Switch
4. Wire HarnessBE±70
BE±14
BE±32
±
Only one door lock does not operate.1. Door Lock Motor
2. Wire HarnessBE±70
±
SLIDING ROOF SYSTEM
SymptomSuspect AreaSee page
Sliding roof system does not operate.
(Door Lock does not operate)1. POWER M±Fuse (I/P J/B No.1)
2. Power Main Relay (I/P J/B No.1)
3. Wire Harness±
BE±60
±
Sliding roof system does not operate.
(Door Lock is normal)
1. Ignition Switch
2. Sliding Roof Control Relay and Switch
3. Sliding Roof Motor and Limit Switch
4. Wire HarnessBE±14
BE±74
BE±74
±
Sliding roof system operates abnormally.
1. Sliding Roof Control Relay and Switch
2. Sliding Roof Motor and Limit Switch
3. Wire HarnessBE±74
BE±74
±
Sliding roof system stops operation half way.
(Stones of foreign material trapped in motor assembly)1. Sliding Roof Control Relay and Switch
2. Sliding Roof Motor and Limit Switch
3. Wire HarnessBE±74
BE±74
±
ºKey±off Sliding Roofº operation does not operate.
1. DOME Fuse (E/G Room J/B No.2)
2. GAUGE Fuse (I/P J/B No.1)
3. Ignition Switch
4. Integration Relay (I/P J/B No.1)
5. Wire Harness±
±
BE±14
BE±14
±

Page 726 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE±10
± BODY ELECTRICALBODY ELECTRICAL SYSTEM
2230 Author: Date:
POWER SEAT CONTROL SYSTEM
SymptomSuspect AreaSee page
Power seat does not operate.
(Door lock system does not operate)1. POWER M±F

Page 727 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE0A0±03

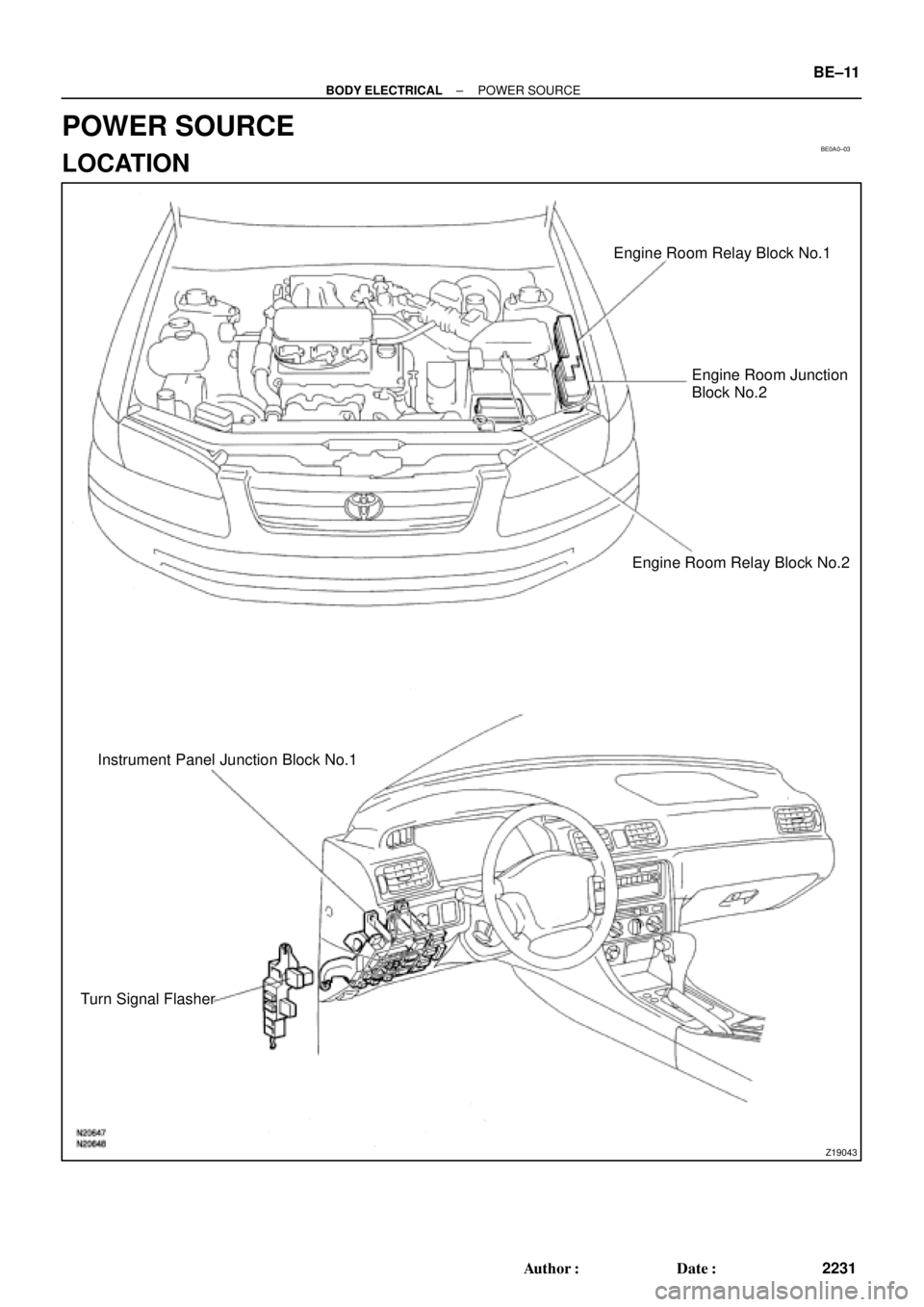

Z19043
Engine Room Relay Block No.1
Engine Room Junction
Block No.2
Engine Room Relay Block No.2
Instrument Panel Junction Block No.1
Turn Signal Flasher
± BODY ELECTRICALPOWER SOURCE
BE±1

Page 728 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE0A1±03

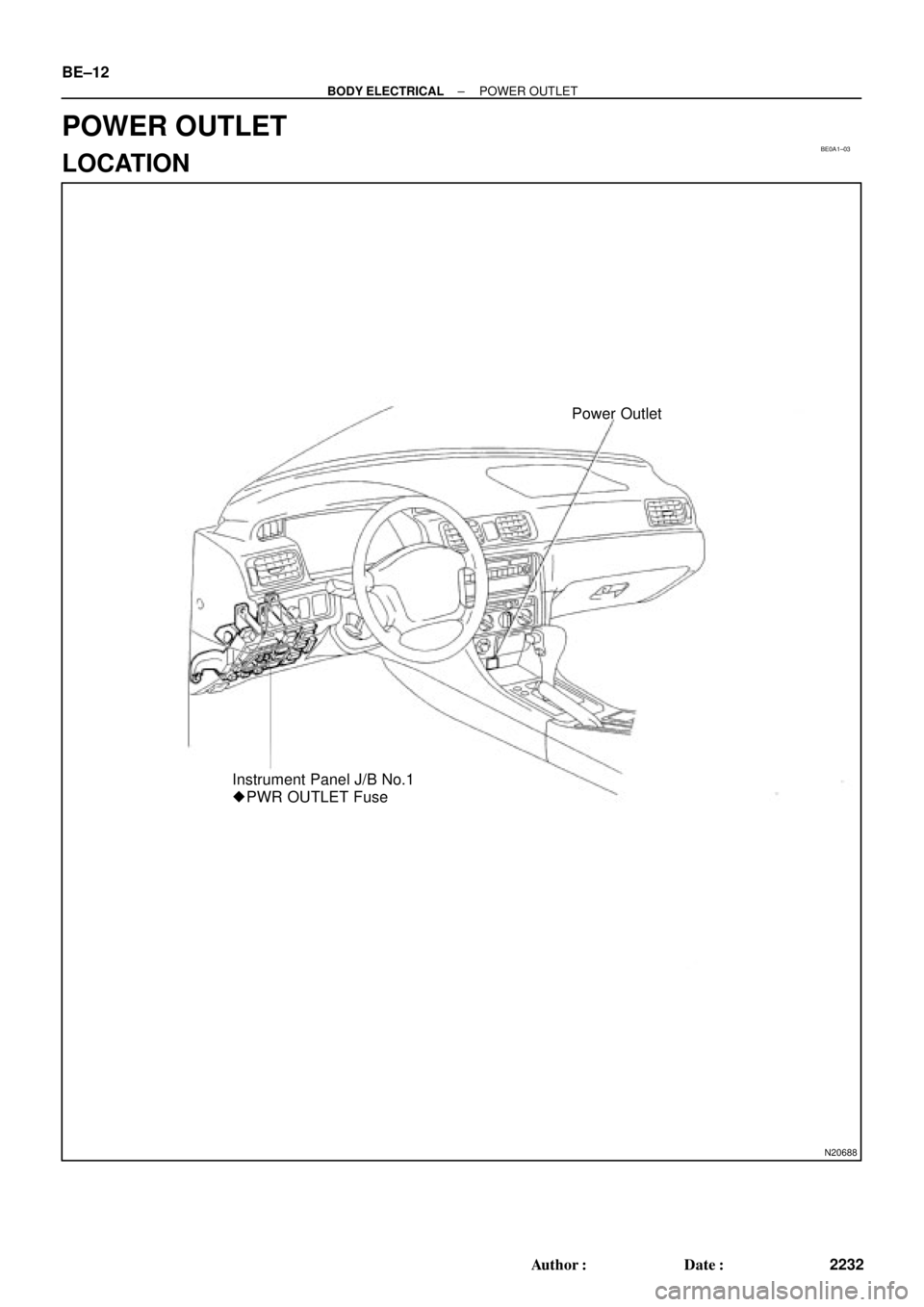

N20688
Power Outlet
Instrument Panel J/B No.1
PWR OUTLET Fuse BE±12
± BODY ELECTRICALPOWER OUTLET
2232 Author: Date:
POWER OUTLET
LOCATION
