Page 841 of 4592

TOYOTA CAMRY 1999 Service Repair Manual 1. Insert master key in the key cylinder. 2. Depress and release the acceleration pedal 6 times. 3. Depress and release the brake pedal 7 times. (Security indicator blinks) 4. Remove the mast

Page 842 of 4592

TOYOTA CAMRY 1999 Service Repair Manual 1. Insert master key in the key cylinder. 2. Require key code deletion from hand±held tester. (Security indicator blinks) 3. Remove the master key. HINT: When the key cannot be pulled out in

Page 843 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE0B3±06 I02682 Engine Room J/B No.2  EFI Fuse Transponder Key Amplifier Transponder Key Coil ECM  IGN Fuse Instrument Panel J/B ± BODY ELECTRICALENGINE IMMOBILISER SYSTEM BE±127 2347 Author: Da

Page 844 of 4592

TOYOTA CAMRY 1999 Service Repair Manual I03099 BE0B4±05 BE±128 ± BODY ELECTRICALENGINE IMMOBILISER SYSTEM 2348 Author: Date: INSPECTION INSPECTION TRANSPONDER KEY COIL CONTINUITY Check that continuity exists between terminal 1 and 2. I

Page 845 of 4592

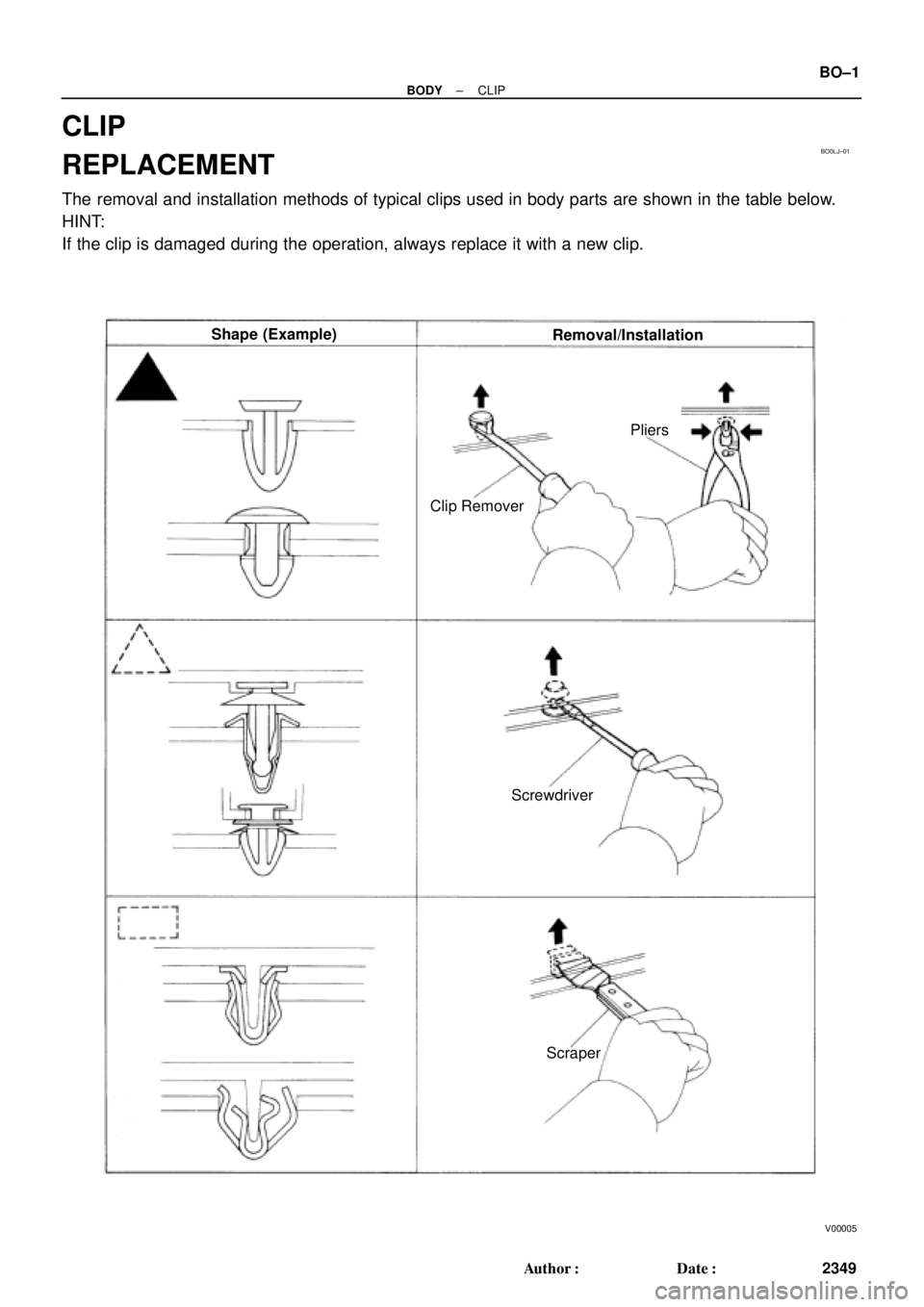

TOYOTA CAMRY 1999 Service Repair Manual BO0LJ±01 V00005 Shape (Example) Removal/Installation Clip RemoverPliers Screwdriver Scraper ± BODYCLIP BO±1 2349 Author: Date: CLIP REPLACEMENT The removal and installation methods of typical cli

Page 846 of 4592

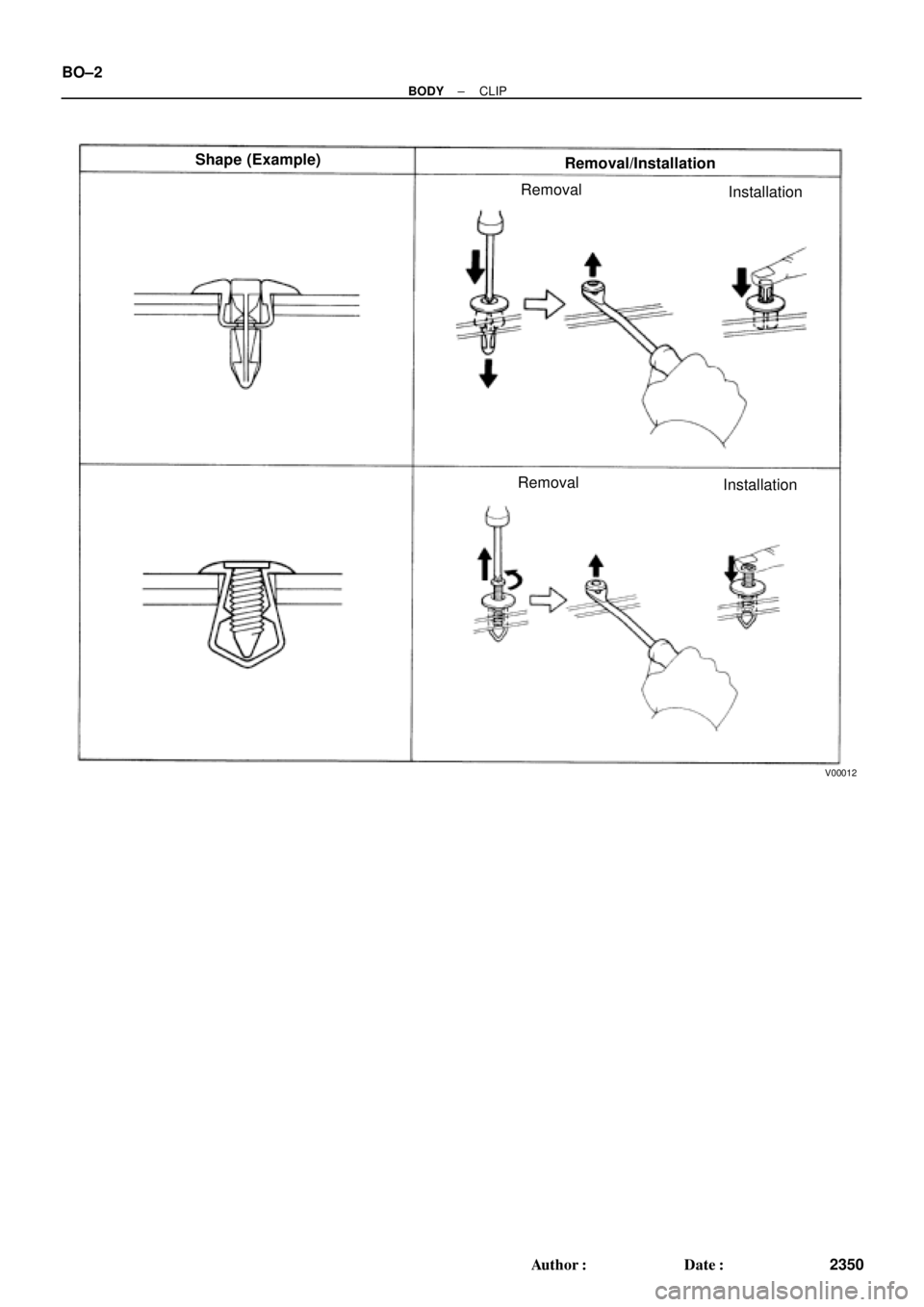

TOYOTA CAMRY 1999 Service Repair Manual V00012 Shape (Example) Removal/Installation Removal Installation Removal Installation BO±2 ± BODYCLIP 2350 Author: Date:

Page 847 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO0KU±01 ± BODYSRS AIRBAG BO±3 2351 Author: Date: SRS AIRBAG PRECAUTION The CAMRY is equipped with SRS (Supplemental Restraint System) such as the driver airbag, front passen- ger airbag, side ai

Page 848 of 4592

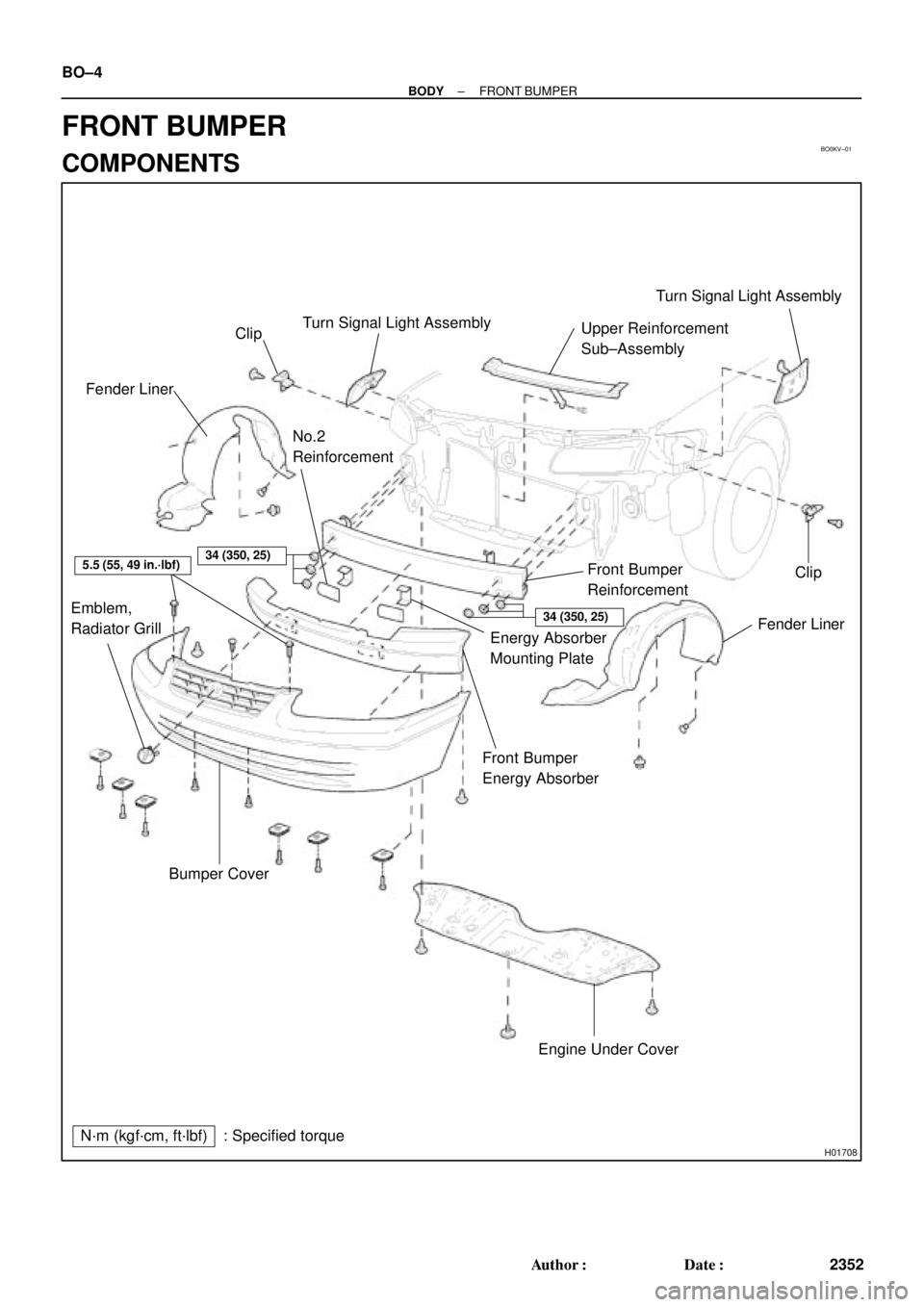

TOYOTA CAMRY 1999 Service Repair Manual BO0KV±01 H01708 Turn Signal Light Assembly Upper Reinforcement Sub±AssemblyTurn Signal Light Assembly Fender Liner Front Bumper Reinforcement Energy Absorber Mounting Plate Front Bumper Energy Absor
