Page 705 of 4592

TOYOTA CAMRY 1999 Service Repair Manual Will you register the next key? Insert already registered master key in the key cylinder. Listing TOYOTA hand±held tester select sub±key regis- tration. Remove the master key. Insert key to be regis

Page 706 of 4592

TOYOTA CAMRY 1999 Service Repair Manual 1. Insert master key in the key cylinder. 2. Depress and release the acceleration pedal 6 times. 3. Depress and release the brake pedal 7 times. (Security indicator blinks) 4. Remove the mast

Page 707 of 4592

TOYOTA CAMRY 1999 Service Repair Manual 1. Insert master key in the key cylinder. 2. Require key code deletion from hand±held tester. (Security indicator blinks) 3. Remove the master key. HINT: When the key cannot be pulled out in

Page 708 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE0B3±06 I02682 Engine Room J/B No.2  EFI Fuse Transponder Key Amplifier Transponder Key Coil ECM  IGN Fuse Instrument Panel J/B ± BODY ELECTRICALENGINE IMMOBILISER SYSTEM BE±127 2347 Author: Da

Page 709 of 4592

TOYOTA CAMRY 1999 Service Repair Manual I03099 BE0B4±05 BE±128 ± BODY ELECTRICALENGINE IMMOBILISER SYSTEM 2348 Author: Date: INSPECTION INSPECTION TRANSPONDER KEY COIL CONTINUITY Check that continuity exists between terminal 1 and 2. I

Page 710 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE16T±01 ± BODY ELECTRICALTROUBLESHOOTING BE±1 533 Author: Date: TROUBLESHOOTING PROBLEM SYMPTOMS TABLE COMBINATION METER METER, GAUGES AND ILLUMINATION: SymptomSuspect AreaSee page Tachometer,

Page 711 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BE0AI±04 I08447 Brake Fluid Level Warning Switch E/G Room J/B No.2  ECU±B Fuse  DOME Fuse Washer Fluid Level Warning Switch Combination Meter  Bulb Check RelayECM ABS ECU Light Control Rheostat I

Page 712 of 4592

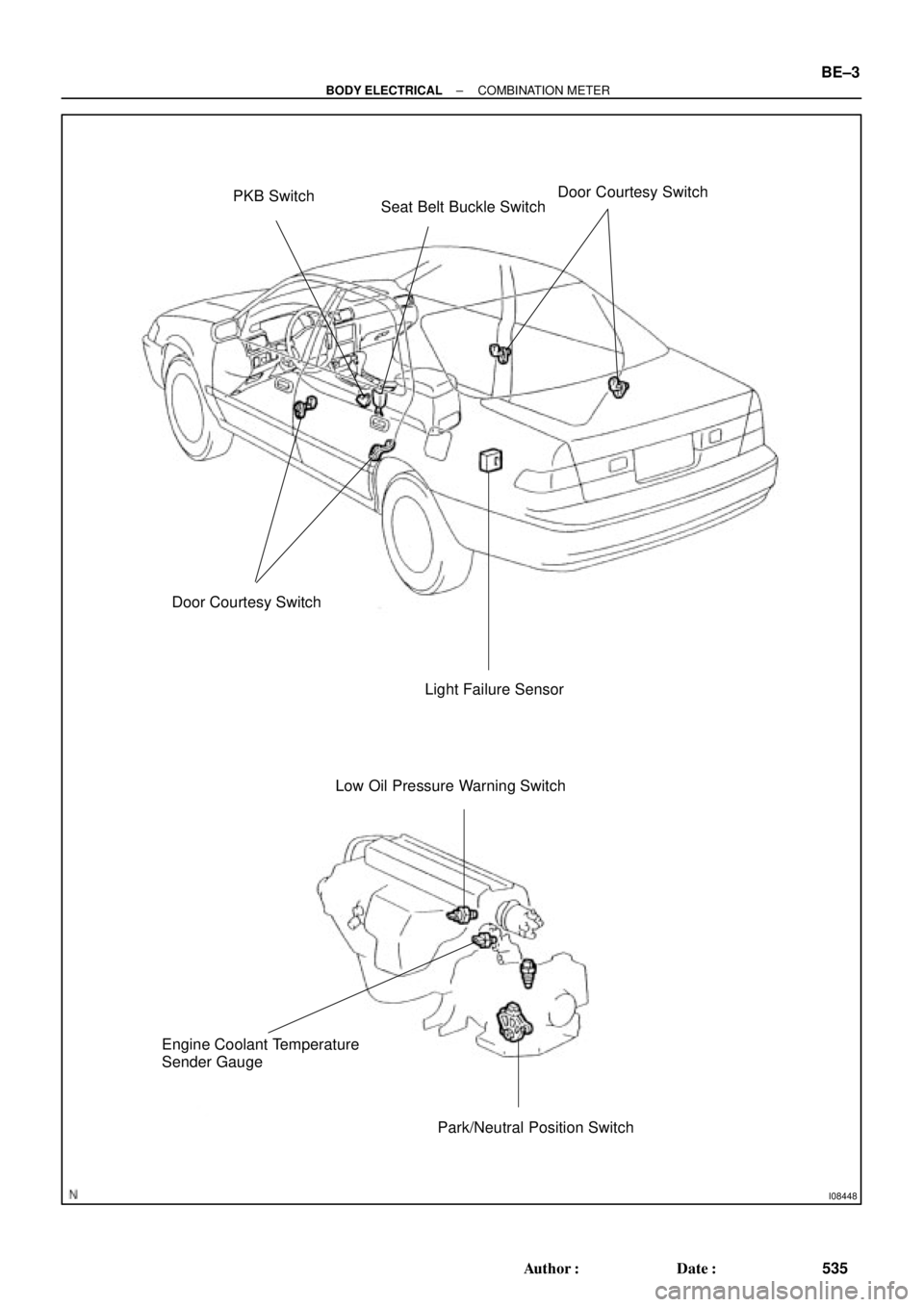

TOYOTA CAMRY 1999 Service Repair Manual I08448 PKB Switch Seat Belt Buckle SwitchDoor Courtesy Switch Door Courtesy Switch Light Failure Sensor Low Oil Pressure Warning Switch Engine Coolant Temperature Sender Gauge Park/Neutral Position Sw
