TOYOTA CAMRY 1999 Service Repair Manual H092532 Clips H09254 3 Clips Clip H09255 2 1 1 H07599 2 1 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE BO±7 8. REMOVE REAR FLOOR FINISH PLATE (a) Using a clip remover, remove the 2 clips. HINT: Tape the

Page 994 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO2DQ±01 BO±8 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE DISASSEMBLY 1. REMOVE DOOR LOCK (a) Disconnect the control link. (b) Remove the 2 bolts and door lock. Torque: 5.4 N´m (55 kgf´cm, 49 in.´l

Page 995 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO2DR±01 H09256 N21779 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE BO±9 ADJUSTMENT 1. ADJUST LUGGAGE COMPARTMENT DOOR (a) Remove the 11 clips and luggage compartment door cov- er. (b) Loosen the bol

Page 996 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO2DS±01 BO±10 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE REASSEMBLY Reassembly is in the reverse order of disassembly (See page BO±8).

Page 997 of 4592

TOYOTA CAMRY 1999 Service Repair Manual BO2DT±01 ± BODYLUGGAGE COMPARTMENT DOOR AND HINGE BO±11 INSTALLATION Installation is in the reverse order of removal (See page BO±6).

Page 998 of 4592

TOYOTA CAMRY 1999 Service Repair Manual H09251 BO2DU±01 H11085 Hole Here 150 mm (5.91 in.) BO±12 ± BODYLUGGAGE COMPARTMENT DOOR SUPPORT 551 Author: Date: LUGGAGE COMPARTMENT DOOR SUPPORT REPLACEMENT 1. REMOVE LUGGAGE COMPARTMENT TRIM F

Page 999 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± BODYLUGGAGE COMPARTMENT DOOR SUPPORT BO±13 552 Author: Date: (b) Install the 2 bolts and luggage compartment door support to the luggage compartment door panel. Torque: 22 N´m (224 kgf´cm, 16

Page 1000 of 4592

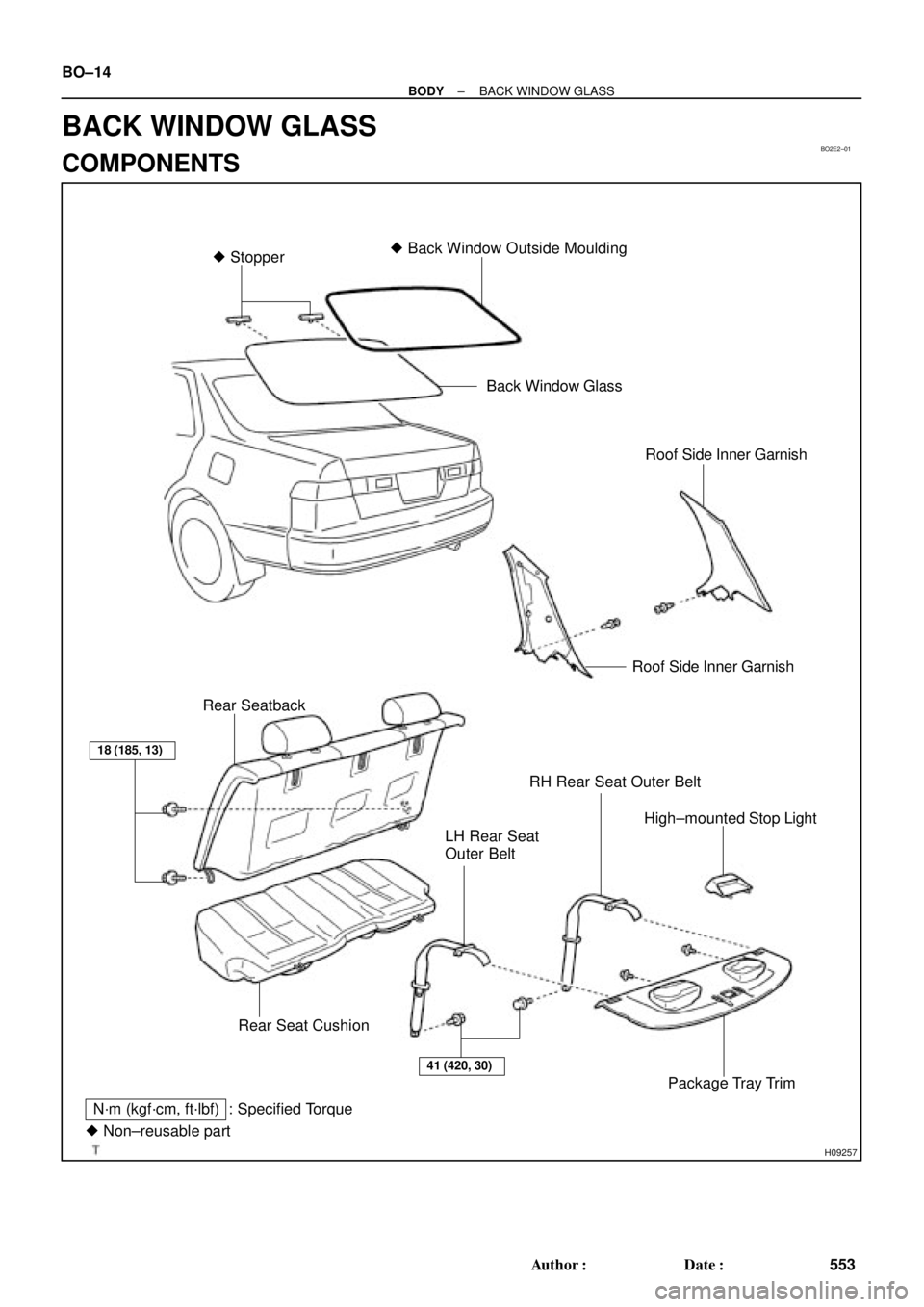

TOYOTA CAMRY 1999 Service Repair Manual BO2E2±01 H09257 N´m (kgf´cm, ft´lbf) : Specified Torque Stopper Back Window Outside Moulding High±mounted Stop Light Rear SeatbackBack Window Glass Roof Side Inner Garnish Package Tray Trim Rea
