Page 2905 of 4592

TOYOTA CAMRY 1999 Service Repair Manual LU03T±03 S05930 New O±Ring S05613 LU±18 ± LUBRICATION (5S±FE)OIL COOLER 1664 Author: Date: INSTALLATION 1. INSTALL OIL COOLER (a) Clean the oil cooler contact surface on the oil cooler mounting

Page 2906 of 4592

TOYOTA CAMRY 1999 Service Repair Manual B00319 Recommended Viscosity (SAE): TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE10W±30 5W±30 PREFERRED°C °F ±20 ±290 ±1820 ±740 460 1680 27100 38 LU0FR±01 P25173SST P25171 Oil Pressur

Page 2907 of 4592

TOYOTA CAMRY 1999 Service Repair Manual P12478 Adhesive LU±2 ± LUBRICATION (1MZ±FE)OIL AND FILTER 1666 Author: Date: 6. REMOVE OIL PRESSURE GAUGE AND REINSTALL OIL PRESSURE SWITCH (a) Remove the oil pressure gauge. (b) Apply adhesive

Page 2908 of 4592

TOYOTA CAMRY 1999 Service Repair Manual LU026±03 P12486 P12580 SST P12582 SST Additional 3/4 Turn ± LUBRICATION (1MZ±FE)OIL AND FILTER LU±3 1667 Author: Date: REPLACEMENT CAUTION: Prolonged and repeated contact with mineral oil wil

Page 2909 of 4592

TOYOTA CAMRY 1999 Service Repair Manual LU±4 ± LUBRICATION (1MZ±FE)OIL AND FILTER 1668 Author: Date: 3. REFILL WITH ENGINE OIL (a) Clean and install the oil drain plug with a new gasket. Torque: 45 N´m (460 kgf´cm, 33 ft´lbf) (b) F

Page 2910 of 4592

TOYOTA CAMRY 1999 Service Repair Manual LU027±04 B06398  Gasket RH Fender Apron Seal PS Pump Drive Belt A/C Compressor Connector A/C Compressor No.2 RH Engine Mounting Stay (M/T) Engine Moving Control Rod RH Engine Mounting Stay No.2 RH E

Page 2911 of 4592

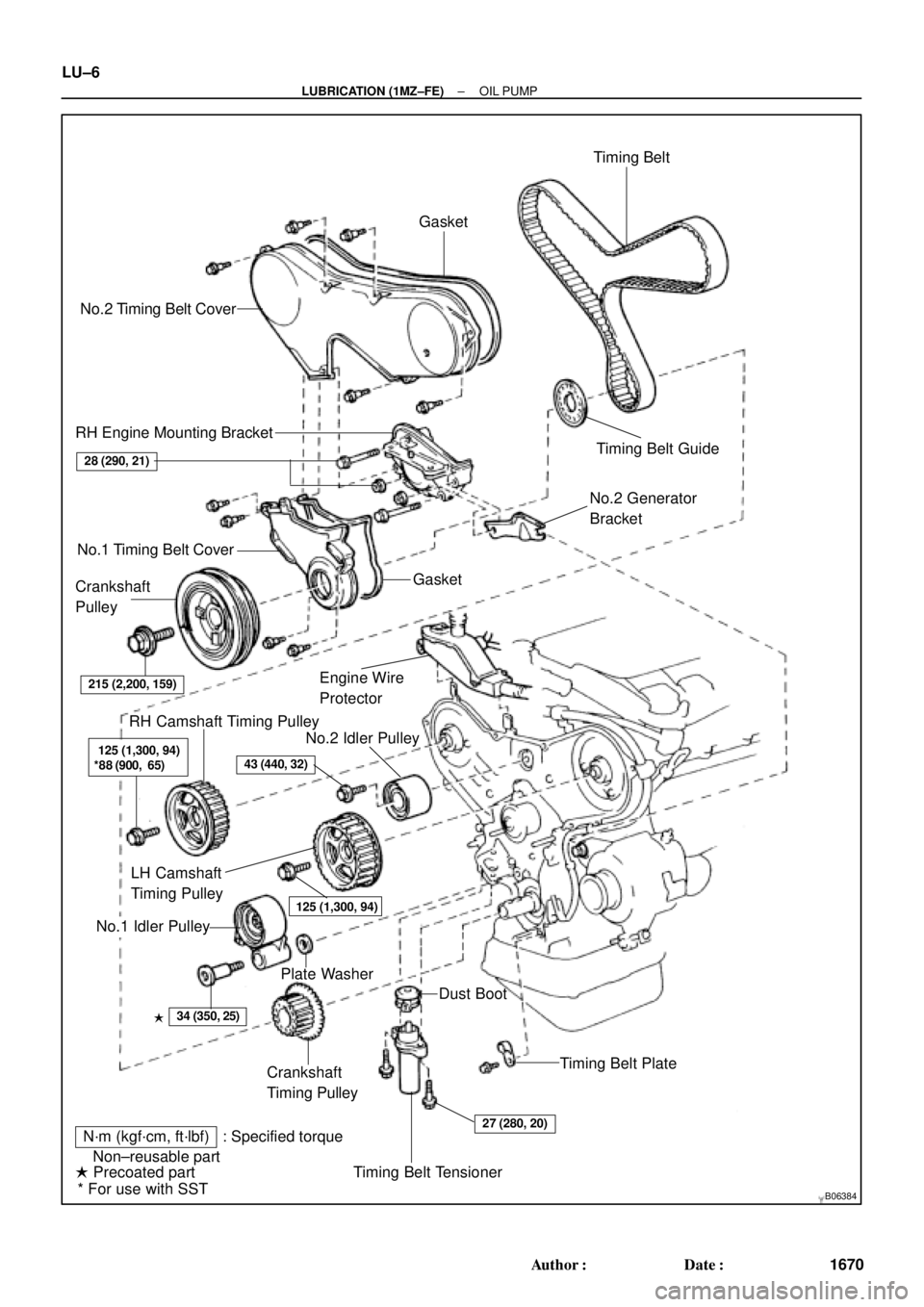

TOYOTA CAMRY 1999 Service Repair Manual B06384 No.2 Timing Belt CoverTiming Belt Gasket Timing Belt Guide No.2 Generator Bracket RH Engine Mounting Bracket Crankshaft PulleyGasket Engine Wire Protector RH Camshaft Timing Pulley No.2 Idler P

Page 2912 of 4592

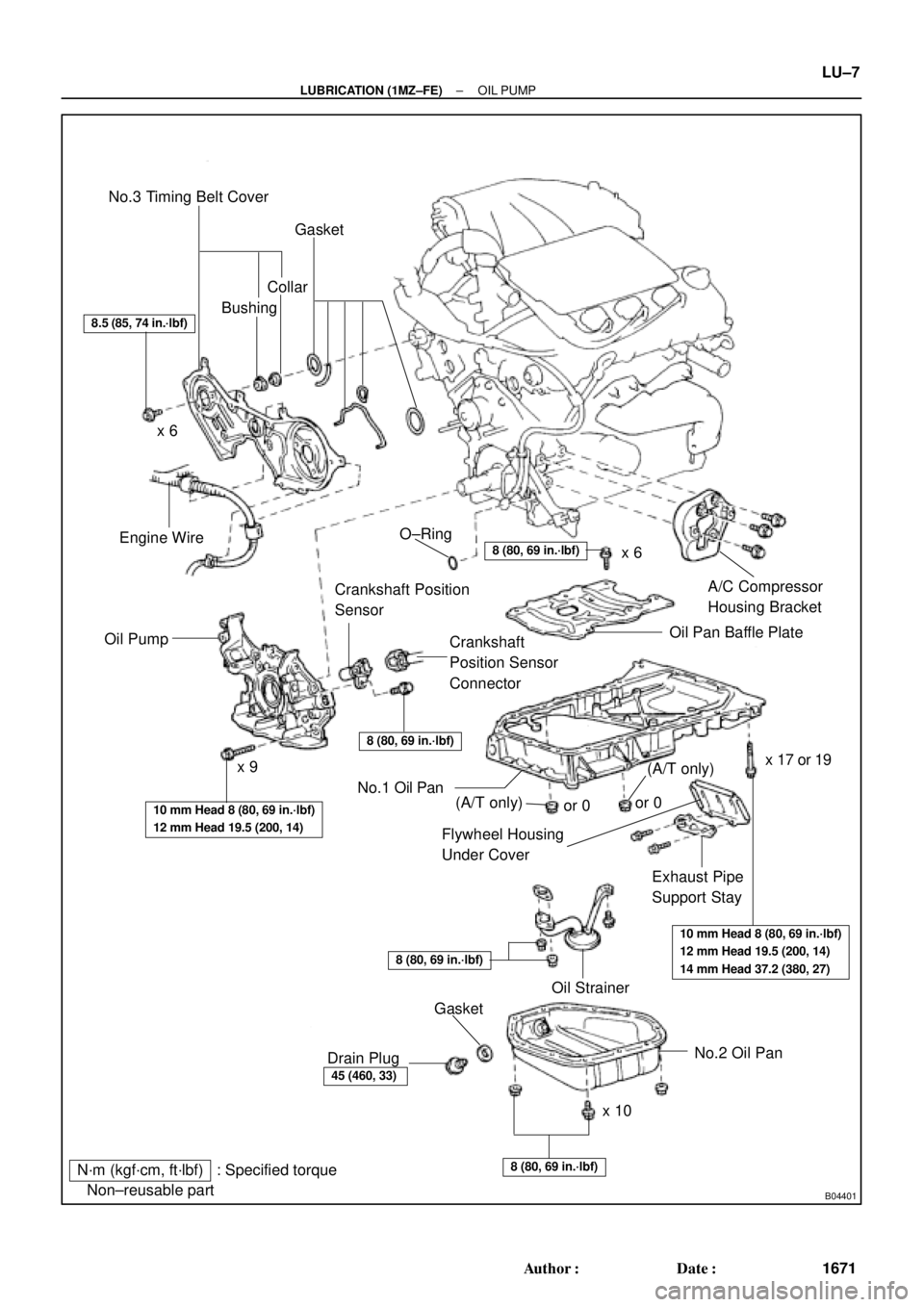

TOYOTA CAMRY 1999 Service Repair Manual B04401 N´m (kgf´cm, ft´lbf) : Specified torque  Non±reusable partNo.3 Timing Belt Cover Gasket BushingCollar A/C Compressor Housing Bracket Oil Pan Baffle Plate Crankshaft Position Sensor Connect
