TOYOTA CAMRY 1999 Service Repair Manual ± DIAGNOSTICSENGINE (5S±FE) DI±157 392 Author: Date: DTC P1133 A/F Sensor Circuit Response Malfunction (Only for California Spec.) CIRCUIT DESCRIPTION Refer to DTC P0125 (Insufficient Coolant Te

Page 1370 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DI±158 ± DIAGNOSTICSENGINE (5S±FE) 393 Author: Date: 2 Connect OBD II scan tool or TOYOTA nand±held teter, and read value for voltage output of A/F sensor. PREPARATION: (a) Connect the OBD II s

Page 1371 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± DIAGNOSTICSENGINE (5S±FE) DI±159 394 Author: Date: 4 Check resistance of A/F sensor heater (See page SF±59). NG Replace A/F sensor. OK 5 Check air induction system (See page SF±1). NG Repair

Page 1372 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DI±160 ± DIAGNOSTICSENGINE (5S±FE) 395 Author: Date: 8 Check injector injection (See page SF±23). NG Replace injector. OK Replace A/F sensor. 9 Perform confirmation driving pattern (See page DI

Page 1373 of 4592

TOYOTA CAMRY 1999 Service Repair Manual A00430 HTAF (+) ON ± DIAGNOSTICSENGINE (5S±FE) DI±161 396 Author: Date: DTC P1135 A/F Sensor Heater Circuit Malfunction (Only for California Spec.) CIRCUIT DESCRIPTION Refer to DTC P0125 (Insuffi

Page 1374 of 4592

TOYOTA CAMRY 1999 Service Repair Manual DI±162 ± DIAGNOSTICSENGINE (5S±FE) 397 Author: Date: 2 Check resistance of A/F sensor heater (See page SF±59). NG Replace A/F sensor. OK Check and repair harness or connector between EFI main r

Page 1375 of 4592

TOYOTA CAMRY 1999 Service Repair Manual ± DIAGNOSTICSENGINE (5S±FE) DI±163 398 Author: Date: DTC P1300 Igniter Circuit Malfunction No.1 DTC P1310 Igniter Circuit Malfunction No.2 CIRCUIT DESCRIPTION The ECM determines the ignition timi

Page 1376 of 4592

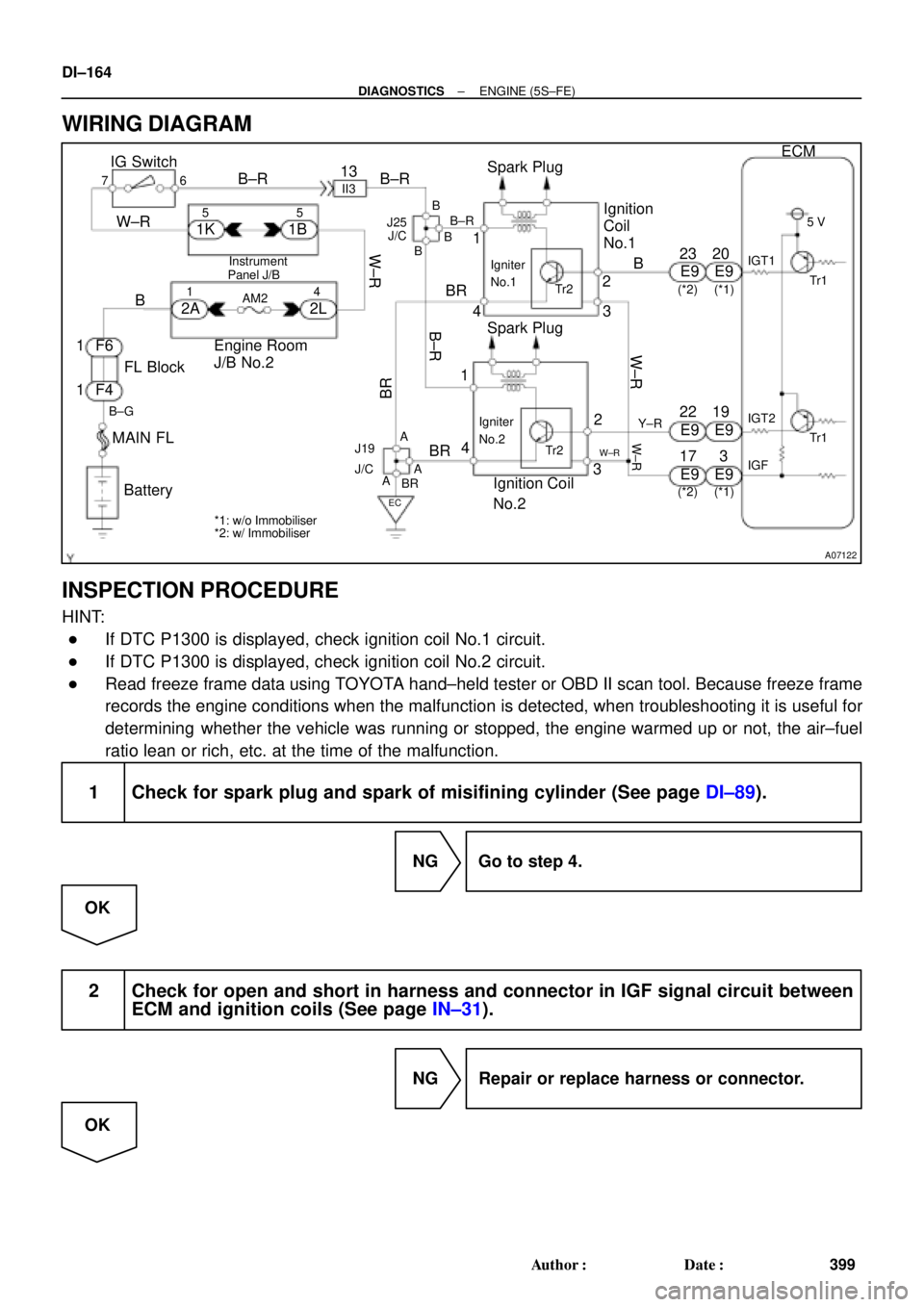

TOYOTA CAMRY 1999 Service Repair Manual A07122 IG Switch B±R BatteryEngine Room J/B No.2 76B±R13 1II3B±R B BR Spark Plug Spark Plug 2 3 2 3 4 Tr2 Igniter No.1 Ignition Coil No.1 FL Block Y±R BR B 20 19 IGT2 Tr1 E9 E9 E9 W±R IGT1 IGF5 V
