Page 2817 of 4592

B02129
Example:
CorrectWrong
N21642
Example:
IN±14
± INTRODUCTIONFOR ALL OF VEHICLES
14 Author: Date:
(f) SIDE AIRBAG ASSEMBLY
(1) Always store a removed or new side airbag assem-
bly with the airbag deployment direction facing up.
Storing the airbag assembly with the airbag deploy-
ment direction facing down could cause a serious
accident if the airbag deploys.
(2) Never measure the resistance of the airbag squib.
(This may cause the airbag to deploy, which is very
dangerous.)
(3) Grease should not be applied to the side airbag as-
sembly and the surface should not be cleaned with
detergents of any kind.
(4) Store the airbag assembly where the ambient tem-
perature remains below 93°C (200°F), without high
humidity and away from electrical noise.
(5) When using electric welding, first disconnect the air-
bag connector (yellow color and 2 pins) under the
seat before starting work.
(6) When disposing of a vehicle or the side airbag as-
sembly alone, the airbag should be deployed using
an SST before disposal (See page RS±42, RS±55).
Perform the operation in a safe place away from
electrical noise.
Page 2818 of 4592

B02121
Example:
± INTRODUCTIONFOR ALL OF VEHICLES
IN±15
15 Author: Date:

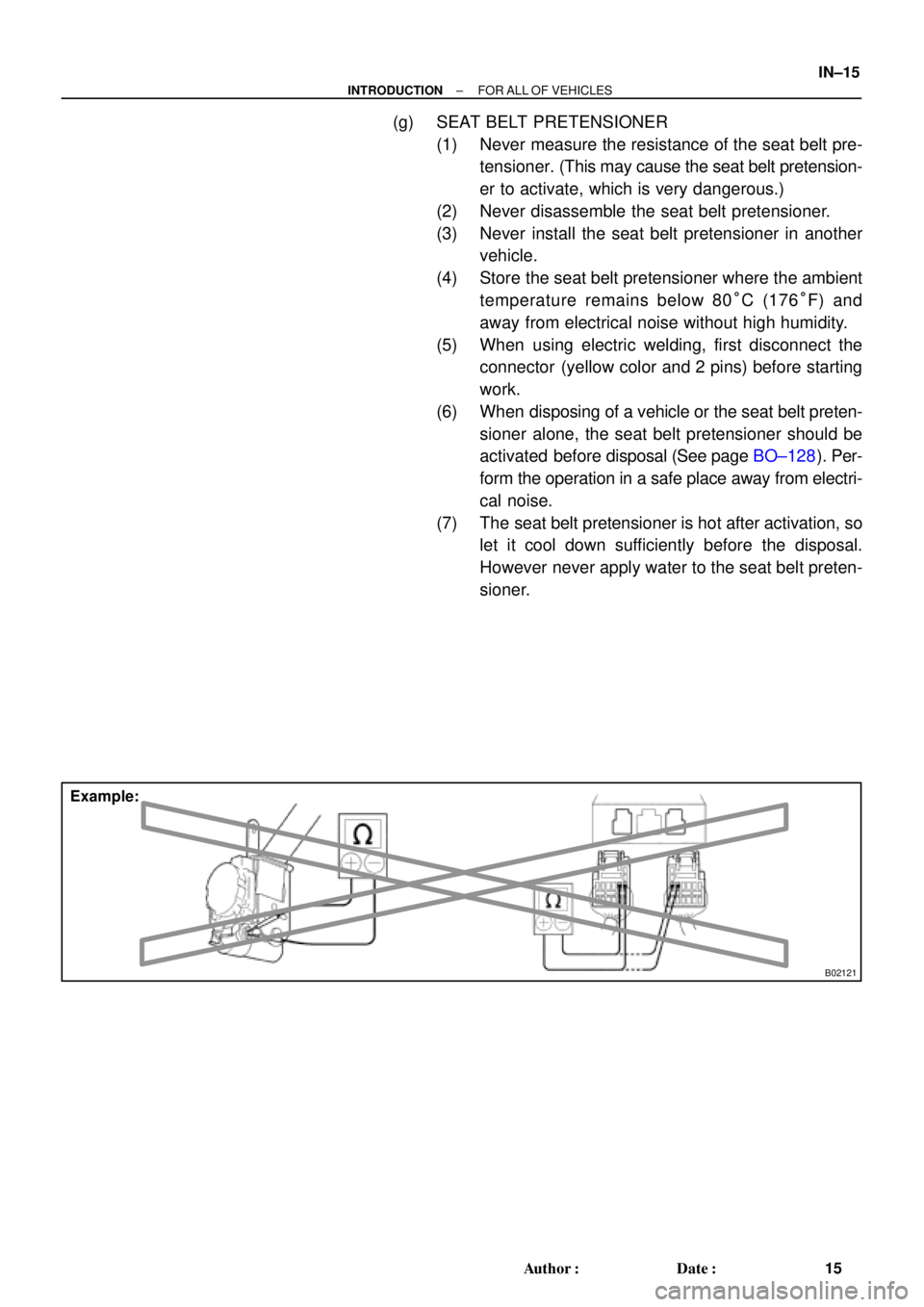

(g) SEAT BELT PRETENSIONER
(1) Never measure the resistance of the seat belt pre-
tensioner. (This may cause the seat belt pretension-
er to activate, which is very dangerous.)
(2) Never disassemble the seat belt pretensioner.
(3) Never install the seat belt pretensioner in another
vehicle.
(4) Store the seat belt pretensioner where the ambient
temperature remains below 80°C (176°F) and
away from electrical noise without high humidity.
(5) When using electric welding, first disconnect the
connector (yellow color and 2 pins) before starting
work.
(6) When disposing of a vehicle or the seat belt preten-
sioner alone, the seat belt pretensioner should be
activated before disposal (See page BO±128). Per-
form the operation in a safe place away from electri-
cal noise.
(7) The seat belt pretensioner is hot after activation, so
let it cool down sufficiently before the disposal.
However never apply water to the seat belt preten-
sioner.
Page 2819 of 4592

IN±16
± INTRODUCTIONFOR ALL OF VEHICLES
16 Author: Date:
(h) AIRBAG SENSOR ASSEMBLY
(1) Never reuse the airbag sensor assembly involved
in a collision when the SRS has deployed.
(2) The connectors to the airbag sensor assembly
should be connected or disconnected with the sen-
sor mounted on the floor. If the connectors are con-
nected or disconnected while the airbag sensor as-
sembly is not mounted to the floor, it could cause
undesired ignition of the supplemental restraint sys-
tem.
(3) Work must be started after 90 seconds from the
time the ignition switch is turned to the ºLOCKº posi-
tion and the negative (±) terminal cable is discon-
nected from the battery, even if only loosing the set
bolts of the airbag sensor assembly.
(i) WIRE HARNESS AND CONNECTOR
The SRS wire harness is integrated with the instrument
panel wire harness assembly. All the connectors in the
system are a standard yellow color. If the SRS wire har-
ness becomes disconnected or the connector becomes
broken due to an accident, etc., repair or replace it as
shown on page RS±73.
Page 2820 of 4592

± INTRODUCTIONFOR ALL OF VEHICLES
IN±17
17 Author: Date:
2. FOR VEHICLES EQUIPPED WITH A CATALYTIC CONVERTER
CAUTION:
If large amount of unburned gasoline flows into the converter, it may overheat and create a fire haz-
ard. To prevent this, observe the following precautions and explain them to your customer.
(a) Use only unleaded gasoline.
(b) Avoid prolonged idling.
Avoid running the engine at idle speed for more than 20 minutes.
(c) Avoid spark jump test.
(1) Perform spark jump test only when absolutely necessary. Perform this test as rapidly as possible.
(2) While testing, never race the engine.
(d) Avoid prolonged engine compression measurement.
Engine compression tests must be done as rapidly as possible.
(e) Do not run engine when fuel tank is nearly empty.
This may cause the engine to misfire and create an extra load on the converter.
(f) Avoid coasting with ignition turned off.
(g) Do not dispose of used catalyst along with parts contaminated with gasoline or oil.
3. IF VEHICLE IS EQUIPPED WITH MOBILE COMMUNICATION SYSTEM
For vehicles with mobile communication systems such as two±way radios and cellular telephones, observe
the following precautions.
(1) Install the antenna as far as possible away from the ECU and sensors of the vehicle's electronic
system.
(2) Install the antenna feeder at least 20 cm (7.87 in.) away from the ECU and sensors of the ve-
hicle's electronic systems. For details about ECU and sensors locations, refer to the section on
the applicable component.
(3) Avoid winding the antenna feeder together with other wiring as much as possible, and also avoid
running the antenna feeder parallel with other wire harnesses.
(4) Check that the antenna and feeder are correctly adjusted.
(5) Do not install powerful mobile communications system.
Page 2821 of 4592

N21624
TRAC OFF
Indicator Light
TRAC Cut
Switch
N21622
IN±18
± INTRODUCTIONFOR ALL OF VEHICLES
18 Author: Date:
4. FOR USING OBD II SCAN TOOL OR TOYOTA HAND±HELD TESTER
CAUTION:
Observe the following items for safety reasons:
Before using the OBD II scan tool or TOYOTA hand±held tester, the OBD II scan tool's instruc-
tion book or TOYOTA hand±held tester's operator manual should be read thoroughly.
Be sure to route all cables securely when driving with the OBD II scan tool or TOYOTA hand±
held tester connected to the vehicle. (i.e. Keep cables away from feet, pedals, steering wheel
and shift lever.)
Two persons are required when test driving with the OBD II scan tool or TOYOTA hand±held
tester, one person to drive the vehicle and the other person to operate the OBD II scan tool or
TOYOTA hand±held tester.
5. FOR VEHICLES EQUIPPED WITH TRACTION CON-
TROL (TRAC) SYSTEM
NOTICE:
When using a 2±wheel drum tester such as a speedometer
tester or chassis dynamometer, etc., or jacking up the front
wheels and driving the wheels, always push in the TRAC
cut (ºTRAC OFFº) switch and turn the TRAC system OFF.
Confirm TRAC system is OFF
(1) Press the TRAC cut (ºTRAC OFFº) switch.
(2) Check that the TRAC OFF indicator light comes on
when the TRAC system is turned OFF by the TRAC
cut switch.
HINT:
TRAC cut switch is reset after the ignition switch has been
turned OFF and ON.
The TRAC system can be operated.
(3) Begin measurements.
Page 2822 of 4592
N21623
± INTRODUCTIONFOR ALL OF VEHICLES
IN±19
19 Author: Date:
(4) Press the TRAC cut switch to turn the TRAC to the
operative mode and check that the TRAC OFF indi-
cator light goes off.
HINT:
The SLIP indicator light blinks when the TRAC system in opera-
tion.
Page 2823 of 4592

IN05Y±07
IN±20± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
20 Author: Date:
HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS
GENERAL INFORMATION
A large number of ECU controlled systems are used in the 1999 CAMRY. In general, the ECU controlled
system is considered to be a very intricate system requiring a high level of technical knowledge and expert
skill to troubleshoot. However, the fact is that if you proceed to inspect the circuits one by one, troubleshoot-
ing of these systems is not complex. If you have adequate understanding of the system and a basic knowl-
edge of electricity, accurate diagnosis and necessary repair can be performed to locate and fix the problem.
This manual is designed through emphasis of the above standpoint to help service technicians perform ac-
curate and effective troubleshooting, and is compiled for the following major ECU controlled systems:
The troubleshooting procedure and how to make use of it are described on the following pages.
1. 5S±FE EngineDI±1
2. 1MZ±FE EngineDI±195
3. A140E Automatic TransaxleDI±387
4. A541E Automatic TransaxleDI±436
5. Anti±Lock Brake System (DENSO made)DI±491
6. Anti±Lock Brake System (BOSCH made)DI±537
7. ABS & Traction Control SystemDI±572
8. Supplemental Restraint SystemDI±624
9. Wireless Door Lock Control SystemDI±800
10.Theft Deterrent SystemDI±826
11. Cruise Control SystemDI±868
12.Engine Immobiliser SystemDI±919
FOR USING OBD II SCAN TOOL OR TOYOTA HAND±HELD TESTER
Before using the scan tool or tester, the scan tool's instruction book or tester's operator manual should
be read thoroughly.
If the scan tool or tester cannot communicate with ECU controlled systems when you have connected
the cable of the scan tool or tester to DLC3, turned the ignition switch ON and operated the scan tool,
there is a problem on the vehicle side or tool side.
(1) If communication is normal when the tool is connected to another vehicle, inspect the diagnosis
data link line (Busline) or ECU power circuit of the vehicle.
(2) If communication is still not possible when the tool is connected to another vehicle, the problem
is probably in the tool itself, so perform the Self Test procedures outline in the Tester Operator's
Manual.
Page 2824 of 4592

IN05W±08
Vehicle Brought to Workshop
Customer Problem
Analysis
Symptom Confirmation
and Diagnostic Trouble
Code Check
Symptom Simulation
Diagnostic Trouble
Code Chart
Problem Symptoms Table
Circuit Inspection or Parts
Inspection
Repair
Confirmation Test
End 1
2
43
5
6
7
8Ask the customer about the conditions and the
environment when the problem occurred.1
Confirm the symptoms and the problem conditions,
and check the diagnostic trouble codes.
(When the problem symptoms do not appear
during confirmation, use the symptom simulation
method described later on.)2, 3
Check the results obtained in Step 2, then confirm
the inspection procedure for the system or the part
which should be checked using the diagnostic
trouble code chart or the problem symptoms table.4, 5, 6
Check and repair the affected system or part in
accordance with the instructions in Step 6. 7
After completing repairs, confirm that the problem
has been eliminated.
(If the problem is not reproduced, perform the
confirmation test under the same conditions and
in the same environment as when it occurred for
the first time.)8
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN±21
21 Author: Date:
HOW TO PROCEED WITH TROUBLESHOOTING
Carry out troubleshooting in accordance with the procedure on the following page. Here, only the basic pro-
cedure is shown. Details are provided in Diagnostics section, showing the most effective methods for each
circuit. Confirm the troubleshooting procedures first for the relevant circuit before beginning troubleshooting
of that circuit.
