Page 3017 of 4592

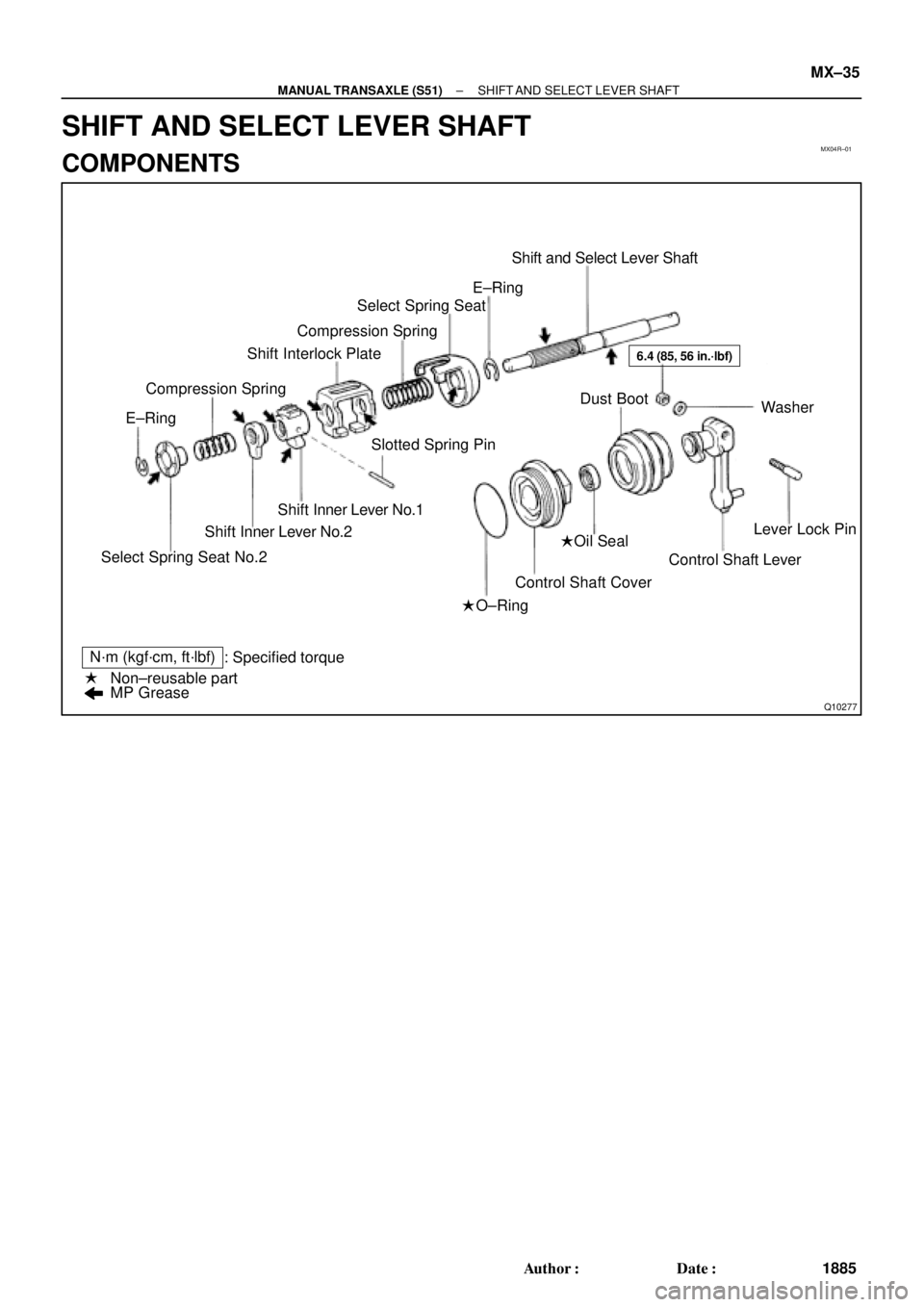

TOYOTA CAMRY 1999 Service Repair Manual MX04R±01 Q10277 Shift and Select Lever Shaft Select Spring Seat Shift Interlock Plate Compression Spring Select Spring Seat No.2Shift Inner Lever No.2Shift Inner Lever No.1Slotted Spring Pin Control

Page 3018 of 4592

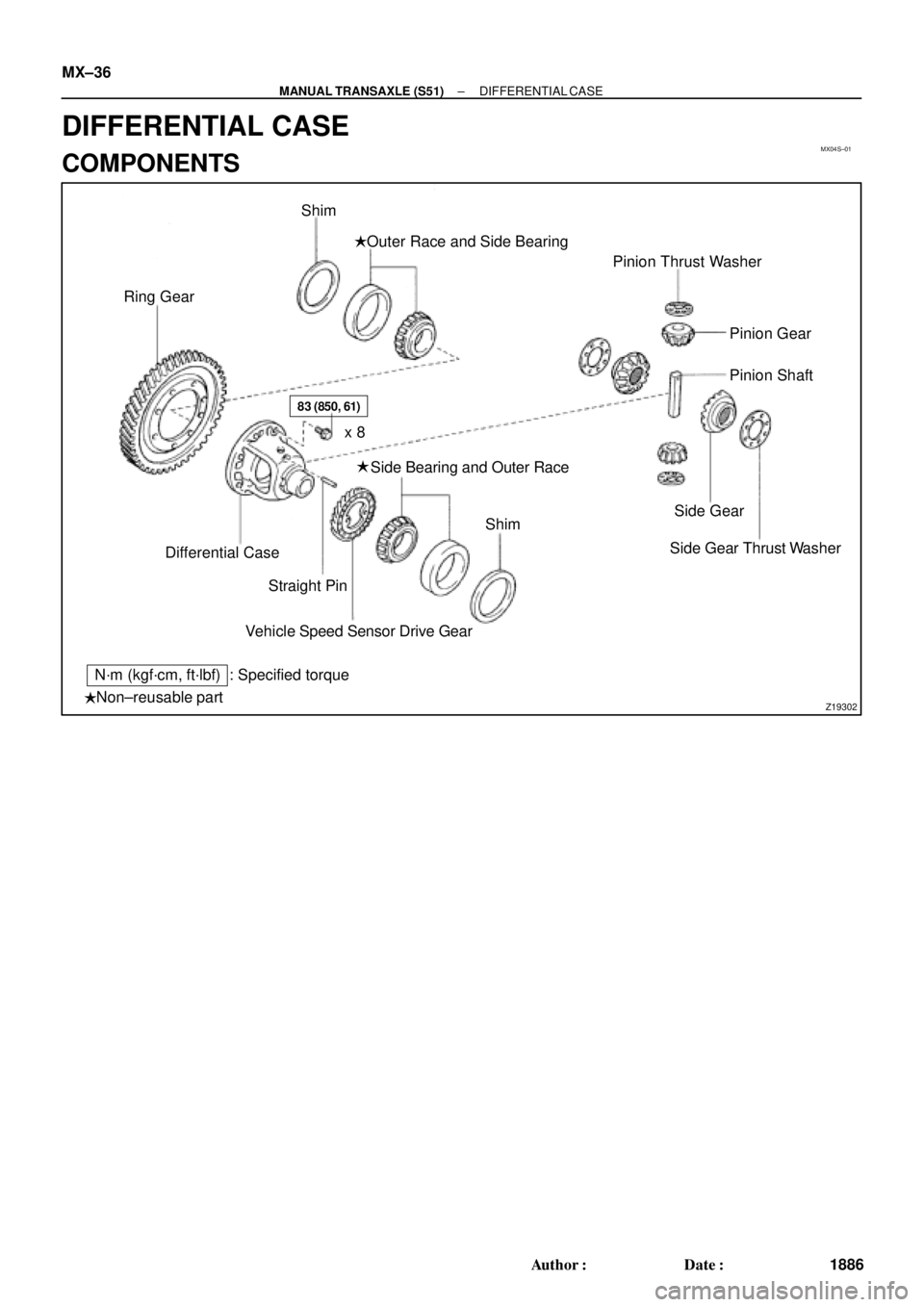

TOYOTA CAMRY 1999 Service Repair Manual MX04S±01 Z19302 Ring GearOuter Race and Side Bearing Pinion Thrust Washer Pinion Gear Pinion Shaft Side Gear Side Gear Thrust Washer Side Bearing and Outer Race Vehicle Speed Sensor Drive Gear Straig

Page 3019 of 4592

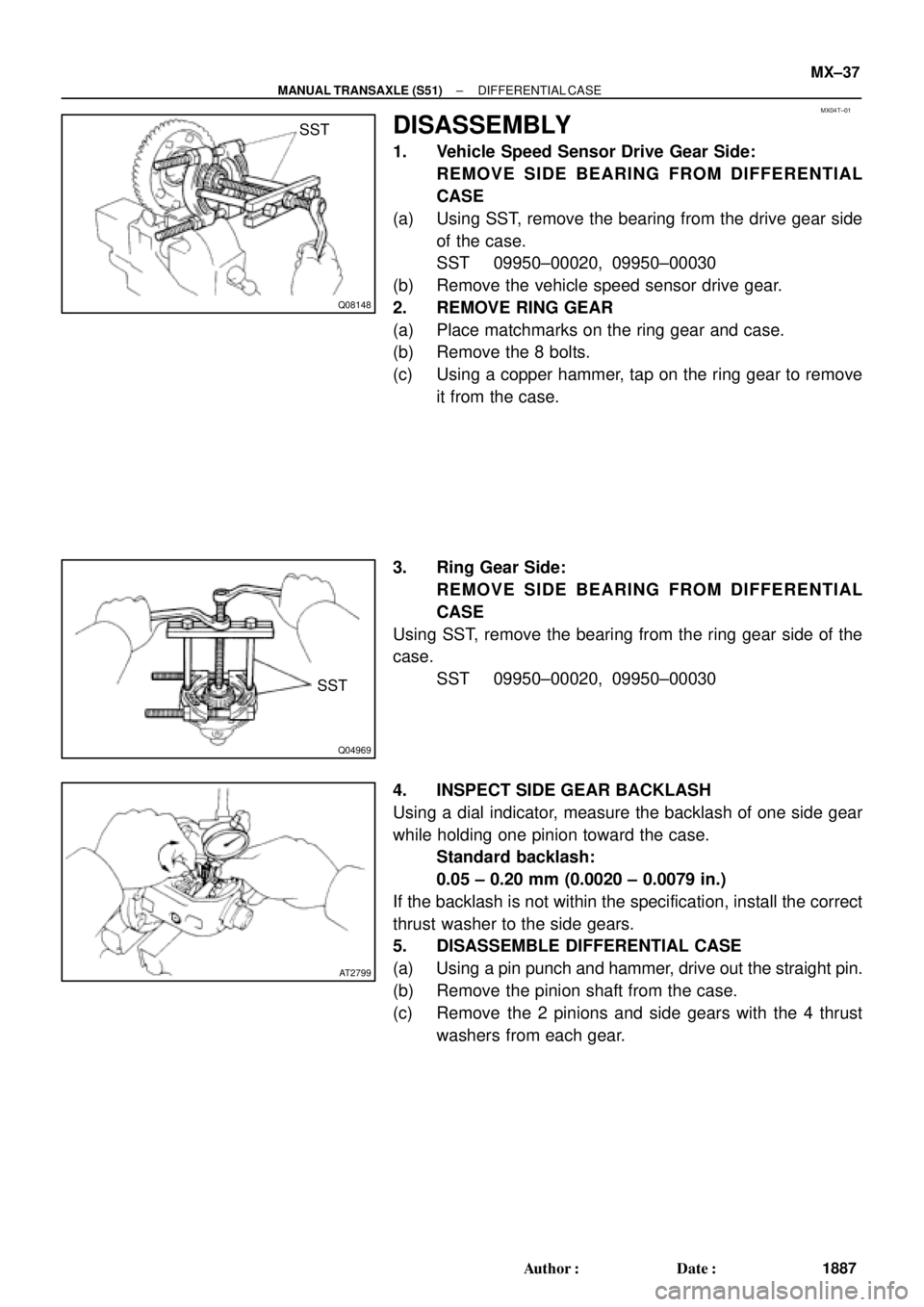

TOYOTA CAMRY 1999 Service Repair Manual MX04T±01 Q08148 SST Q04969 SST AT2799 ± MANUAL TRANSAXLE (S51)DIFFERENTIAL CASE MX±37 1887 Author: Date: DISASSEMBLY 1. Vehicle Speed Sensor Drive Gear Side: REMOVE SIDE BEARING FROM DIFFERENTIAL

Page 3020 of 4592

TOYOTA CAMRY 1999 Service Repair Manual Q08145 SST SM0286 SST SM0155 SST Z00442 MT0634 SST MX±38 ± MANUAL TRANSAXLE (S51)DIFFERENTIAL CASE 1888 Author: Date: 6. Transaxle Case Side: IF NECESSARY, REPLACE DIFFERENTIAL SIDE BEARING RETAIN

Page 3021 of 4592

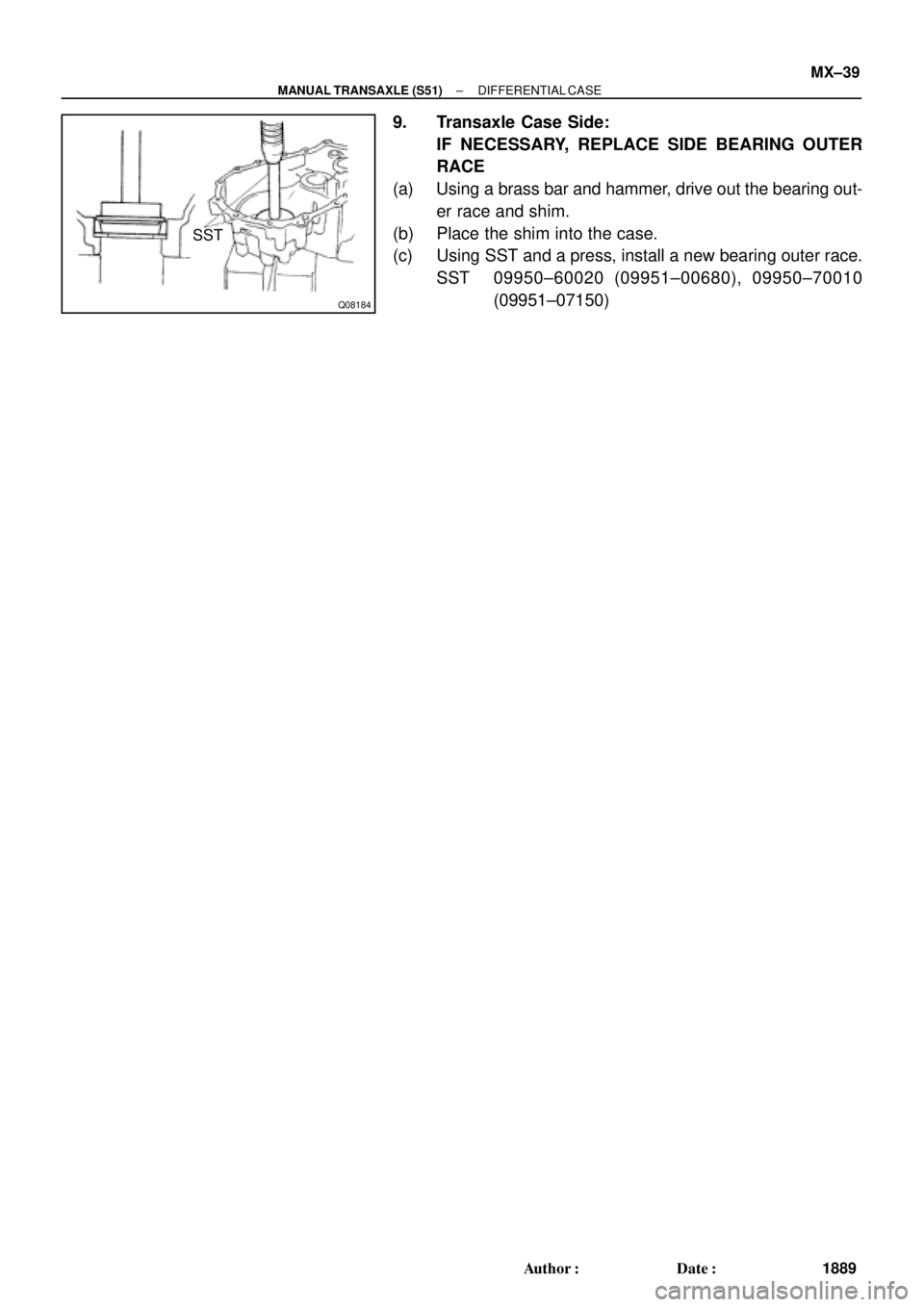

TOYOTA CAMRY 1999 Service Repair Manual Q08184 SST ± MANUAL TRANSAXLE (S51)DIFFERENTIAL CASE MX±39 1889 Author: Date: 9. Transaxle Case Side: IF NECESSARY, REPLACE SIDE BEARING OUTER RACE (a) Using a brass bar and hammer, drive out the

Page 3022 of 4592

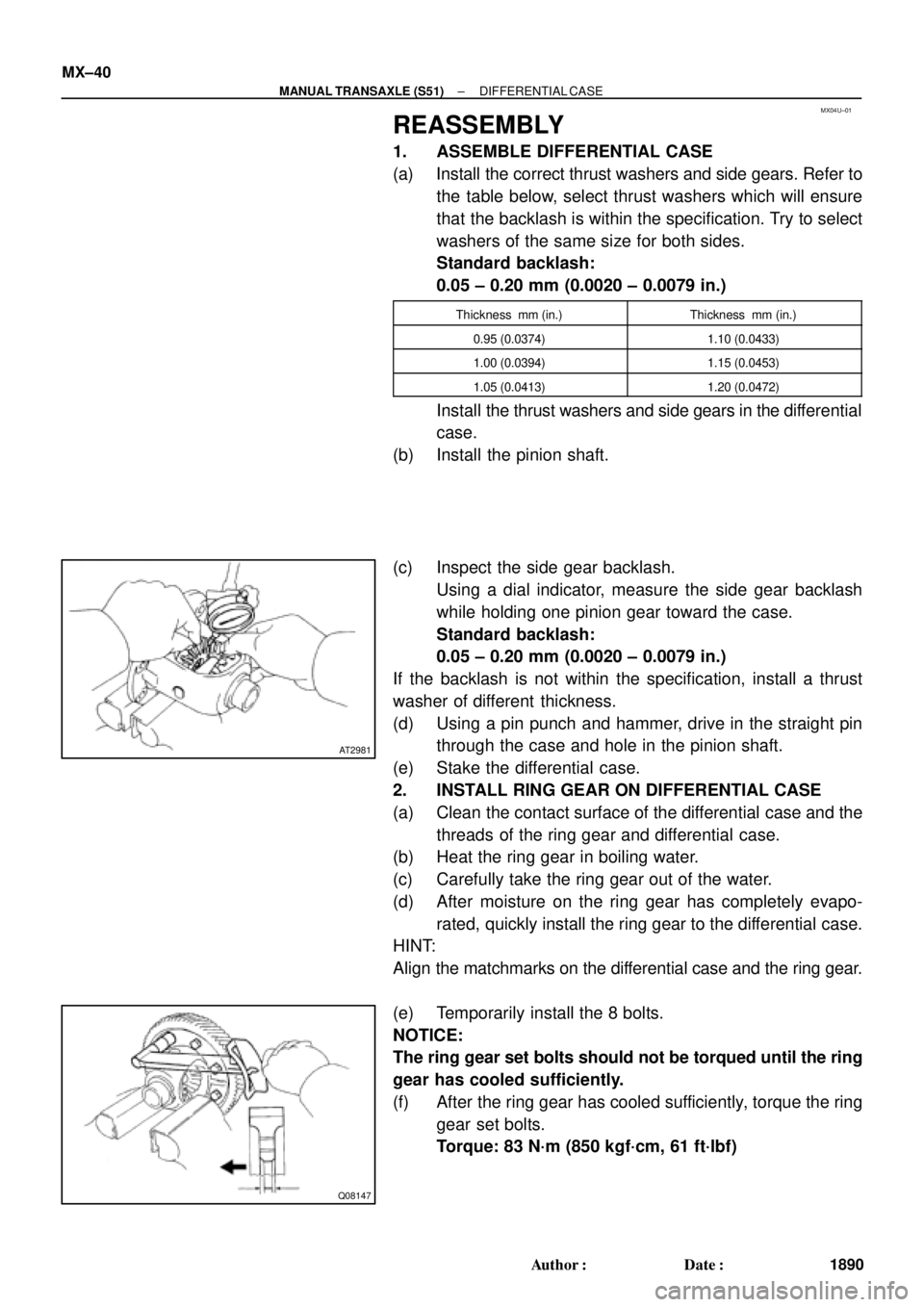

TOYOTA CAMRY 1999 Service Repair Manual MX04U±01 AT2981 Q08147 MX±40 ± MANUAL TRANSAXLE (S51)DIFFERENTIAL CASE 1890 Author: Date: REASSEMBLY 1. ASSEMBLE DIFFERENTIAL CASE (a) Install the correct thrust washers and side gears. Refer to

Page 3023 of 4592

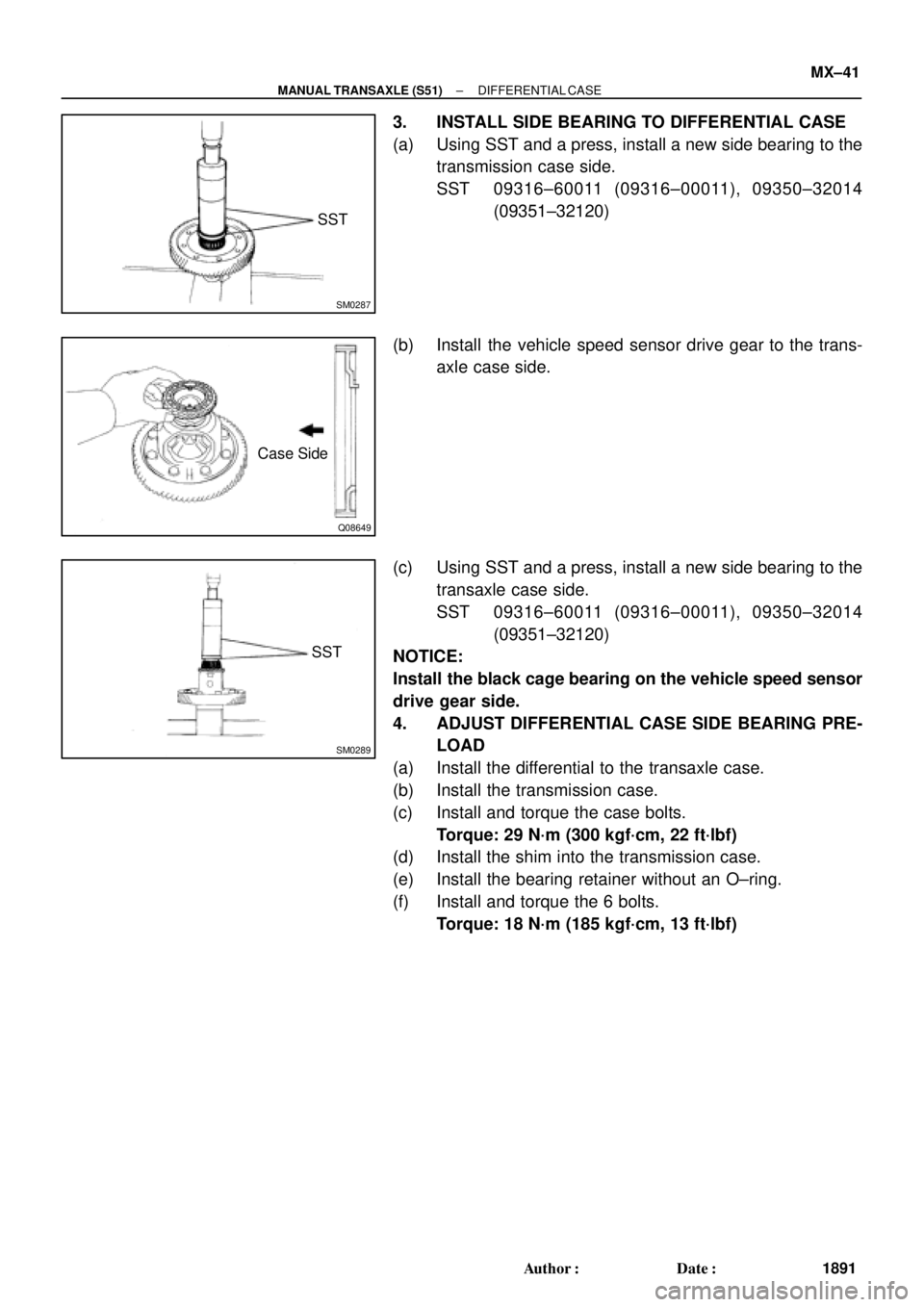

TOYOTA CAMRY 1999 Service Repair Manual SM0287 SST Q08649 Case Side SM0289 SST ± MANUAL TRANSAXLE (S51)DIFFERENTIAL CASE MX±41 1891 Author: Date: 3. INSTALL SIDE BEARING TO DIFFERENTIAL CASE (a) Using SST and a press, install a new side

Page 3024 of 4592

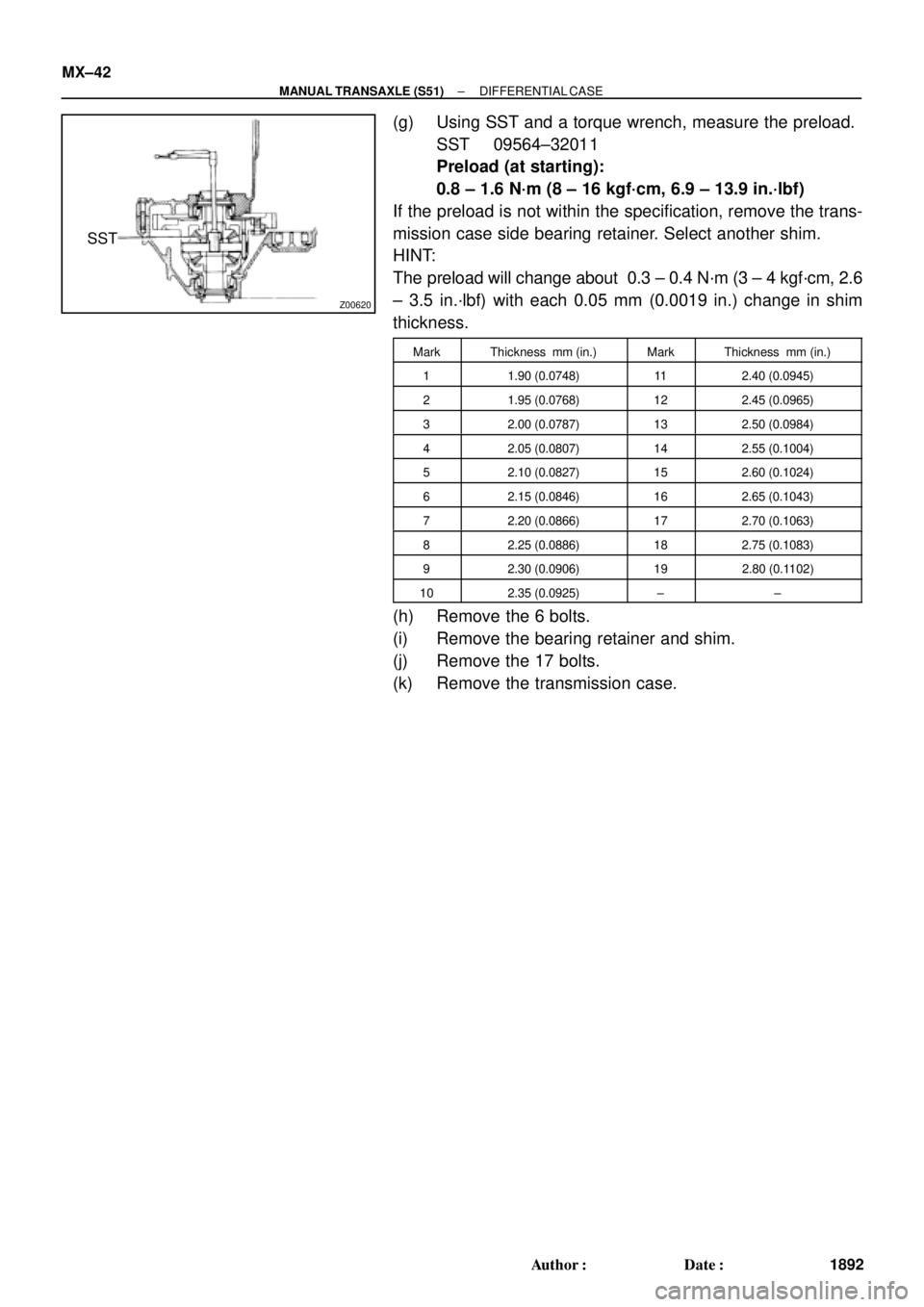

TOYOTA CAMRY 1999 Service Repair Manual Z00620 SST MX±42 ± MANUAL TRANSAXLE (S51)DIFFERENTIAL CASE 1892 Author: Date: (g) Using SST and a torque wrench, measure the preload. SST 09564±32011 Preload (at starting): 0.8 ± 1.6 N´m (8 ±
